Installation Procedure

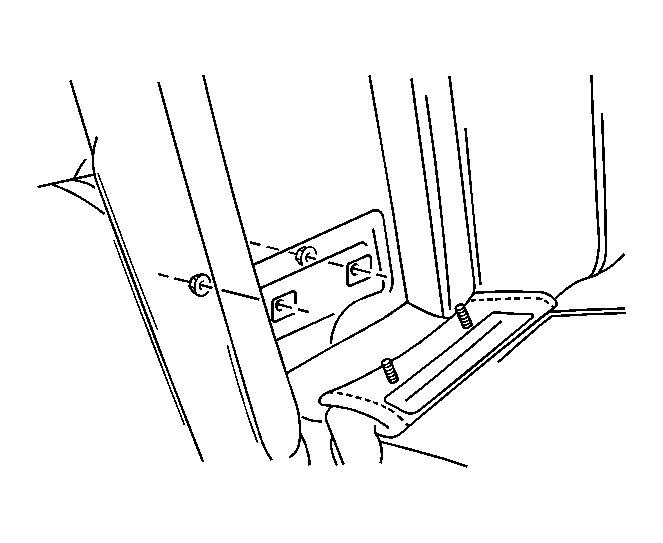

Fig 1: View Of Rear Seat Armrest And Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the armrest with the nuts.
Tighten: Tighten the armrest nuts to 24 N.m (18 lb ft) .
Raise and secure the rear seatbacks in the upright position.
