Installation Procedure

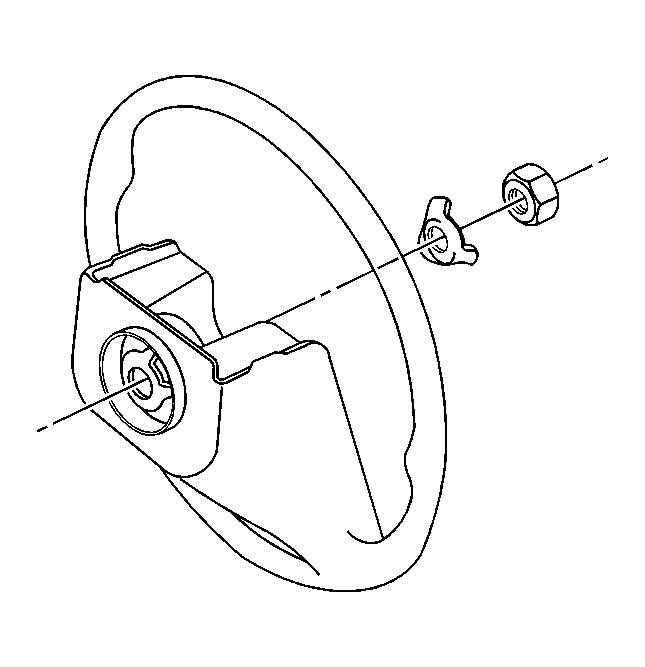

    Fig 1: Identifying Steering Wheel Nut And Retaining Clip
    GM1308166Courtesy of GENERAL MOTORS CORP.
  1. Clip the contact ring on the steering wheel, if necessary.
  2. Align the match-marks on the steering wheel and the steering column shaft.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the retaining clip and new steering wheel nut.

    Tighten:  Tighten the steering wheel nut to 38 N.m (28 lb ft)  .

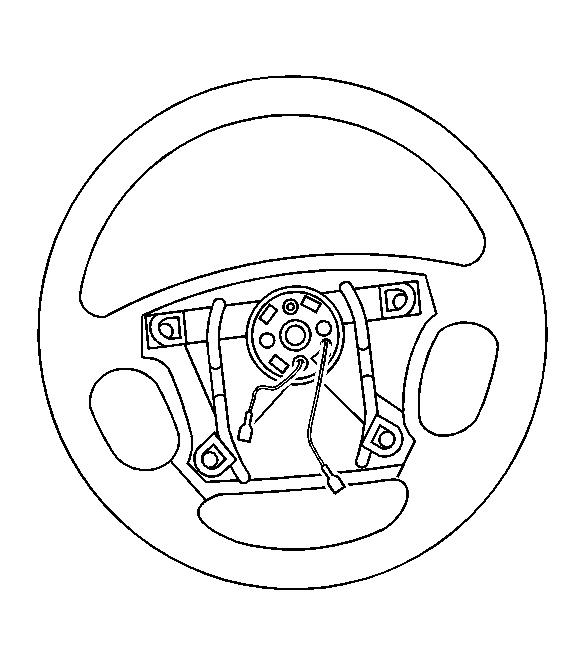

    4. Fig 2: Identifying Steering Wheel Horn Leads
    GM1308164Courtesy of GENERAL MOTORS CORP.
  4. Bend the tabs to secure the retaining clip.
  5. Connect the horn leads and install the steering wheel horn cap.
    6. Fig 3: Accessing Steering Wheel Horn Cap Screw
    GM1308134Courtesy of GENERAL MOTORS CORP.
  6. Rotate the steering wheel to allow access to the steering wheel horn cap screw. Install the horn cap screw.
  7. Rotate the steering wheel to allow access to the other steering wheel horn cap screw. Install the horn cap screw.

    Tighten:  Tighten both steering wheel horn cap screws to 4.5 N.m (40 lb in)  .

  8. Connect the negative battery cable.
