Power Window Schematics

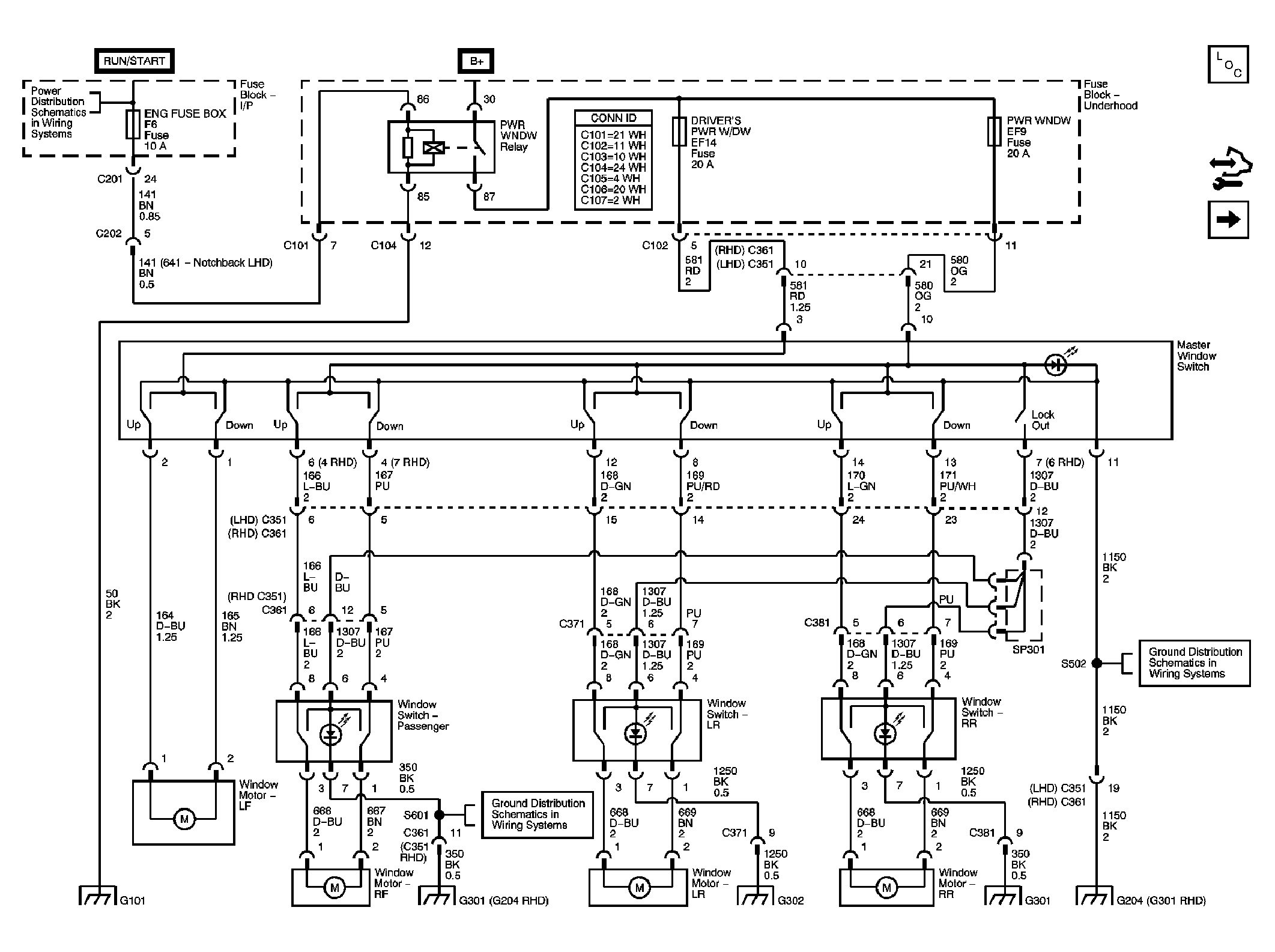

Fig 1: Front/Rear Power Windows Schematic

GM1650864

Courtesy of GENERAL MOTORS CORP.

Fig 2: Passenger Power Window Schematic

GM1360860

Courtesy of GENERAL MOTORS CORP.
