Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

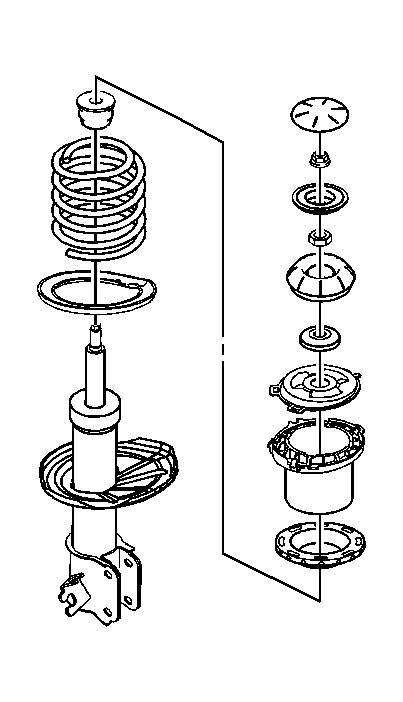

    Fig 1: View Of Strut Components
    GM1290674Courtesy of GENERAL MOTORS CORP.
  1. Install the lower ring insulator and the spring.
  2. Compress the spring using the J 45400  or KM-329-A  . See Special Tools .
  3. Install the hollow bumper, the upper ring insulator, the front spring locator, the upper spring seat, the upper strut mount, and the mount bearing. Be sure the upper spring seat is clipped to the front spring locator.

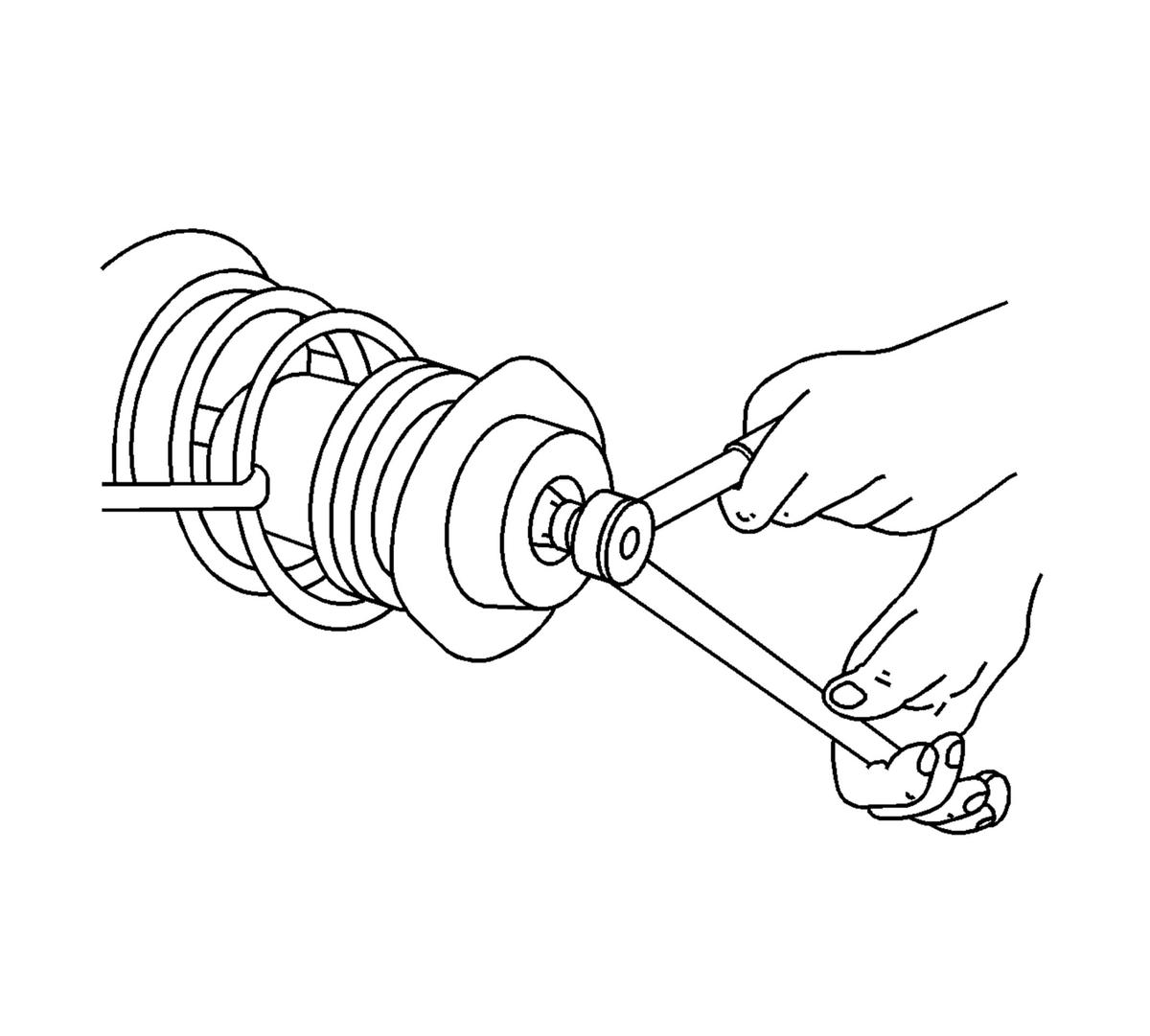

    4. Fig 2: Piston Rod Nut Removal/Installation Procedure
    GM1290673Courtesy of GENERAL MOTORS CORP.
  4. Install the piston rod nut.

    Tighten:  Tighten the piston rod nut to 75 N.m (55 lb ft)  .

  5. Release the KM-329-A  . See Special Tools .
