Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

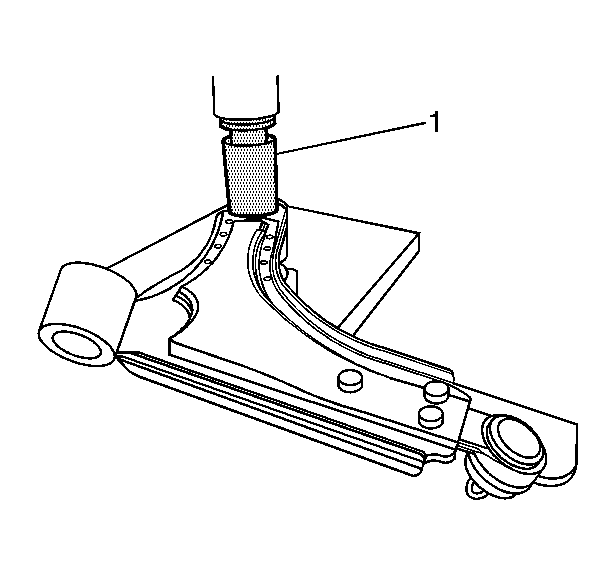

    Fig 1: View Of KM-158
    GM1290671Courtesy of GENERAL MOTORS CORP.
  1. Press the control arm rear damping bushing into the control arm using KM-158  (1). See Special Tools .

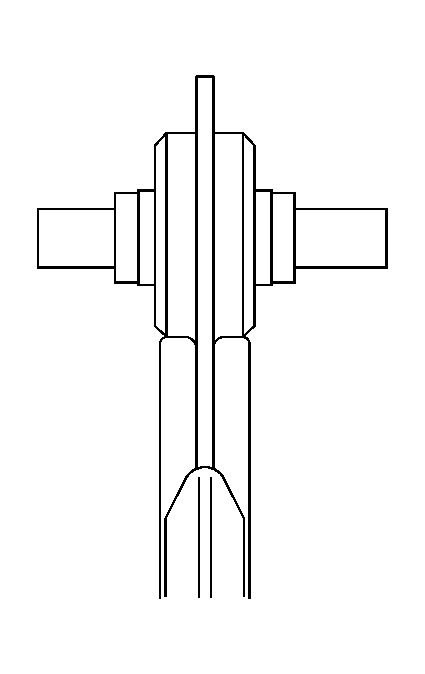

    2. Fig 2: View Of Control Arm Bushing Split Sleeves
    GM1290670Courtesy of GENERAL MOTORS CORP.
  2. Install the split sleeves into the rear control arm bushing.
  3. Install the control arm. Refer to Control Arm Replacement .
