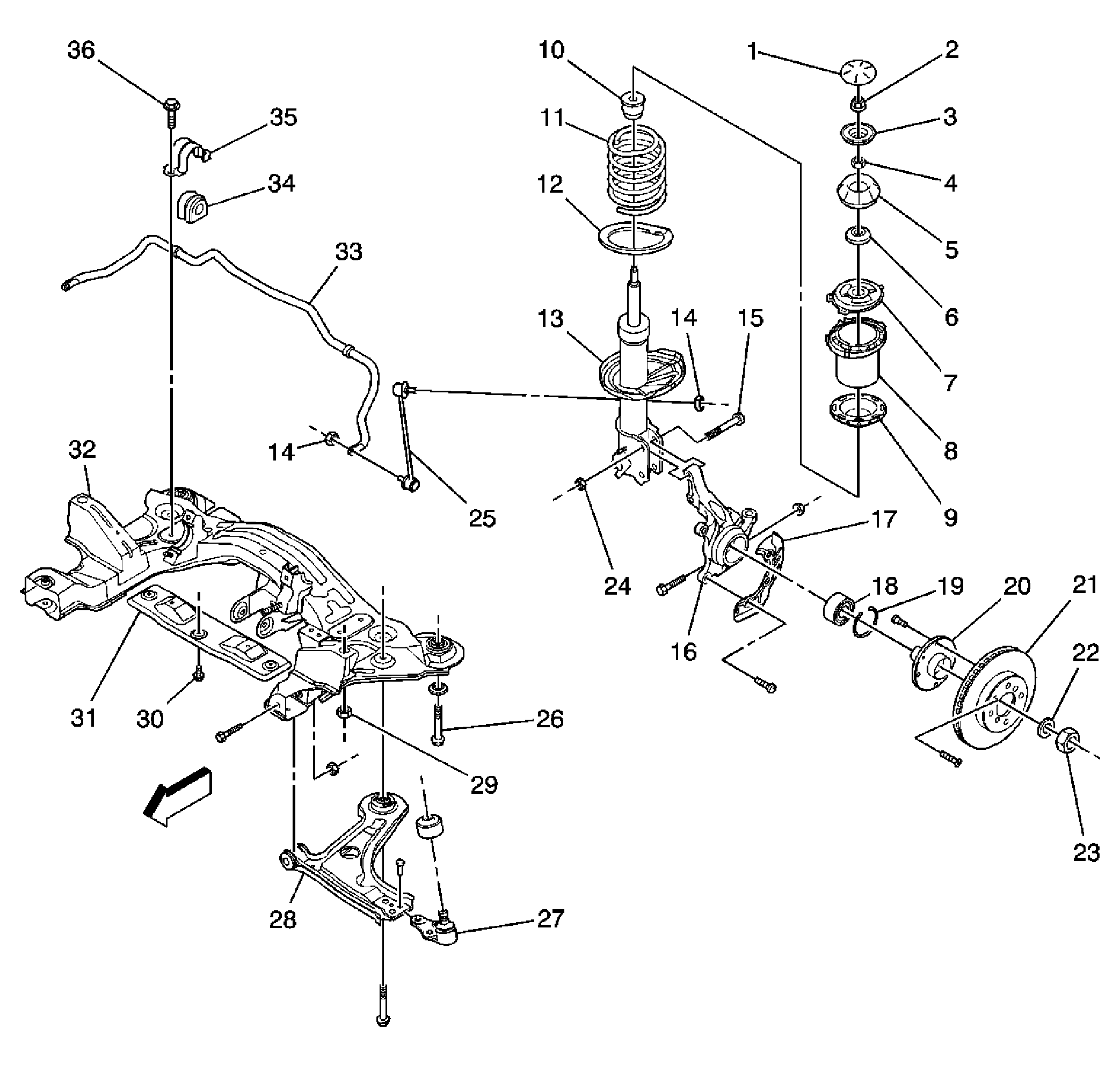

Front Suspension Components
WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Cap |
| 2 | Strut Upper Nut |
| 3 | Washer |
| 4 | Piston Rod Nut |
| 5 | Strut Mount |
| 6 | Strut Bearing |
| 7 | Upper Spring Seat |
| 8 | Front Spring Locator |
| 9 | Upper Spring Insulator |
| 10 | Hollow Bumper |
| 11 | Front Coil Spring |
| 12 | Lower Spring Insulator |
| 13 | Front Strut |
| 14 | Stabilizer Link Nut |
| 15 | Steering Knuckle-to-Strut Assembly |
| 16 | Steering Knuckle |
| 17 | Brake Shield |
| 18 | Front Hub Bearing |
| 19 | Outer Snap Ring |
| 20 | Front Hub |
| 21 | Front Brake Disc |
| 22 | Washer |
| 23 | Caulking Nut |
| 24 | Nut |
| 25 | Stabilizer |
| 26 | Crossmember Bolt |
| 27 | Ball Joint |
| 28 | Control Arm |
| 29 | Crossmember Nut |
| 30 | Crossmember Cover Bolt |
| 31 | Crossmember Cover |
| 32 | Front Suspension Crossmember |
| 33 | Stabilizer |
| 34 | Stabilizer Clamp Insulator |
| 35 | Stabilizer Clamp |
| 36 | Stabilizer Clamp Bolt |
