Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

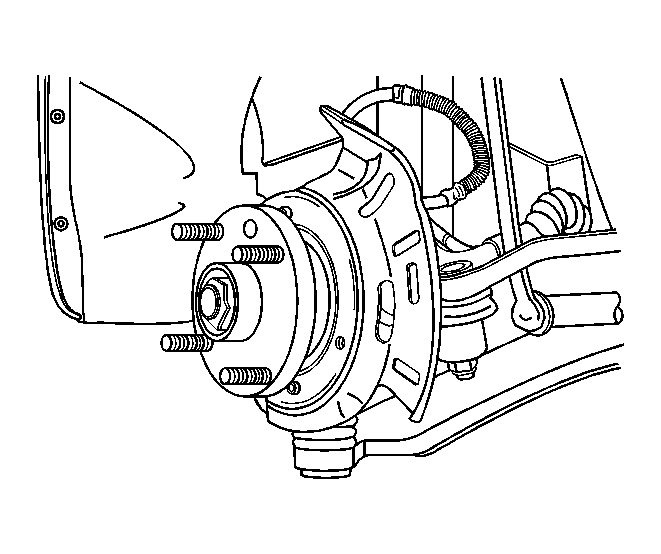

    Fig 1: Identifying Splash Shield Screws
    GM1289969Courtesy of GENERAL MOTORS CORP.
  1. Install the splash shield.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Secure the splash shield to the steering knuckle with the screws.

    Tighten:  Tighten the splash shield-to-steering knuckle screws to 4 N.m (35 lb in)  .

  3. Install the rotor. Refer to Brake Rotor Replacement - Front .
