Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Center Molding

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Remove the center molding. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center (Four Door) or Trim Panel Replacement - Instrument Panel (I/P) Center (Five Door/Wagon) in Instrument Panel, Gages and Console.

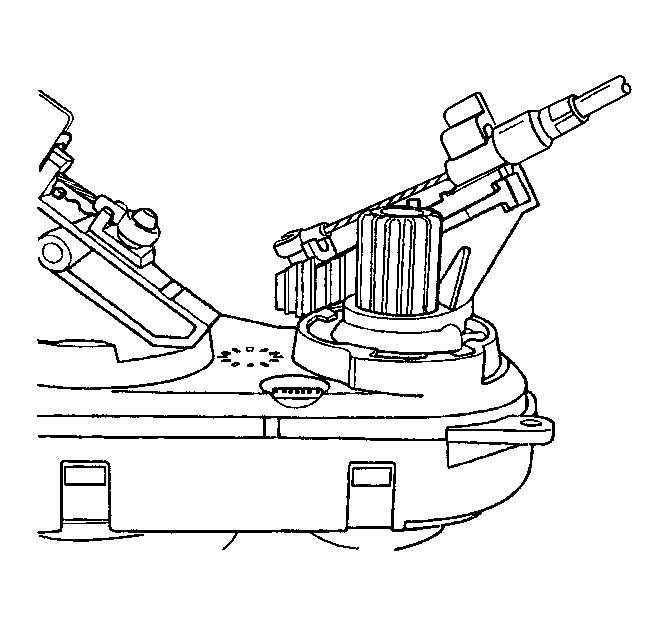

Fig 2: View Of Temperature Control

Courtesy of GENERAL MOTORS CORP.

Disconnect the mode control cable from the mode door.
Disconnect the temperature control cable eyelet from the post on the controller.
Pry off the clip of the temperature control cable.

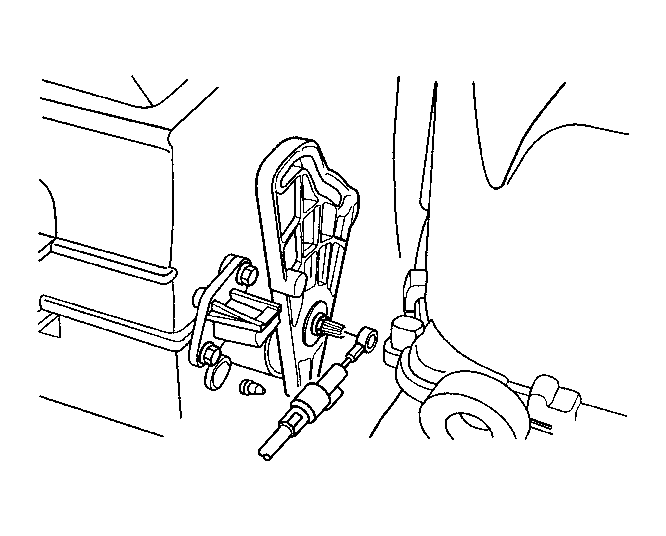

Fig 3: Identifying Cable Eyelet

Courtesy of GENERAL MOTORS CORP.

Slide the cable eyelet off the post on the temperature door lever.
Pry off the clip of the temperature cable.
