Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

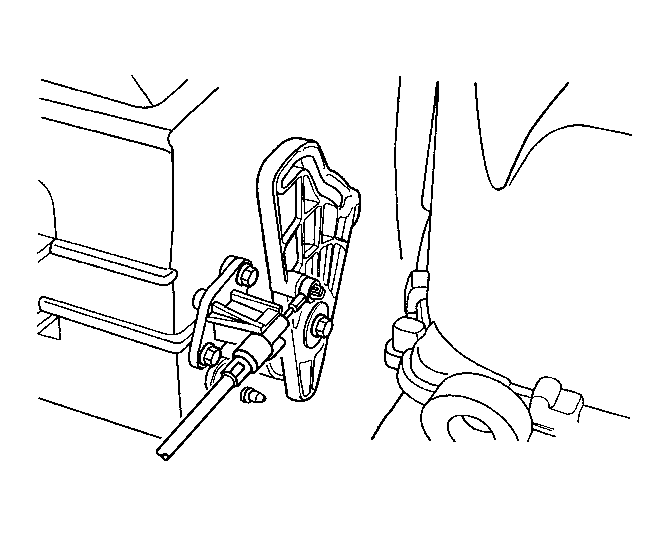

    Fig 1: View Of Temperature Cable On Door Lever Post
    GM1308249Courtesy of GENERAL MOTORS CORP.
  1. Install the temperature control cable eyelet to the post on the temperature door lever.
  2. Install the clip of the temperature cable.

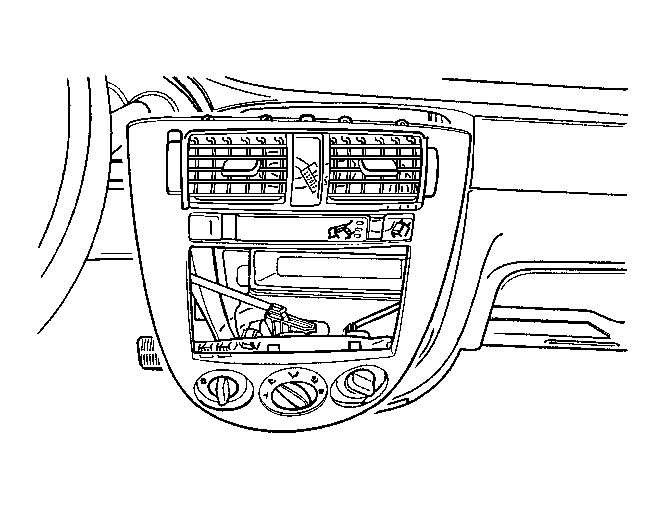

    3. Fig 2: View Of Center Molding
    GM1308246Courtesy of GENERAL MOTORS CORP.
  3. Install the temperature control cable eyelet to the post on the controller.
  4. Install the clip of the temperature control cable.
  5. Install the mode control cable to the mode door.

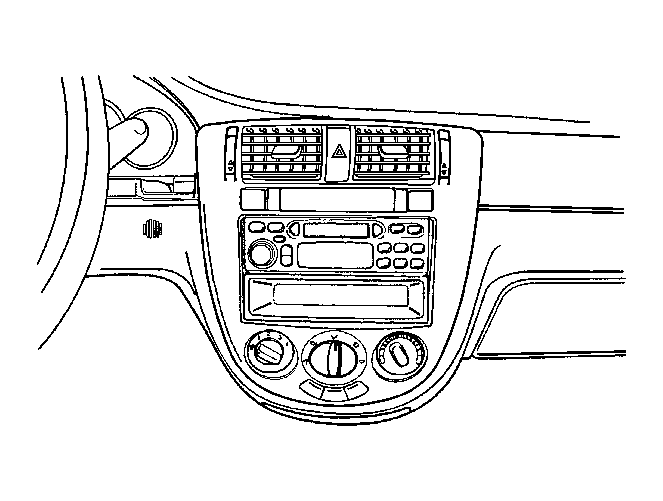

    6. Fig 3: View Of Center Trim Panel
    GM1308250Courtesy of GENERAL MOTORS CORP.
  6. Insert the center molding into position on the instrument panel.
  7. Move the temperature control to verify the smooth operation and function of the door and the cable.
  8. Connect the negative battery cable.
  9. Operate the heating and cooling systems to verify proper function.
