Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

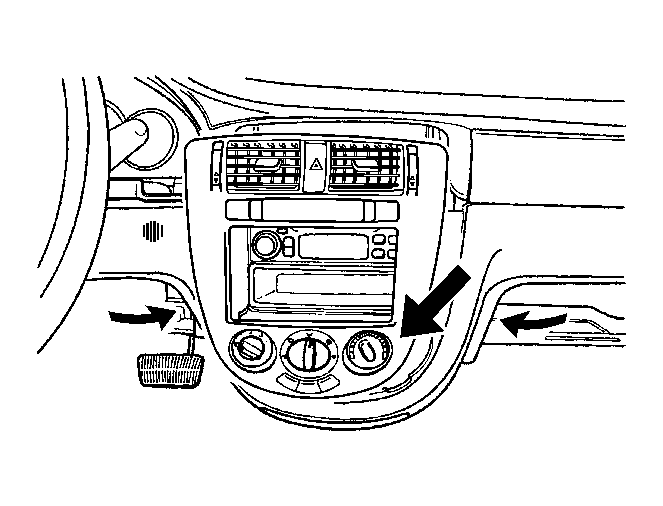

    Fig 1: View Of Center Trim Panel
    GM1308251Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remover the center molding. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center (Four Door) or Trim Panel Replacement - Instrument Panel (I/P) Center (Five Door/Wagon) in Instrument Panel, Gages and Console.
  3. Disconnect the mode control cable from the mode door.
  4. Disconnect the electrical connectors.
    5. Fig 2: View Of Center Molding
    GM1308246Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the temperature control cable by gently prying the cable eyelet from the post on the controller. Unsnap the cable housing from the mechanical slide. Note the location of the cable and the housing for ease of installation.
  6. Pull out the center molding.

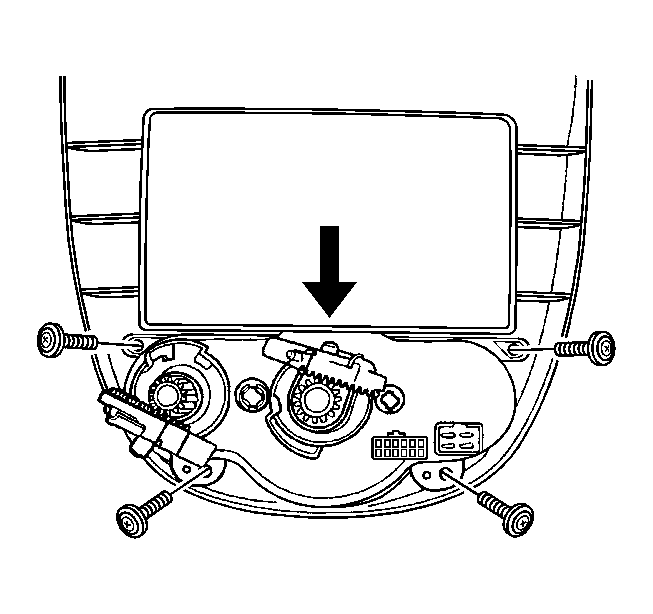

    7. Fig 3: View Of Four Controller Retaining Screws
    GM1308253Courtesy of GENERAL MOTORS CORP.
  7. Remove the 4 controller retaining screws.
  8. Remove the control assembly from the center molding.
