HVAC Connector End Views

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.
A/C Compressor Clutch

GM684852Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12162017
  • 2-Way F Metri-Pack 150 Series, Sealed (GY)
Pin Wire Color Circuit No. Function
A D-GN 59 A/C Compressor Clutch Supply Voltage
B BK 150 Ground
A/C Refrigerant Pressure Sensor (1.4L/1.6L)

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12078090
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A BN 413 Low Reference
B L-BU/BK 1688 5-Volt Reference
C L-BU 203 A/C Refrigerant Pressure Sensor Signal
A/C Refrigerant Pressure Sensor (1.8L/2.0L)

GM258299Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • PED 12078090
  • 3-Way F Metri-Pack 150 Series (BK)
Pin Wire Color Circuit No. Function
A PU/WH 632 Low Reference
B GY 605 5-Volt Reference
C L-BU 380 A/C Refrigerant Pressure Sensor
Blower Motor

GM1467007Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610043
  • 2-Way F 250 Series (WH)
Pin Wire Color Circuit No. Function
1 PU 65 Blower Motor Feed
2 BK 1050 Ground
Blower Motor Resistor

GM1467011Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610047
  • 4-Way F 250 Series (WH)
Pin Wire Color Circuit No. Function
1 L-BU 72 Medium 2 Blower Motor Control
2 PU 63 Blower Motor Medium 1 Control
3 PU 65 Blower Motor Feed
4 YE 60 Blower Motor Low Control
Blower Relay

GM1497842Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AK 36409
  • 9-Way F Relay
Pin Wire Color Circuit No. Function
1 BK 250 Ground
2 - - Not Used
3 PU 65 Blower Motor Feed
4-6 - - Not Used
7 RD 742 Battery Positive Voltage
8 - - Not Used
9 OG 52 Blower Motor High Control
Blower Switch

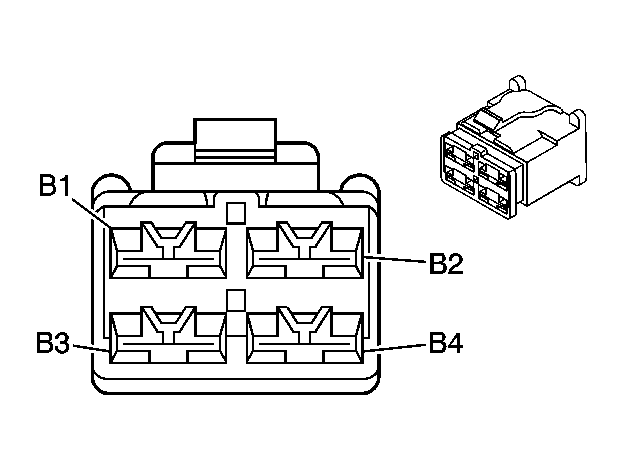

GM1466990Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • AMP 178004-1
  • 4-Way F 250 Series Dbl Lock Plug 4P (WH)
Pin Wire Color Circuit No. Function
B1 L-BU 72 Medium 2 Blower Motor Control
B2 PU 63 Blower Motor Medium 1 Control
B3 BN 41 Ignition 1 Voltage
B4 YE 60 Blower Motor Low Control
HVAC Control

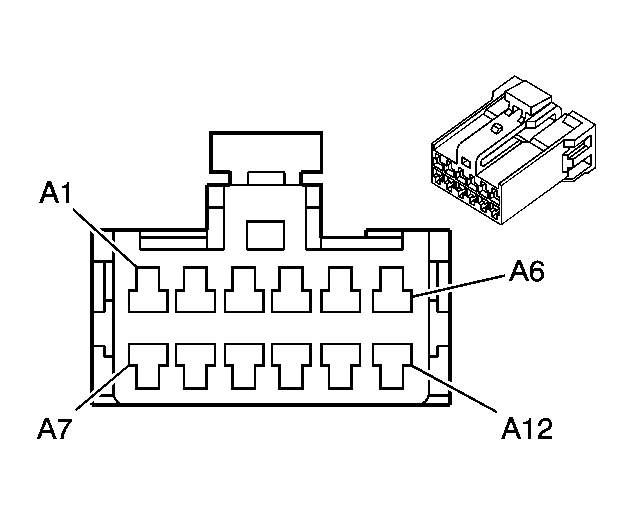

GM1467034Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610376
  • 12-Way F PCB 040 Series (WH)
Pin Wire Color Circuit No. Function
A1 PK 239 Ignition 1 Voltage
A2 WH 193 Rear Defog Relay Control
A3 BK 1050 Ground
A4 L-GN/BK 1647 Recirculation Door Control B
A5 PK/WH 1648 Recirculation Door Control A
A6 OG 1140 Battery Positive Voltage
A7 OG 52 Blower Motor High Control
A8 D-GN/WH 762 A/C Request Signal
A9 BN/WH 309 Right Park Lamp Supply Voltage
A10 GN 44 Instrument Panel Lamps Dimming Control
A11-A12 - - Not Used
Recirculation Actuator

GM1467023Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • KET MG 610203
  • 7-Way F 118 (PA) Series (BK)
Pin Wire Color Circuit No. Function
1-3 - - Not Used
4 PK 239 Ignition 1 Voltage
5 L-GN/BK 1647 Recirculation Door Control B
6 - - Not Used
7 PK/WH 1648 Recirculation Door Control A
