Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

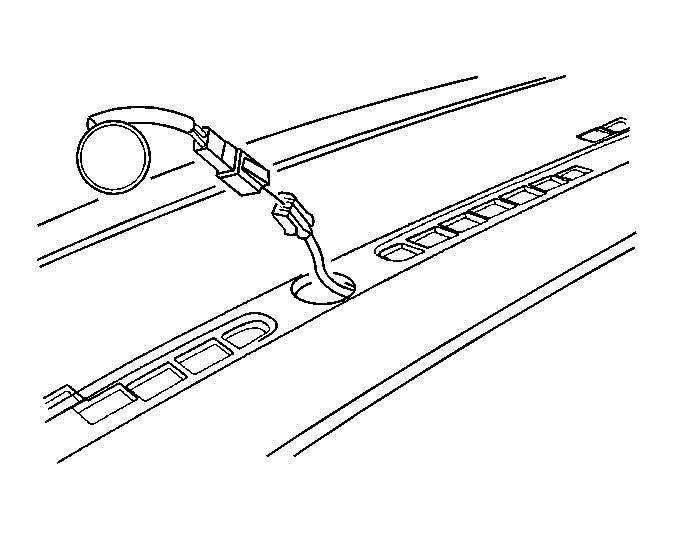

Fig 1: View Of Sun Load Sensor And Electrical Connector

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.

Disconnect the negative battery cable.
Gently pry up on the sun sensor to remove it.
Secure the electrical connector to prevent it from falling beneath the dash.
Disconnect the electrical connector and remove the sun sensor.
