Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

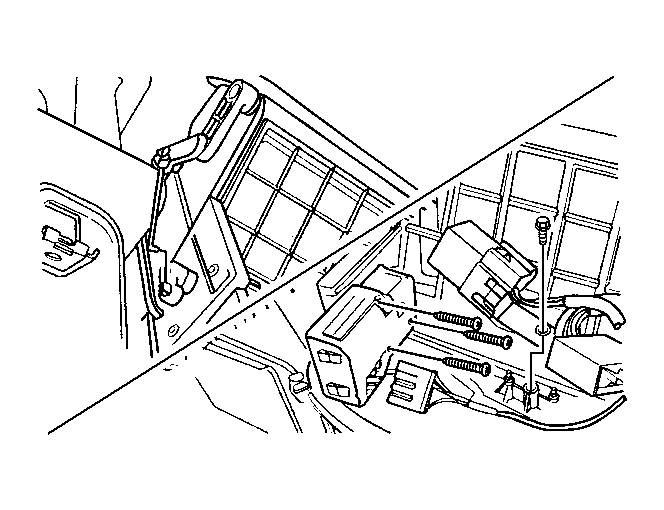

    Fig 1: Identifying Recirculation Actuator Components
    GM1308422Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
  3. Remove the actuating rod by snapping the rod out of the lever with needle-nose pliers.
  4. Disconnect the electrical connector.
  5. Remove a screw and the bracket mounting high-blower relay.
  6. Remove the motor retaining screws.
  7. Remove the motor.
