Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

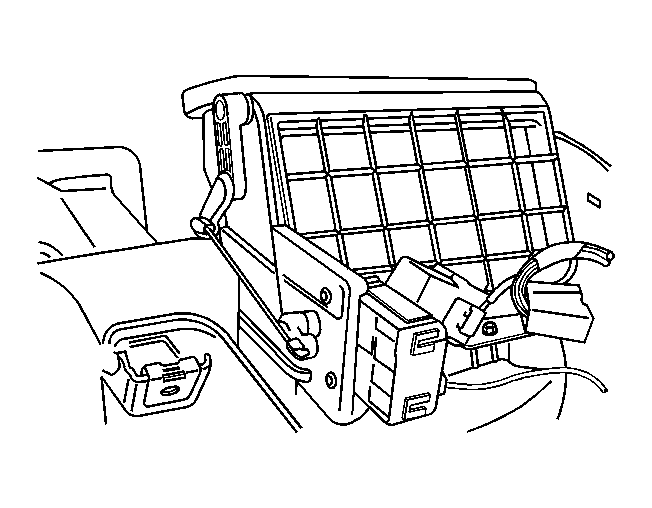

    Fig 1: View Of Recirculation Actuator Electrical Connector
    GM1308436Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the motor with the retaining screws.
  2. Install the actuating rod.
  3. Connect the electrical connector.
  4. Install the bracket mounting high-blower relay with a screw.
  5. Remove the glove box. Refer to Storage Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
  6. Connect the negative battery cable.
