Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

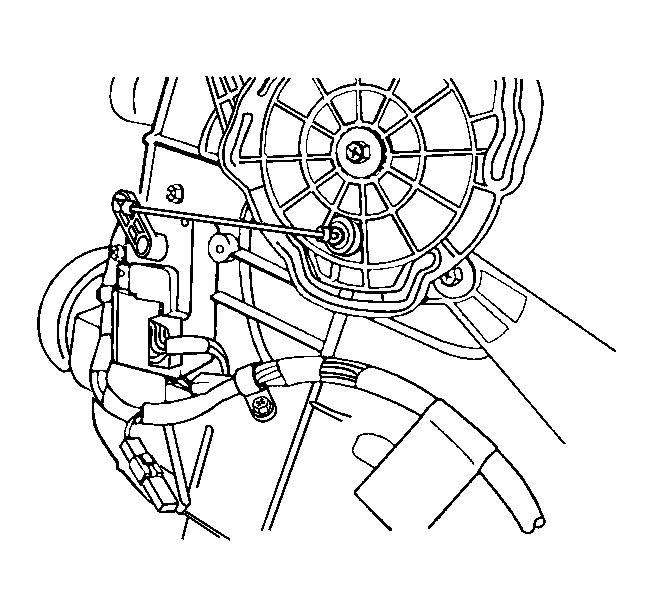

    Fig 1: View Of Mode Actuator Motor And Screws
    GM1308456Courtesy of GENERAL MOTORS CORP.
  1. Install the mode door motor with the retaining screws.
  2. Install the actuating rod.
  3. Connect the electrical connector.
  4. Install the instrument panel under cover.
  5. Connect the negative battery cable.
