Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

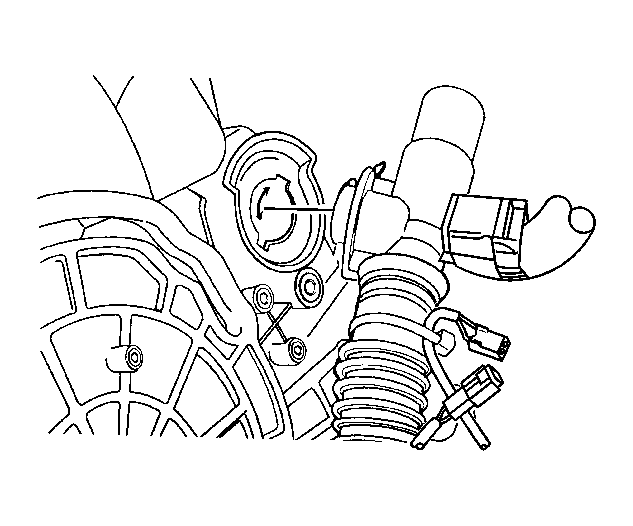

    Fig 1: View Of Inside Air Temperature Sensor Tube
    GM1308478Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the instrument panel under cover.
  3. Disconnect the electrical connector.
  4. Remove the tube by turning it clockwise.

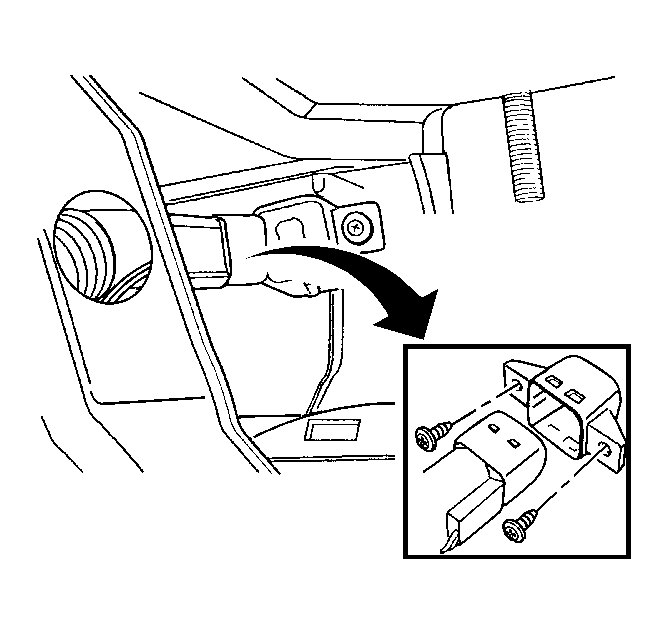

    5. Fig 2: View Of Inside Air Temperature Sensor And Screws
    GM1308479Courtesy of GENERAL MOTORS CORP.
  5. Remove the screws.
  6. Remove the in-car sensor with the tube.
