Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

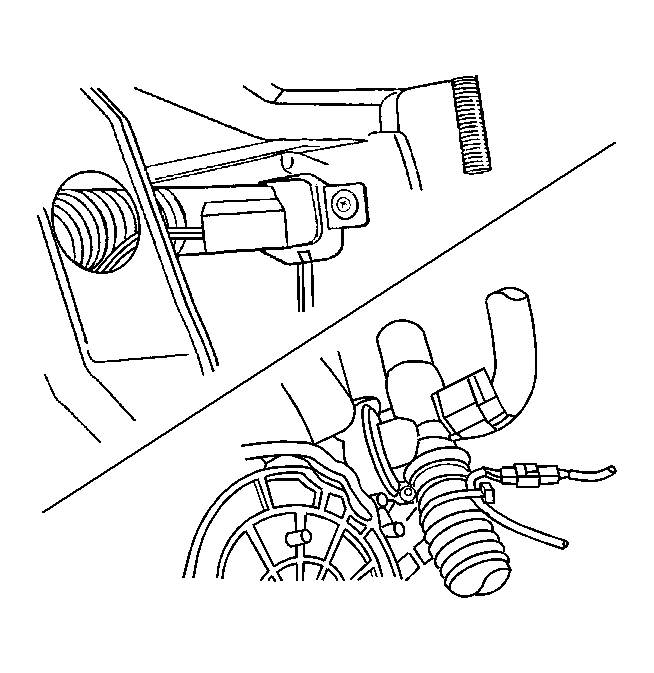

    Fig 1: Identifying Inside Air Temperature Sensor
    GM1308480Courtesy of GENERAL MOTORS CORP.
  1. Install the in-car sensor.
  2. Install the in-car sensor retaining screws and tighten.
  3. Install the air inlet tube and connect the electrical connector.
  4. Install the instrument panel under cover.
  5. Connect the battery negative cable.
