Removal Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

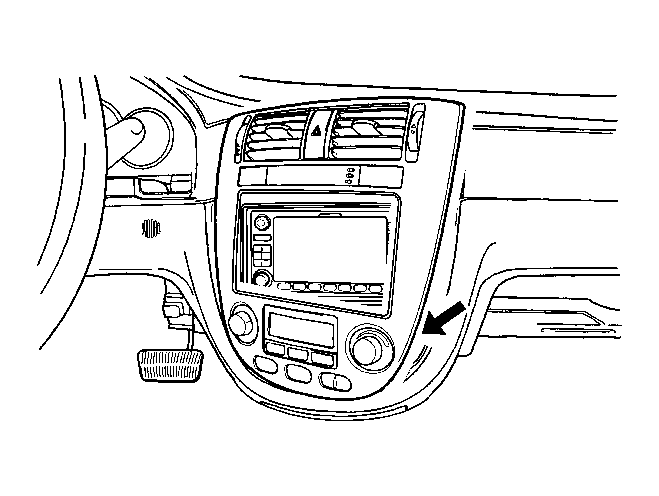

    Fig 1: View Of Center Molding Assembly
    GM1308339Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable.
  2. Remove the center molding assembly. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center (Four Door) or Trim Panel Replacement - Instrument Panel (I/P) Center (Five Door/Wagon) in Instrument Panel, Gages and Console.
  3. Pull out the unit to gain access to the rear.

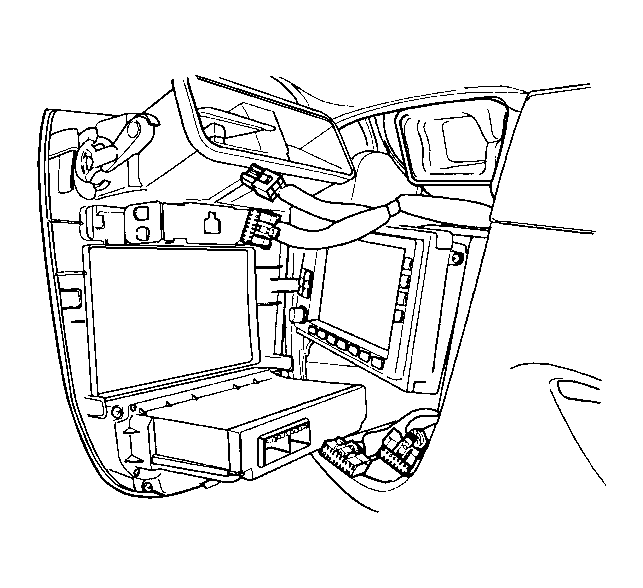

    4. Fig 2: Identifying Electrical Connectors
    GM1308349Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connectors.
  5. Remove the center molding assembly from the instrument panel.

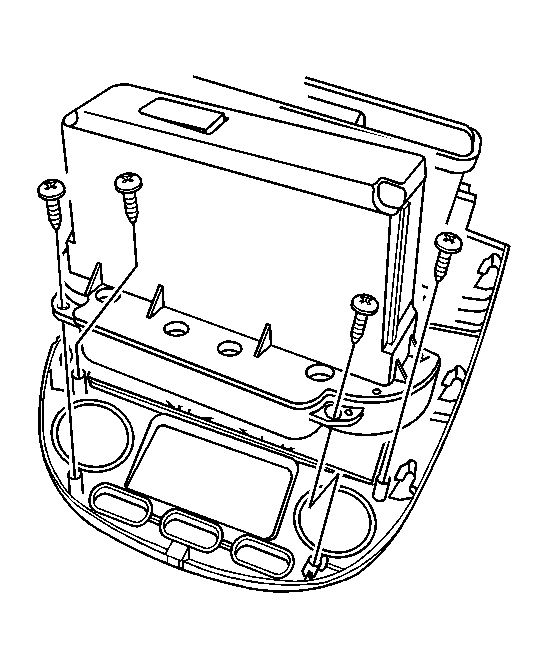

    6. Fig 3: View Of Control Assembly Retaining Screws
    GM1308389Courtesy of GENERAL MOTORS CORP.
  6. Remove the control assembly retaining screws.
  7. Remove the automatic temperature control assembly.
