Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

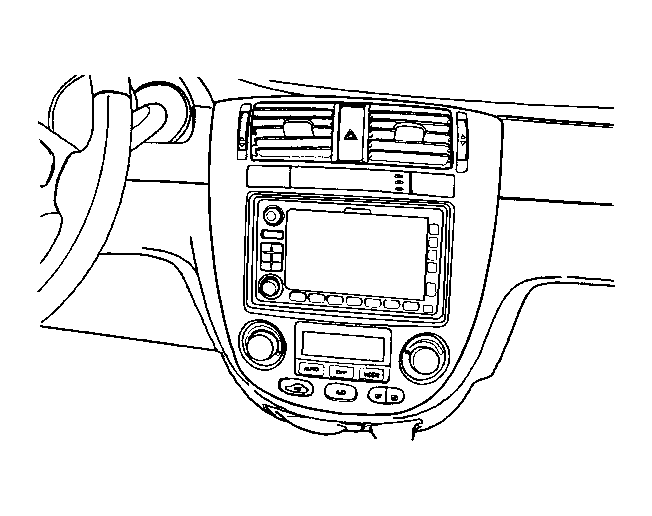

    Fig 1: View Of Molding Assembly
    GM1308400Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the automatic temperature control assembly on the center molding and install the retaining screws.

    Tighten:  Tighten the control assembly retaining screws to 2 N.m (18 lb in)  .

  2. Connect the electrical connectors.
  3. Install the center molding assembly. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center (Four Door) or Trim Panel Replacement - Instrument Panel (I/P) Center (Five Door/Wagon) in Instrument Panel, Gages and Console.
  4. Connect the negative battery cable.
