HVAC Component Views

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

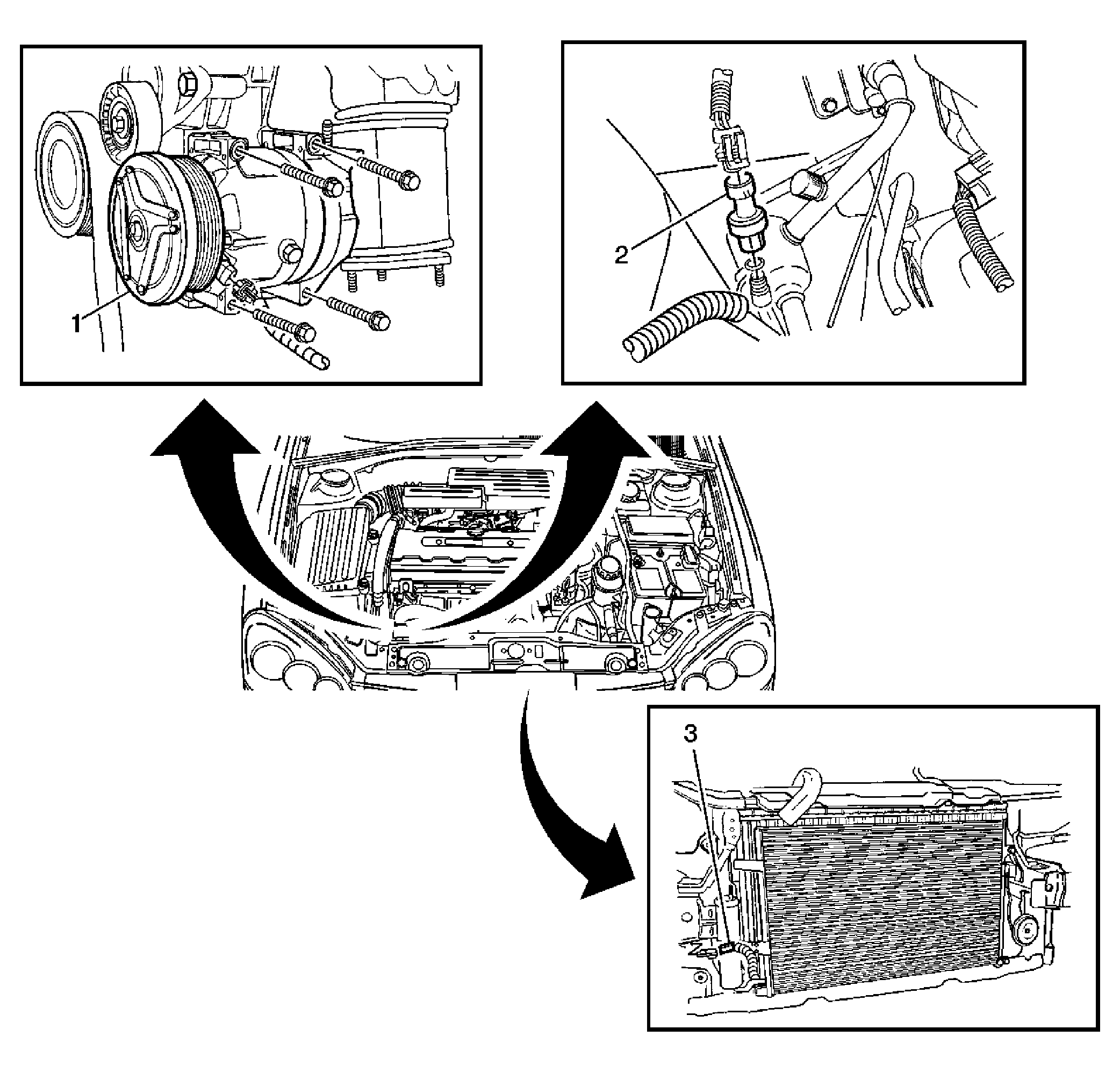

Fig 1: Identifying HVAC Underhood Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch Coil
2	A/C Refrigerant Pressure Sensor
3	Ambient Air Temperature Sensor

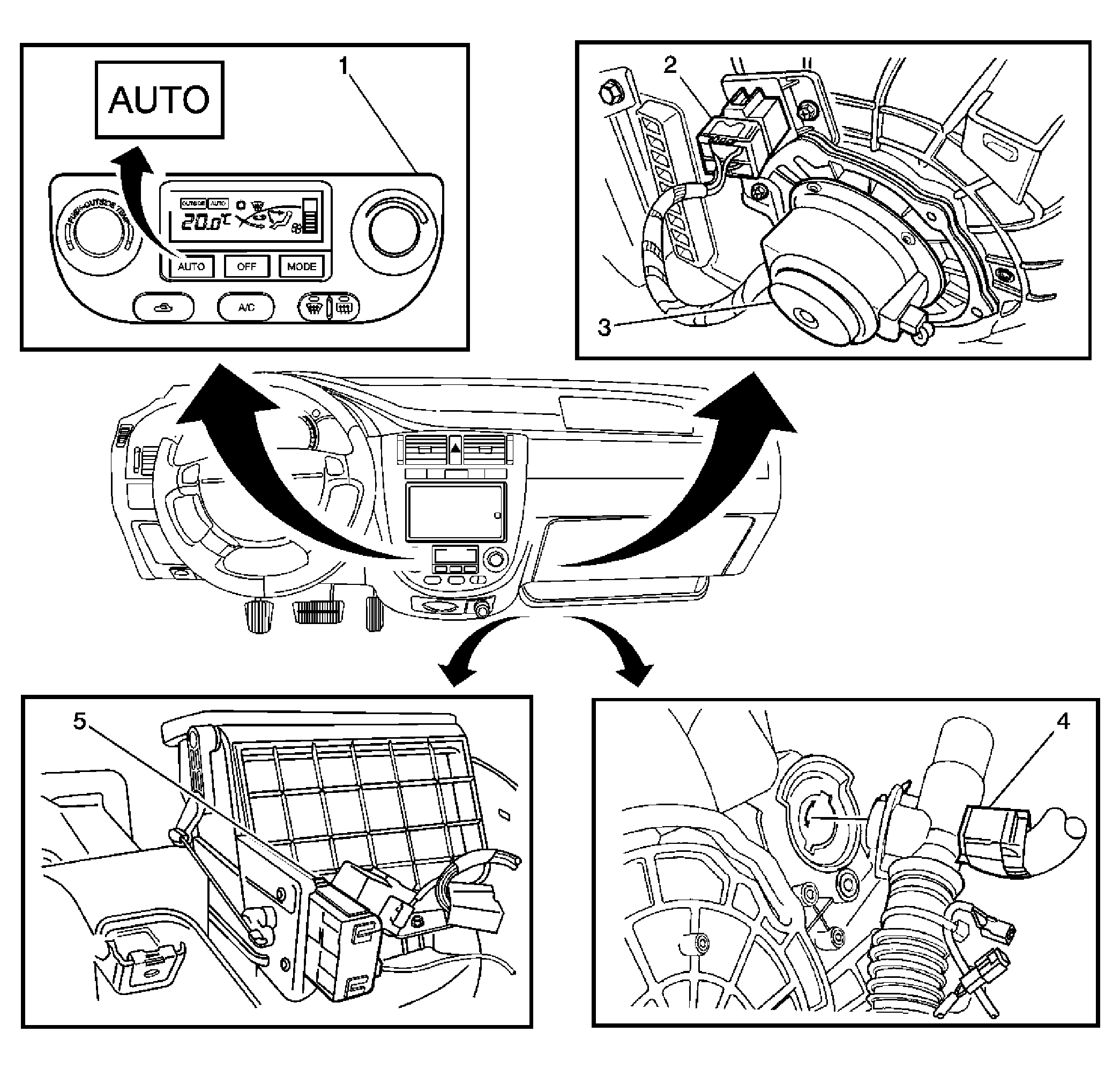

Fig 2: Identifying HVAC IP Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Control Module - Auto
2	Blower Motor Control Module
3	Blower Motor
4	Air Temperature Sensor - Inside
5	Recirculation Actuator

Fig 3: Identifying HVAC Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Sun Load Sensor Assembly
3	Coolant Temperature Sensor
4	Temperature Actuator
