Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

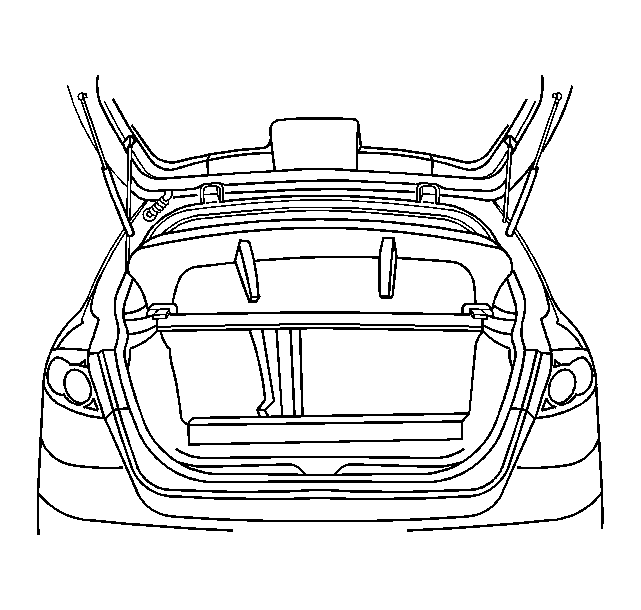

    Fig 1: Identifying Liftgate Weatherstrip
    GM1460045Courtesy of GENERAL MOTORS CORP.
  1. Install the weatherstrip onto the gutter flange.
  2. Inspect the weatherstrip. Make sure that the clinch is completely seated onto the flange.
  3. Install the luggage compartment rear quarter and rear trim panels.
  4. Using a water hose without a nozzle, test the liftgate to make sure that no leaks are present.
