Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

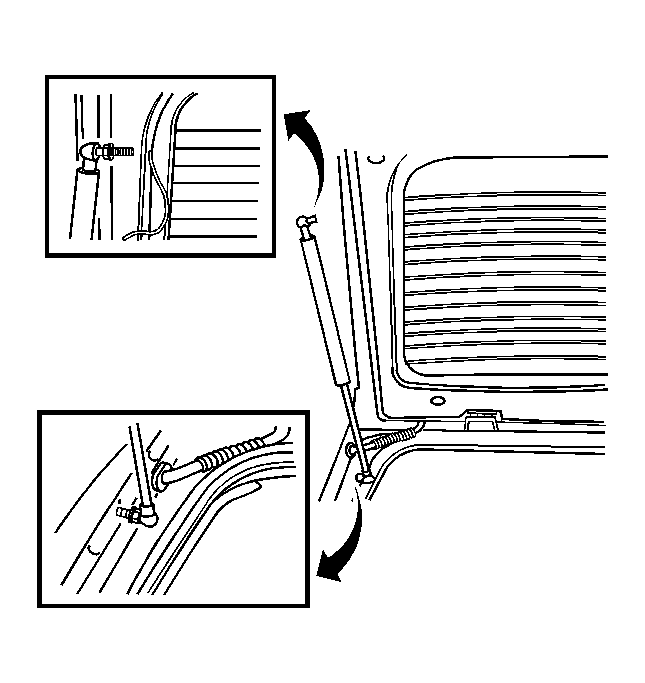

    Fig 1: View Of Liftgate Support And Studs
    GM1460089Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the liftgate support to the liftgate door and the body.

    Tighten:  Tighten the liftgate support studs to 8 N.m(71 lb in)  .

  2. Close the liftgate.
