Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

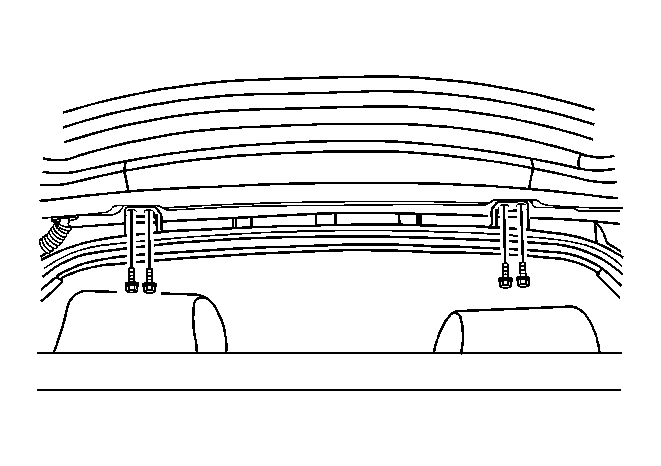

    Fig 1: View Of Liftgate Hinge Bolts
    GM1460070Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. With the aid of an assistant, install the liftgate to the hinges with the bolts.

    Tighten:  Tighten the liftgate bolts to 20 N.m (15 lb ft)  .

  2. Install the liftgate struts. Refer to Strut Replacement - Liftgate .
  3. Connect the liftgate washer hose.
  4. Connect the electrical connector.
  5. Connect the liftgate door grommet.
  6. Connect the negative battery cable.
