Installation Procedure

WARNING: This page is about a different car, the 2005 Chevrolet Optra5 and 2005 Chevrolet Optra. However, it is still accessible from the selected car via links, so may be relevant.

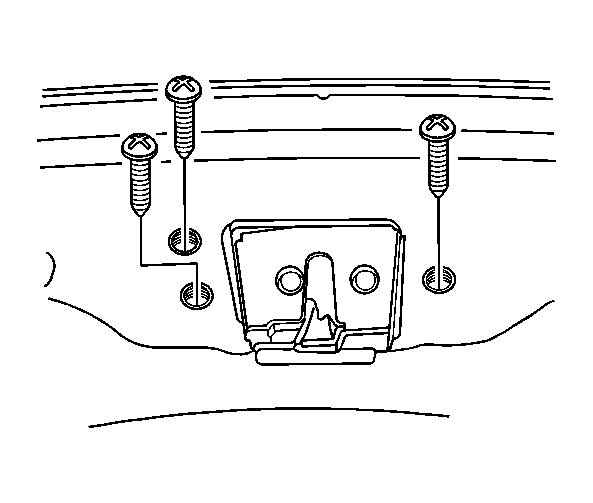

    Fig 1: View Of Liftgate Lock And Screws
    GM1460850Courtesy of GENERAL MOTORS CORP.
  1. Connect the lock rod and electrical connector.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the rear liftgate lock with the screws.

    Tighten:  Tighten the rear compartment lock screws to 6 N.m (53 lb in)  .

  3. Install the liftgate lower garnish molding.
  4. Close the liftgate.
  5. Connect the negative battery cable.
