Keyless Entry Schematics

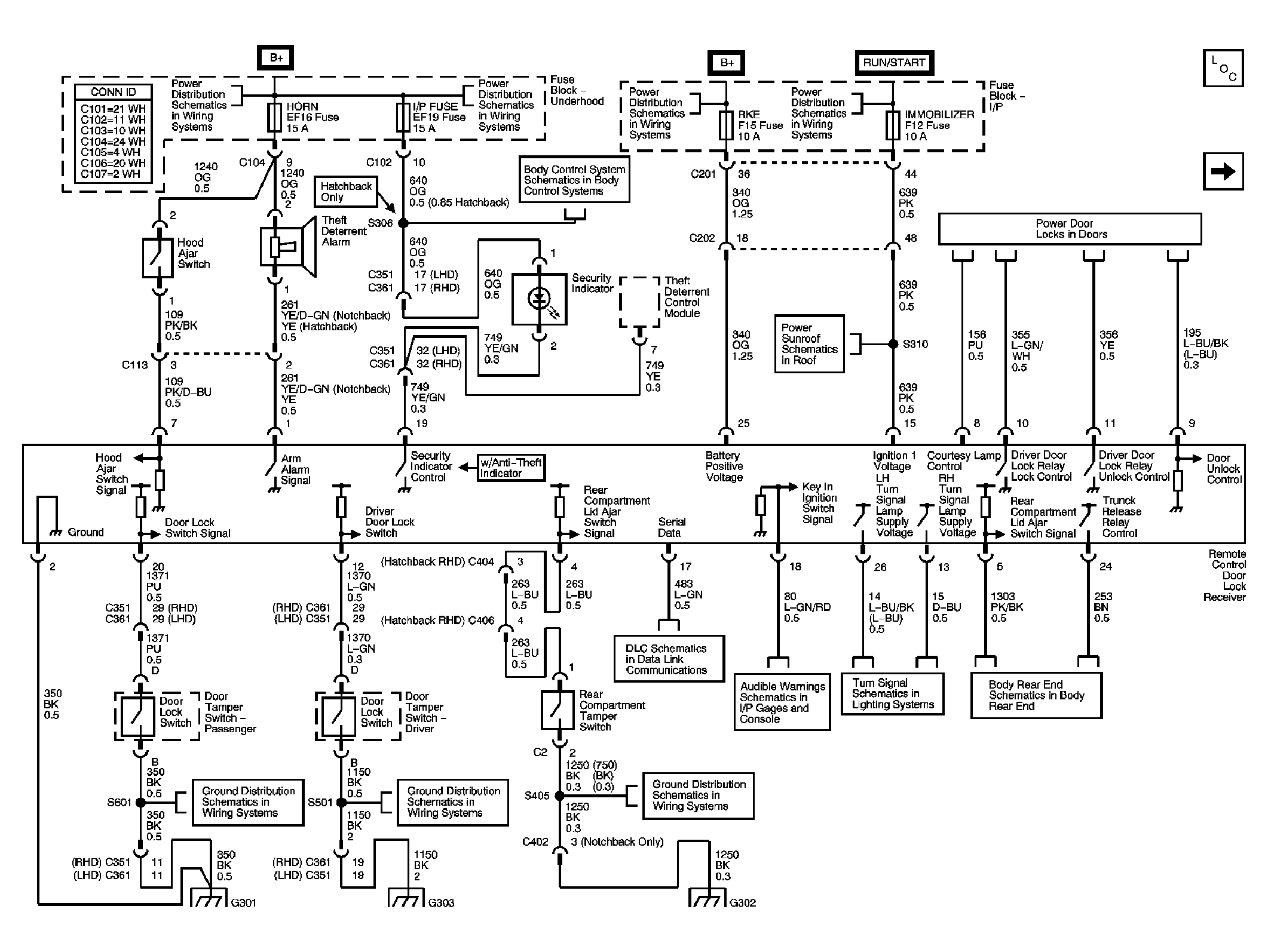

Fig 1: Remote Control Door Lock Receiver Schematic

GM1650892

Courtesy of GENERAL MOTORS CORP.

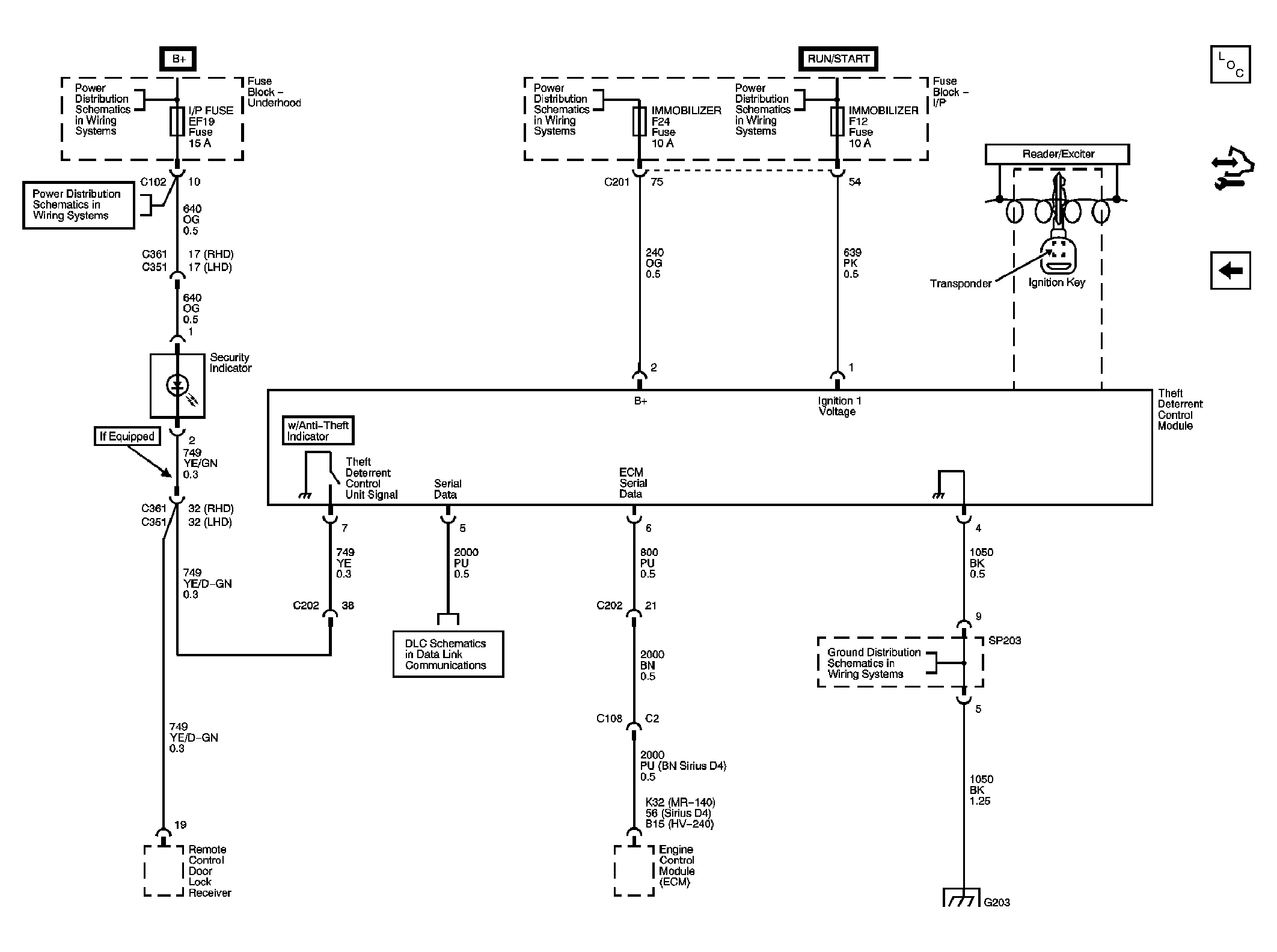

Fig 2: Theft Deterrent Control Module Schematic

GM1372177

Courtesy of GENERAL MOTORS CORP.
