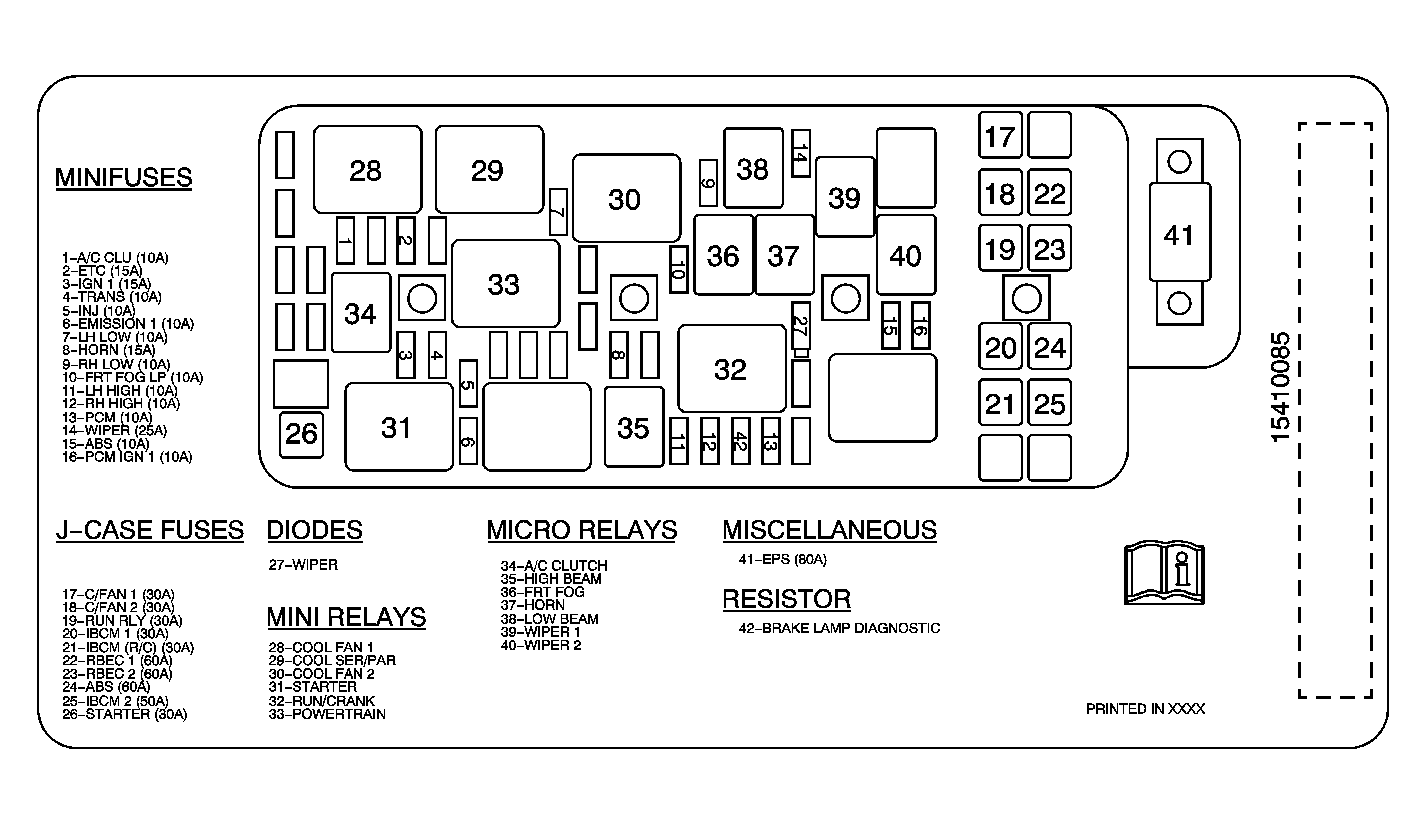

Fuse Block - Underhood Label
FUSE BLOCK - UNDERHOOD USAGE
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | A/C CLU Fuse | 10A | A/C CLUTCH Relay 34, A/C Compressor Clutch |
| 2 | ETC Fuse | 15A | Powertrain Control Module (PCM) (L61), Electronic Throttle Control (LX9) |
| 3 | IGN 1 Fuse | 15A | Ignition Control Module (ICM), Park Neutral Position Switch |
| 4 | TRANS Fuse | 10A | 1-2 Shift Solenoid (1-2 SS) Valve, 2-3 Shift Solenoid (2-3 SS) Valve, Torque Convertor Clutch Pulse Width Modulation (TCC PWM) Solenoid Valve |
| 5 | INJ Fuse | 10A | Fuel Injectors |
| 6 | EMISSION 1 Fuse | 10A | Evaporative Emission (EVAP) Canister Purge Solenoid, Heated Oxygen (HO2S) Sensors, Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| 7 | LH LOW BEAM Fuse | 10A | Headlamp - Low Beam - Left |
| 8 | HORN Fuse | 15A | Horn Relay 37 Horn Assembly |
| 9 | RT LOW Fuse | 10A | Headlamp - Low Beam - Right |
| 10 | FRT FOG LP Fuse | 10A | FRT FOG LP Relay 36, Fog Lamp - LF, Fog Lamp - RF |
| 11 | LT HI BEAM Fuse | 10A | Headlamp - High Beam - Left |
| 12 | RT HI BEAM Fuse | 10A | Headlamp - High Beam - Right |
| 13 | PCM Fuse | 10A | Engine Control Module (ECM) (LZ9), Powertrain Control Module (PCM) (LX9/L61) |
| 14 | WPR Fuse | 25A | Wiper 1 Relay 39, Wiper 2 Relay 40, Windshield Wiper Motor Assembly |
| 15 | ABS Fuse | 10A | Electronic Brake Control Module (EBCM) (JL9/J67) |
| 16 | PCM IGN 1 Fuse | 10A | Engine Control Module (ECM) (LZ9), Powertrain Control Module (PCM) (LX9/L61) |
| 17 | COOL FAN 1 Fuse | 30A | COOL/FAN 1 Relay 28, Cooling Fan - Left |
| 18 | COOL FAN 2 Fuse | 30A | COOL/FAN 2Relay 30, Cooling Fan - Right |
| 19 | RUN RLY Fuse | 30A | Blower Motor Control Module (C68), HVAC BLOWER HIGH Relay (C60), RUN Relay |
| 20 | IBCM 1 Fuse | 30A | Body Control Module (BCM), AIRBAG (BATT) Fuse, CLUSTER/THEFT Fuse, HVAC CTRL (BATT) Fuse, IGN SENSOR Fuse, and RADIO Fuse |
| 21 | IBCM (RUN CRANK) Fuse | 30A | AIR BAG (IGN) Fuse, EPS Fuse, and RUN/CRANK Fuse |
| 22 | RBEC 1 Fuse | 60A | AUX PWR #2 Fuse 12, BACK UP LP Fuse 17, CIG/AUX Fuse 20, HTD MIR Fuse, HTD ST Fuse 14, RKE/XM/DVD/UGD Fuse 16, SUN RF Fuse 10, RR DEFOG Fuse 23, and RR DEFOG Relay 26 |
| 23 | RBEC 2 Fuse | 60A | DRV ST Fuse 2, EMISSION 2 Fuse 5, FUEL PUMP Fuse 25, PRK LAMPS Fuse 6, and TRUNK Fuse 22 |
| 24 | ABS Fuse | 60A | Electronic Brake Control Module (EBCM) (JL9/J67) |
| 25 | IBCM 2 Fuse | 50A | DOOR LOCK Fuse, INTERIOR LIGHTS Fuse, and ACCESSORY Relay |
| 26 | STRTR Fuse | 30A | START Relay 31 |
| 27 | WIPER Diode | - | Wiper 1 Relay 39, Wiper 2 Relay 40 |
| 28 | COOL FAN 1 Relay | - | Cooling Fan - Left |
| 29 | COOL SER/PAR Relay | - | Cooling Fan - Left, Cooling Fan - Right |
| 30 | COOL FAN 2 Relay | - | Cooling Fan - Right |
| 31 | STARTER Relay | - | Starter Solenoid |
| 32 | RUN/CRANK Relay | - | ABS Fuse 15, IBCM (RUN/CRANK) Fuse 21, IGN 1 Fuse 3, INJ Fuse 5, PCM IGN 1 Fuse 16, TRANS Fuse 4 |
| 33 | PWR/TRN Relay | - | Emission 1 Fuse 6, and ETC Fuse 2, IGN MOD Fuse 43, INJECTORS Fuse 44, IMTV/DOD Fuse 45, A/C CLUTCH Relay 34 |
| 34 | A/C CLUTCH Relay | - | A/C Compressor Clutch |
| 35 | HI/BEAM Relay | - | LH HIGH Fuse 11, RH HIGH Fuse 12 |
| 36 | FRT FOG Relay | - | Fog Lamp - LF, Fog Lamp - RF |
| 37 | HORN Relay | - | Horn Assembly |
| 38 | LO/BEAM Relay | - | LH LOW Fuse 7, RH LOW Fuse 9 |
| 39 | WPR 1 Relay | - | Wiper 2 Relay 40 |
| 40 | WPR 2 Relay | - | Windshield Wiper Motor Assembly |
| 41 | EPS Fuse | 80A | Power Steering Control Module |
| 42 | TCM Fuse | 10A | Transmission Control Module (TCM) |
| 43 | IGN MOD Fuse | 15A | Ignition Control Module (ICM) |
| 44 | INJECTORS Fuse | 10A | Fuel Injectors |
| 45 | IMTV/DOD Fuse | 10A | Intake Manifold Tuning (IMT) Valve Solenoid |
| 46 | BRAKE LAMP DIAGNOSTIC Resistor | 620 Ω | Body Control Module |
