Stationary Windows Component Views
| Callout | Component Name |
|---|---|
| 1 | Courtesy/Reading Lamps - Front, Left Reading |
| 2 | Cellular Telephone Microphone (UE1) |
| 3 | Sunroof Switch (CF5) |
| 4 | Garage Door Opener Transmitter (UG1) |
| 5 | Courtesy/Reading Lamps - Front, Right Reading |
| 6 | Dome/Reading Lamp |
| 7 | Sunroof (CF5) |
| 8 | Vanity Mirror Lamp - Right |
| 9 | Inside Rearview Mirror |
| 10 | OnStar Keypad (UE1) |
| 11 | Vanity Mirror Lamp - Left (DH6/D74) |

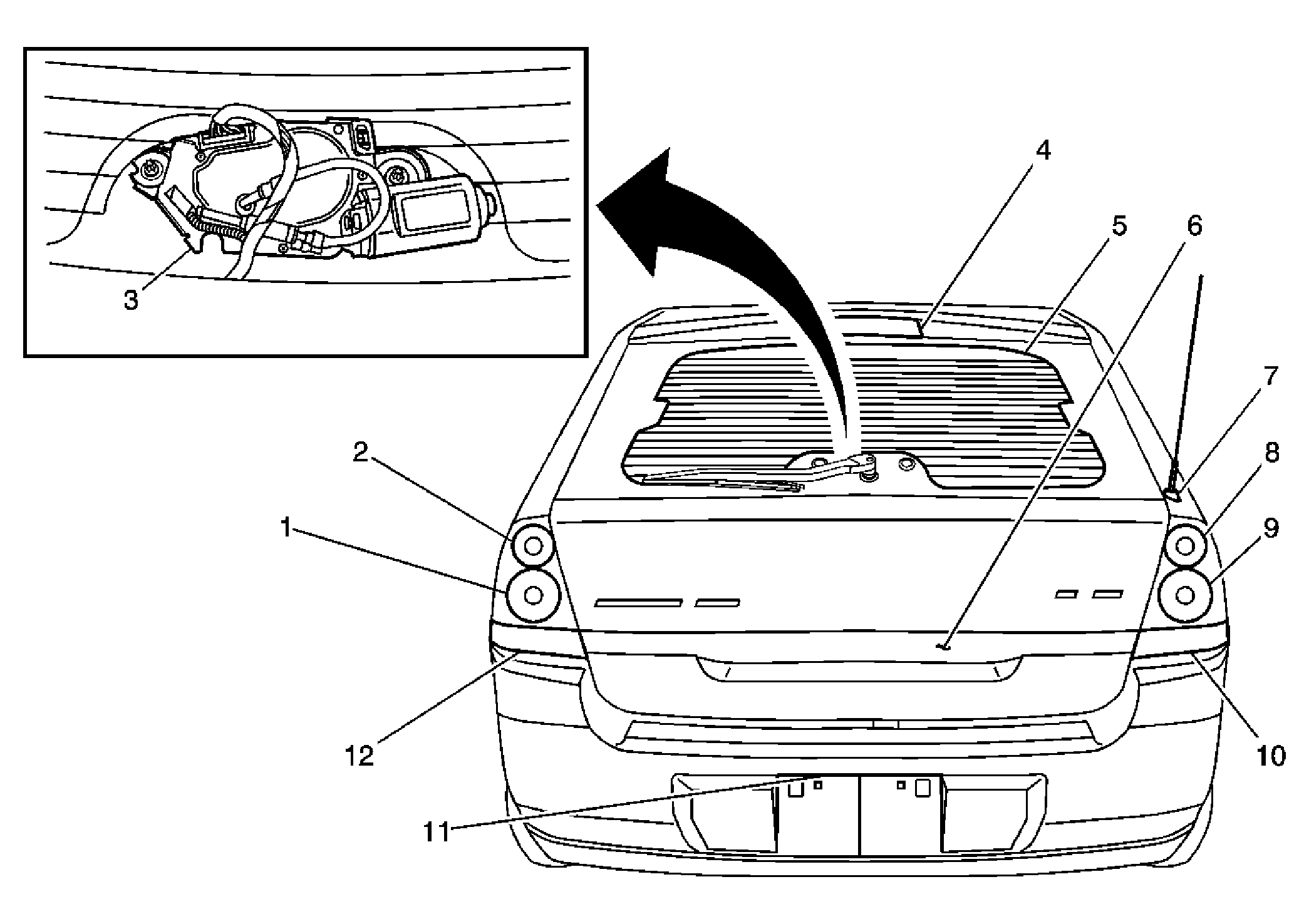

| Callout | Component Name |
|---|---|
| 1 | Tail/Stop and Turn Signal Lamp - Left |
| 2 | Tail Lamp - Left |
| 3 | Rear Window Wiper Module (C25) |
| 4 | Center High Mounted Stop Lamp (CHMSL) |
| 5 | Rear Window Defogger Grid |
| 6 | Liftgate Release Switch |
| 7 | Radio Antenna |
| 8 | Tail Lamp - Right |
| 9 | Tail/Stop and Turn Signal Lamp - Right |
| 10 | Backup Lamp - Right |
| 11 | License Lamp |
| 12 | Backup Lamp - Left |
