Installation Procedure

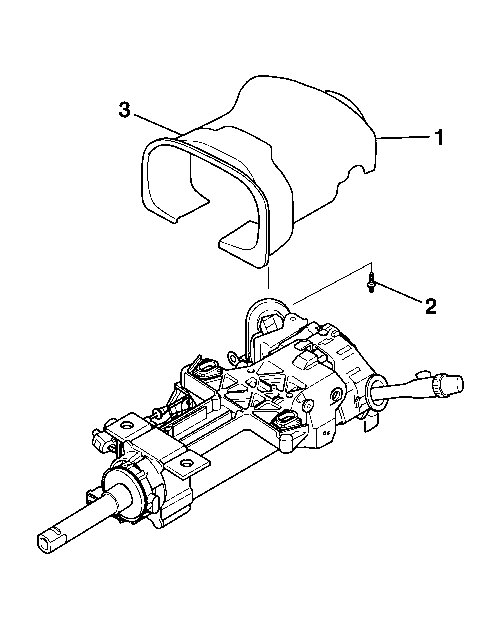

    Fig 1: View Of Upper Steering Column Trim Cover & Screw
    GM603845Courtesy of GENERAL MOTORS CORP.
  1. Install the upper steering column trim cover (1) to the closeout shroud.
  2. Install the upper trim cover (1) to the steering column.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the retaining screw (2) to the upper steering column trim cover.

    Tighten:  Tighten the screw to 1.5 N.m (13 lb in).

  4. Install the Ignition lock cylinder.

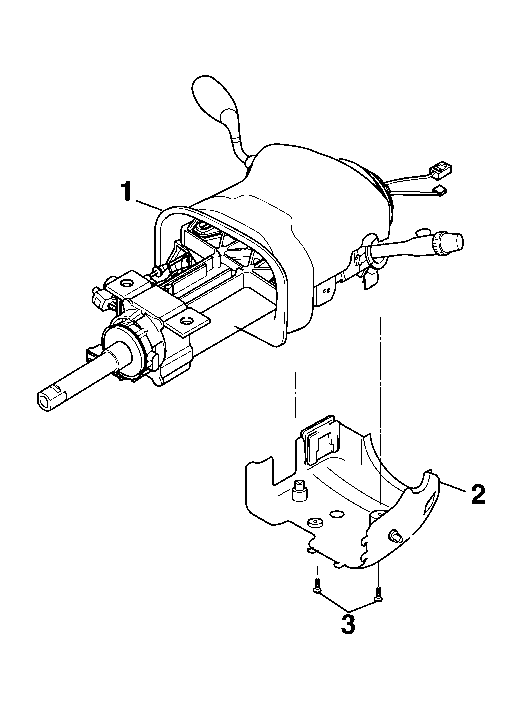

    5. Fig 2: View Of Lower Steering Column Trim Cover & Screws
    GM603837Courtesy of GENERAL MOTORS CORP.
  5. Install the lower trim cover (2) and ensure that the tabs engage with the tabs on the upper trim cover (1). Snap the tabs together.
  6. Connect the lower steering column trim cover to the closeout shroud.
  7. Install the retaining screws (3) to the lower steering column trim cover.

    Tighten:  Tighten the screws to 3 N.m (27 lb in).

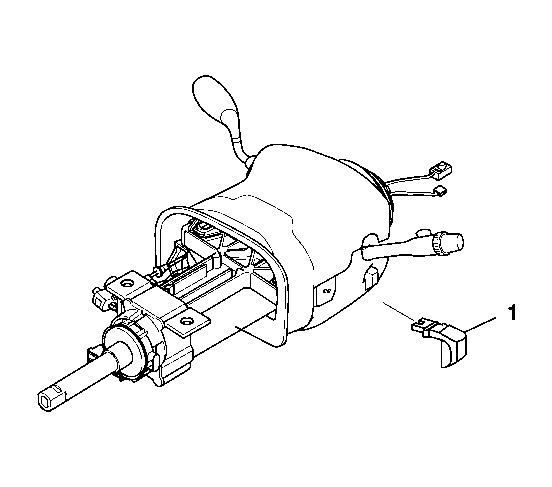

    8. Fig 3: View Of Tilt Lever
    GM603840Courtesy of GENERAL MOTORS CORP.
  8. Install the tilt lever (1).
  9. Install the steering column filler. Refer to Steering Column Filler Replacement in Instrument Panel, Gages, and Console.
  10. Install the steering wheel. Refer to Steering Wheel Replacement .
  11. Connect the battery negative cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (RPOs LZE/LZ4/LZ9) or Battery Negative Cable Disconnect/Connect Procedure (RPO LS4) in Engine Electrical.
  12. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 in SIR.
