Power Steering Cooler Pipe/Hose Replacement

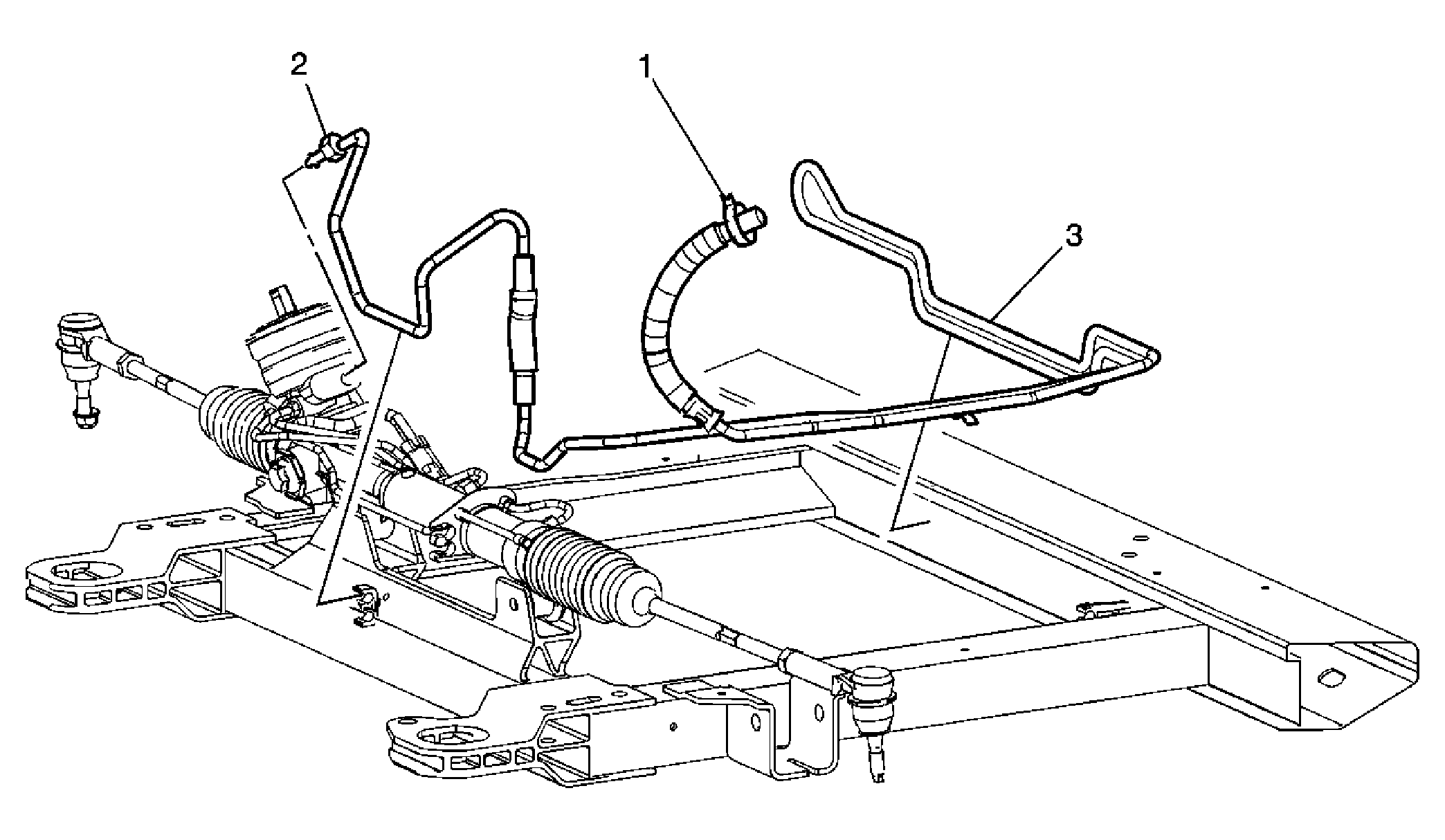

Fig 1: Replacing Power Steering Cooler Pipe/Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Place a drain pan under the vehicle. Raise and lower the vehicle as necessary to access the power steering hose clamp (at pipe) and fitting (at the rack and pinion). Refer to Lifting and Jacking the Vehicle . Fill and bleed the power steering system after the repair has been completed. Refer to Bleeding the Power Steering System .
1	Clamp, Power Steering Cooler Pipe/Hose to Return Pipe/Hose Tip: Position the clamp off of the hose. Use a shop rag or suitable plug to minimize fluid loss from the hose.
2	Nut, Power Steering Cooler Pipe/Hose Fitting Tighten: 27 N.m (20 lb ft)
3	Pipe/Hose, Power Steering Cooler Tip: Release the power steering cooler pipe/hose from the retainers on the frame.
