Front Seat Belt Buckle Replacement
Seat Belt Buckle Replacement - Front

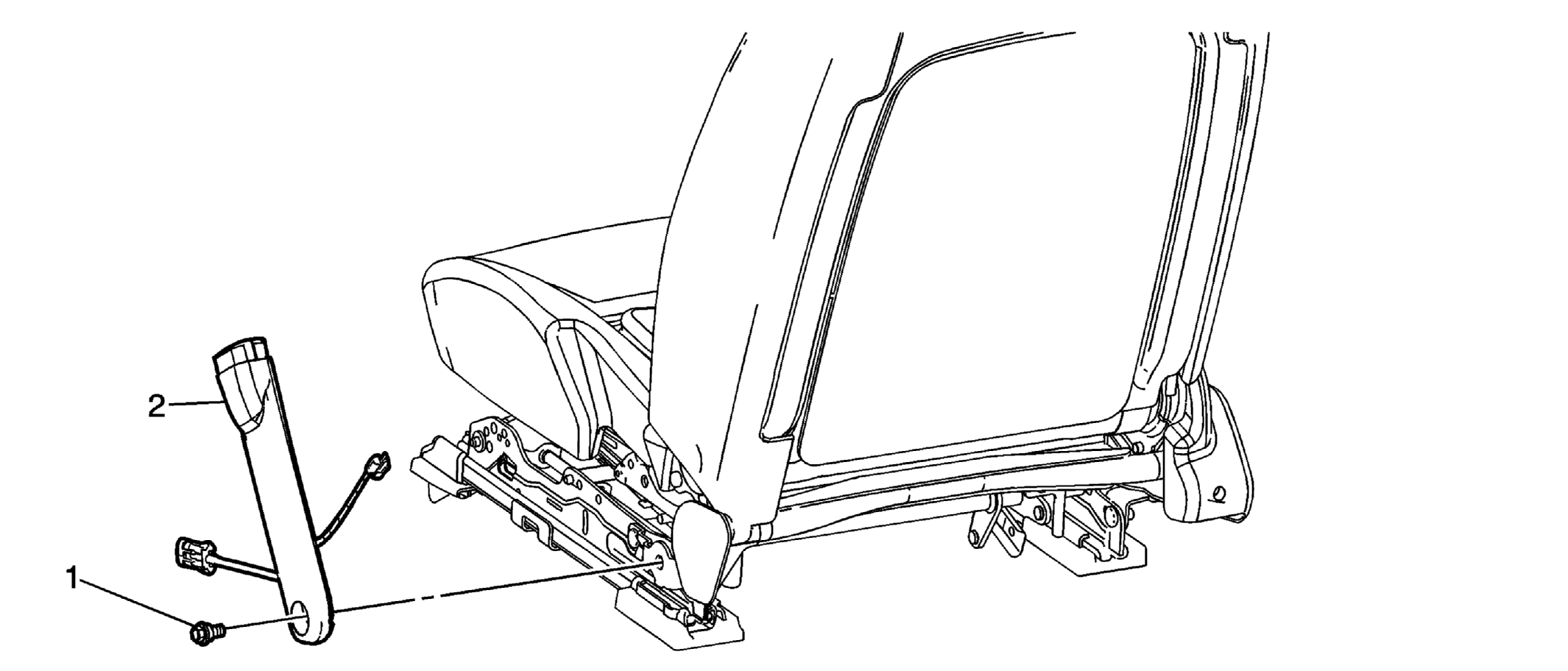

| Callout | Component Name |
|---|---|
|
NOTE:
Refer to Fastener Notice
. Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the front seat. Refer to Seat Replacement - Front Bucket (Impala)
or Seat Replacement - Front Bucket (Monte Carlo)
. |
|
| 1 | Bolt, Seat Belt Buckle Tip: Disconnect the electrical connector. Tighten: 42 N.m (31 lb ft) |
| 2 | Belt, Seat Buckle Assembly |
