Center Front Seat Belt Replacement

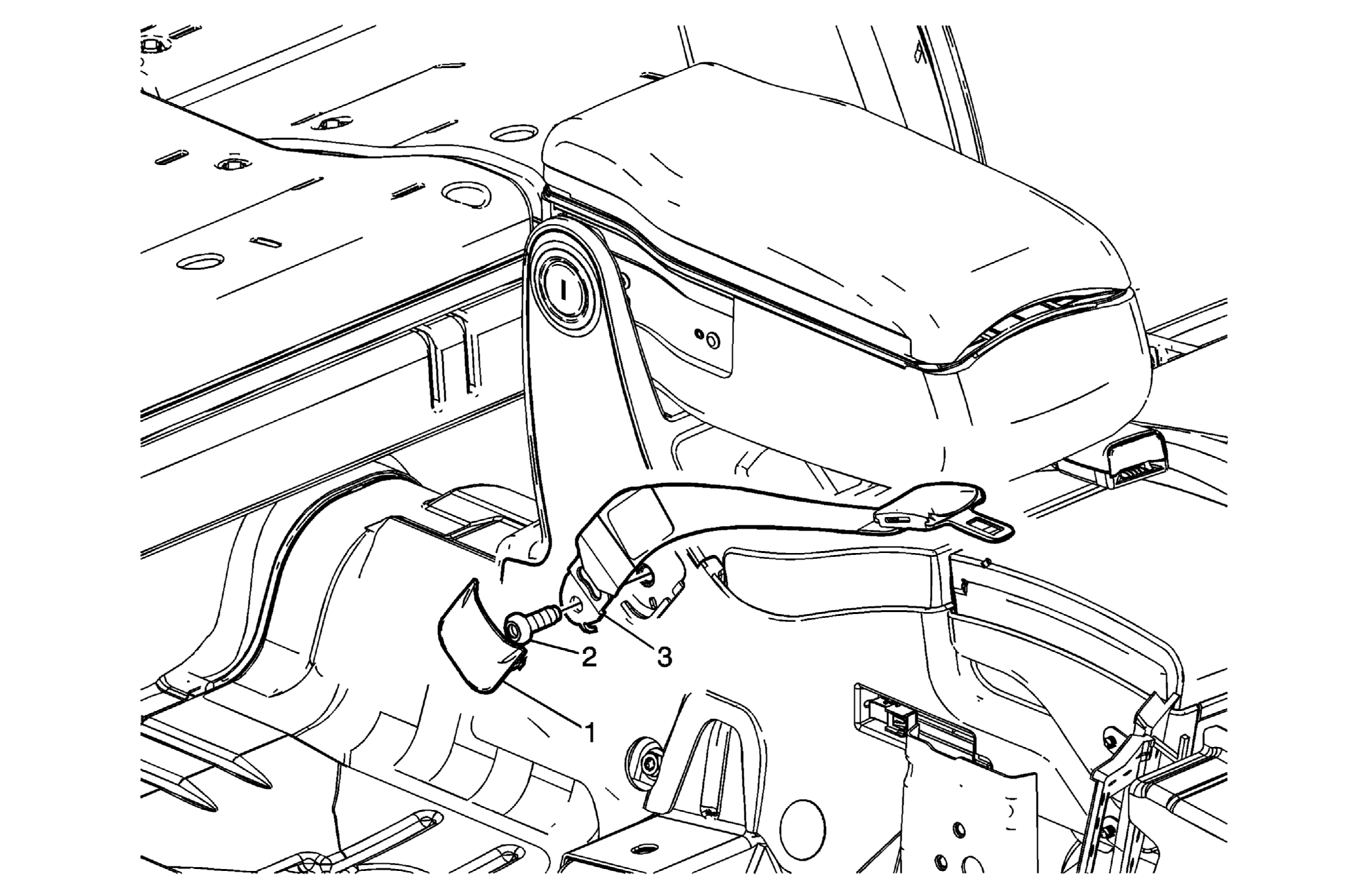

Fig 1: Replacing Center Front Seat Belt
GM1601437Courtesy of GENERAL MOTORS CORP.
Seat Belt Replacement - Center Front

Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Trim Plate, Center Front Seat
Tip:  Slide the passenger seat to the full forward position and adjust the seat back to the full forward position to allow access.
2 Bolt, Seat Belt Center Front

Tighten:  42 N.m (31 lb ft)

3 Belt, Seat Center Front
