Installation Procedure

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

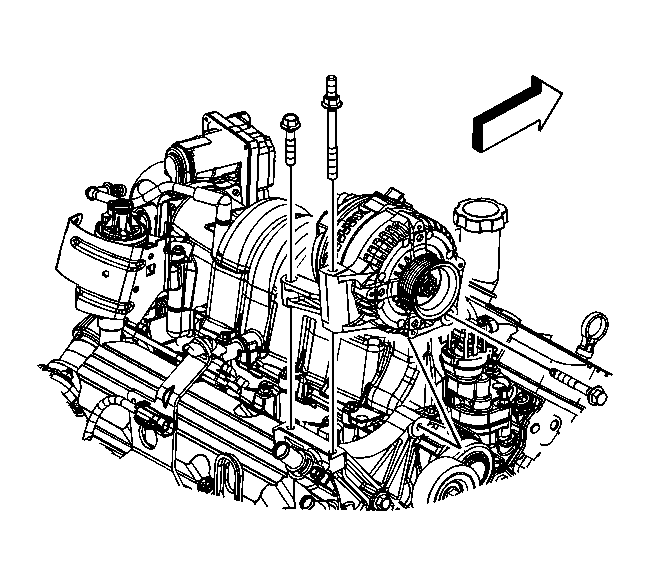

Fig 1: View Of Generator

Courtesy of GENERAL MOTORS CORP.

Set the generator into position on the engine.
Install the generator front bolt.

NOTE: Refer to Fastener Notice .

Install the generator rear stud and bolt.
Tighten: Tighten the bolt/stud to 50 N.m (37 lb ft).

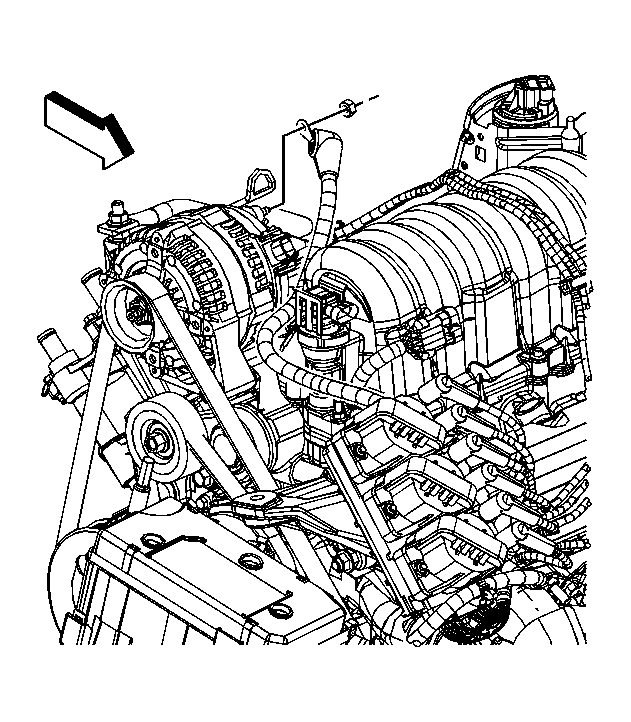

Fig 2: Identifying Generator Terminal Nut

Courtesy of GENERAL MOTORS CORP.

Install the starter cable to the generator.
Install the generator terminal nut.
Tighten: Tighten the nut to 20 N.m (15 lb ft).
Position the starter cable boot.

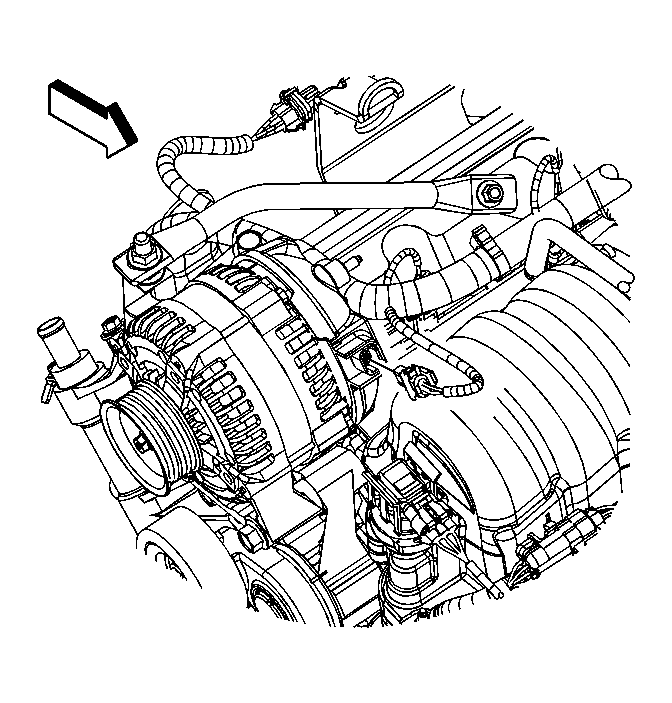

Fig 3: Identifying Generator Harness Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the engine harness electrical connector to the generator.

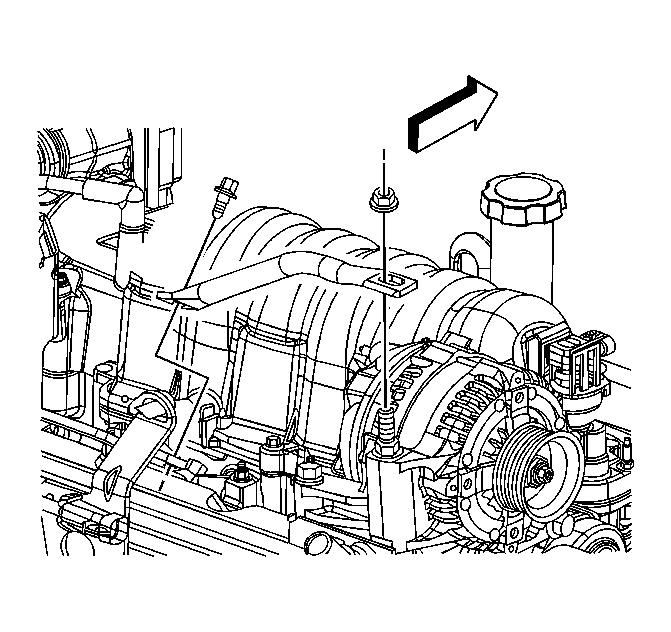

Fig 4: Generator Brace Bolt & Nut

Courtesy of GENERAL MOTORS CORP.

Install the generator brace.
Install the generator brace bolt and nut.
Tighten:
- Tighten the bolt to 25 N.m (18 lb ft).
- Tighten the nut to 50 N.m (37 lb ft).
Install the drive belt. Refer to Drive Belt Replacement .
Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
