Right Closeout/Insulator Panel Replacement

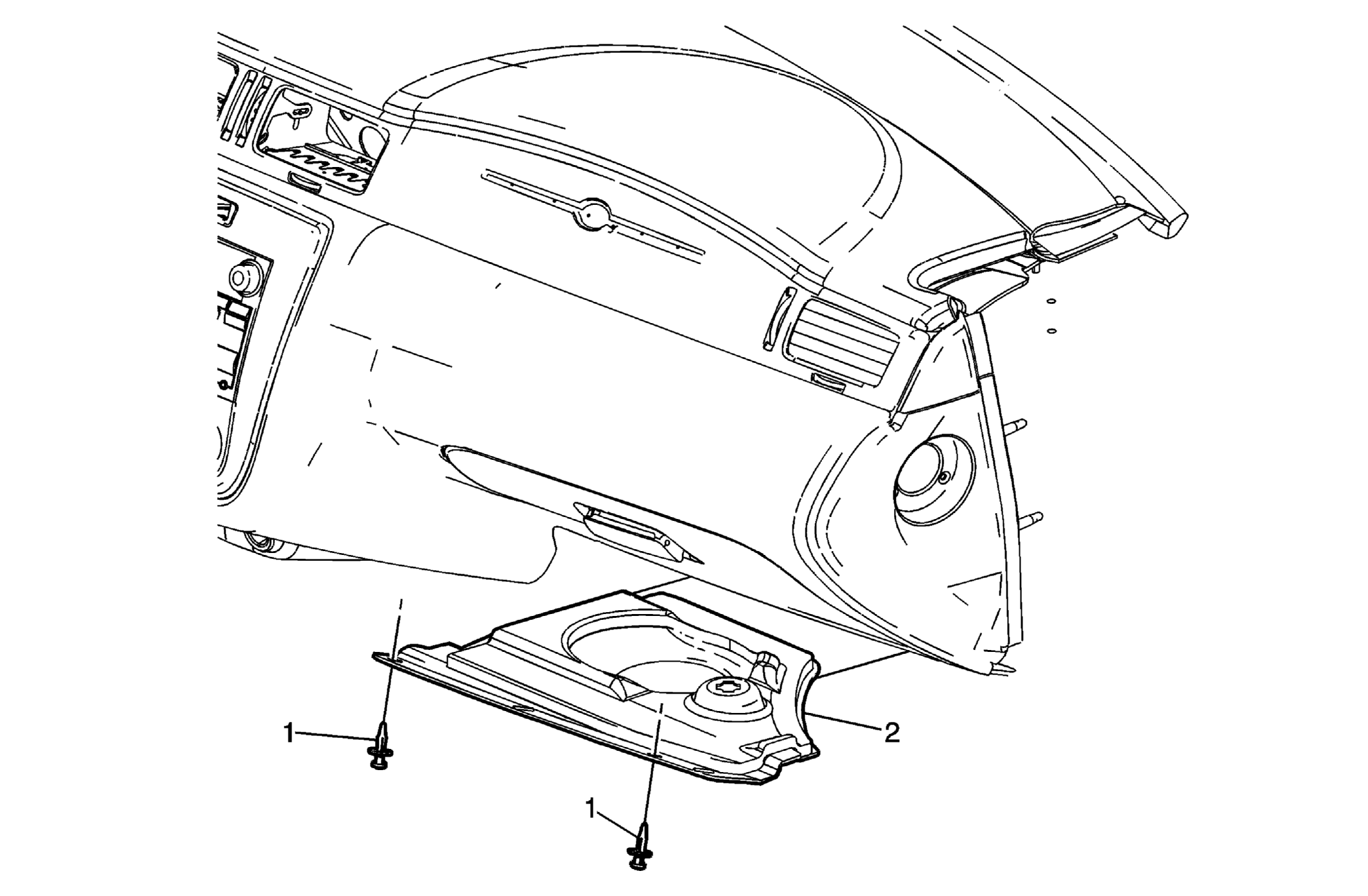

Fig 1: Replacing Right Closeout/Insulator Panel
GM1594253Courtesy of GENERAL MOTORS CORP.
Closeout/Insulator Panel Replacement - Right

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Retainer, Push Pin (Qty: 2)
2 Closeout/Insulator Panel, Instrument Panel
Tip:
  1. Impala shown Monte Carlo similar.
  2. Remove the courtesy lamp, if equipped.
