Upfitter Provision Schematics

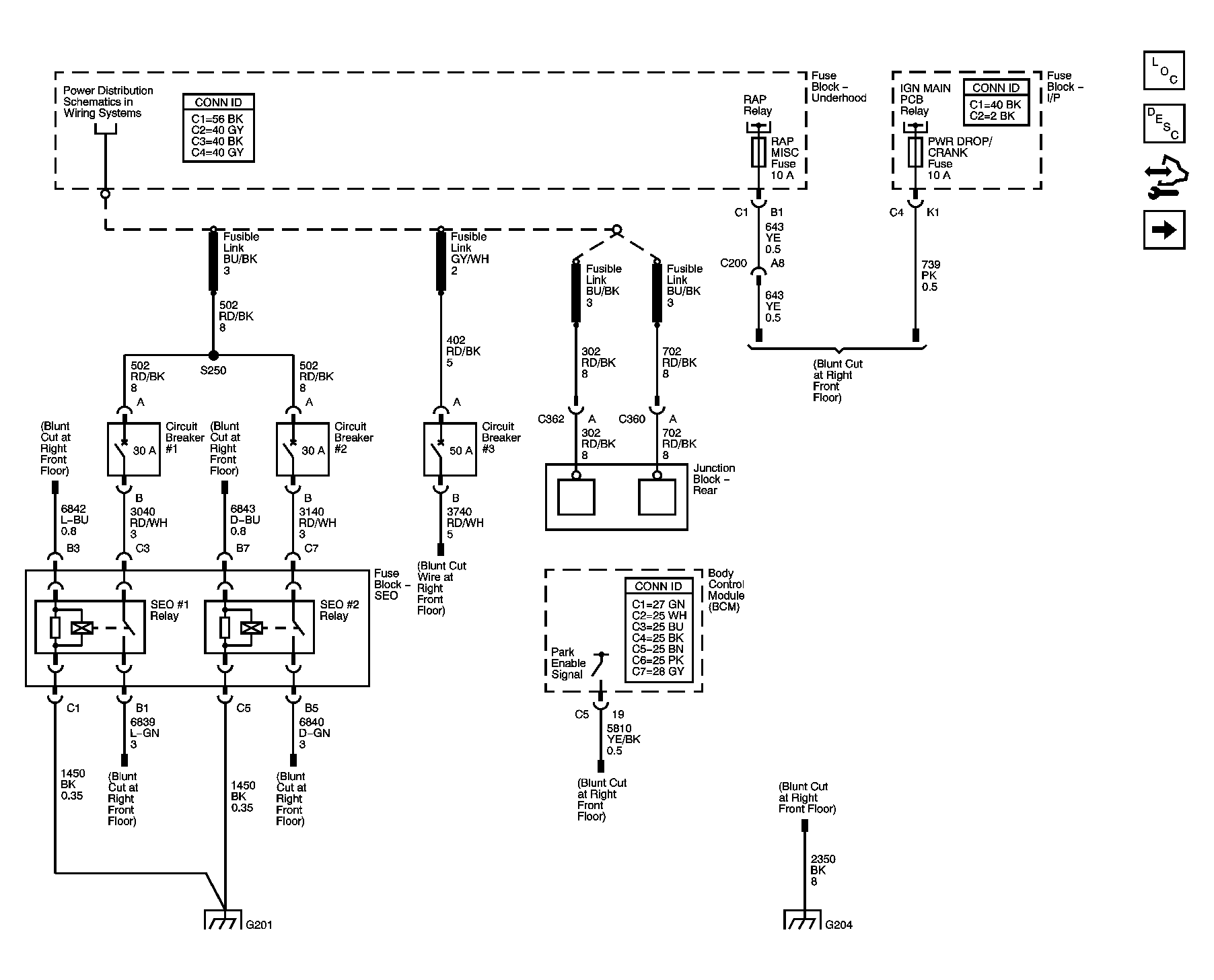

Fig 1: 6J1 - Wiring Diagram

GM1657257

Courtesy of GENERAL MOTORS CORP.

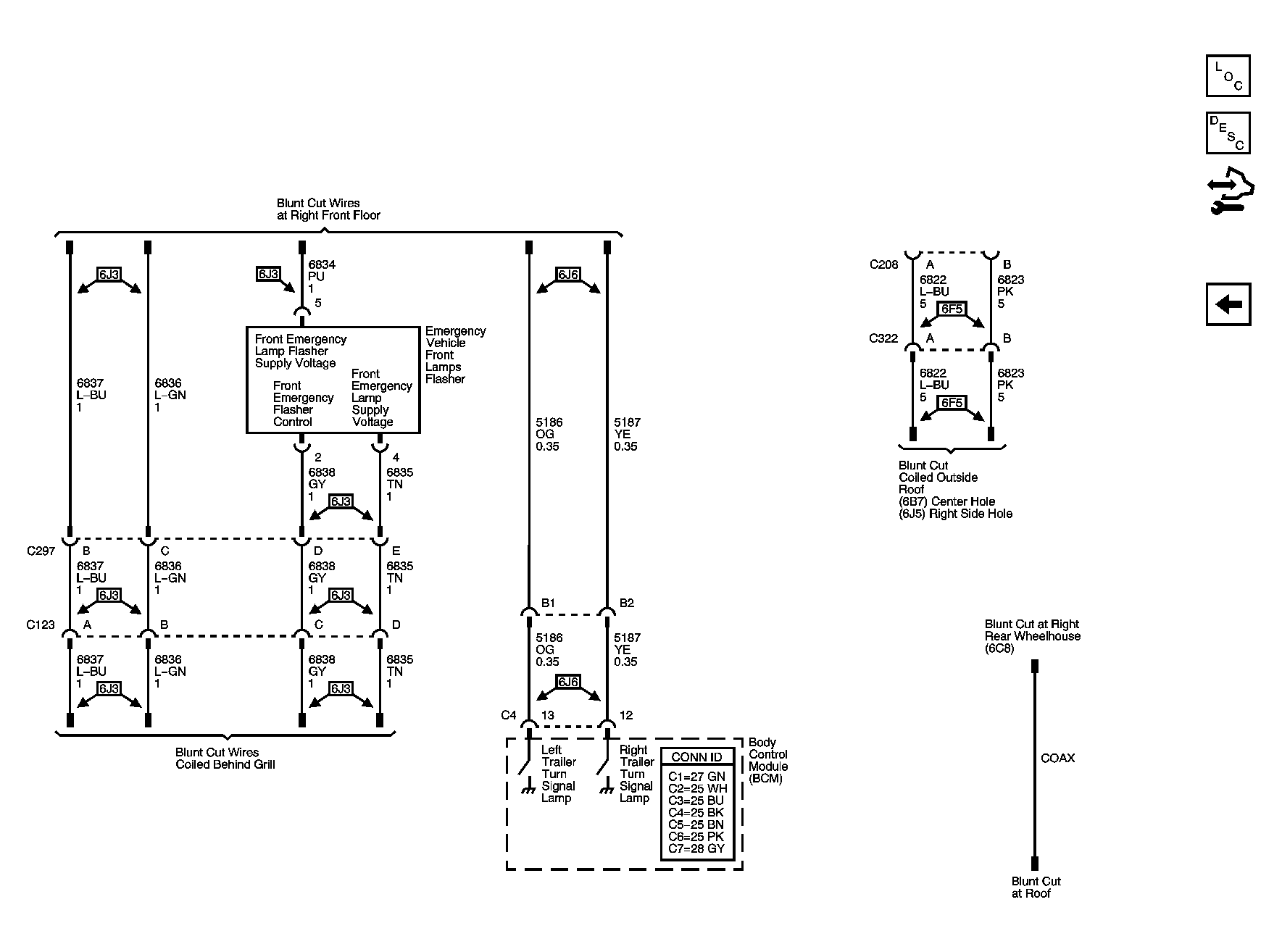

Fig 2: 6J3, 6J6, 6F5, And 6C8 - Wiring Diagram

GM1657259

Courtesy of GENERAL MOTORS CORP.
