Harness Routing Views

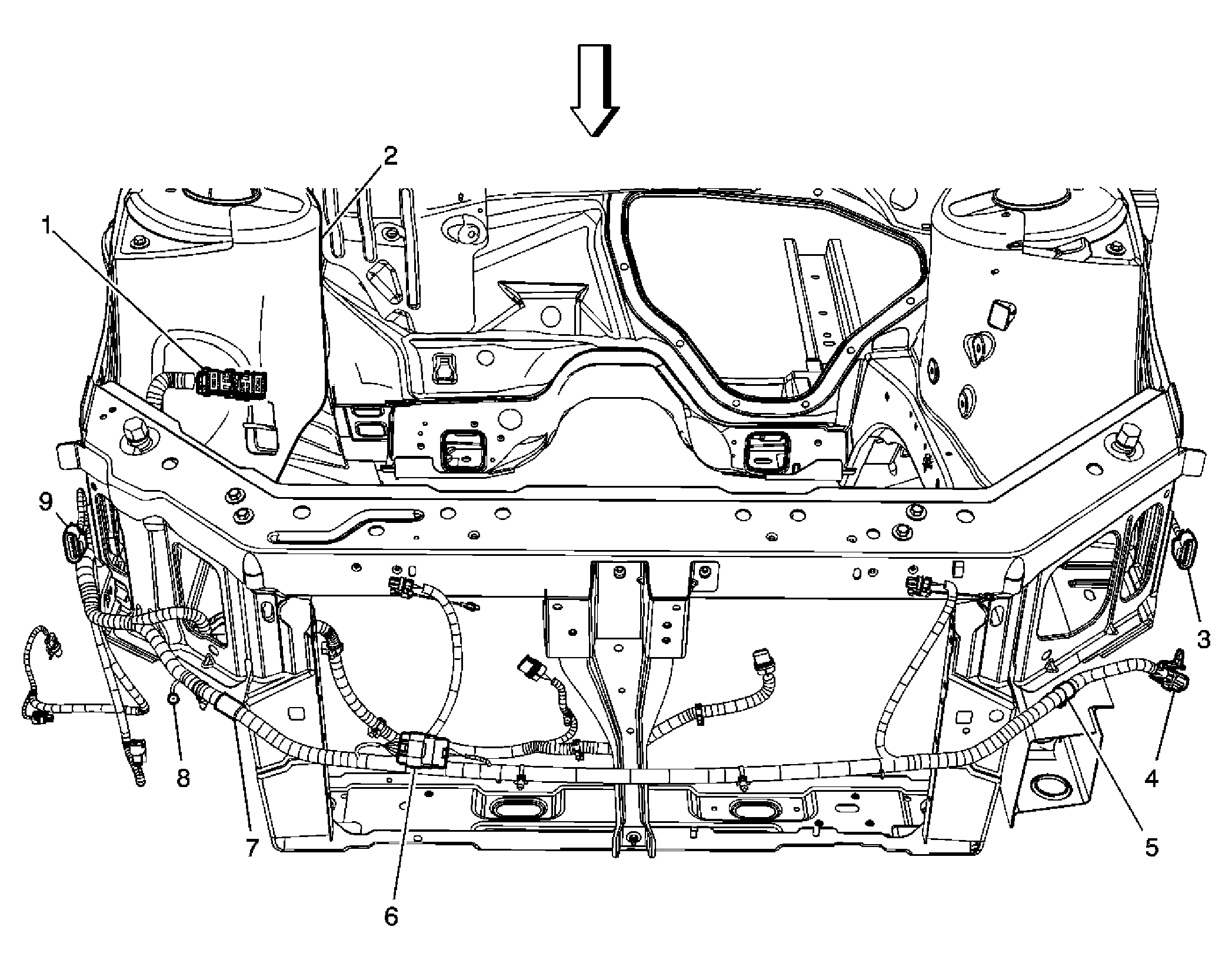

Fig 1: Forward Lamp harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C3
2	RF Strut Tower
3	C120
4	C141
5	G101
6	C122 (9C1 and 9C3)
7	S124
8	G100
9	C142

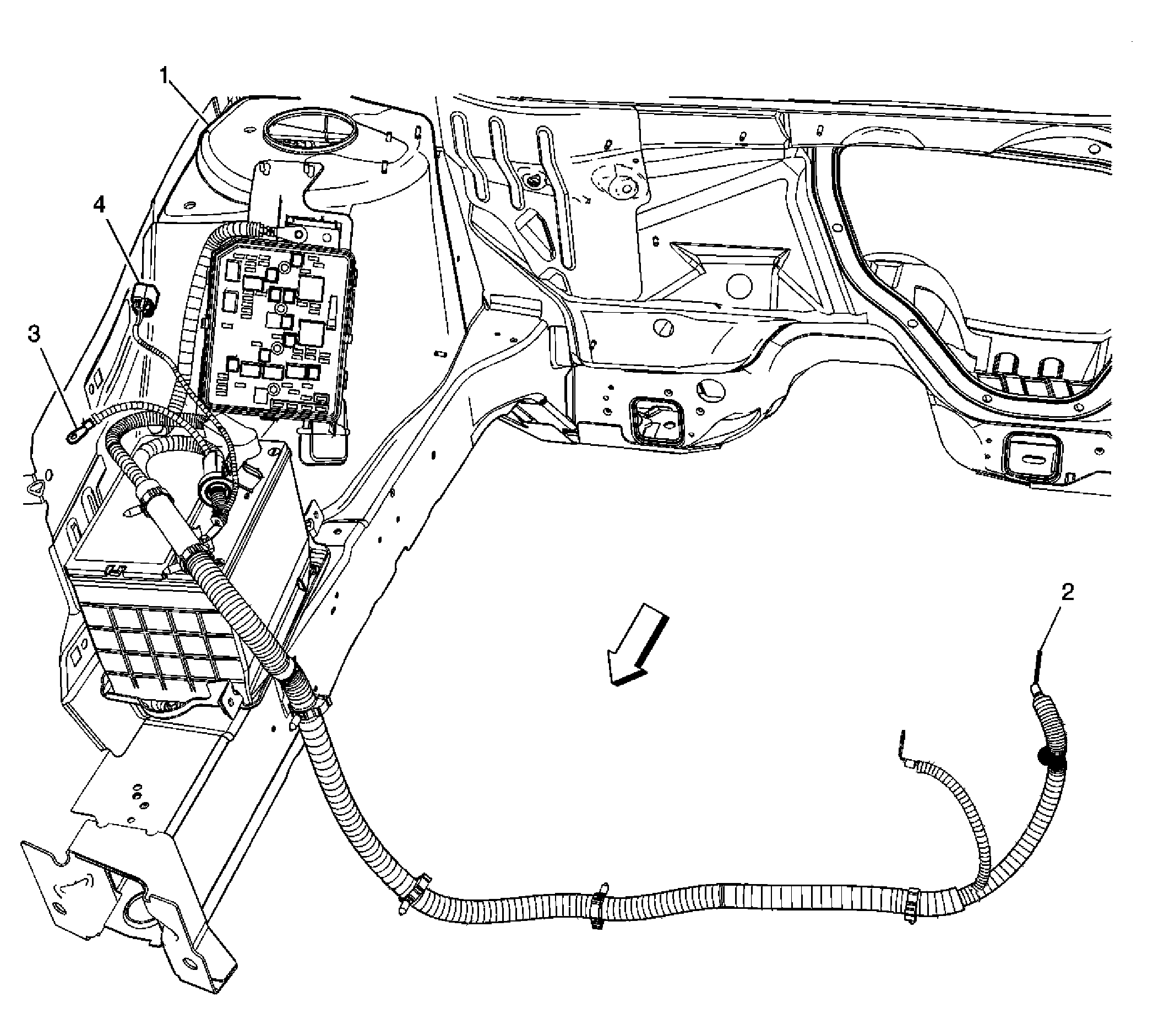

Fig 2: Battery Cable Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Strut Tower
2	G111
3	G102
4	G105

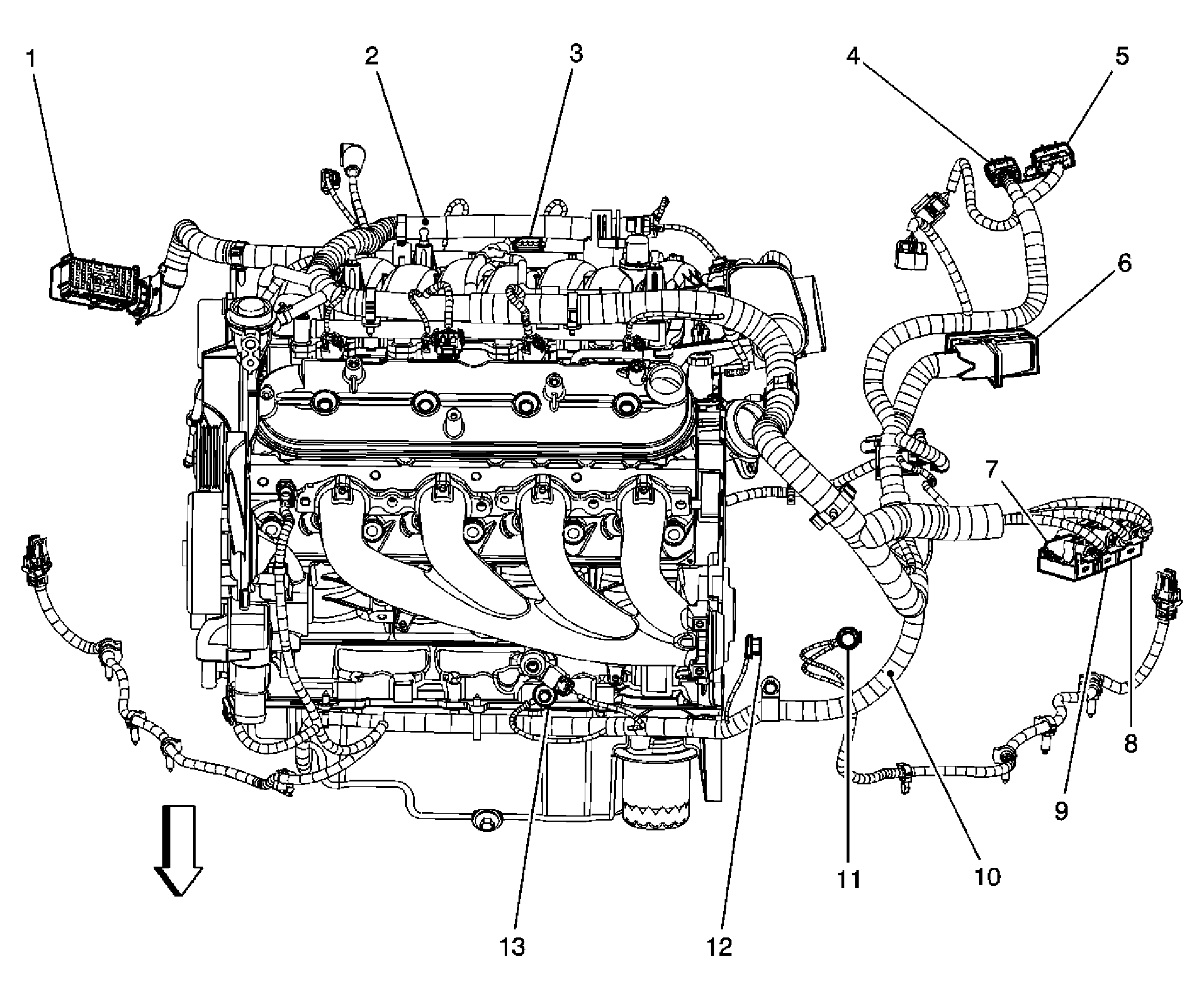

Fig 3: Front of the Engine (LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C1
2	S192
3	S192
4	C101
5	C111
6	Electronic Brake Control Module (EBCM) C1
7	Powertrain Control Module (PCM) C3
8	Powertrain Control Module (PCM) C2
9	Powertrain Control Module (PCM) C1
10	S101
11	G113
12	G112
13	G115

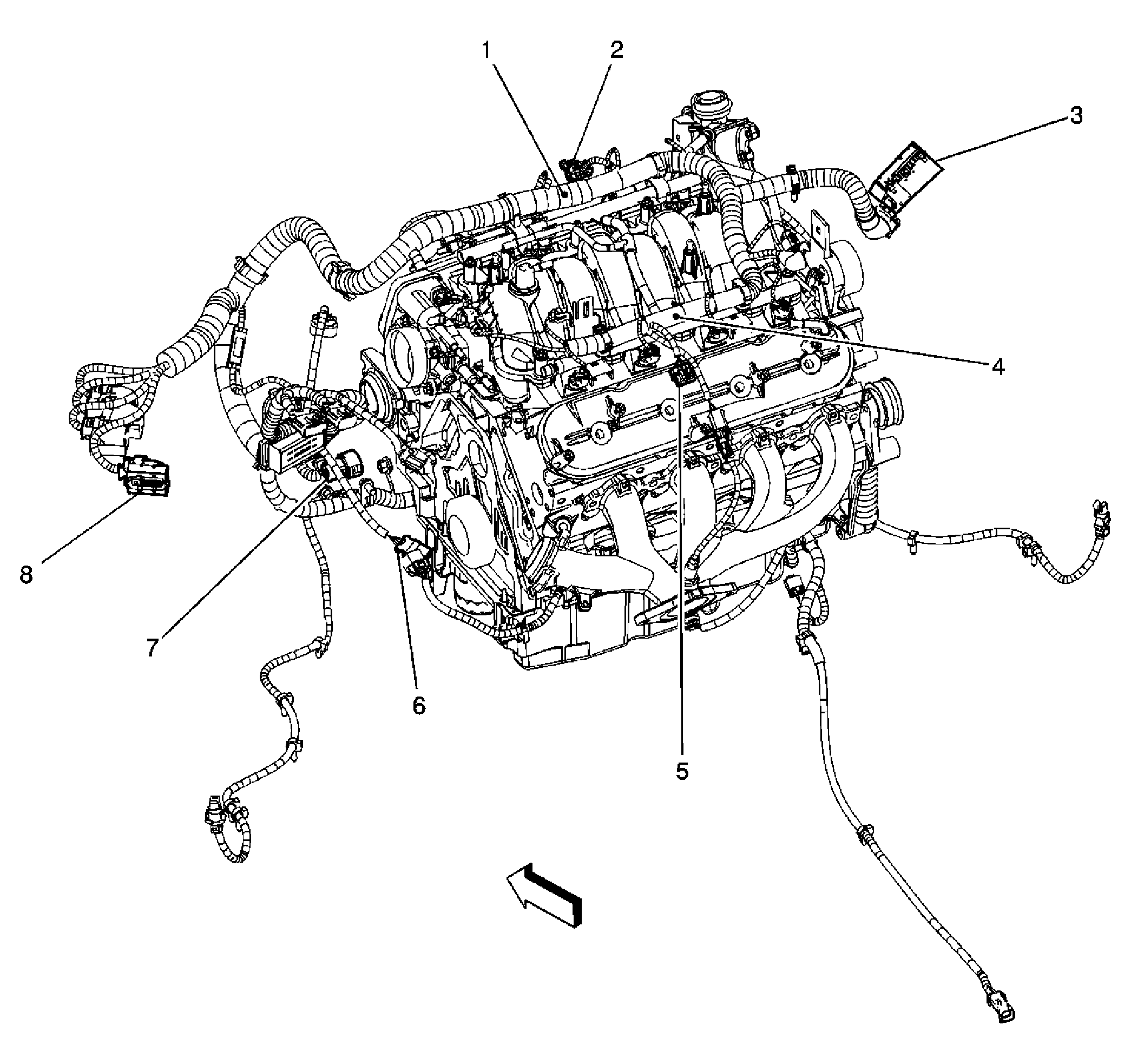

Fig 4: Rear of the Engine (LS4)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S170
2	S168
3	S191
4	C108
5	Fuse Block - Underhood C1
6	S192
7	C109
8	C116
9	C100
10	Transmission Control Module (TCM) Connector

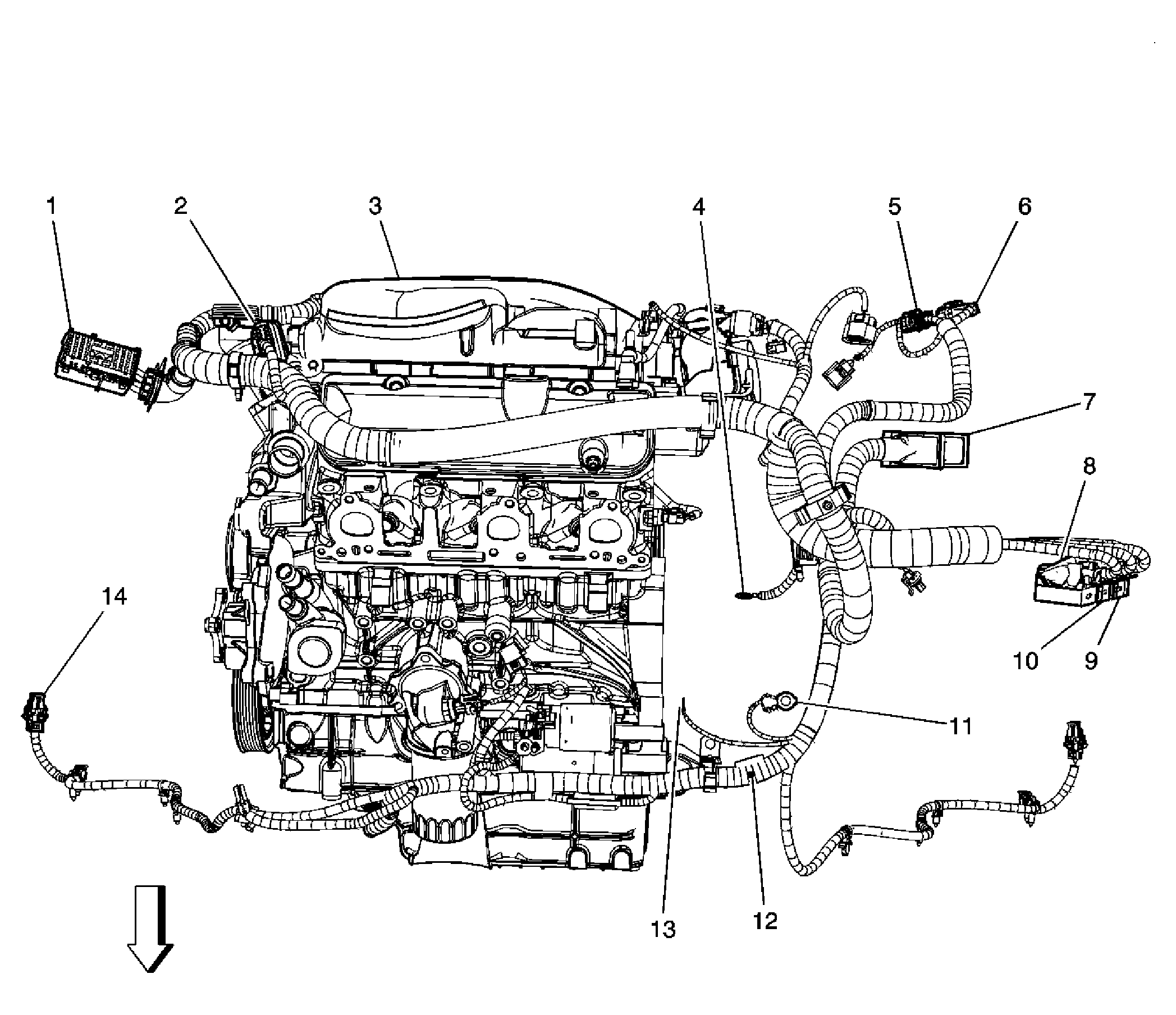

Fig 5: Front of the Engine (LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood C1 Connector
2	C102
3	Intake Manifold
4	G115
5	C101
6	C111
7	Electronic Brake Control Module (EBCM) Connector
8	Engine Control Module (ECM) C1 Connector
9	Engine Control Module (ECM) C3 Connector
10	Engine Control Module (ECM) C2 Connector
11	G113
12	S101
13	LF Wheel Speed Sensor Connector

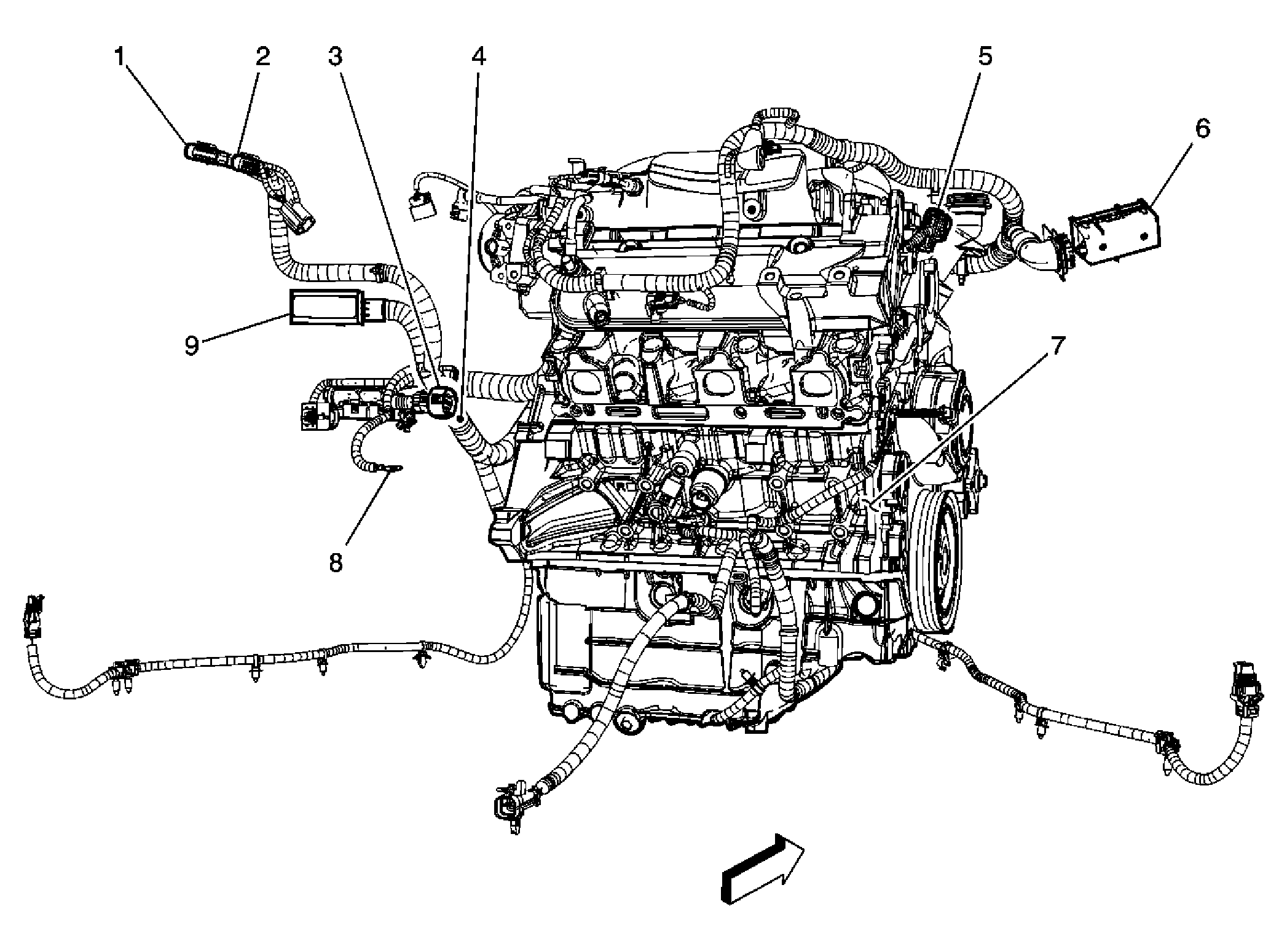

Fig 6: Rear of the Engine (LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111
2	C101
3	C100
4	S105
5	C102
6	Fuse Block - Underhood C1 Connector
7	Engine Block
8	G115
9	Electronic Brake Control Module (EBCM) Connector

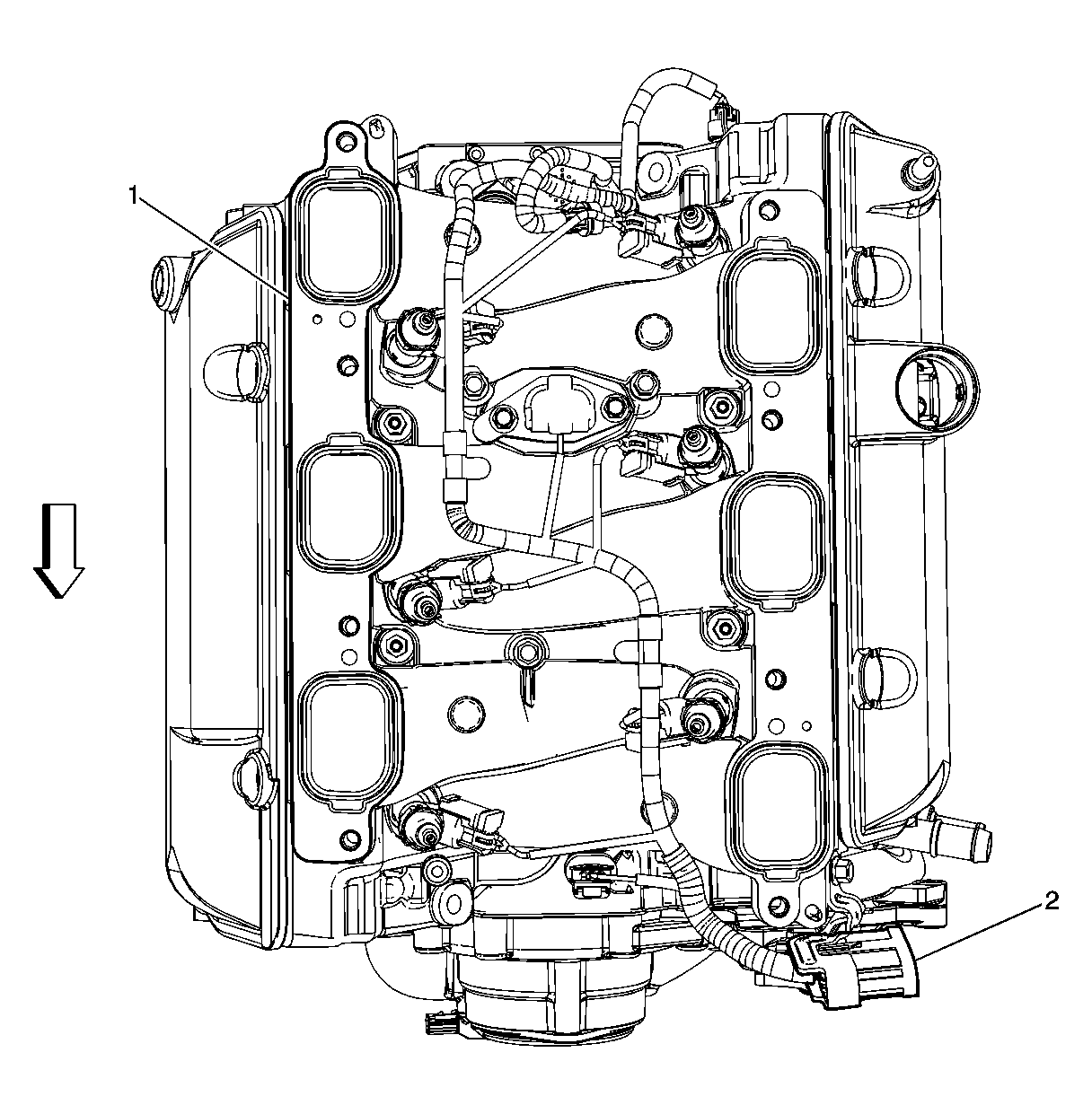

Fig 7: Fuel Injector Harness(LZ9)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Intake Manifold
2	C102

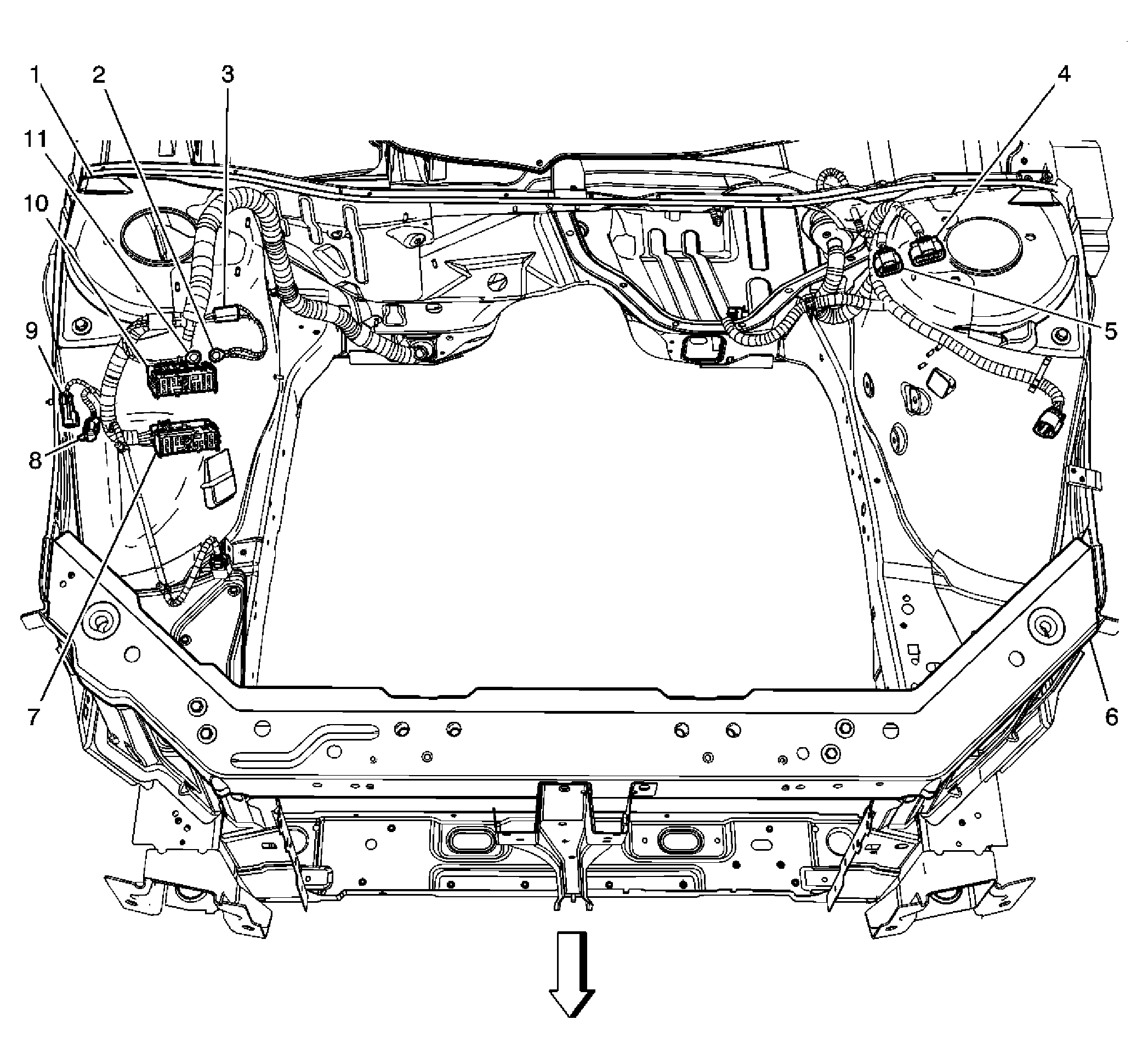

Fig 8: I/P Harness - Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	RF Strut Tower
2	Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)
3	C111
4	C101
5	C120
6	Radiator Core Support
7	Fuse Block - Underhood C2
8	C107
9	C105
10	Fuse Block - Underhood C1
11	Fuse Block - Underhood Positive Battery Terminal (9C1 and 9C3)

Fig 9: I/P Harness - Front of the I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Carrier
2	G202
3	G201
4	G200
5	G203
6	G210
7	C216
8	Fuse Block - I/P C2
9	C360 (9C1 and 9C3)
10	C362 (9C1 and 9C3)
11	C200
12	C267 (9C1 and 9C3)
13	C266 (9C1 and 9C3)
14	C268 (9C1 and 9C3)
15	HVAC Control Module C2
16	SP205
17	C201
18	Data Link Connector (DLC)
19	C203
20	C250

Fig 10: I/P Harness - Rear of the I/P Carrier

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S282
2	S203
3	S2394
4	S250
5	S218
6	I/P Carrier
7	S269
8	S269
9	Fuse Block - SEO

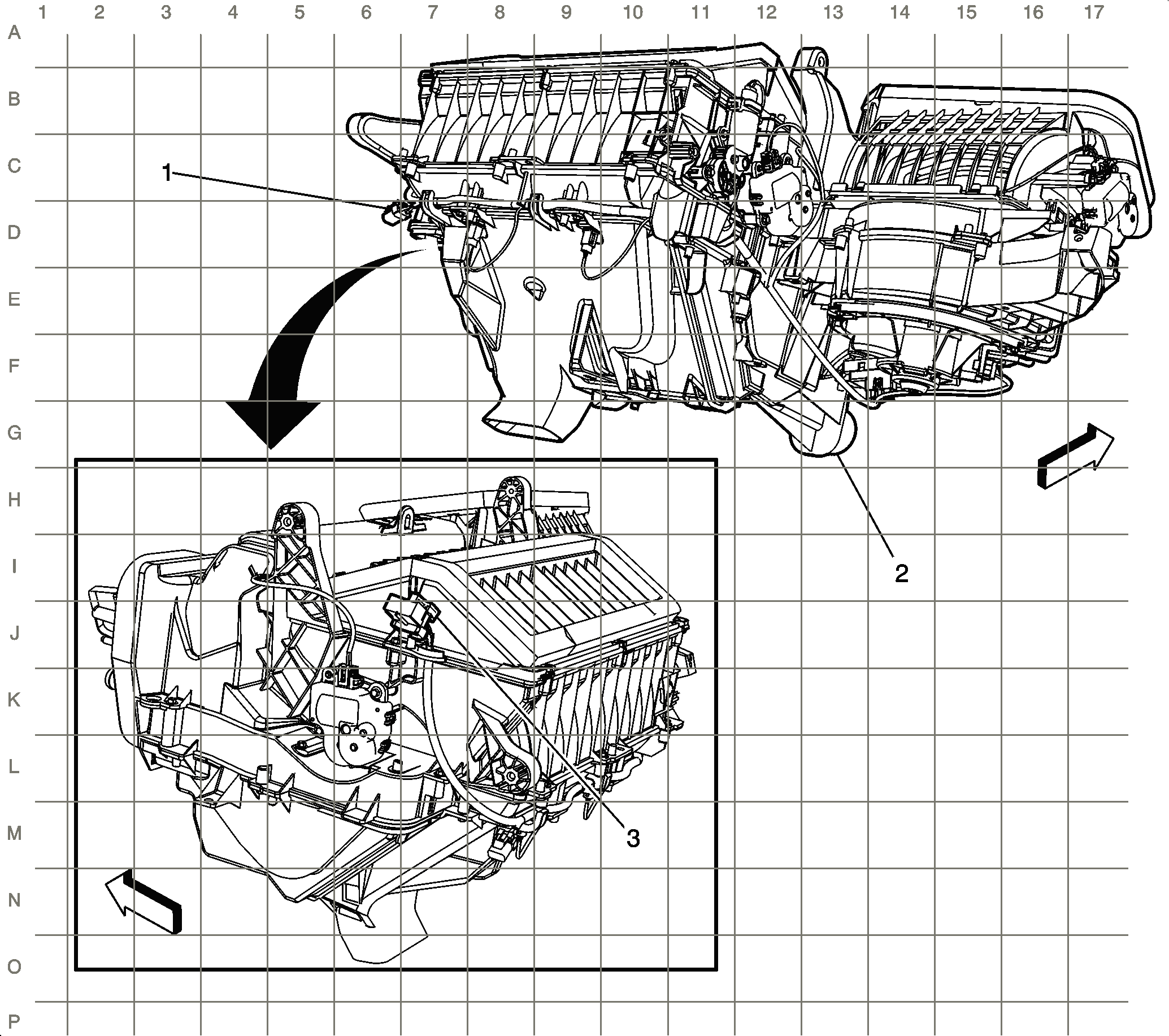

Fig 11: HVAC Module Wiring

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C210
2	HVAC Module
3	HVAC Control Module - C2

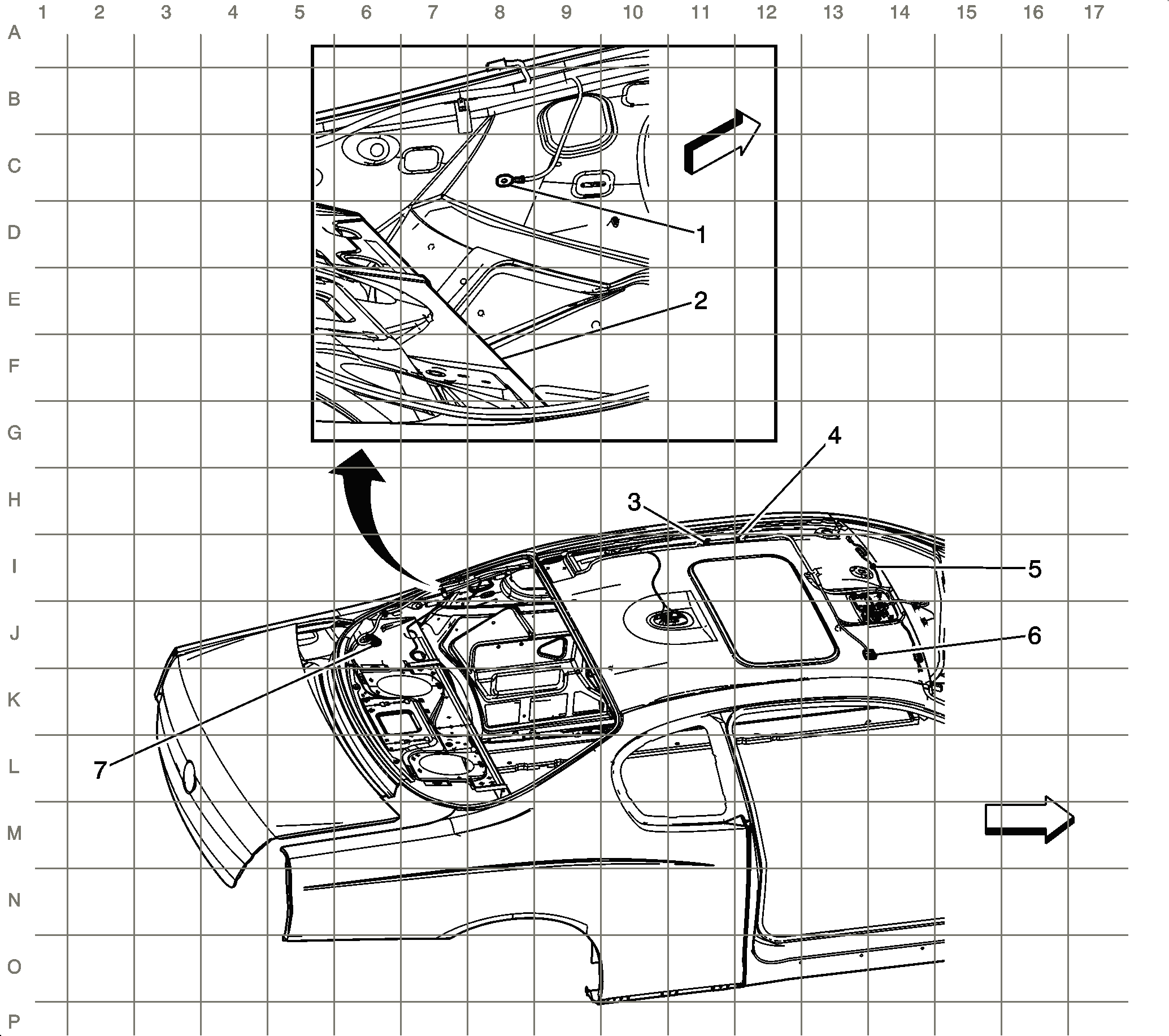

Fig 12: Sunroof and Headliner Harness (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C398
2	C390
3	G303
4	S393
5	S390
6	S394

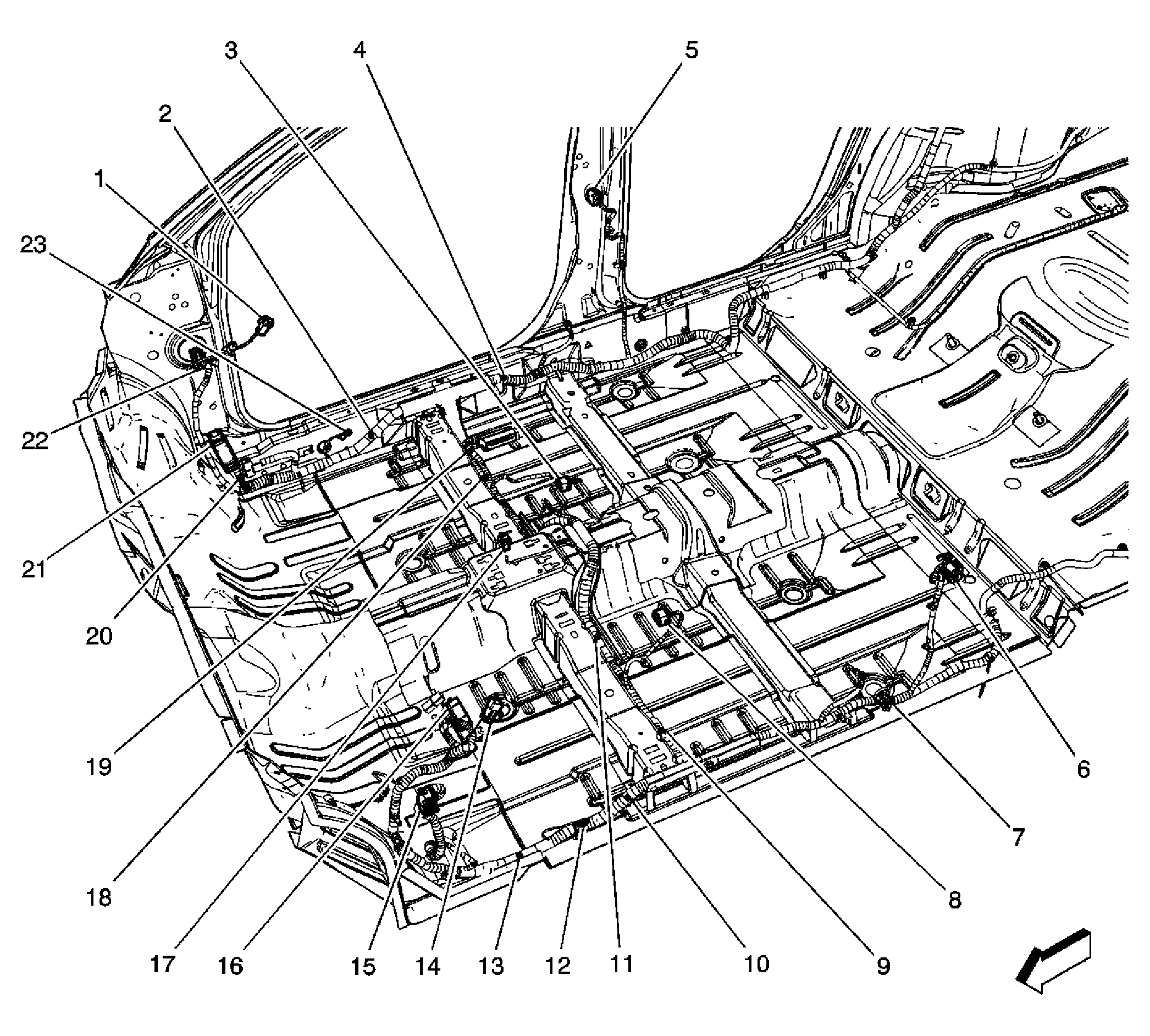

Fig 13: Body Harness - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C216
2	S350
3	C313
4	S375
5	C356
6	C355
7	S332
8	C311
9	S303
10	S308
11	S359
12	G301
13	S307
14	C250
15	C301
16	C203
17	C340
18	S315
19	S314
20	C360
21	C200
22	C302
23	G302

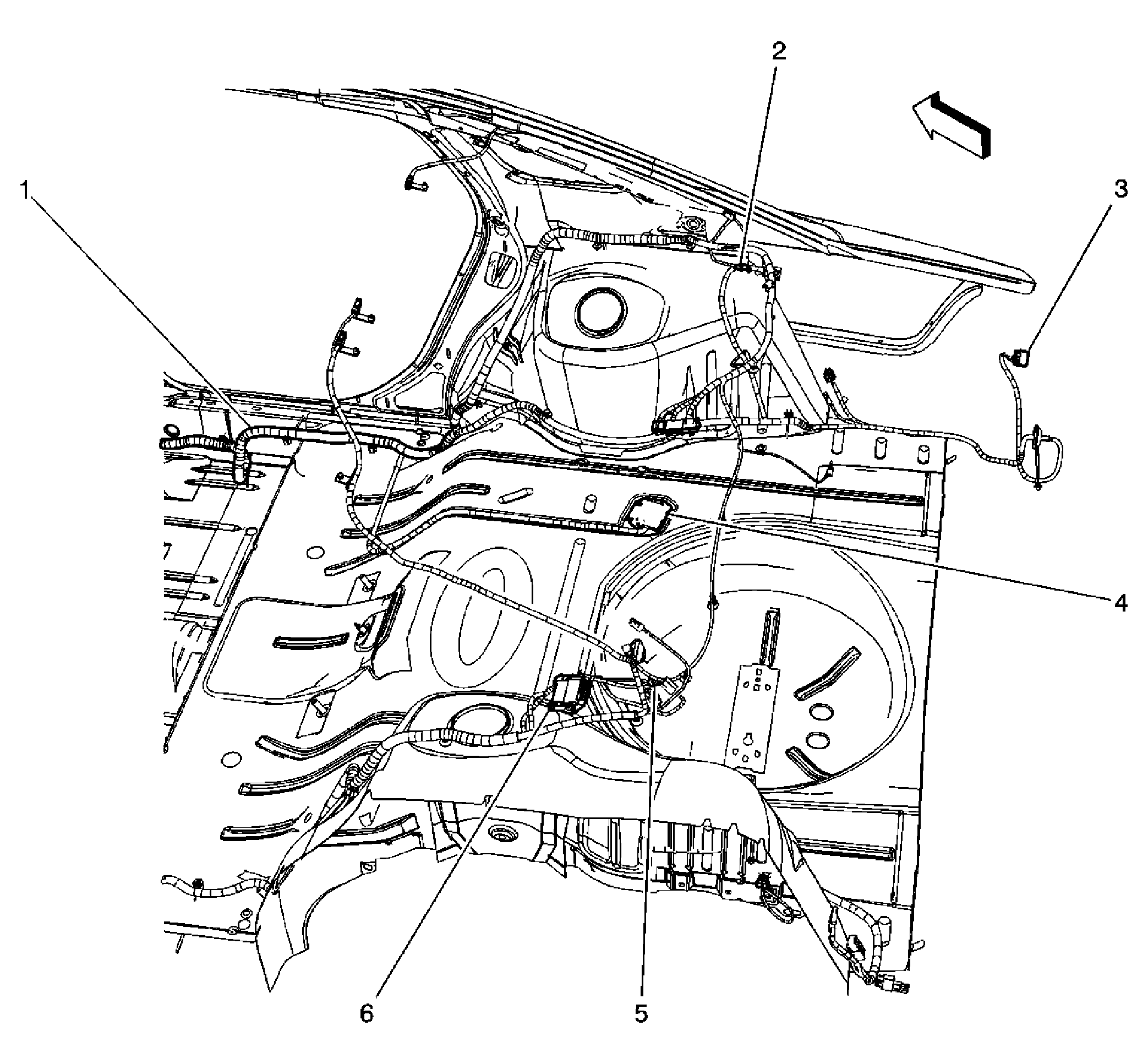

Fig 14: Body Harness - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S324
2	G304
3	C406
4	C405
5	G303
6	C390

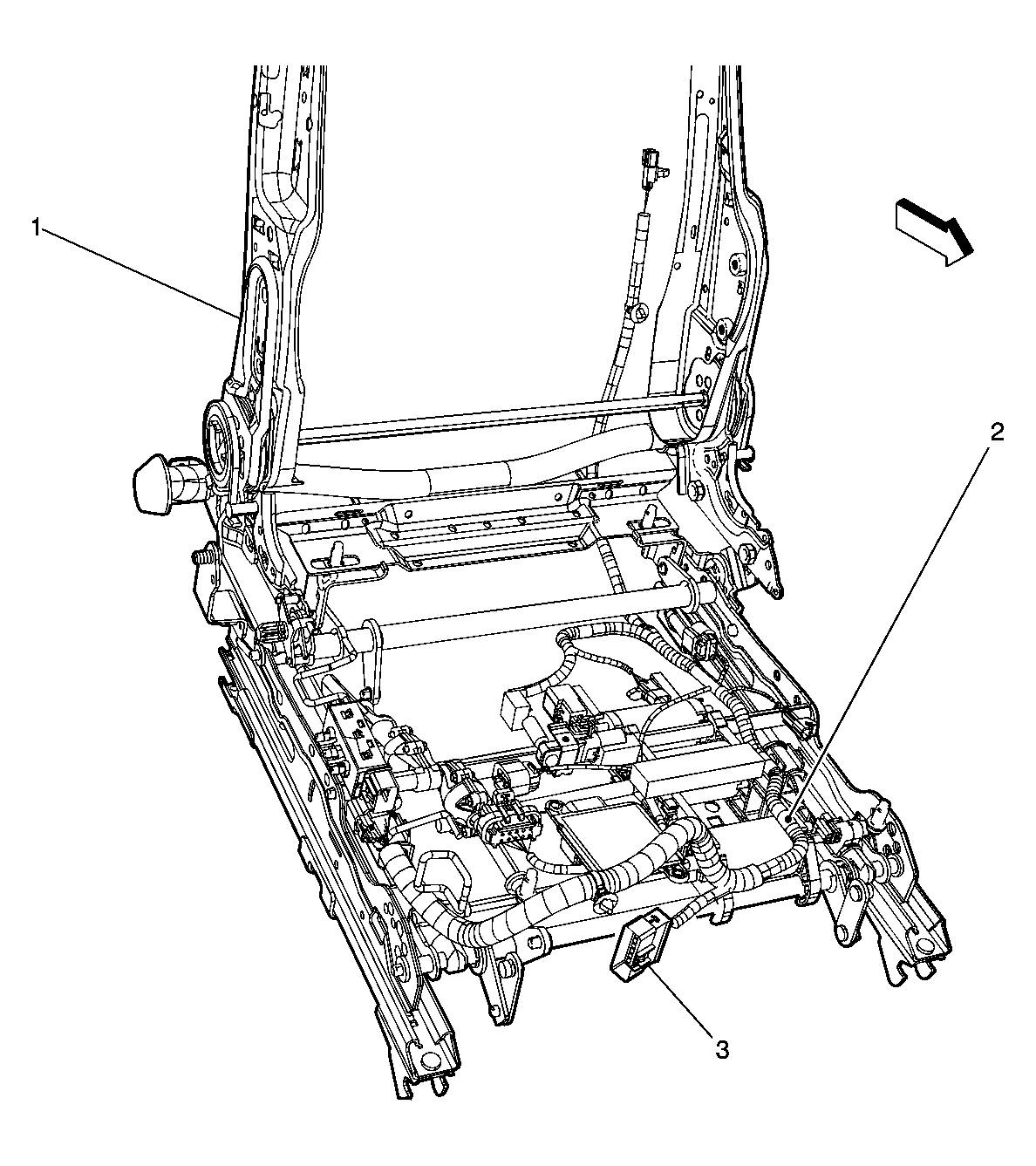

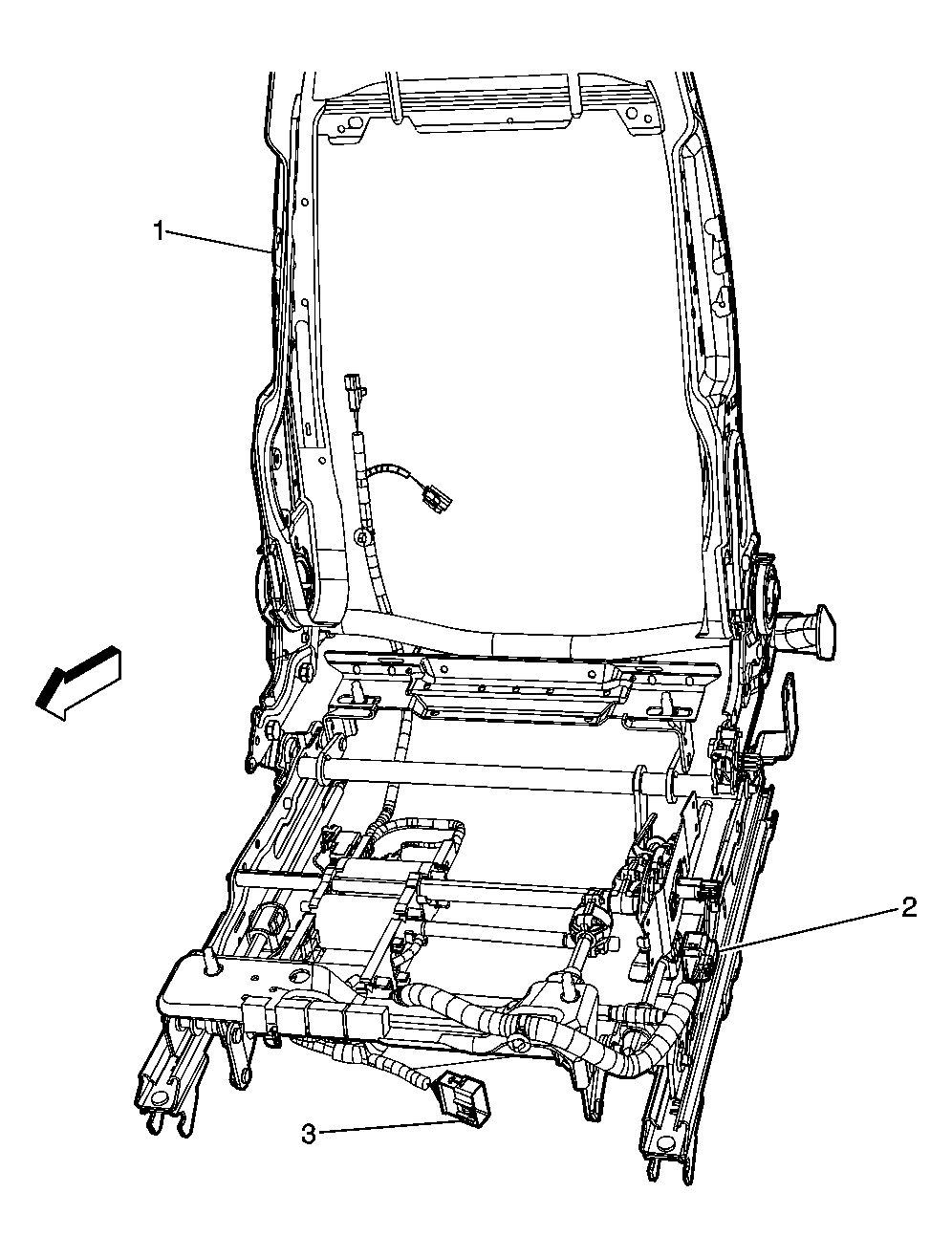

Fig 15: Driver Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Fame
2	Seat Adjuster Switch
3	C311

Fig 16: Passenger Seat Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Fame
2	S352
3	C313

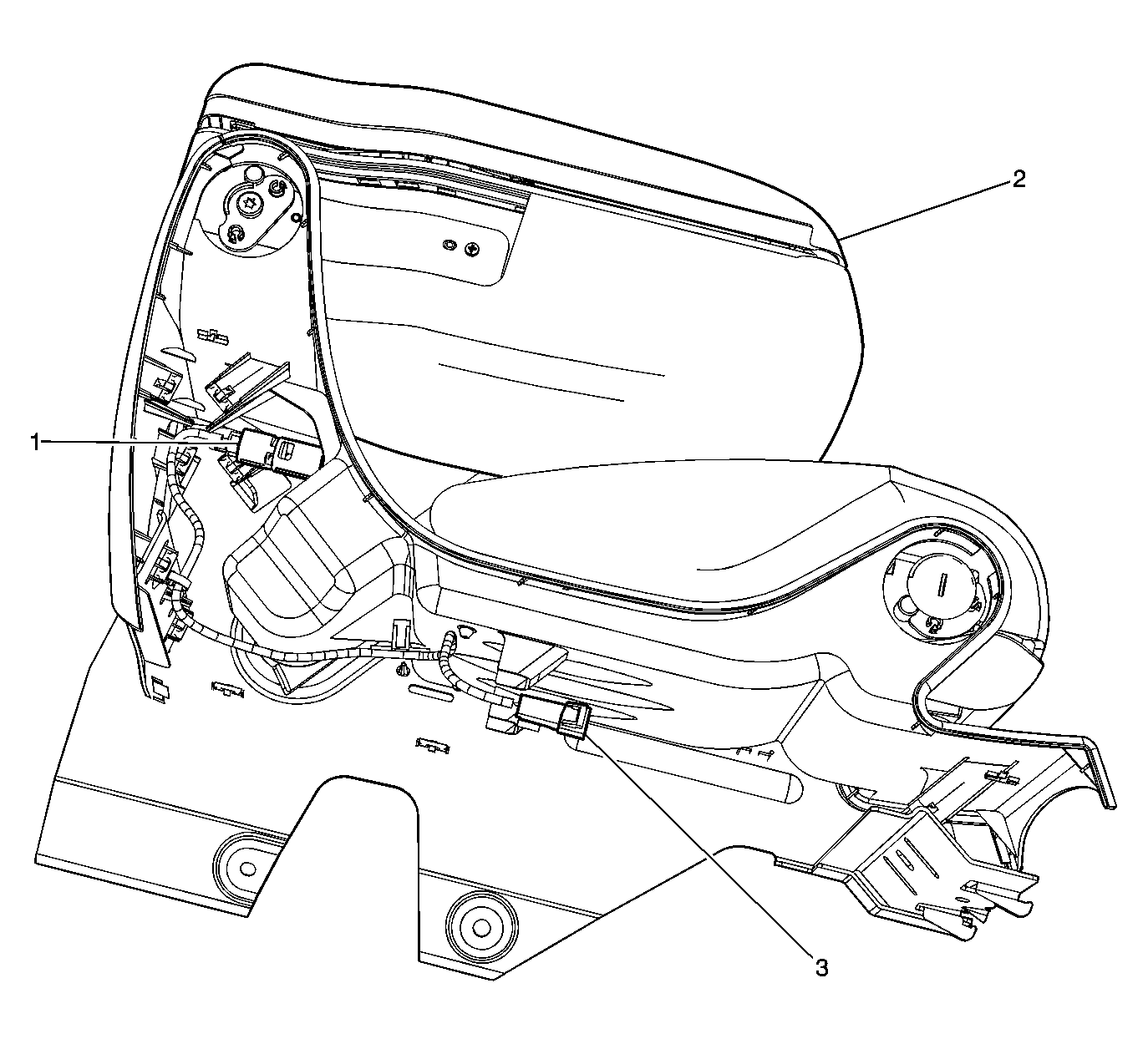

Fig 17: Console Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Auxiliary Power Outlet (APO) Connector
2	Armrest
3	C340

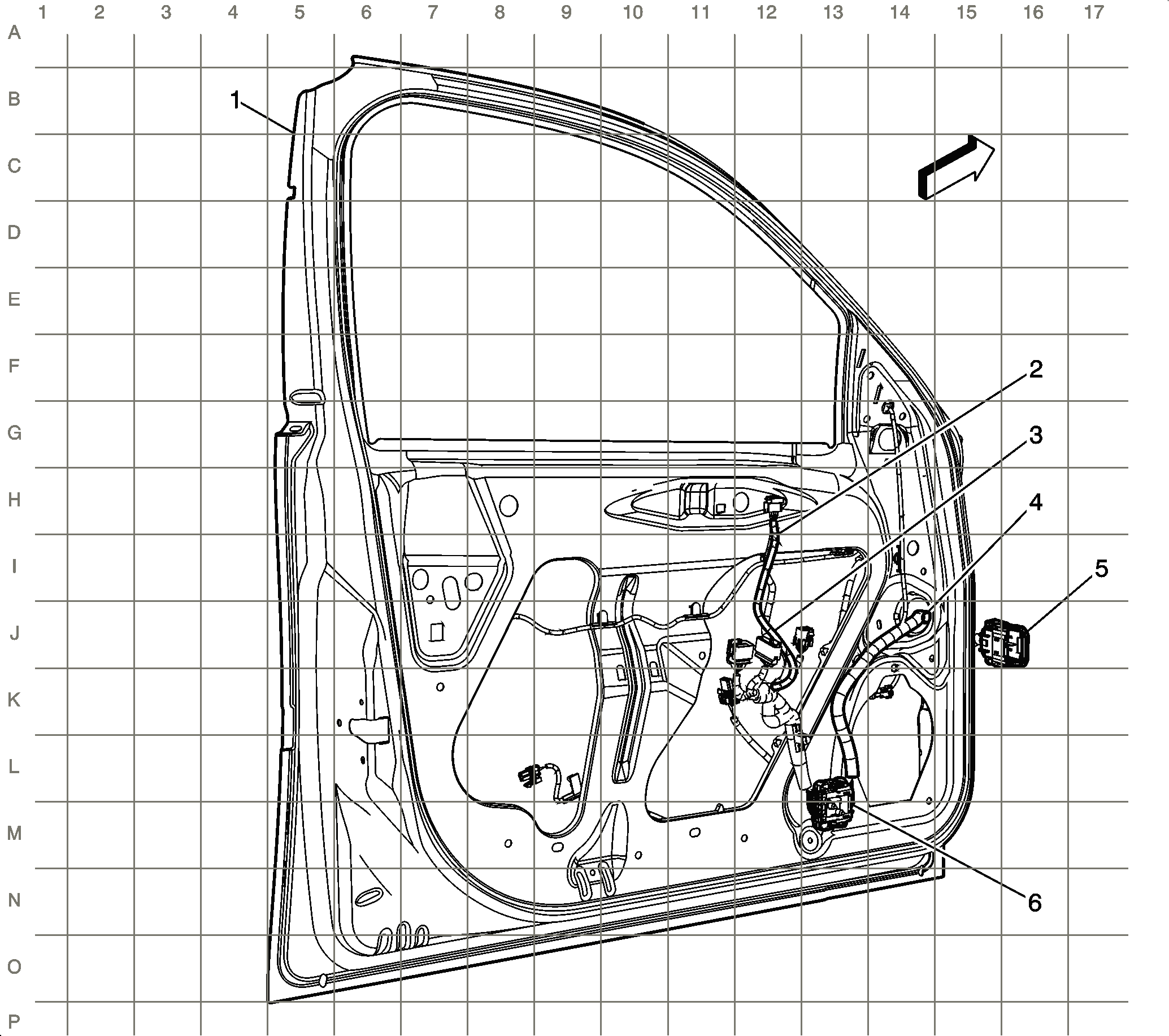

Fig 18: Driver Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	S506
3	S304
4	S305
5	C301
6	C303

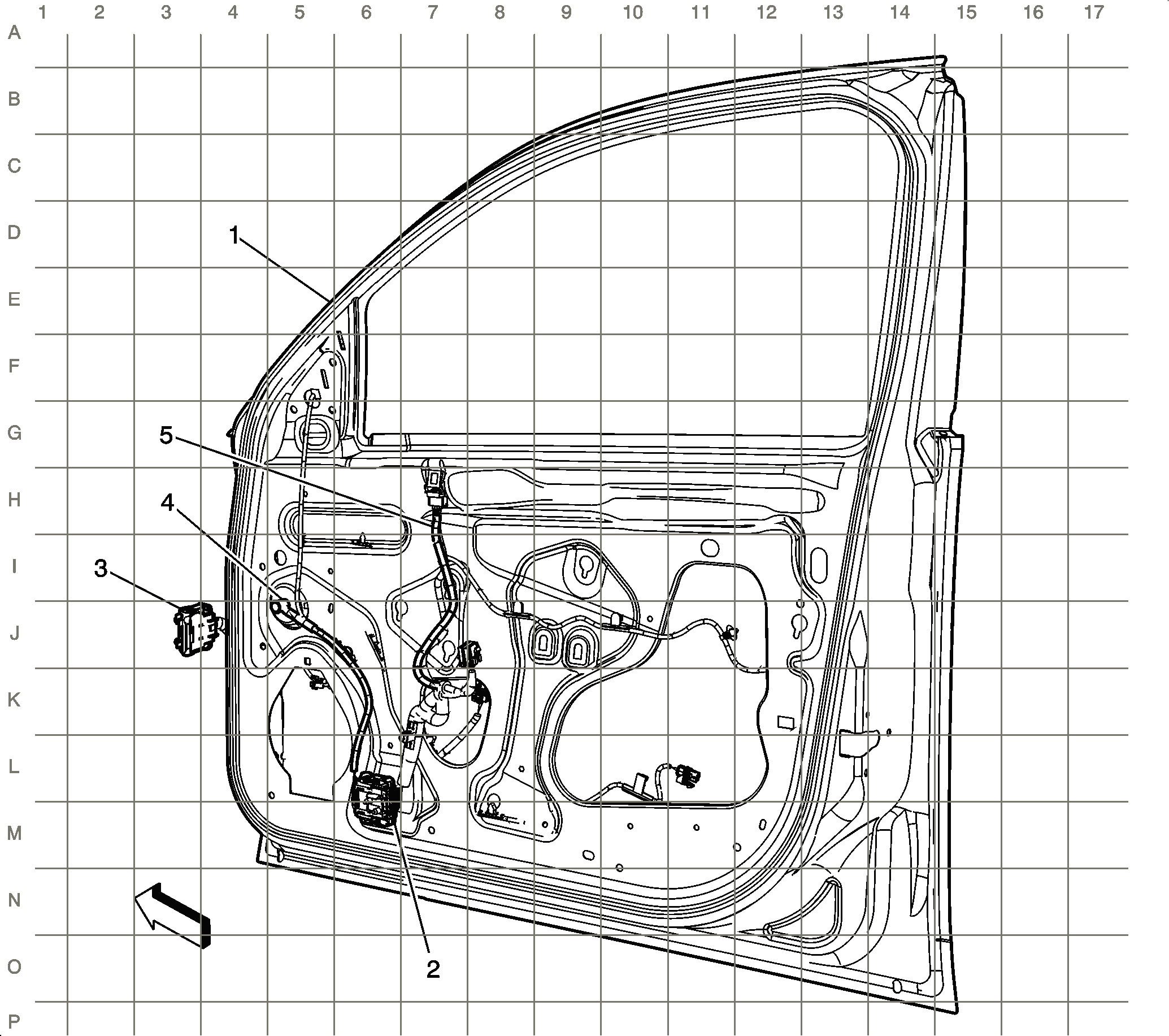

Fig 19: Passenger Door Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	C304
3	C302
4	S604
5	S608

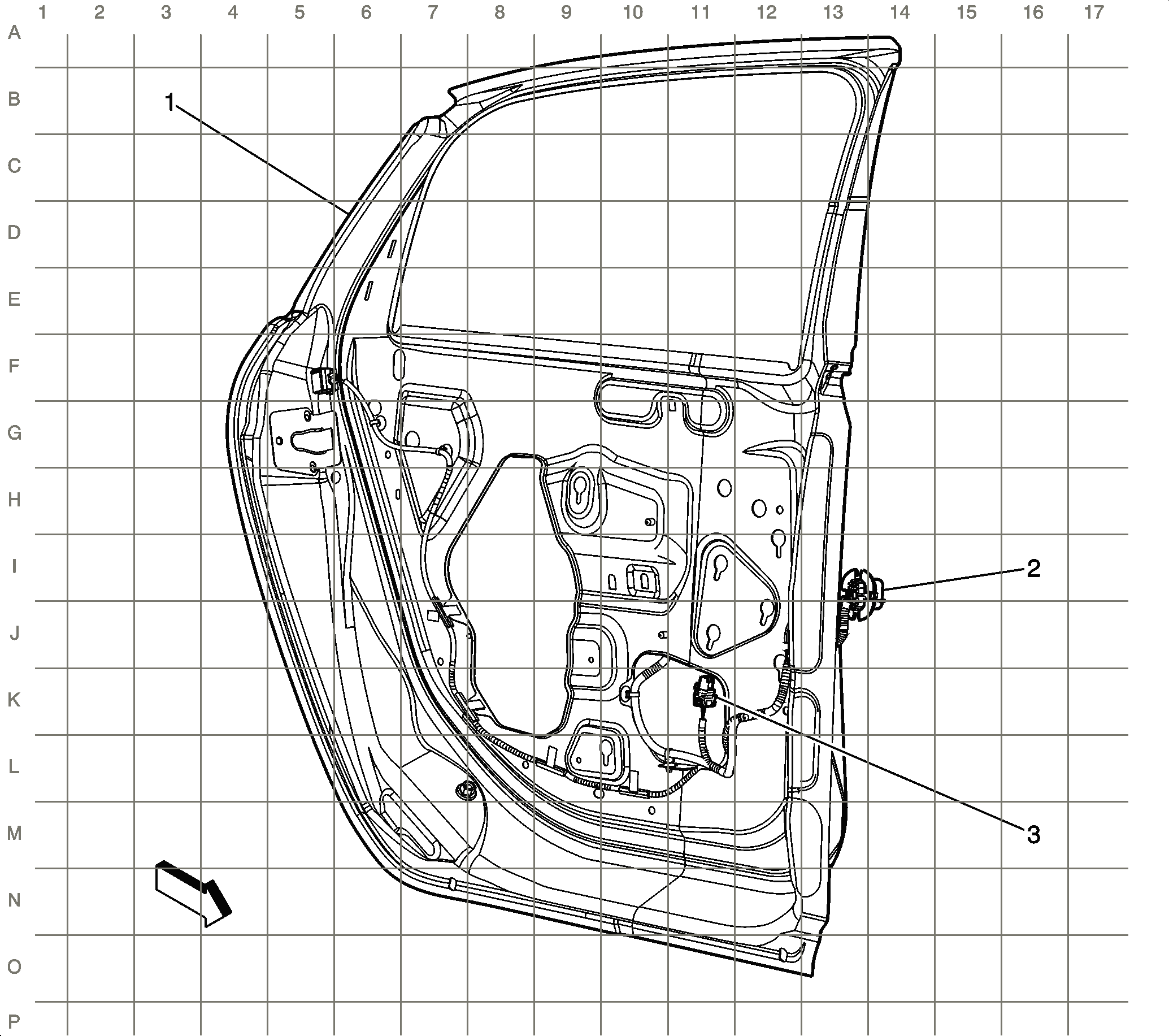

Fig 20: Left Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	C355
3	Window Motor Connector

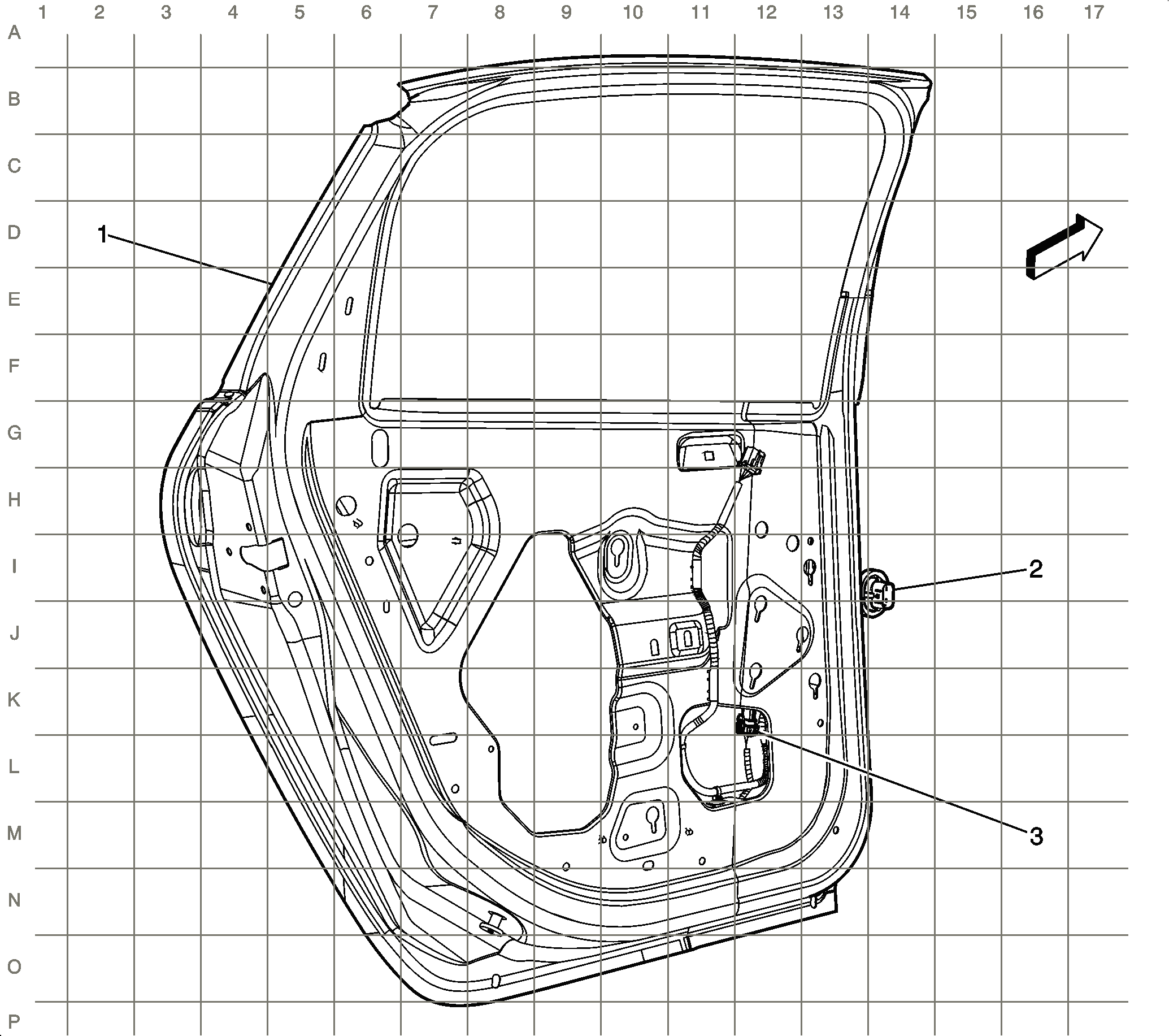

Fig 21: Right Rear Door Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	C356
3	Window Motor Connector

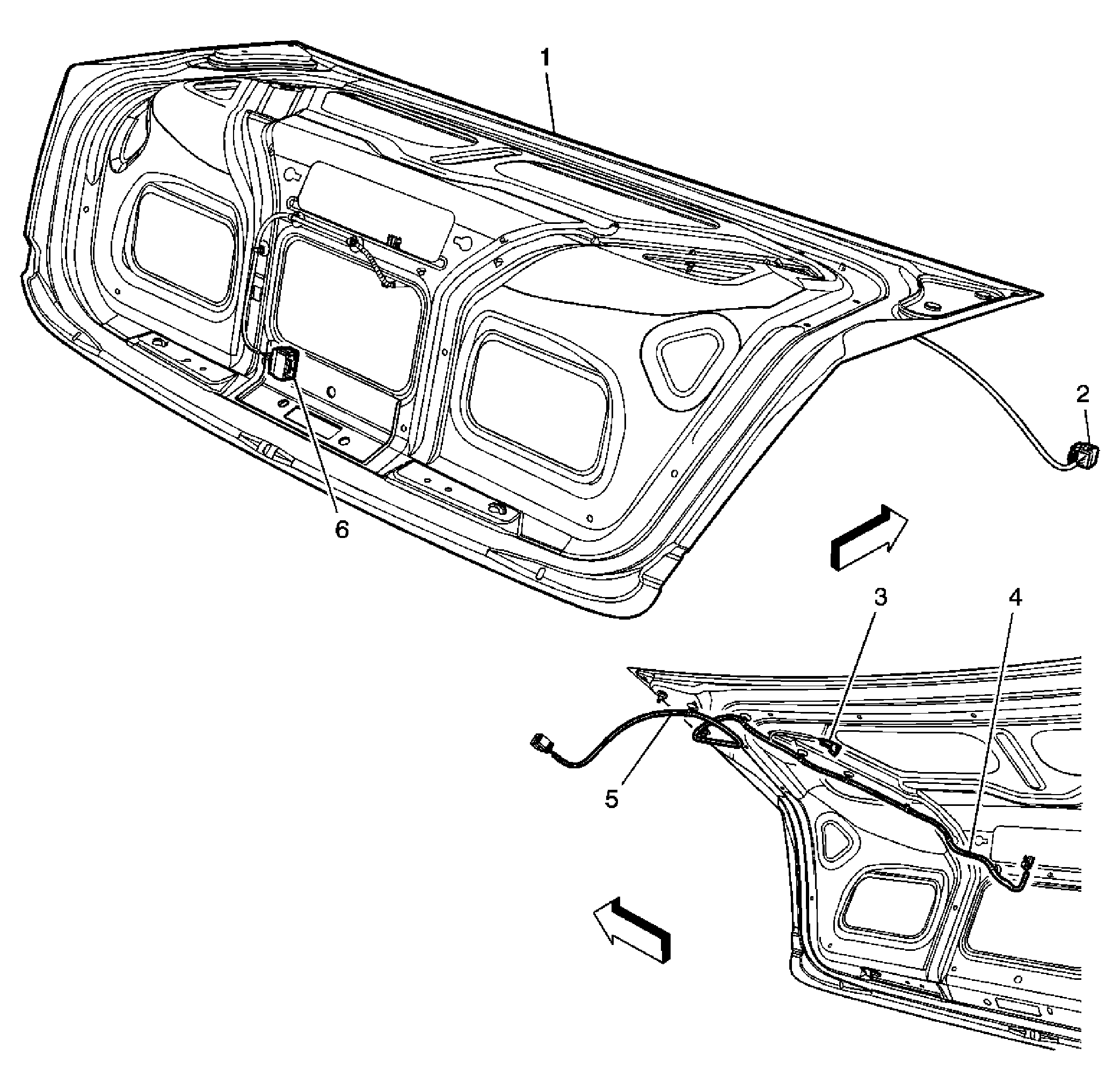

Fig 22: Rear Compartment Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Deck Lid
2	C430
3	C432 (9C1 and 9C3)
4	S901
5	S902
6	Rear Compartment Lid Latch Connector

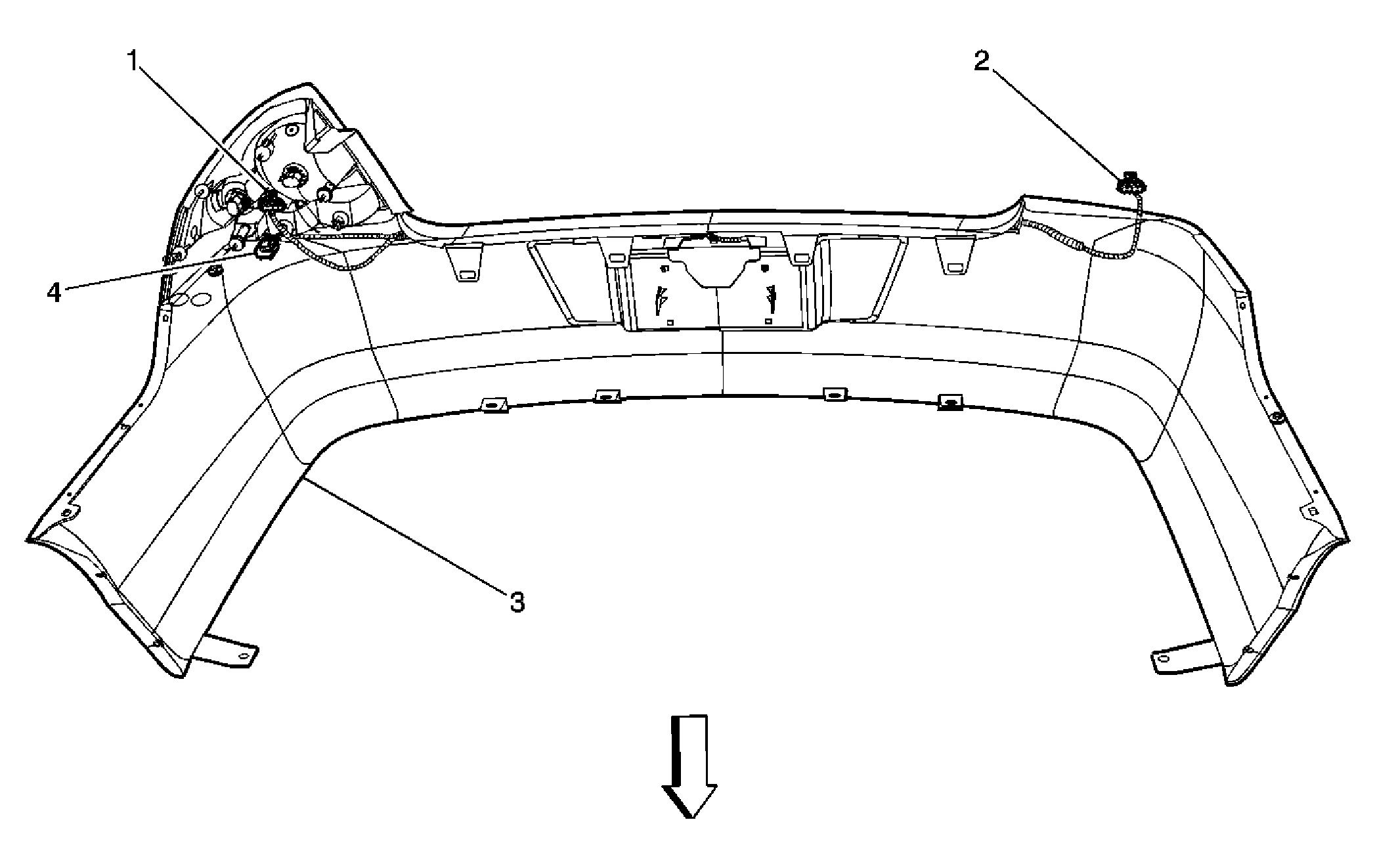

Fig 23: Rear Fascia Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C402
2	C401
3	Rear Fascia
4	C406
