Ground Distribution Schematics

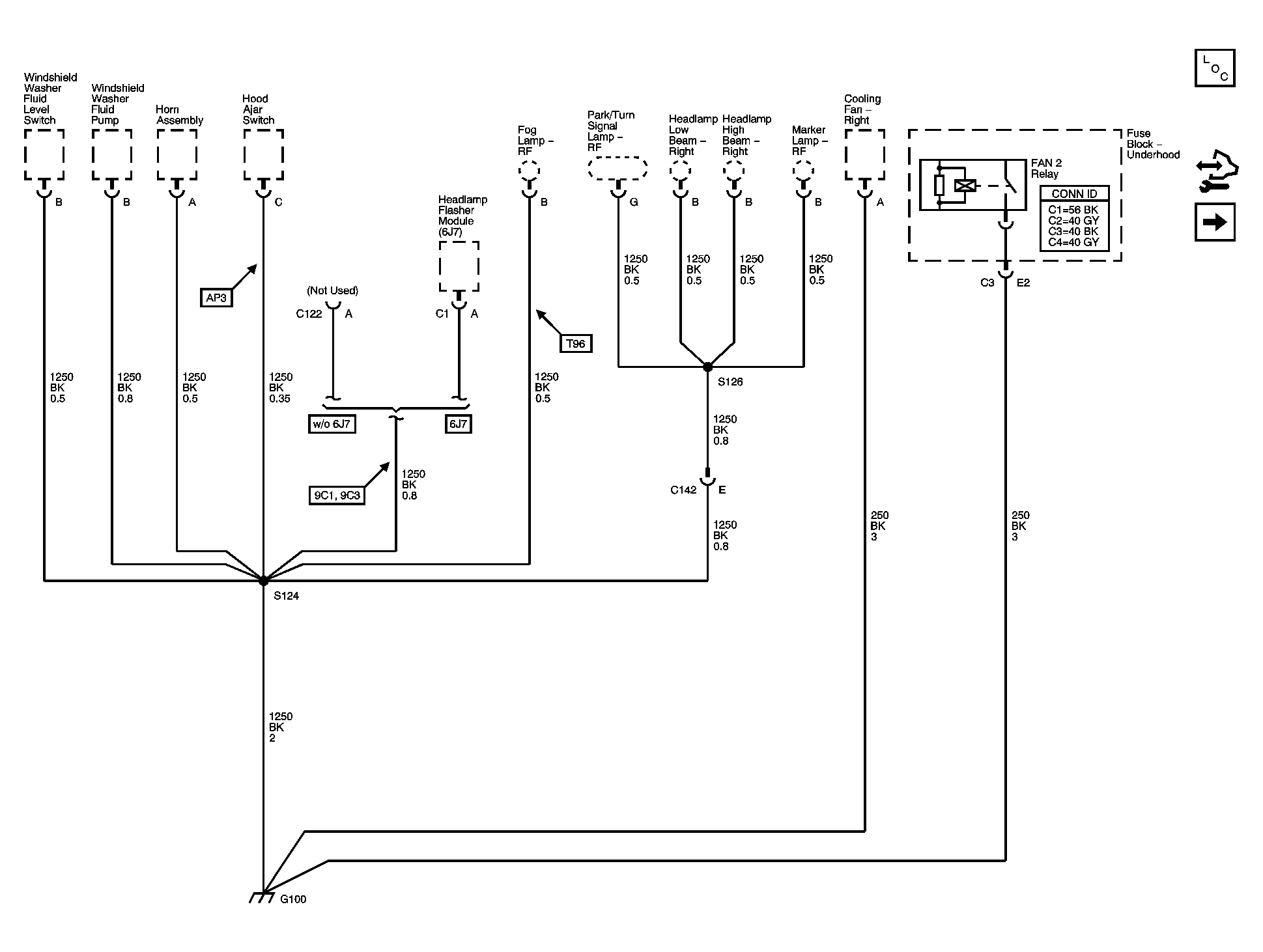

Fig 1: G100 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

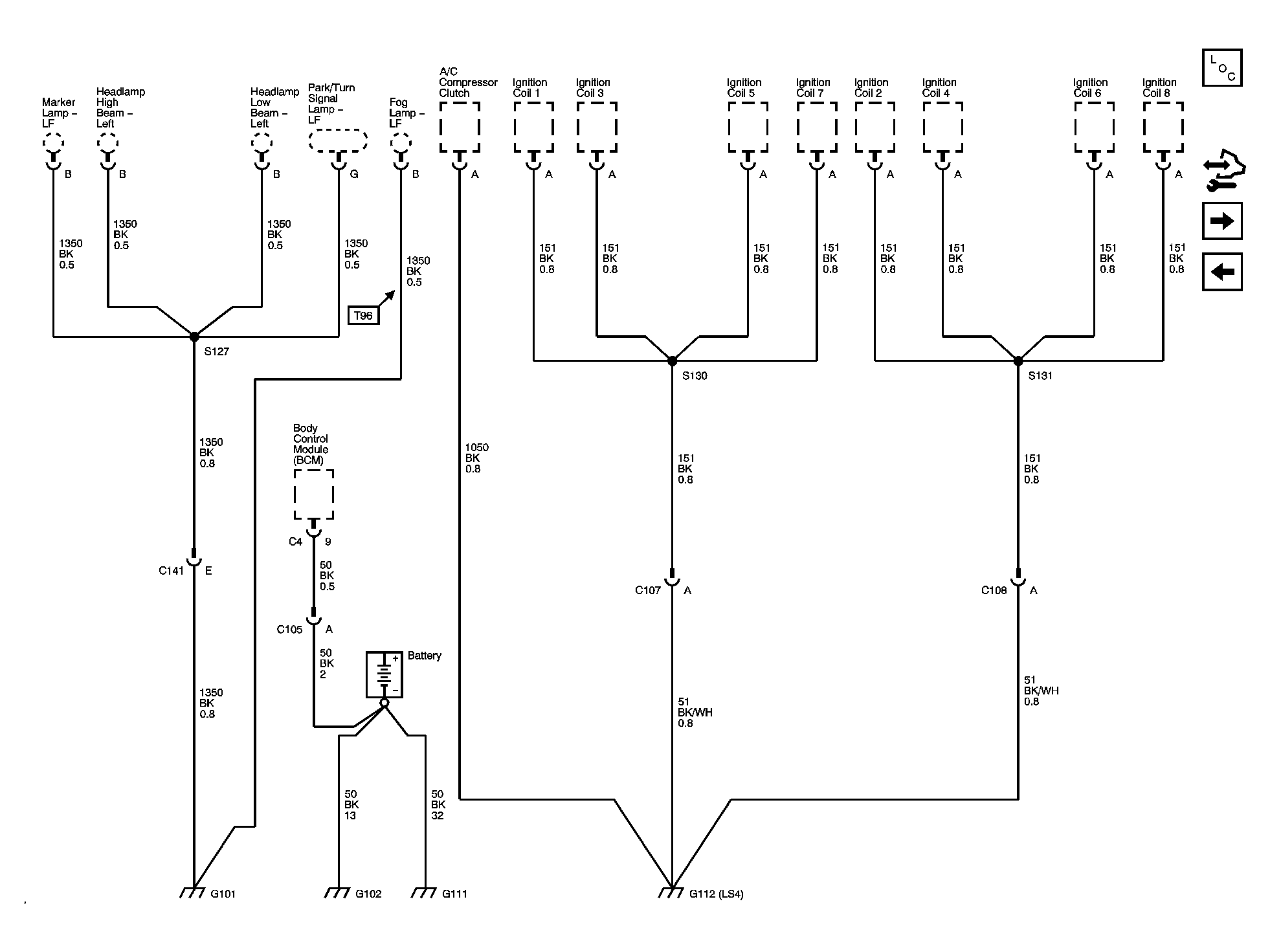

Fig 2: G101, G102, G111, And G112 (LS4) - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

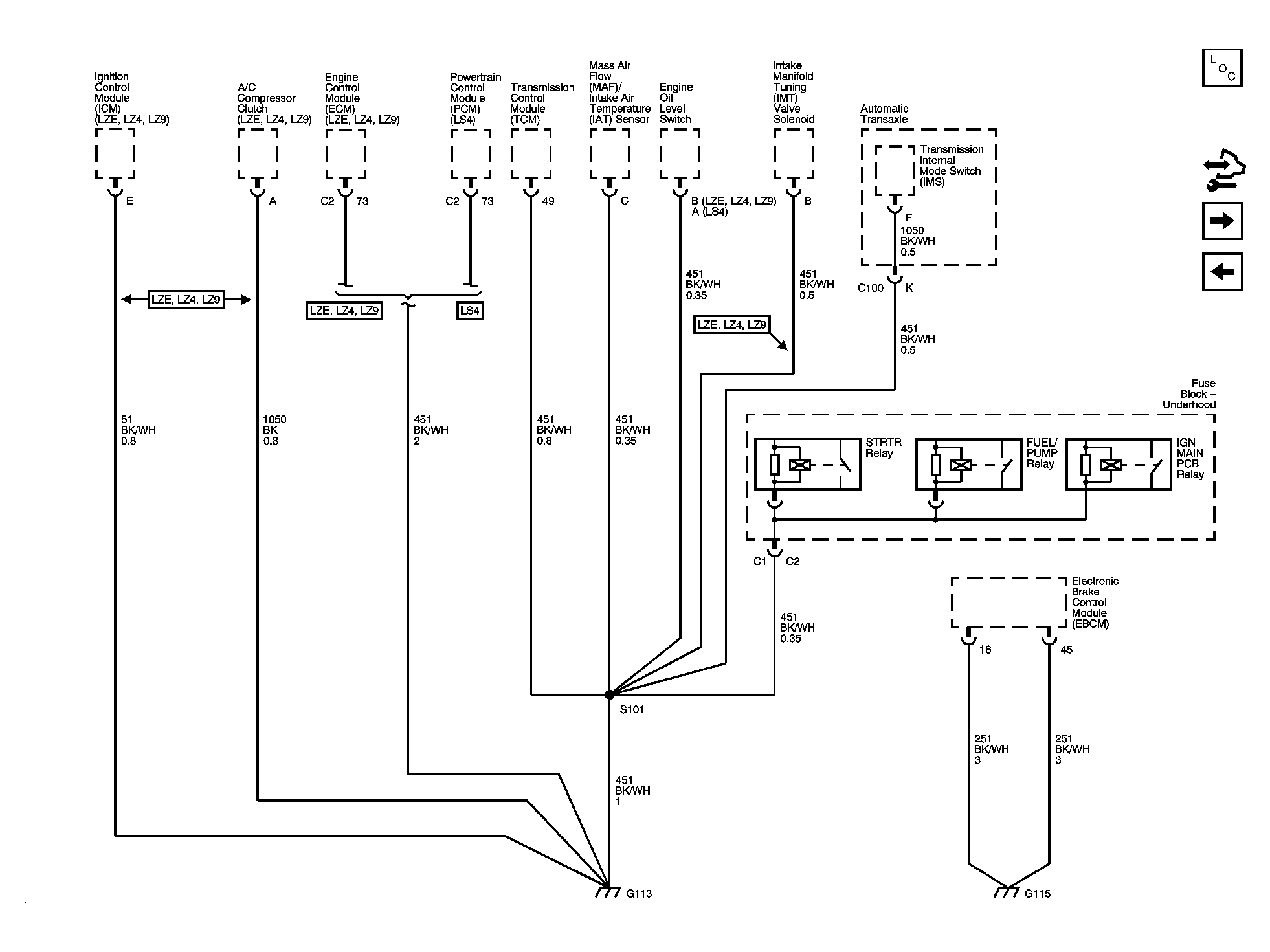

Fig 3: G113, And G115 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 4: G200 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

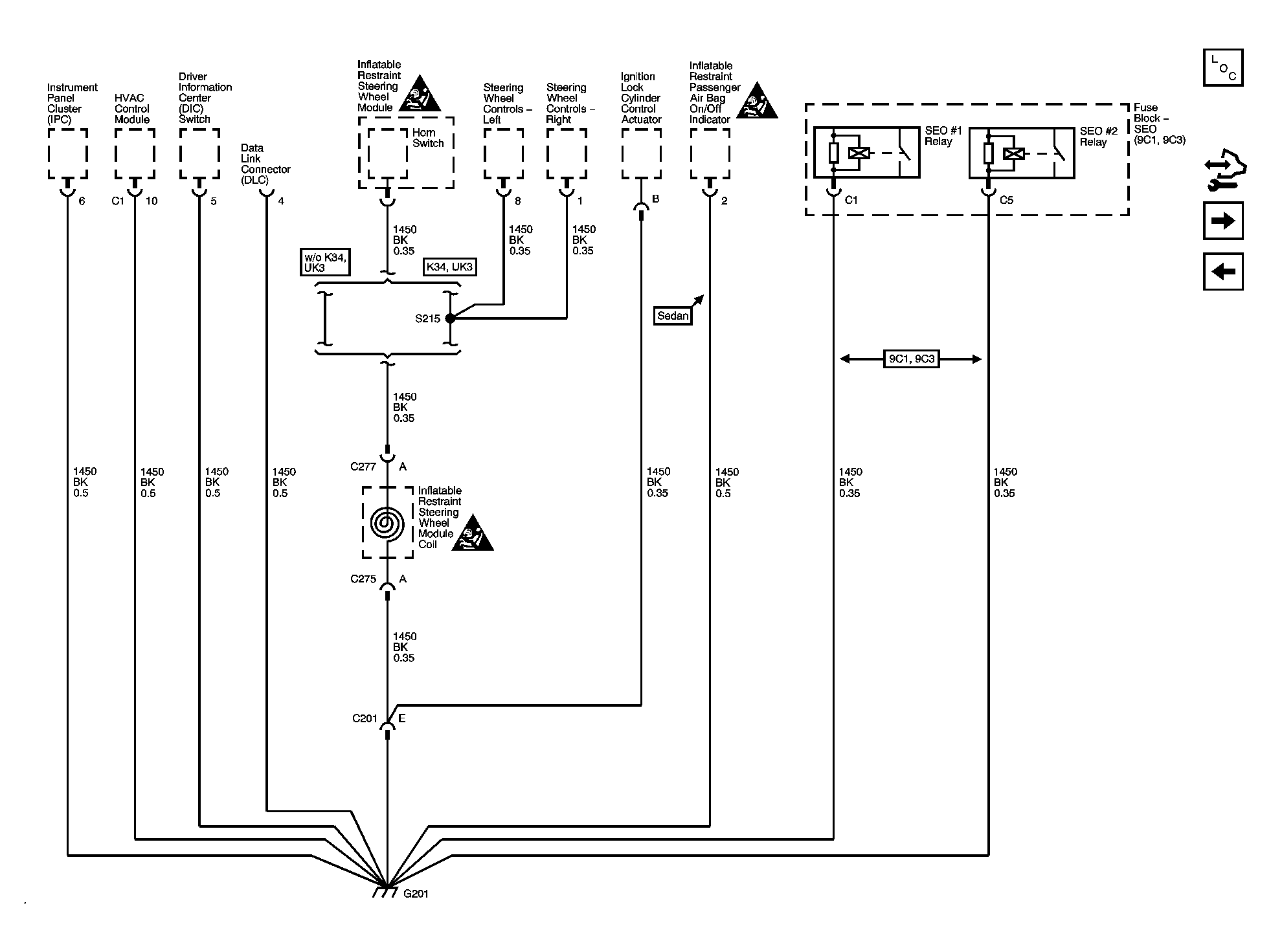

Fig 5: G201 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

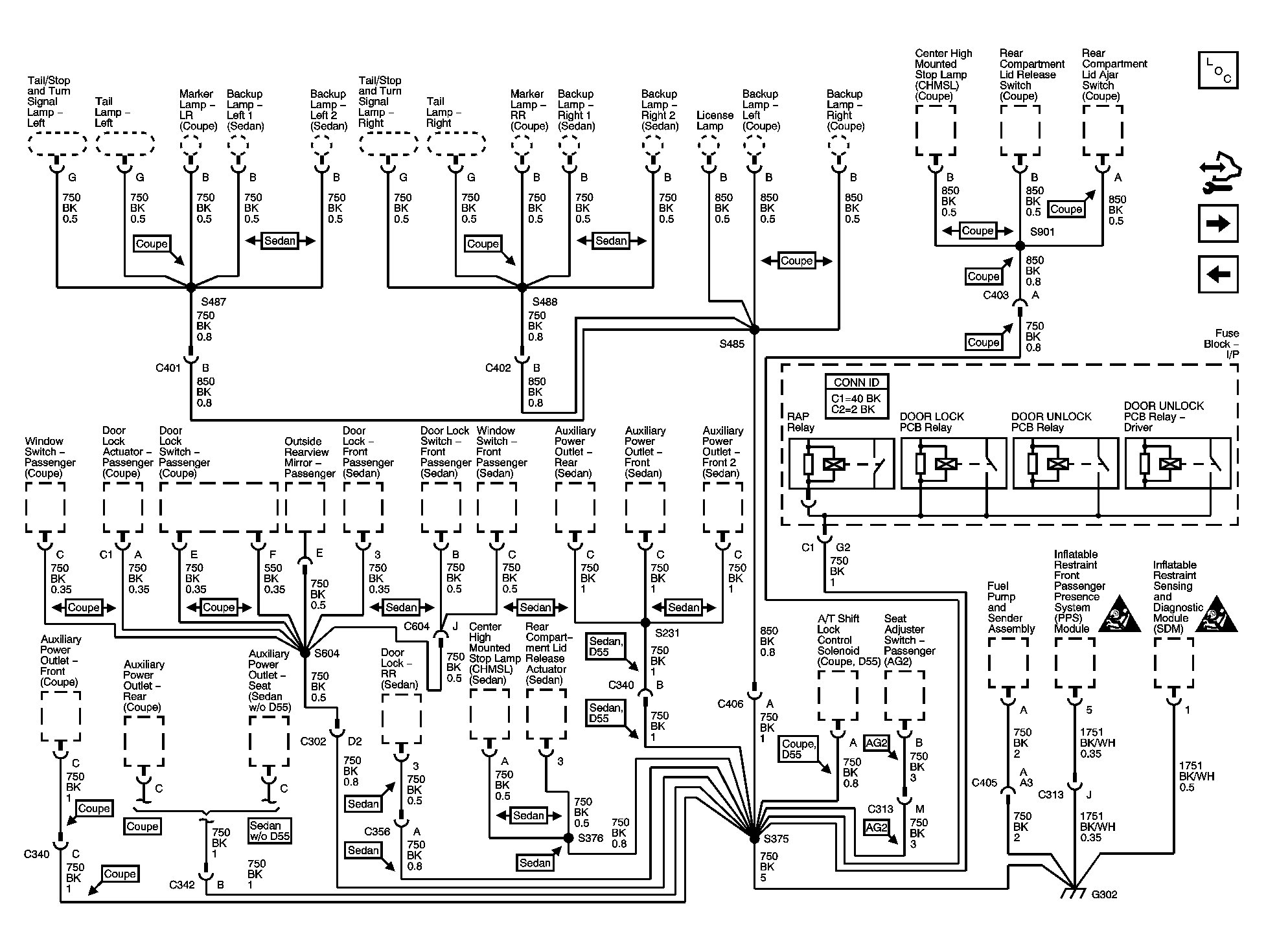

Fig 6: G202, And G204 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

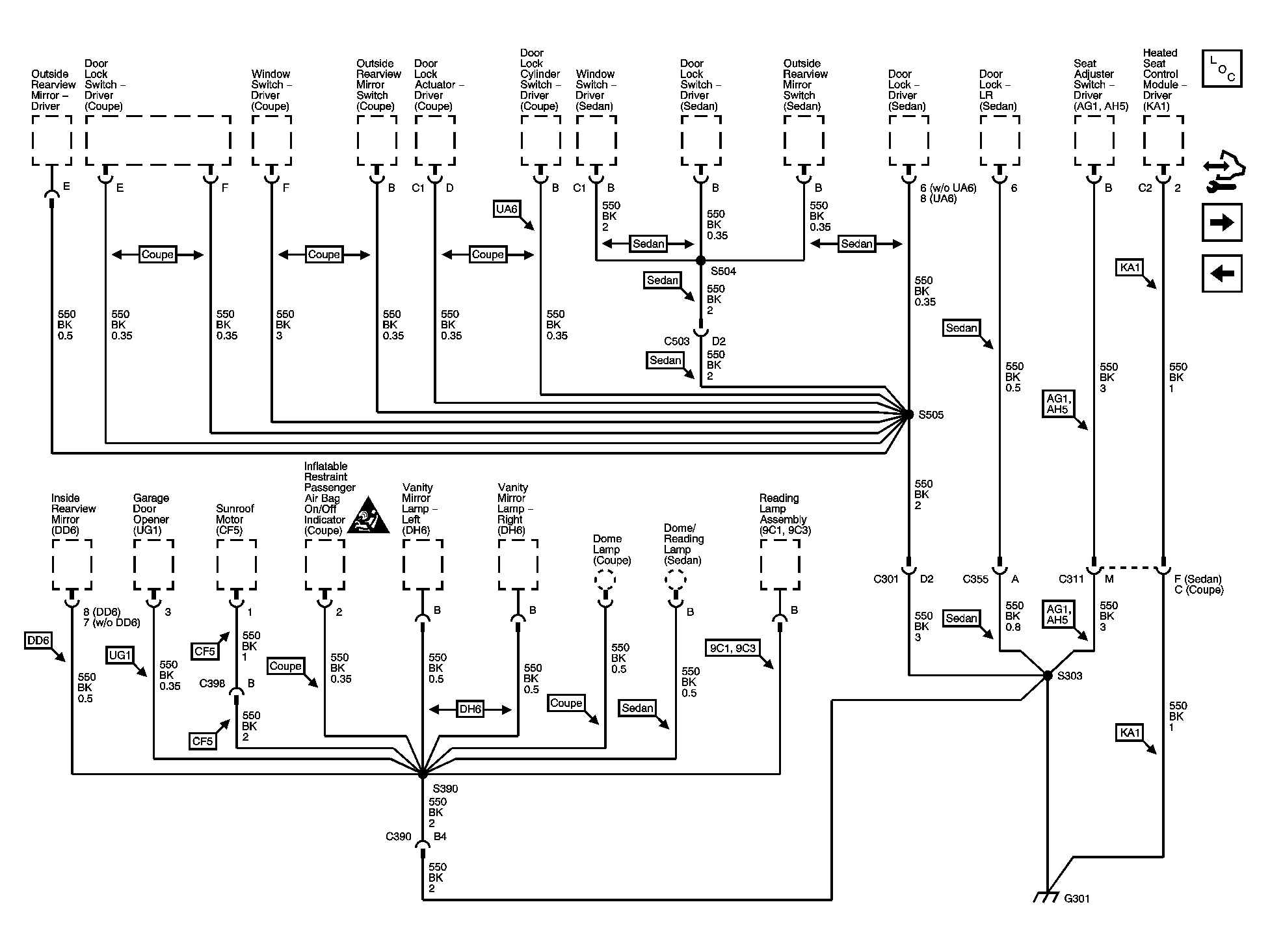

Fig 7: G301 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 8: G302 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

Fig 9: G303, And G304 - Wiring Diagram

Courtesy of GENERAL MOTORS CORP.
