Inline Harness Connectors

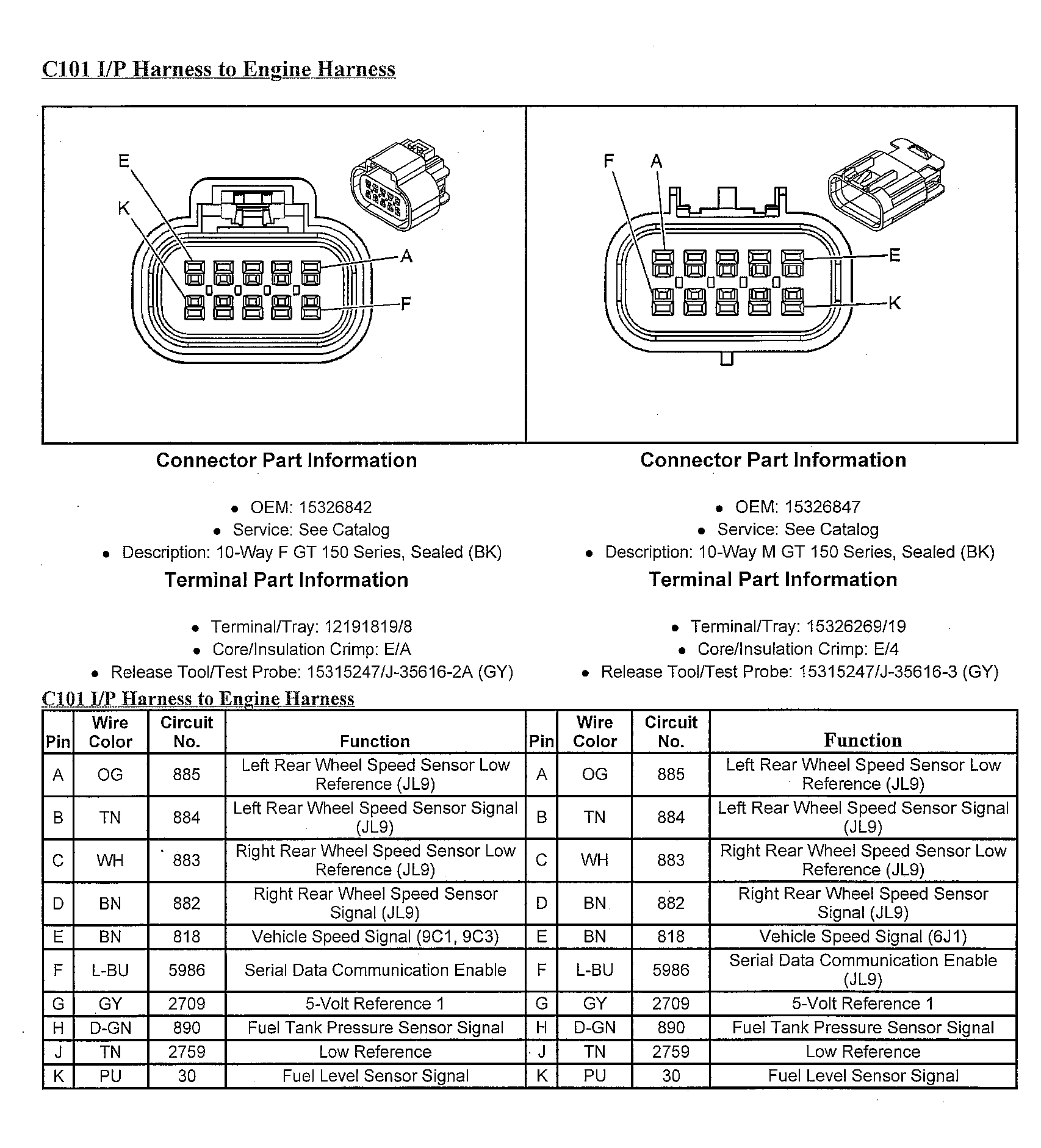

Fig 1: C101 I/P Harness To Engine Harness Connector End View
G00398854Courtesy of GENERAL MOTORS CORP.

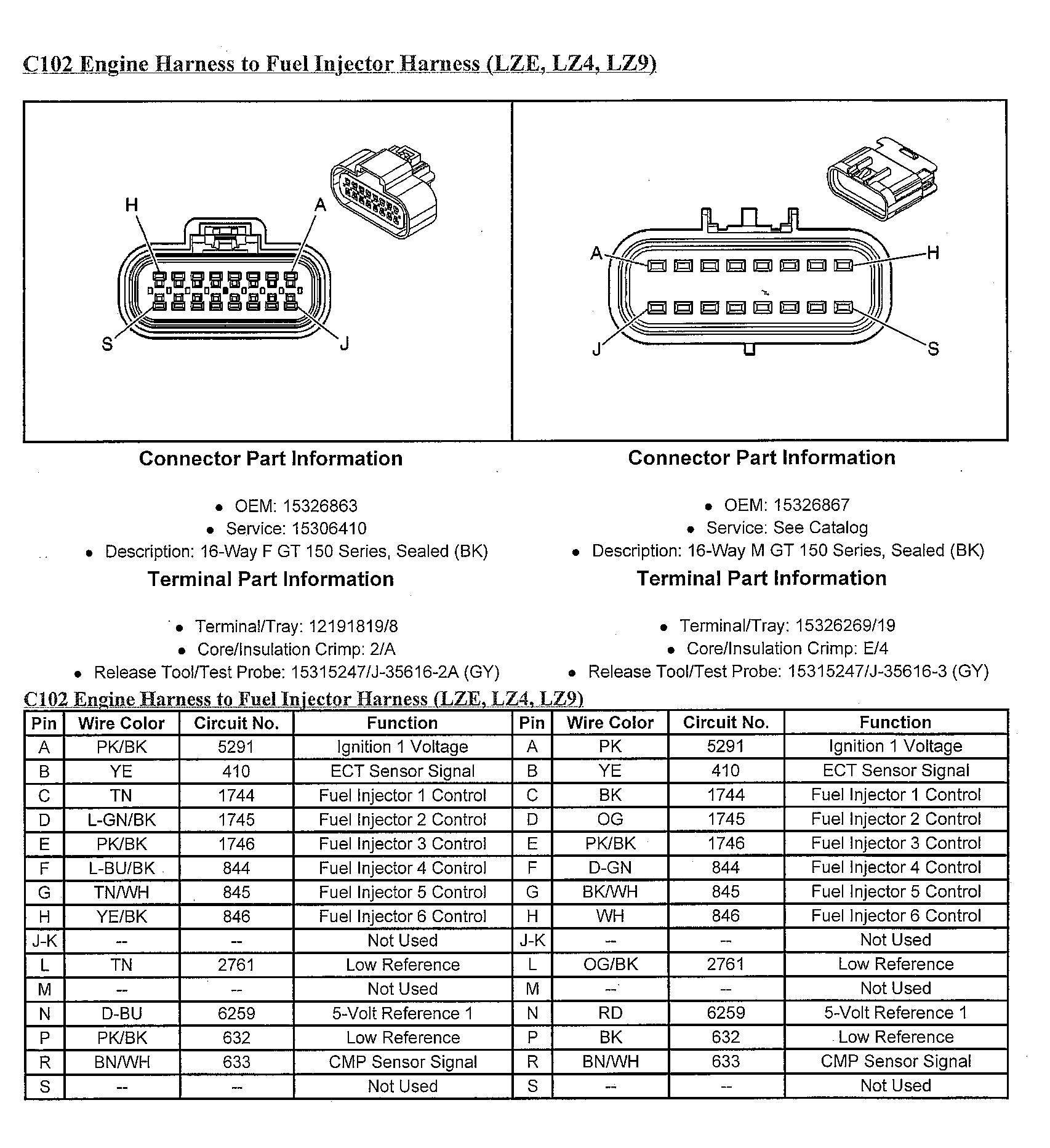

Fig 2: C102 Engine Harness To Fuel Injector Harness (LZE, LZ4, LZ9) Connector End View
G00398855Courtesy of GENERAL MOTORS CORP.

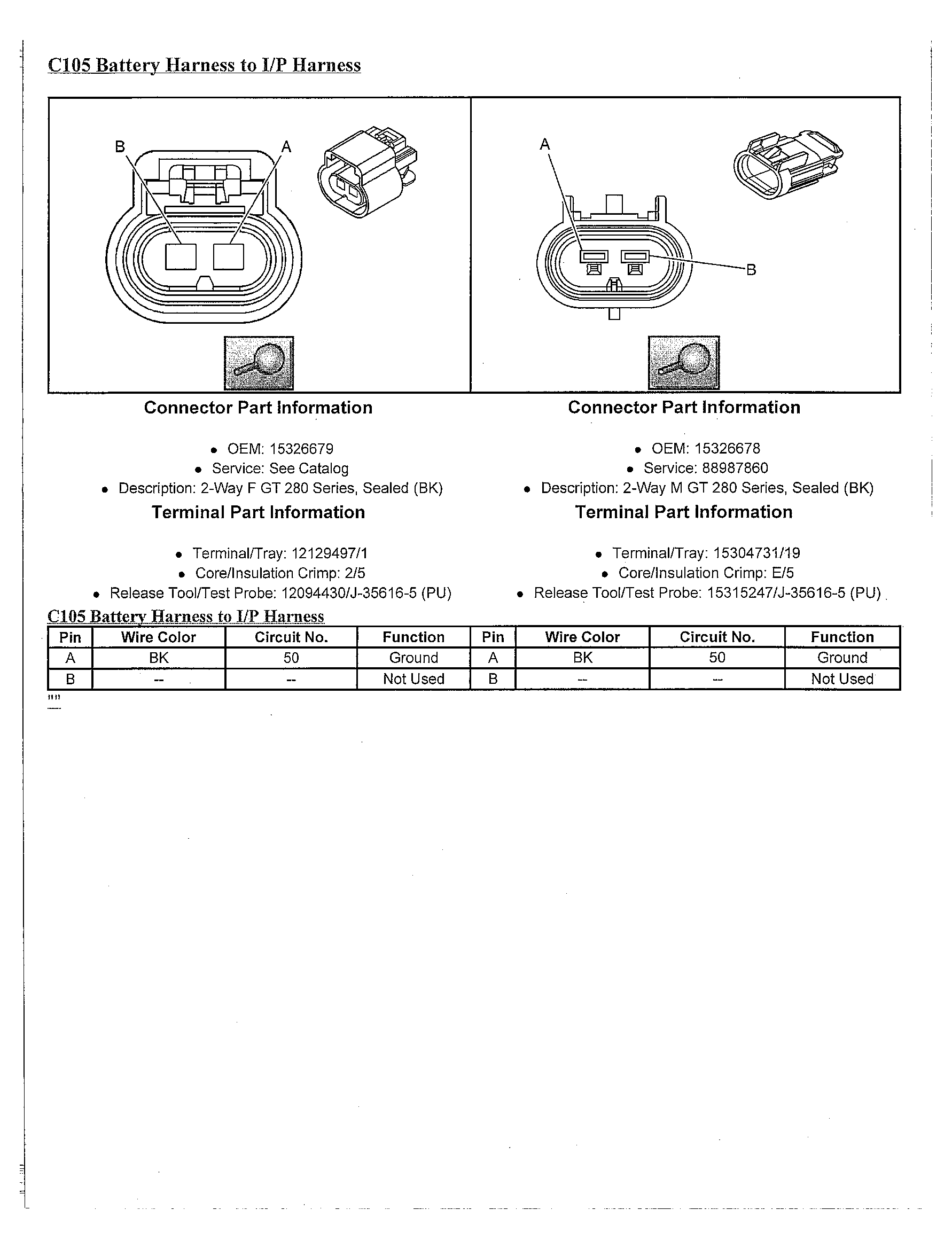

Fig 3: C105 Battery Harness To I/P Harness Connector End View
G00398856Courtesy of GENERAL MOTORS CORP.

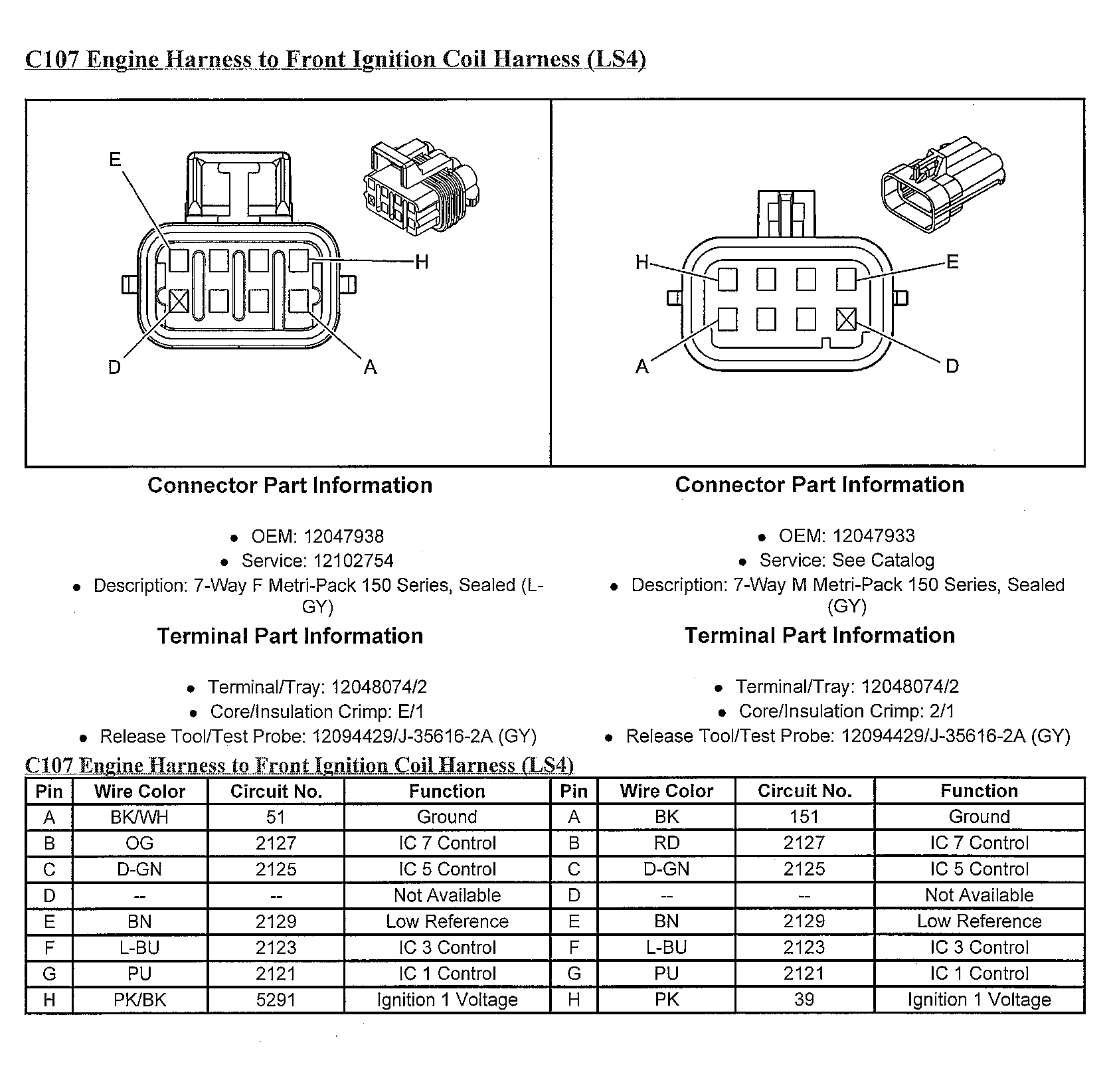

Fig 4: C107 Engine Harness To Front Ignition Coil Harness (LS4) Connector End View
G00398857Courtesy of GENERAL MOTORS CORP.

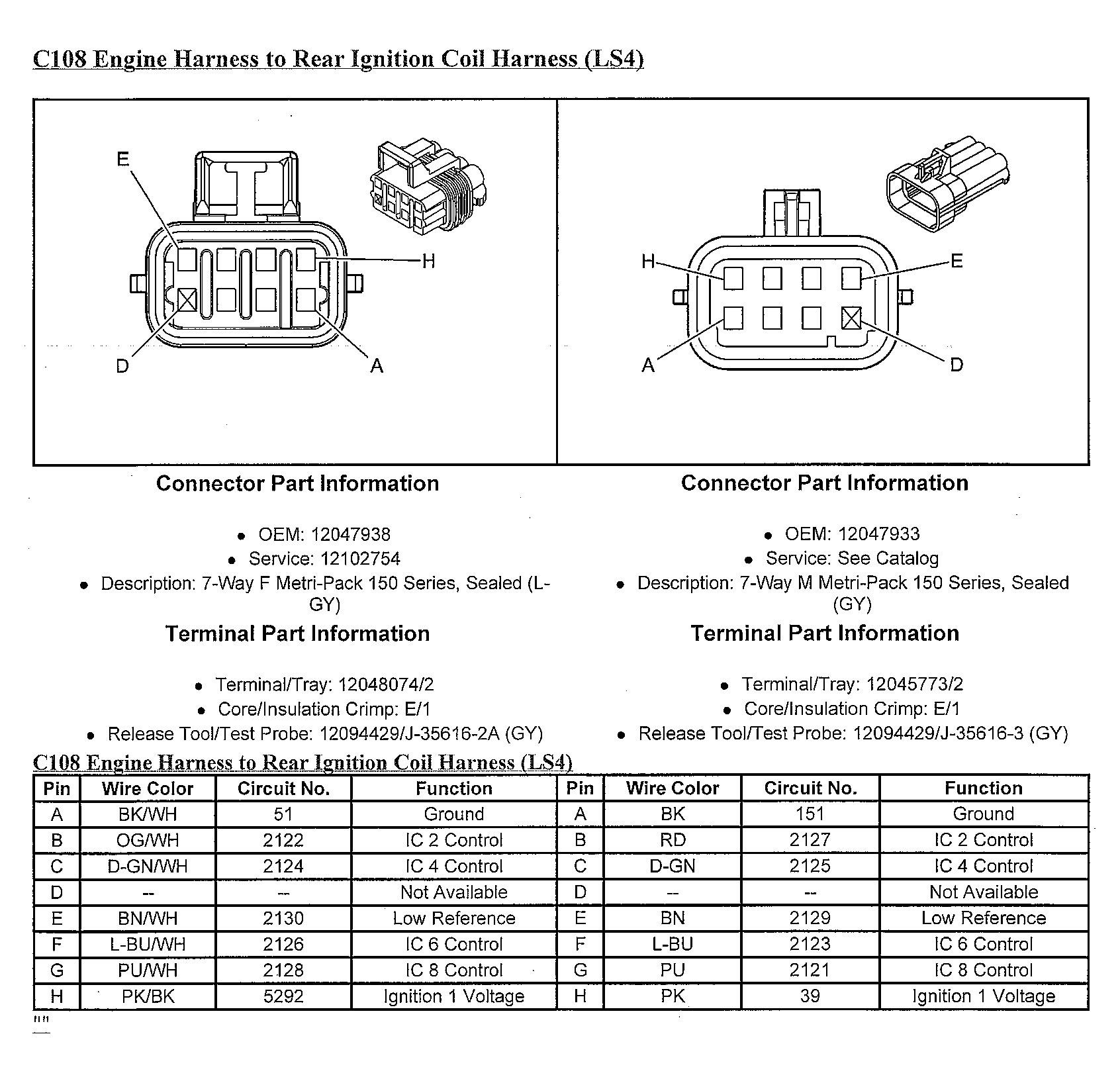

Fig 5: C108 Engine Harness To Rear Ignition Coil Harness (LS4) Connector End View
G00398858Courtesy of GENERAL MOTORS CORP.

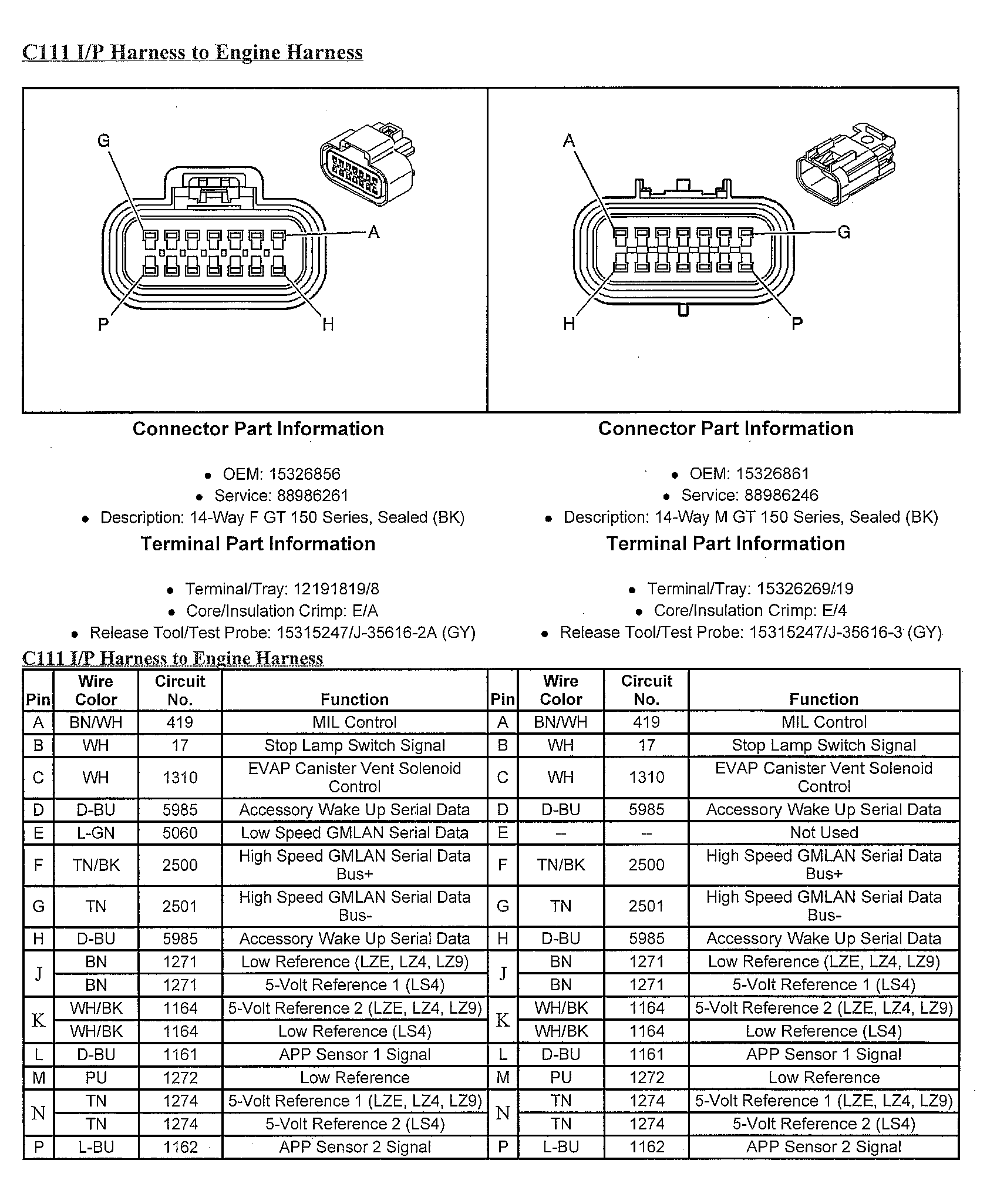

Fig 6: C111 I/P Harness to Engine Harness Connector End View
G00398859Courtesy of GENERAL MOTORS CORP.

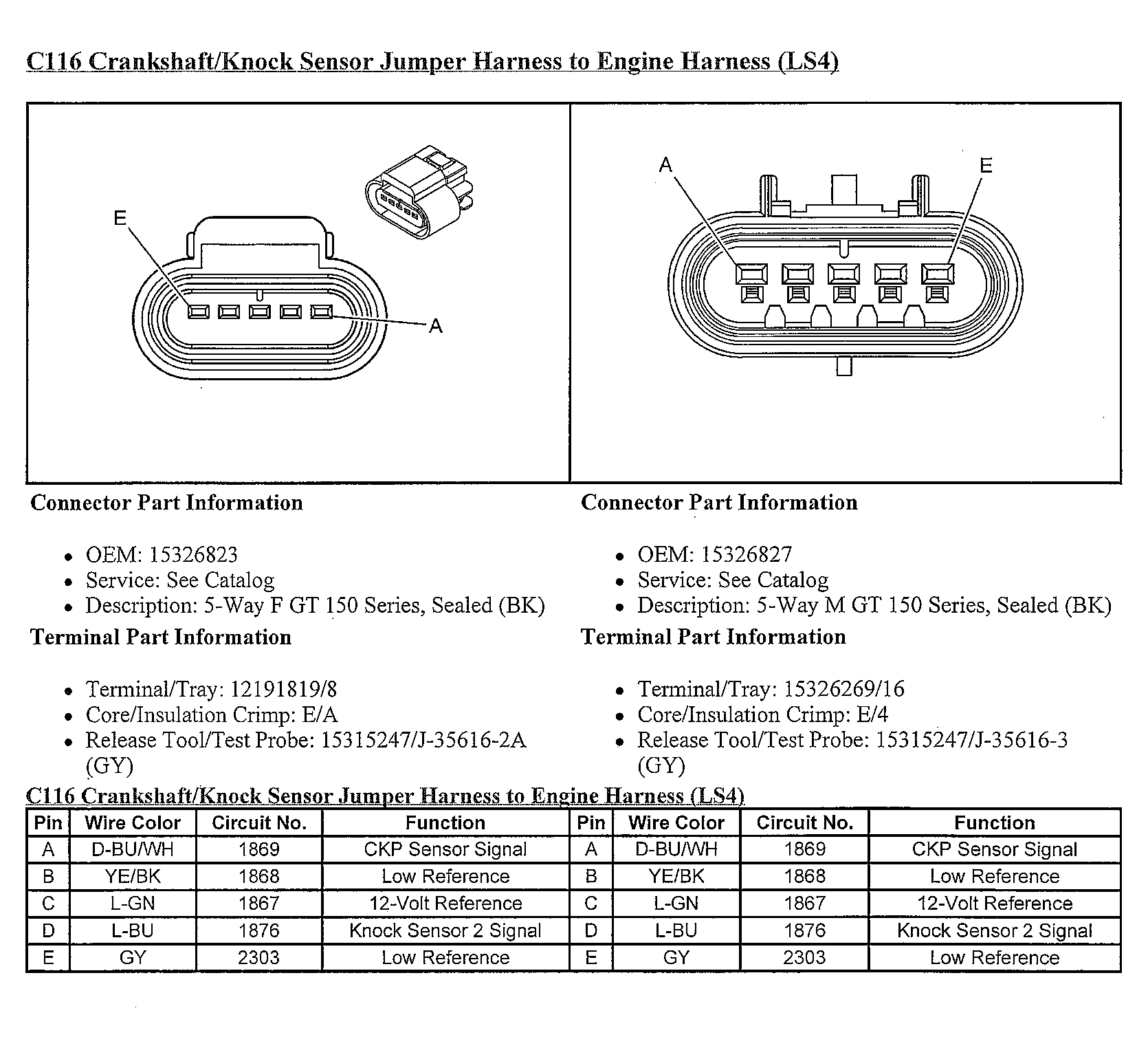

Fig 7: C116 Crankshaft/Knock Sensor Jumper Harness To Engine Harness (LS4) Connector End View
G00398860Courtesy of GENERAL MOTORS CORP.

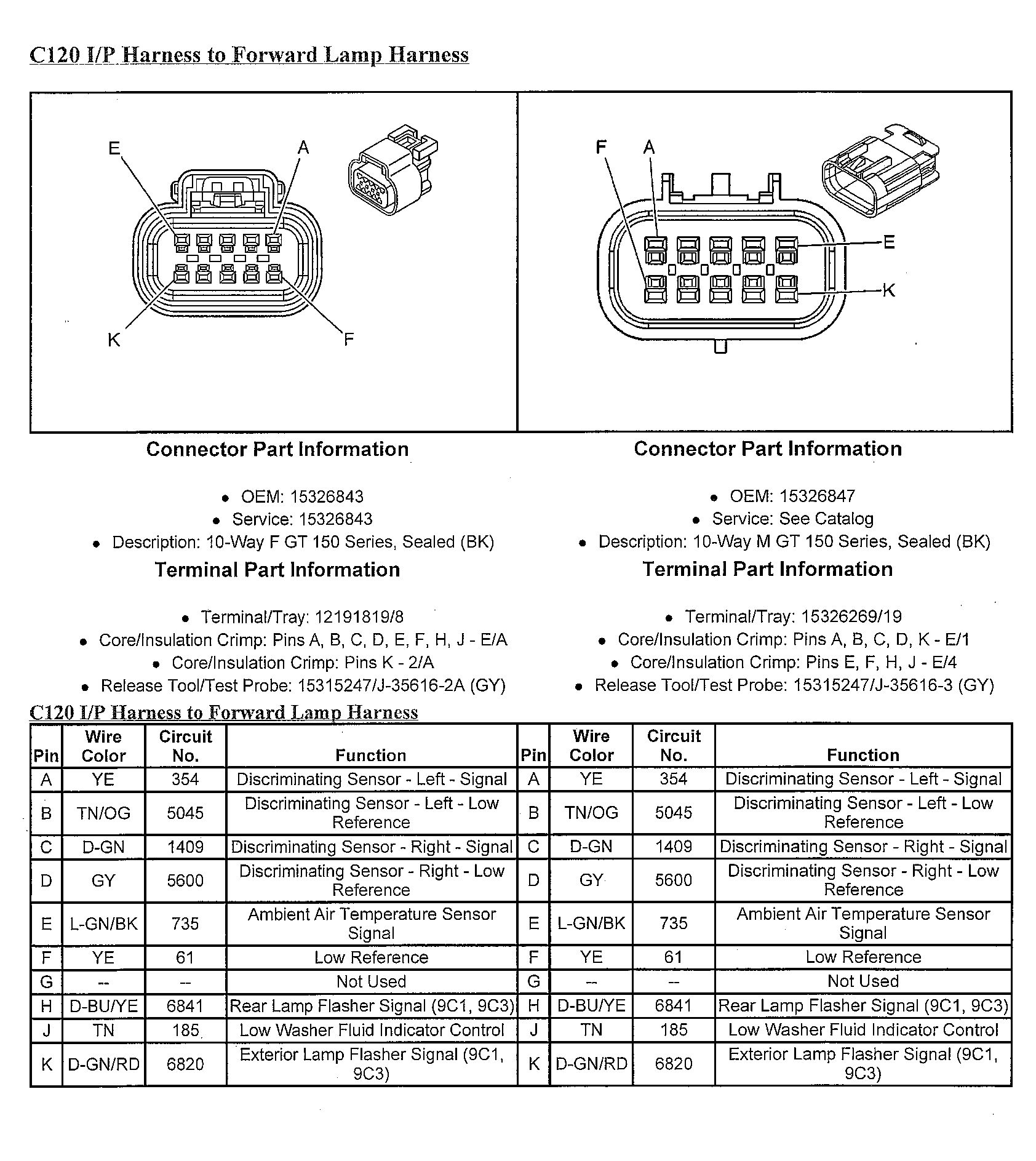

Fig 8: C120 I/P Harness To Forward Lamp Harness Connector End View
G00398861Courtesy of GENERAL MOTORS CORP.

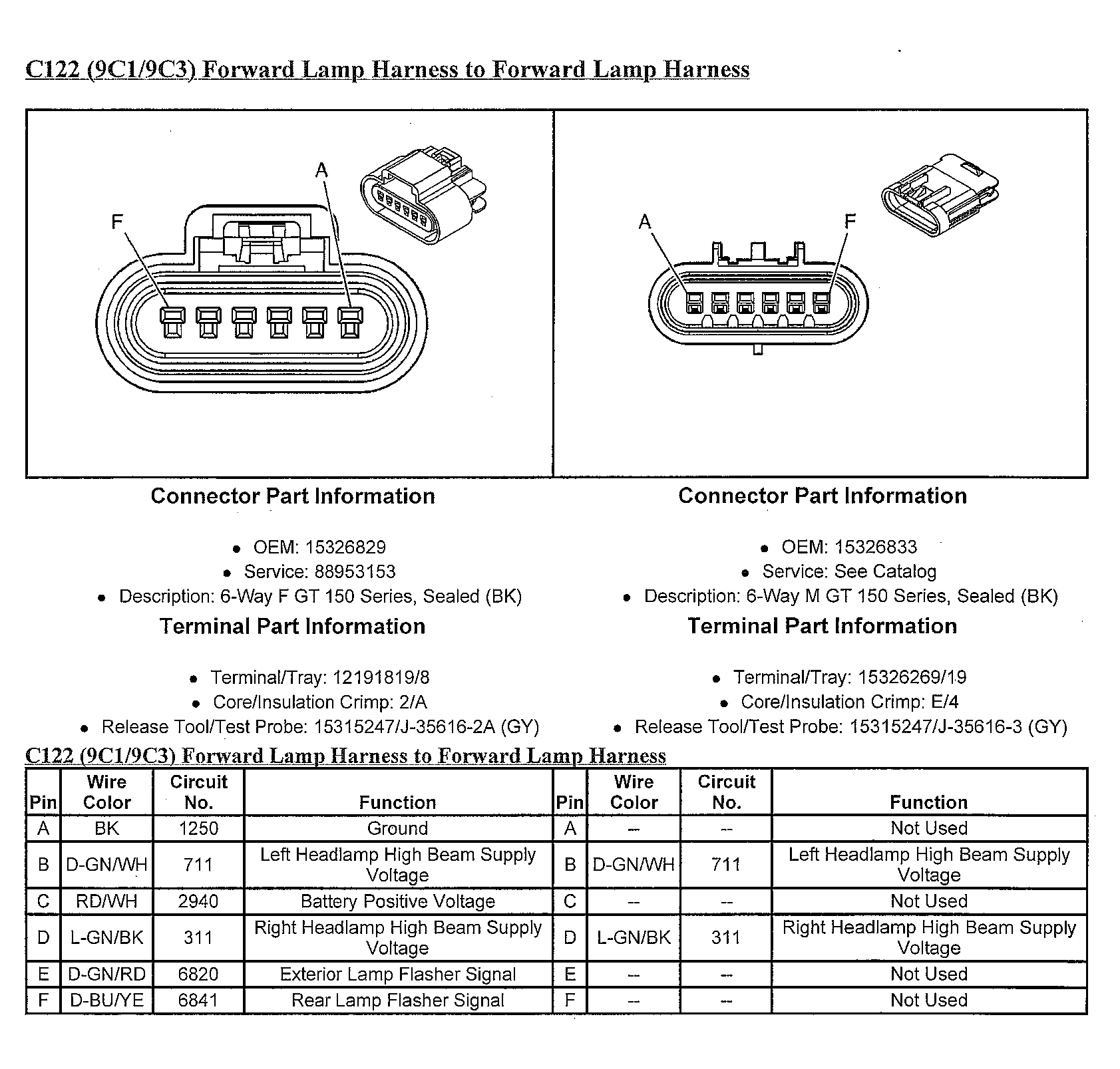

Fig 9: C122 (9C1/9C3) Forward Lamp Harness To Forward Lamp Harness Connector End View
G00398862Courtesy of GENERAL MOTORS CORP.

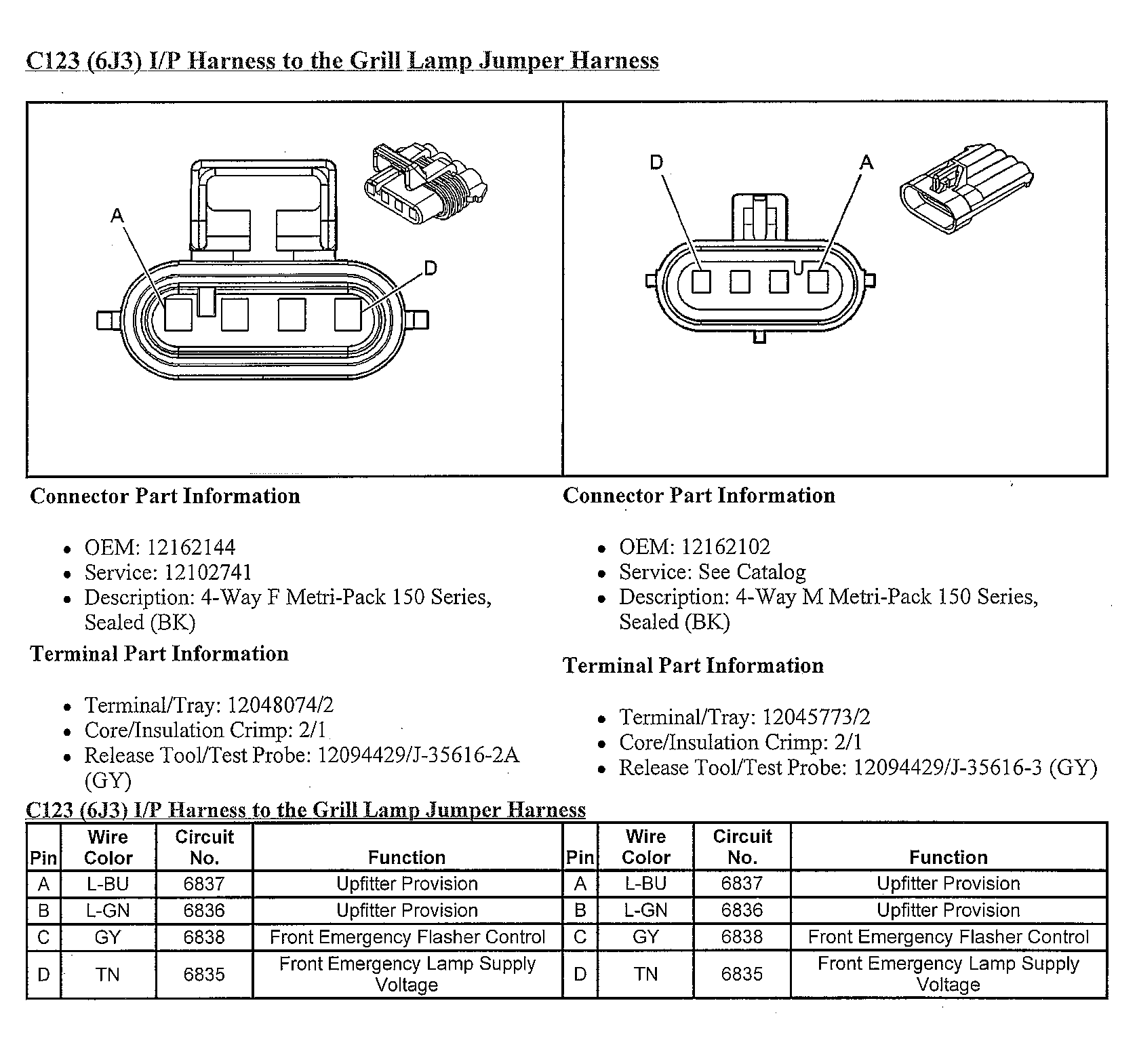

Fig 10: C123 (6J3) I/P Harness To The Grill Lamp Jumper Harness Connector End View
G00398863Courtesy of GENERAL MOTORS CORP.

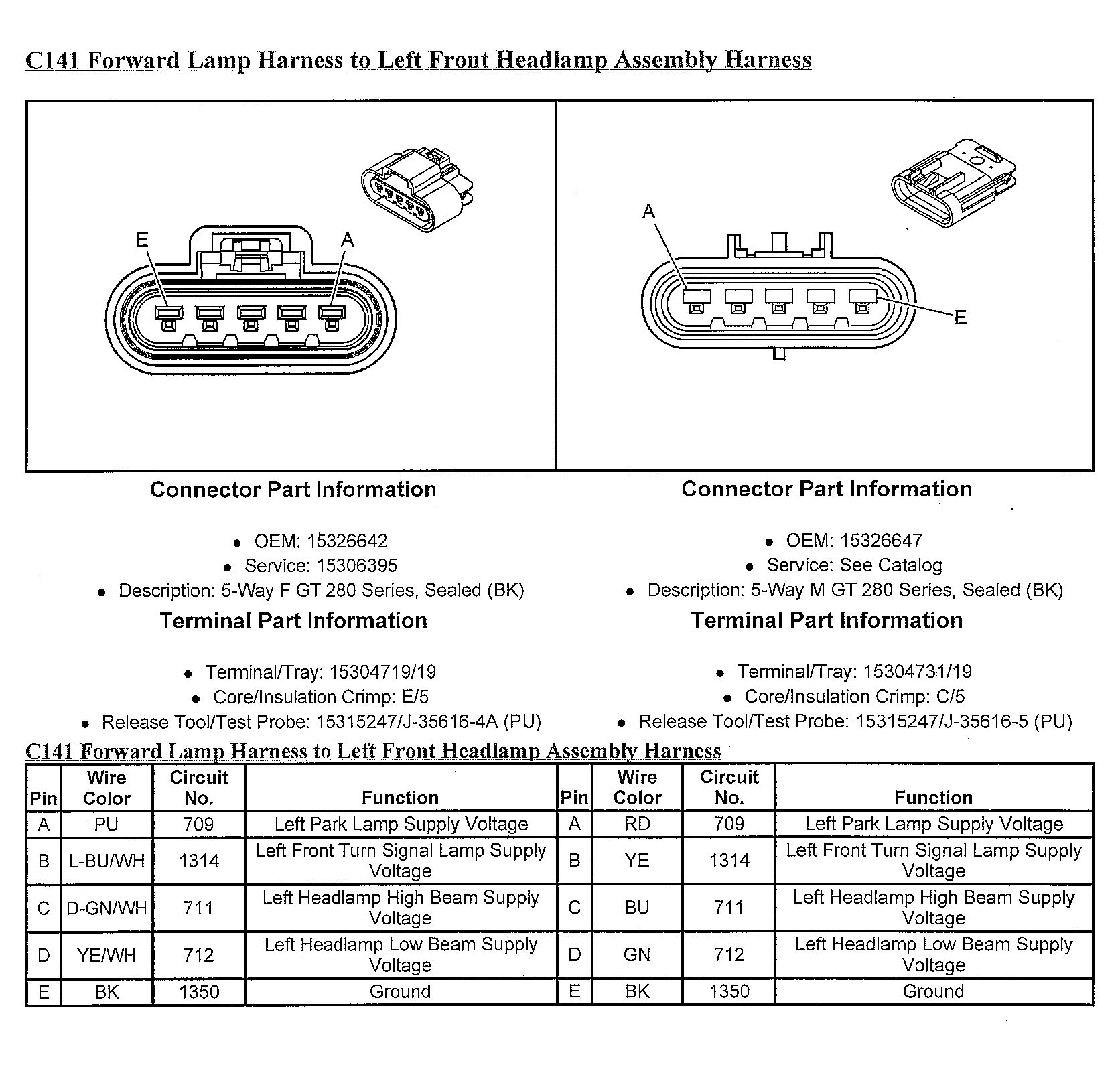

Fig 11: C141 Forward Lamp Harness to Left Front Headlamp Assembly Harness Connector End View
G00398864Courtesy of GENERAL MOTORS CORP.

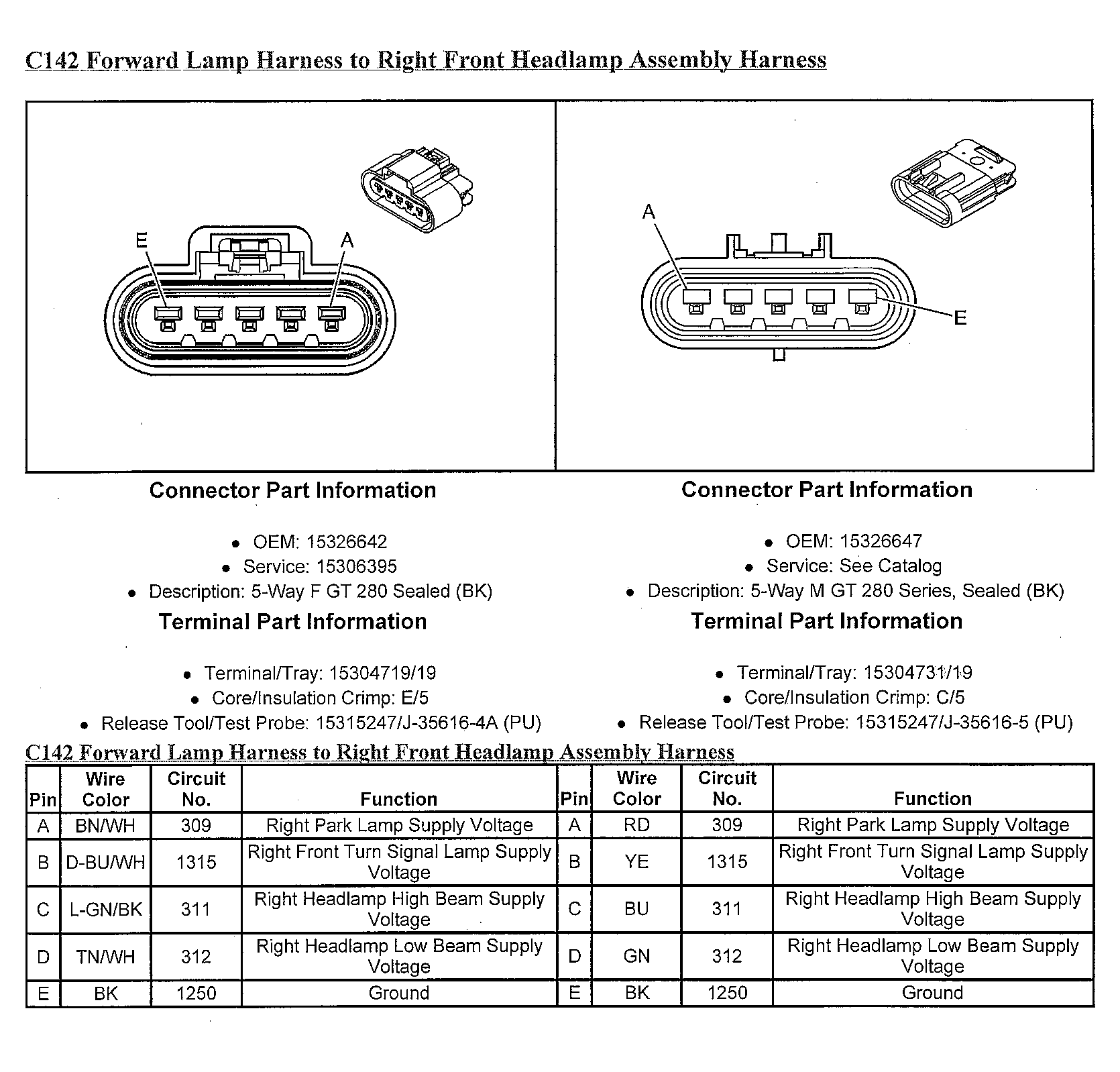

Fig 12: C142 Forward Lamp Harness To Right Front Headlamp Assembly Harness Connector End View
G00398865Courtesy of GENERAL MOTORS CORP.

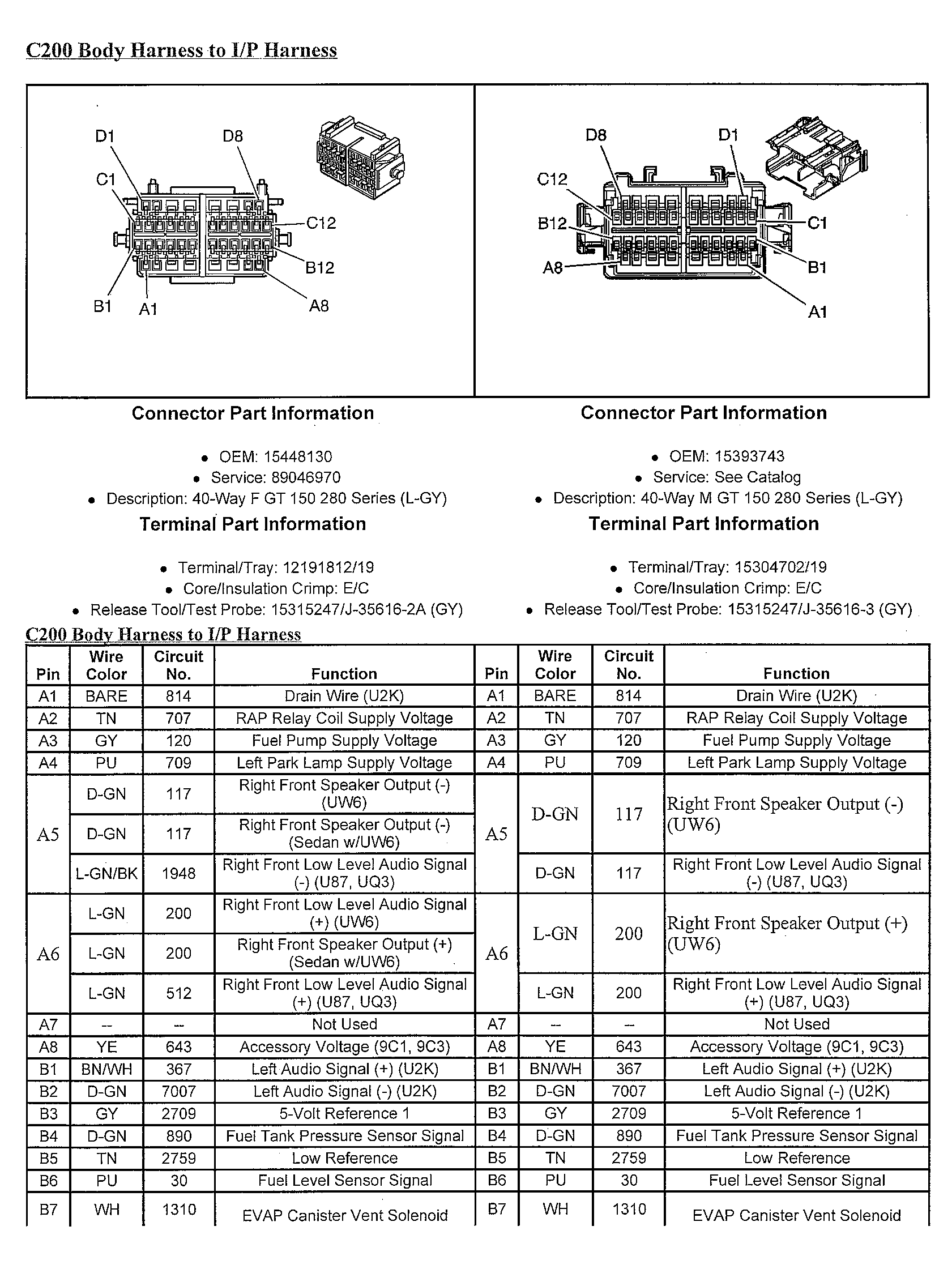

Fig 13: C200 Body Harness To I/P Harness (1 Of 2) Connector End View
G00398866Courtesy of GENERAL MOTORS CORP.

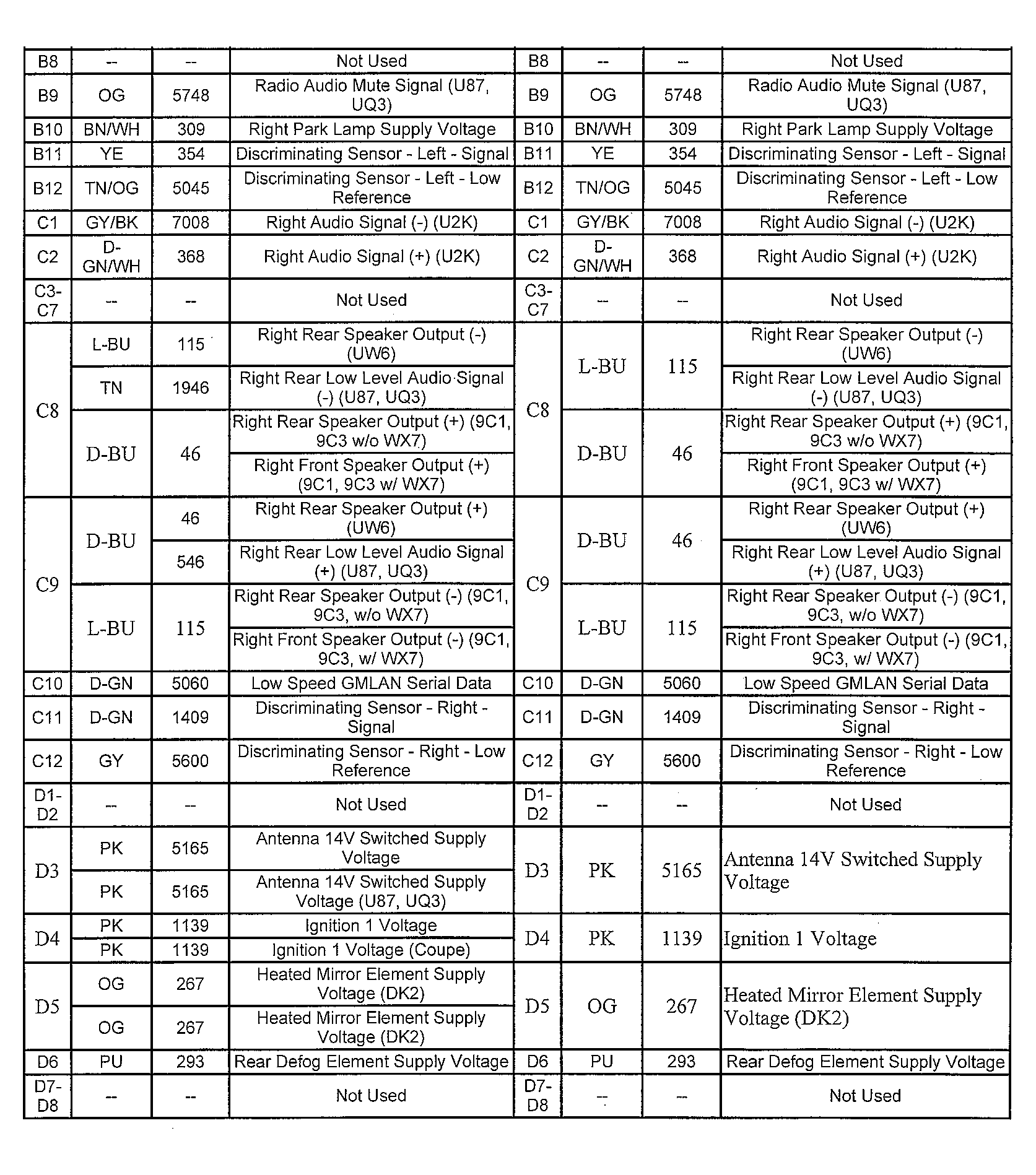

Fig 14: C200 Body Harness To I/P Harness (2 Of 2) Connector End View
G00398867Courtesy of GENERAL MOTORS CORP.

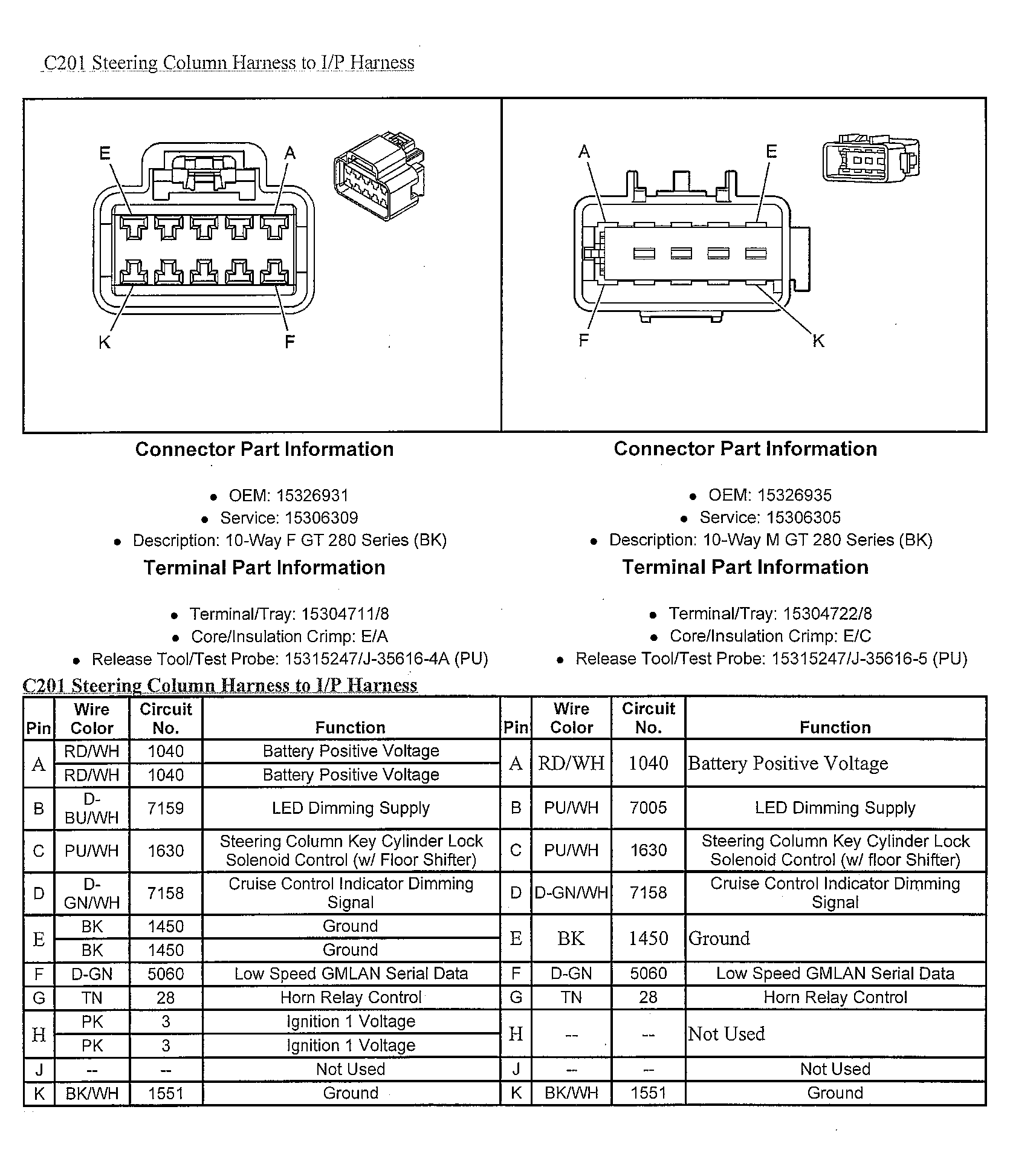

Fig 15: C201 Steering Column Harness to I/P Harness Connector End View
G00398868Courtesy of GENERAL MOTORS CORP.

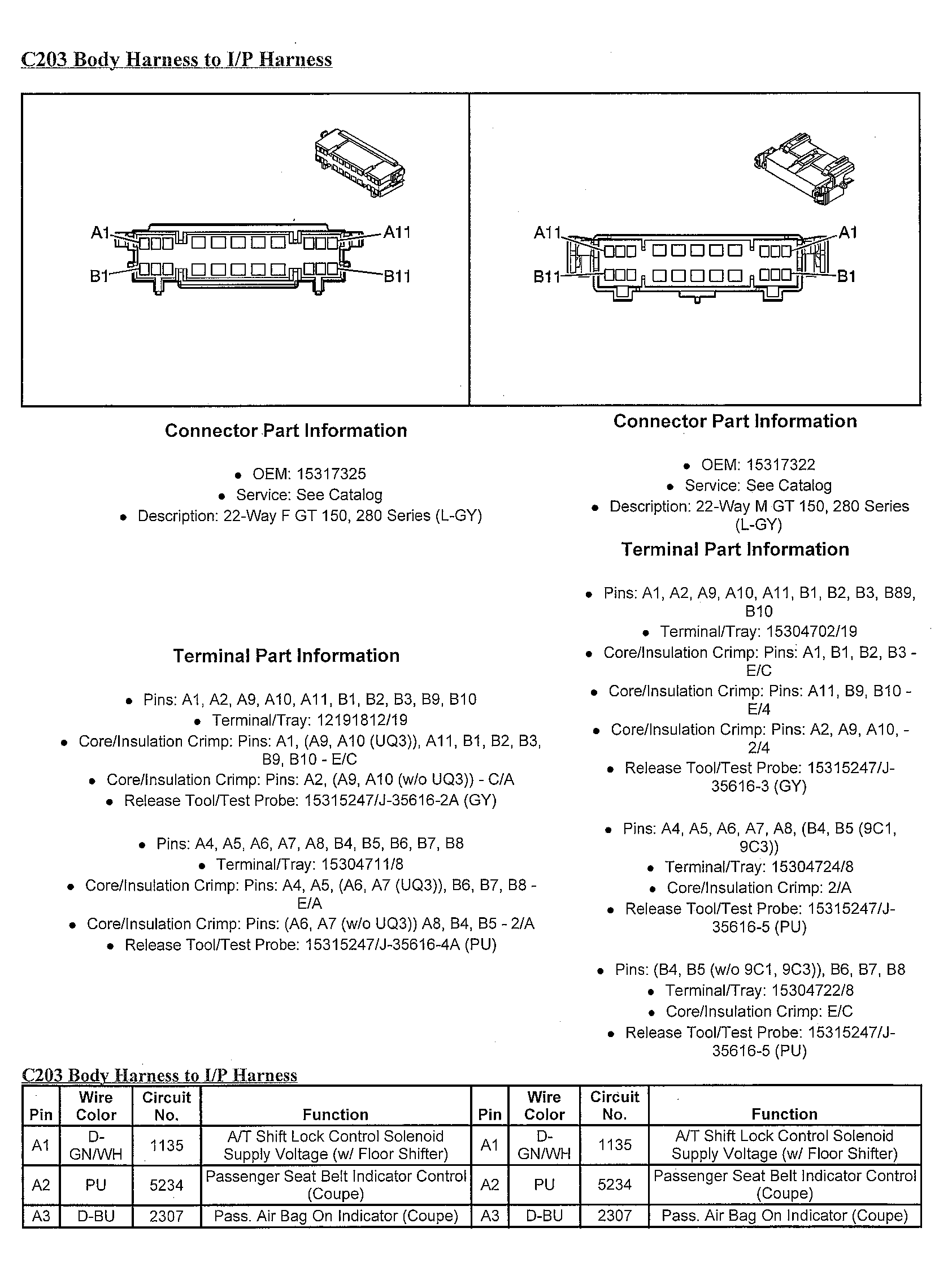

Fig 16: C203 Body Harness To I/P Harness (1 Of 2) Connector End View
G00398869Courtesy of GENERAL MOTORS CORP.

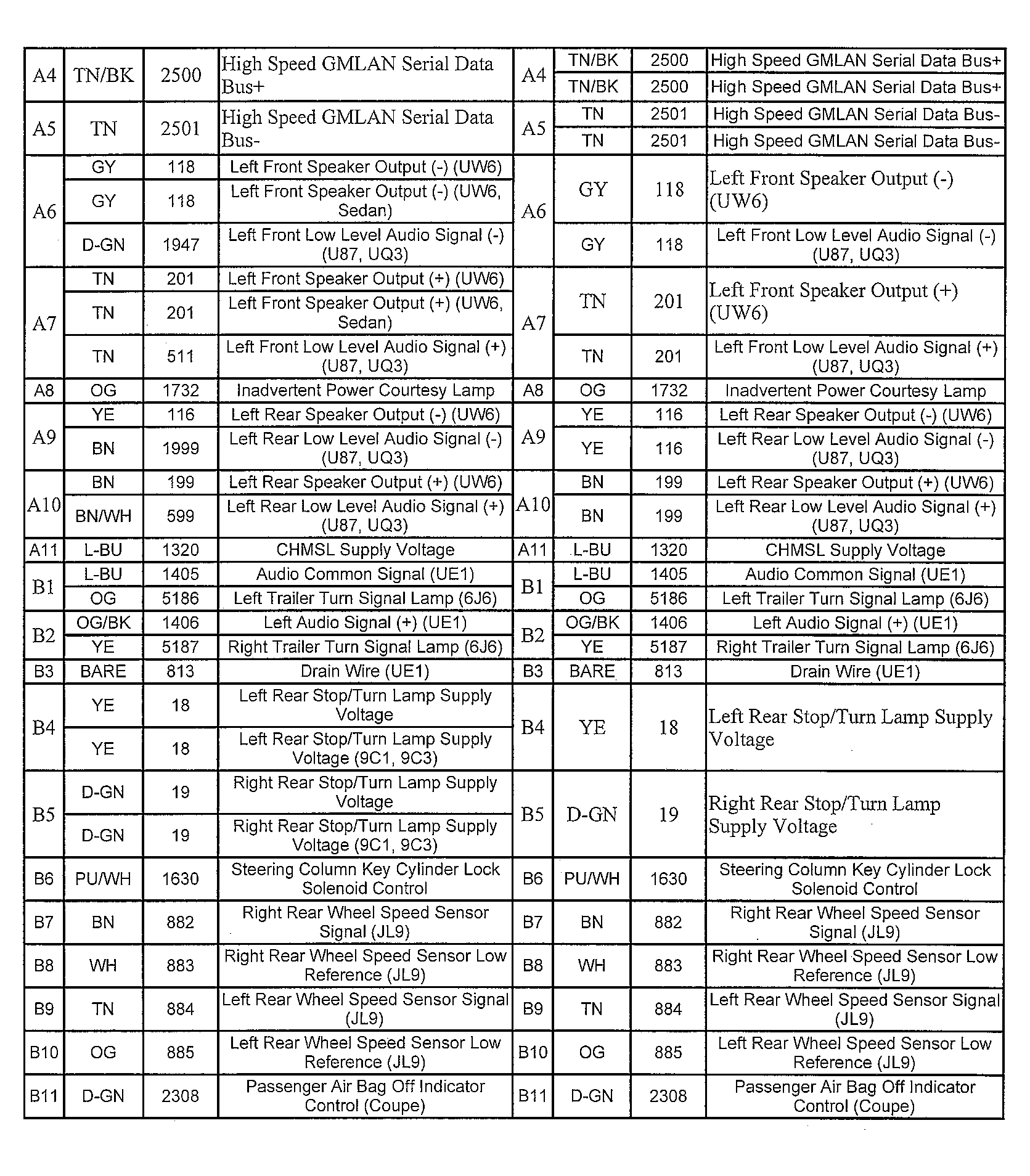

Fig 17: C203 Body Harness To I/P Harness (2 Of 2) Connector End View
G00398870Courtesy of GENERAL MOTORS CORP.

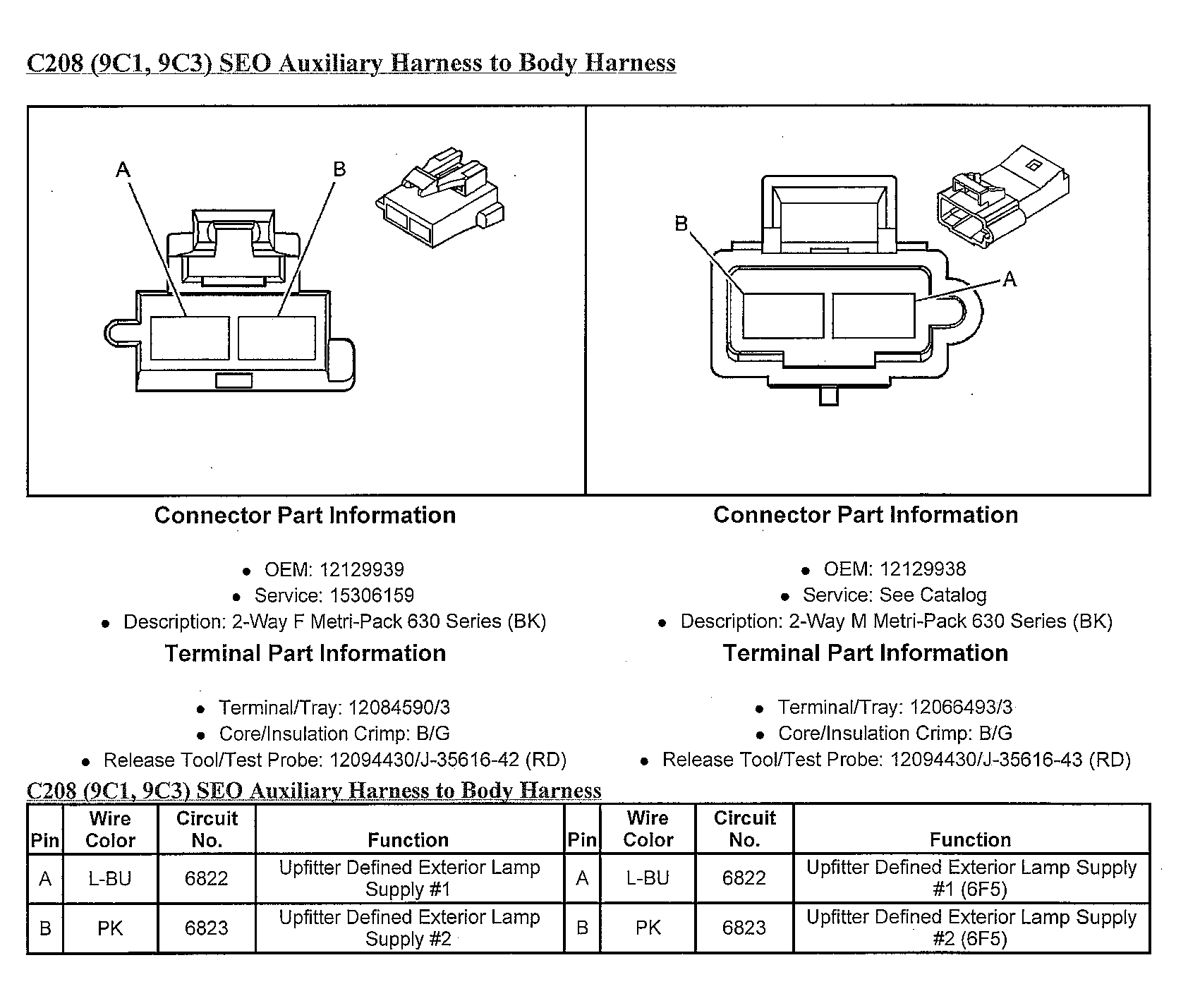

Fig 18: C208 (9C1, 9C3) SEO Auxiliary Harness To Body Harness Connector End View
G00398871Courtesy of GENERAL MOTORS CORP.

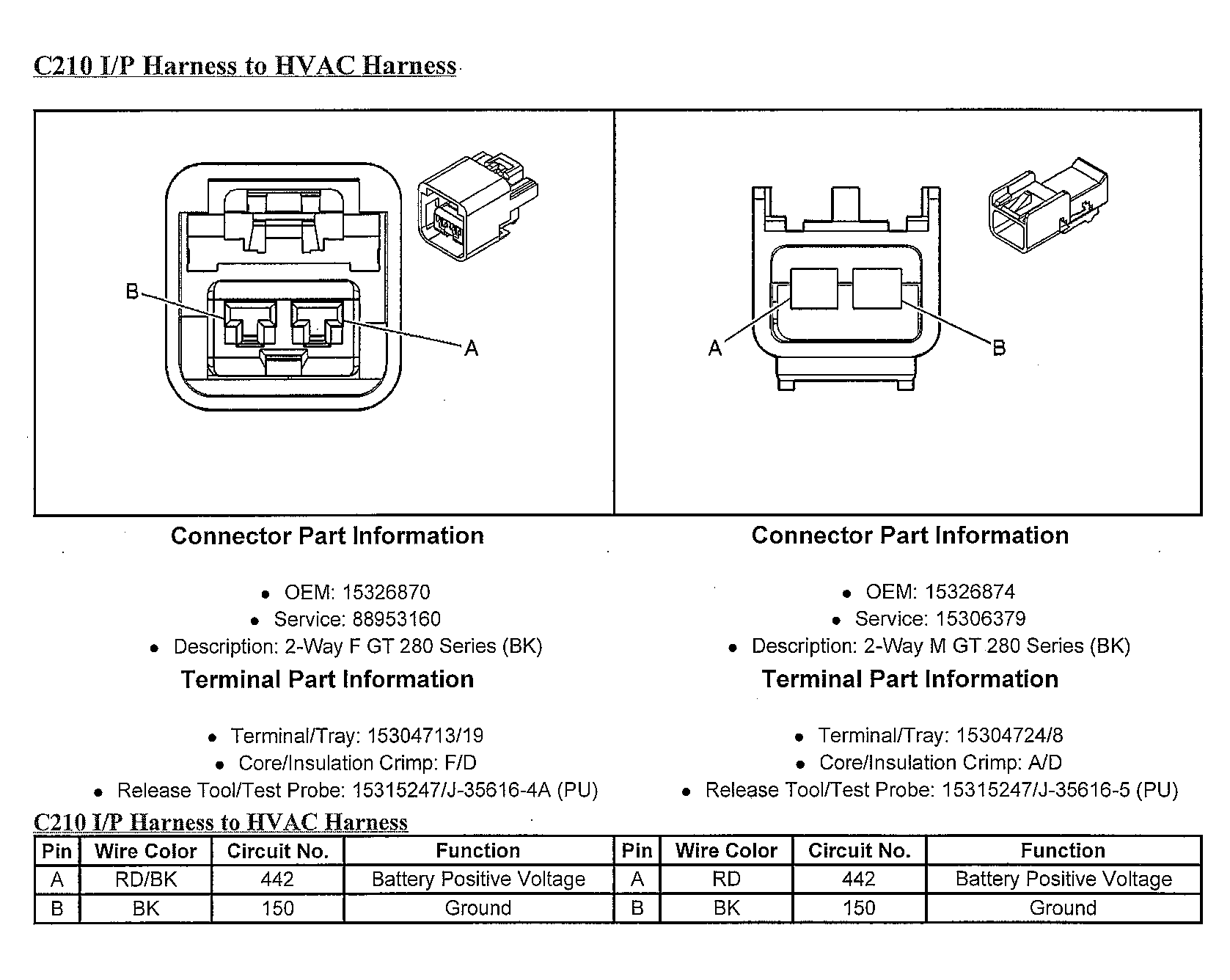

Fig 19: C210 I/P Harness To HVAC Harness Connector End View
G00398872Courtesy of GENERAL MOTORS CORP.

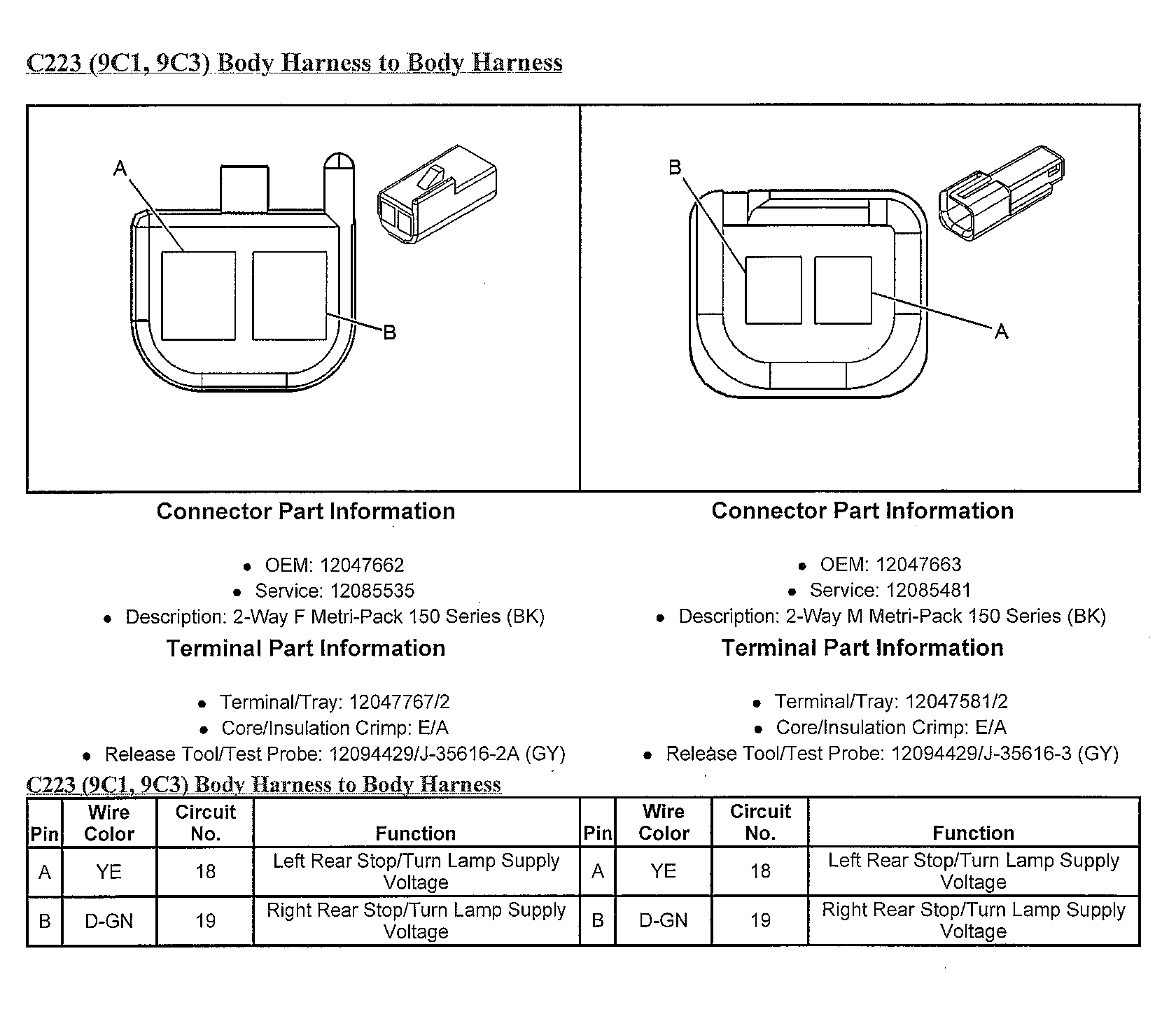

Fig 20: C223 (9C1, 9C3) Body Harness To Body Harness Connector End View
G00398873Courtesy of GENERAL MOTORS CORP.

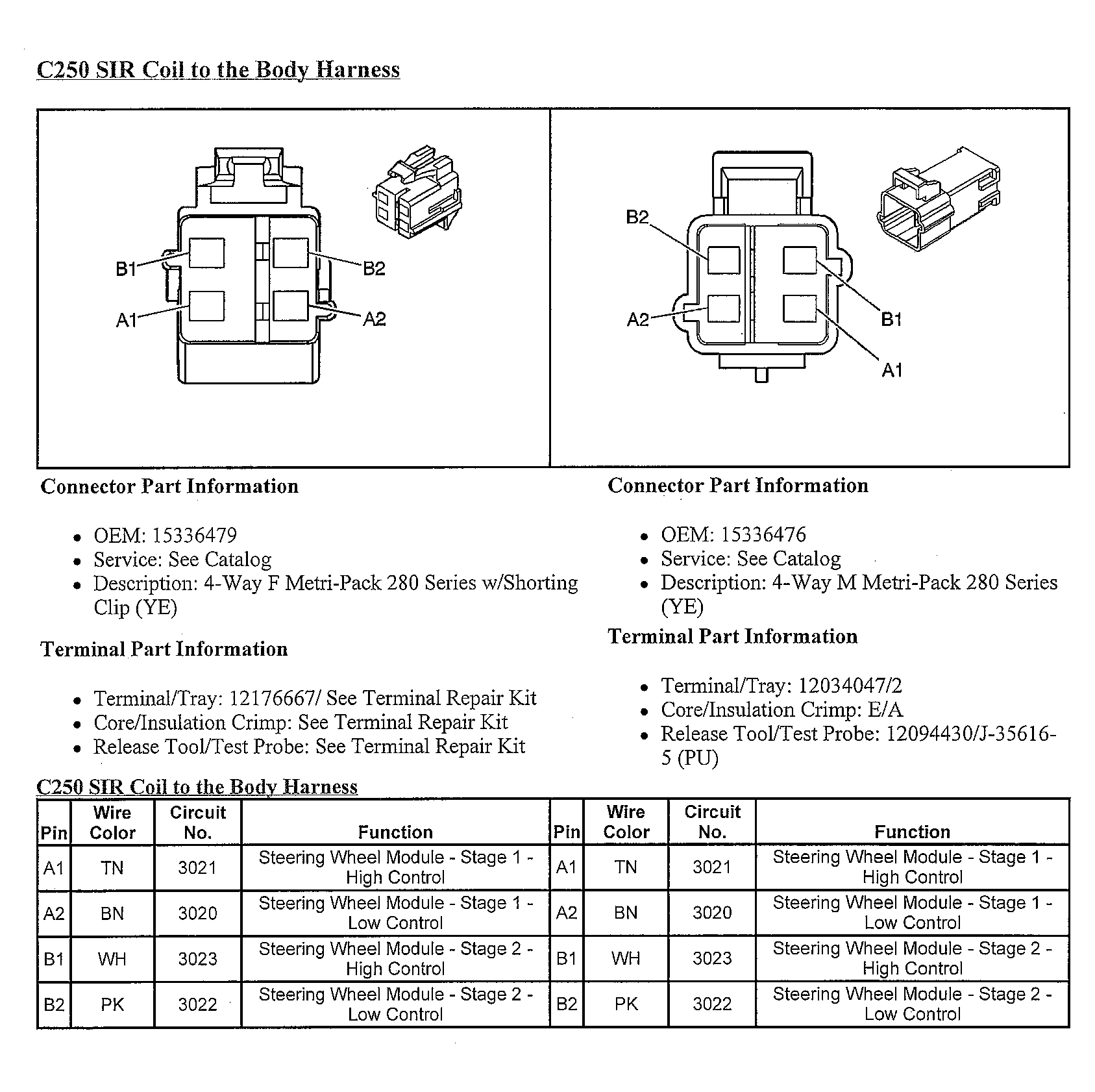

Fig 21: C250 SIR Coil To The Body Harness Connector End View
G00398874Courtesy of GENERAL MOTORS CORP.

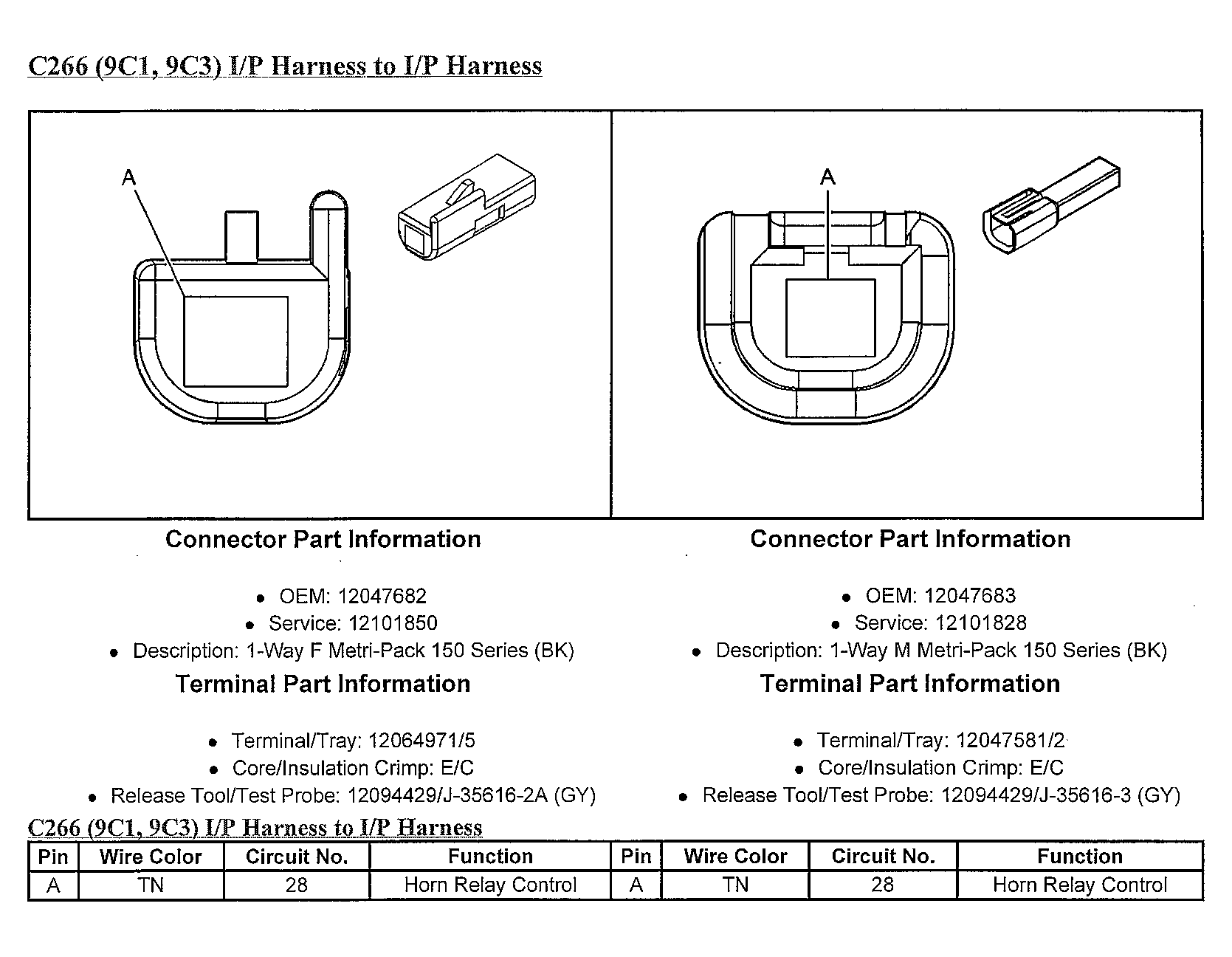

Fig 22: C266 (9C1, 9C3) I/P Harness To I/P Harness Connector End View
G00398875Courtesy of GENERAL MOTORS CORP.

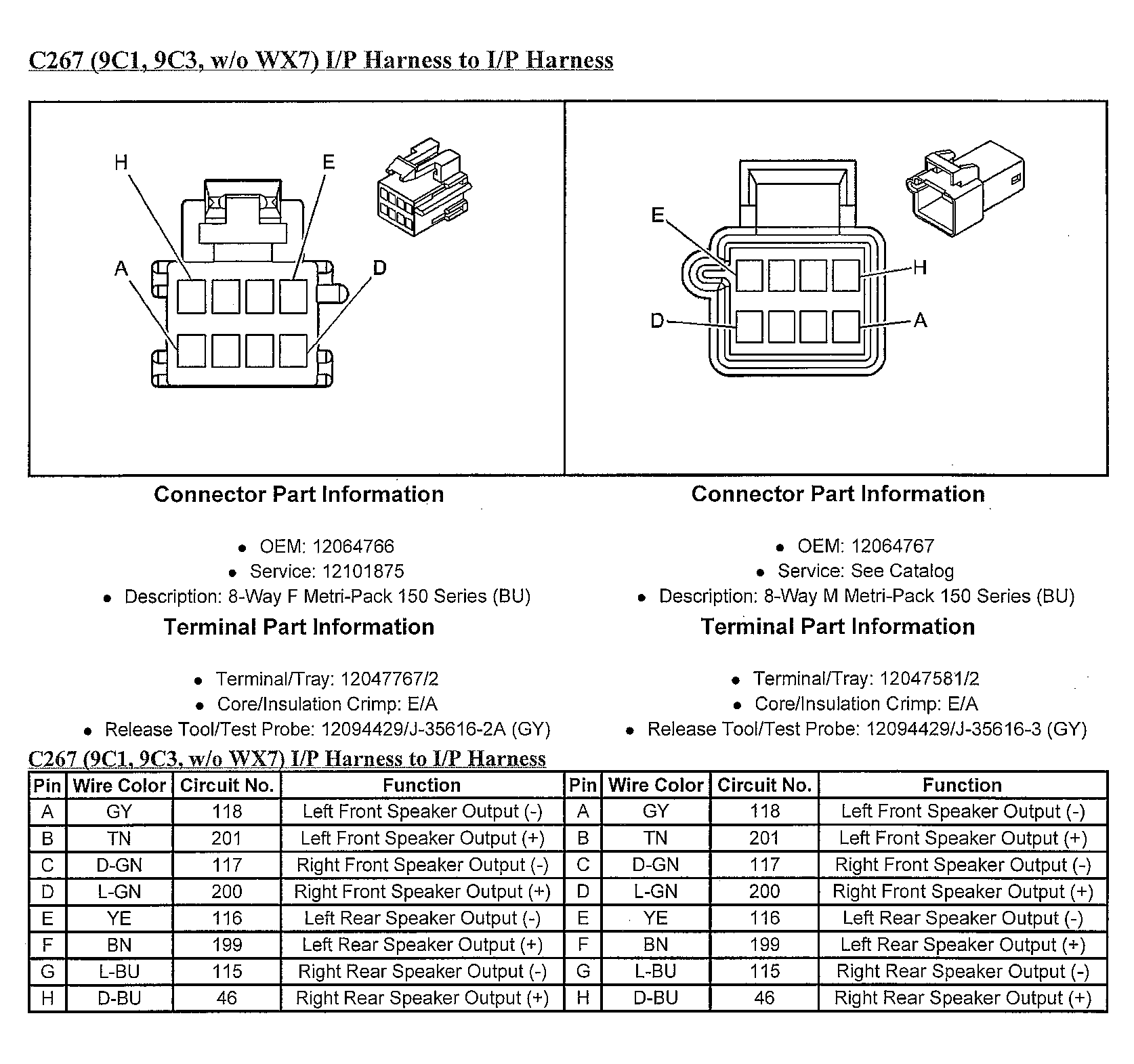

Fig 23: C267 (9C1, 9C3, w/o WX7) I/P Harness To I/P Harness Connector End View
G00398876Courtesy of GENERAL MOTORS CORP.

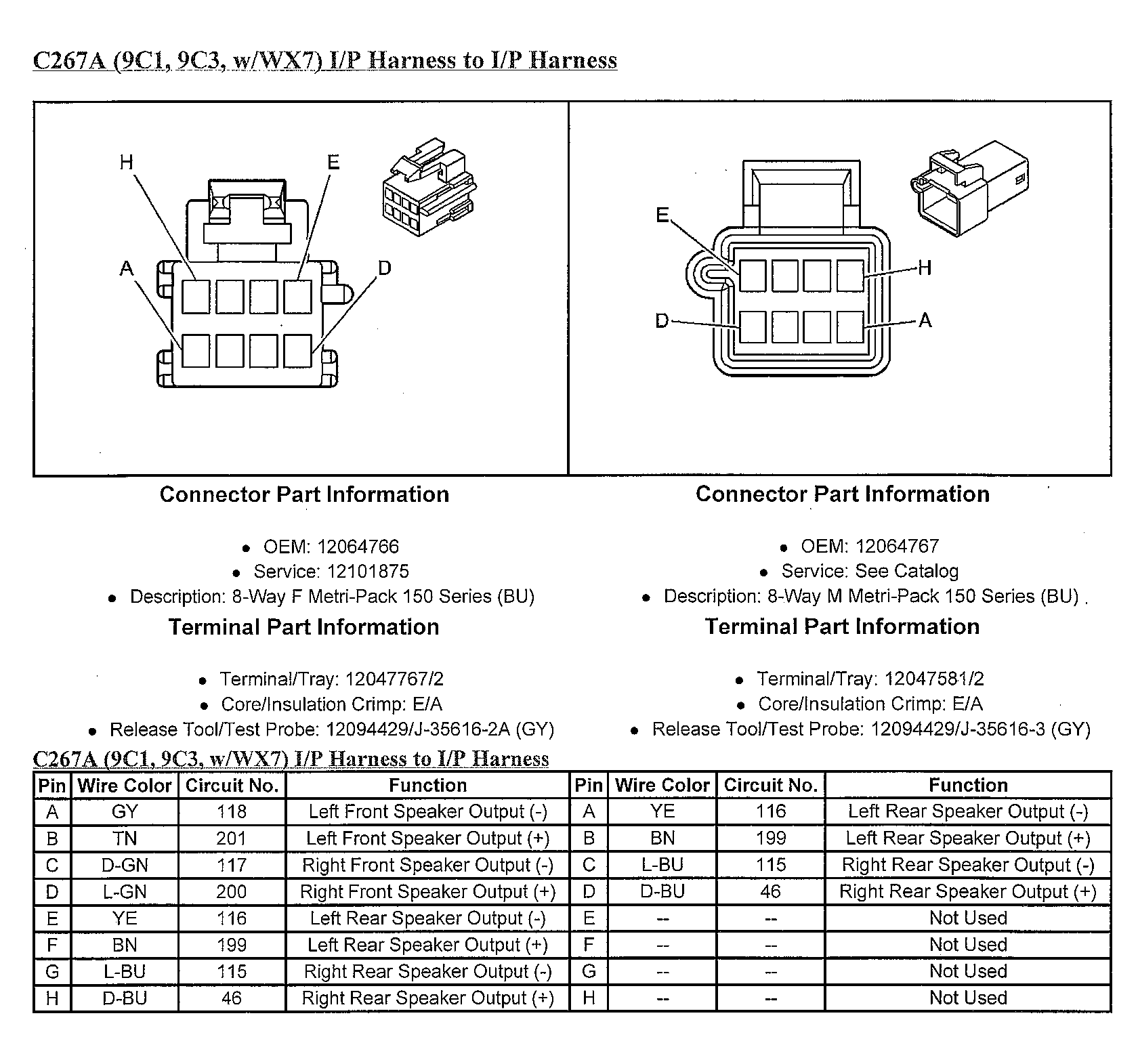

Fig 24: C267A (9C1, 9C3, w/WX7) I/P Harness To I/P Harness Connector End View
G00398877Courtesy of GENERAL MOTORS CORP.

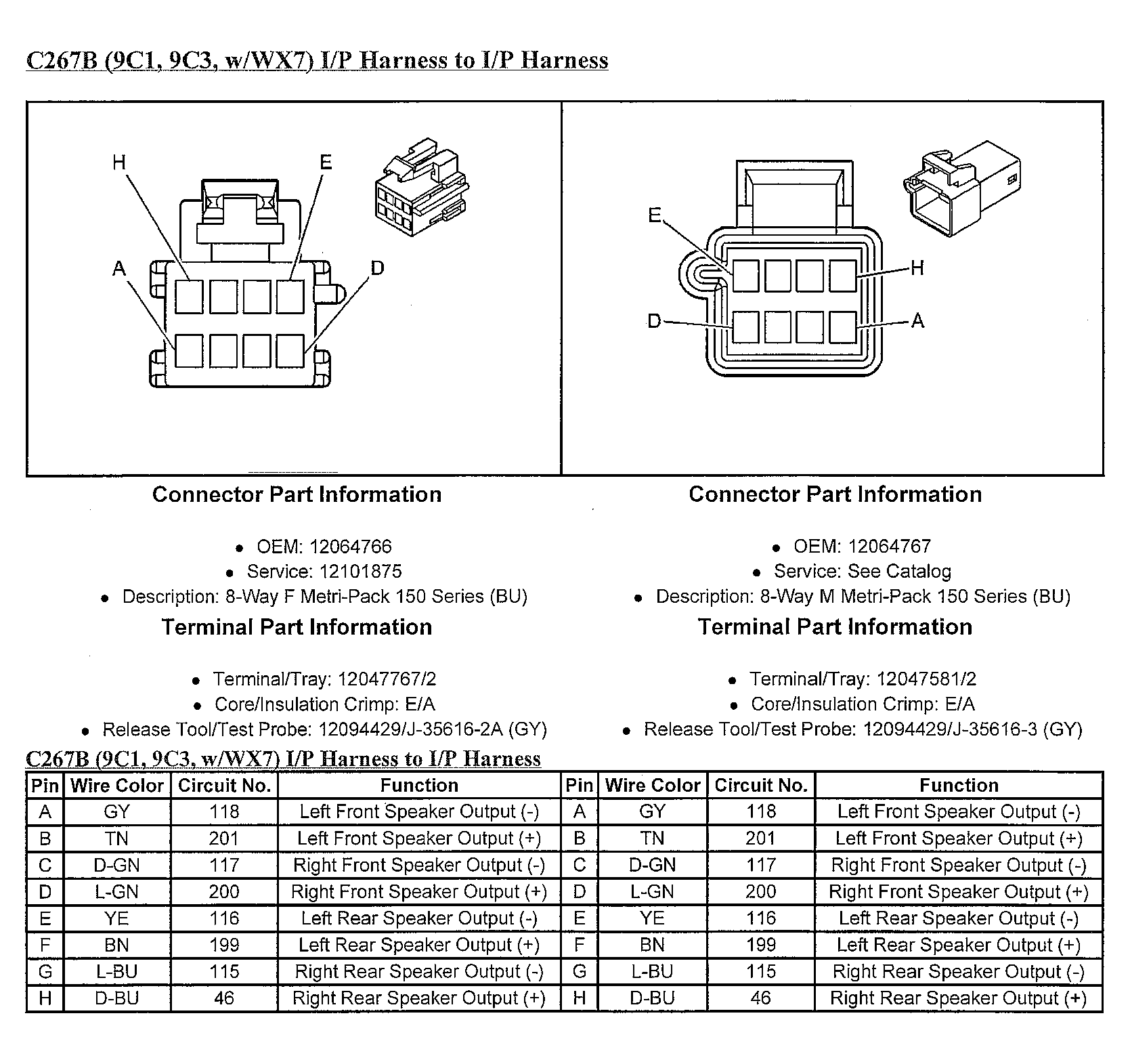

Fig 25: C267B (9C1, 9C3, w/WX7) I/P Harness To I/P Harness Connector End View
G00398878Courtesy of GENERAL MOTORS CORP.

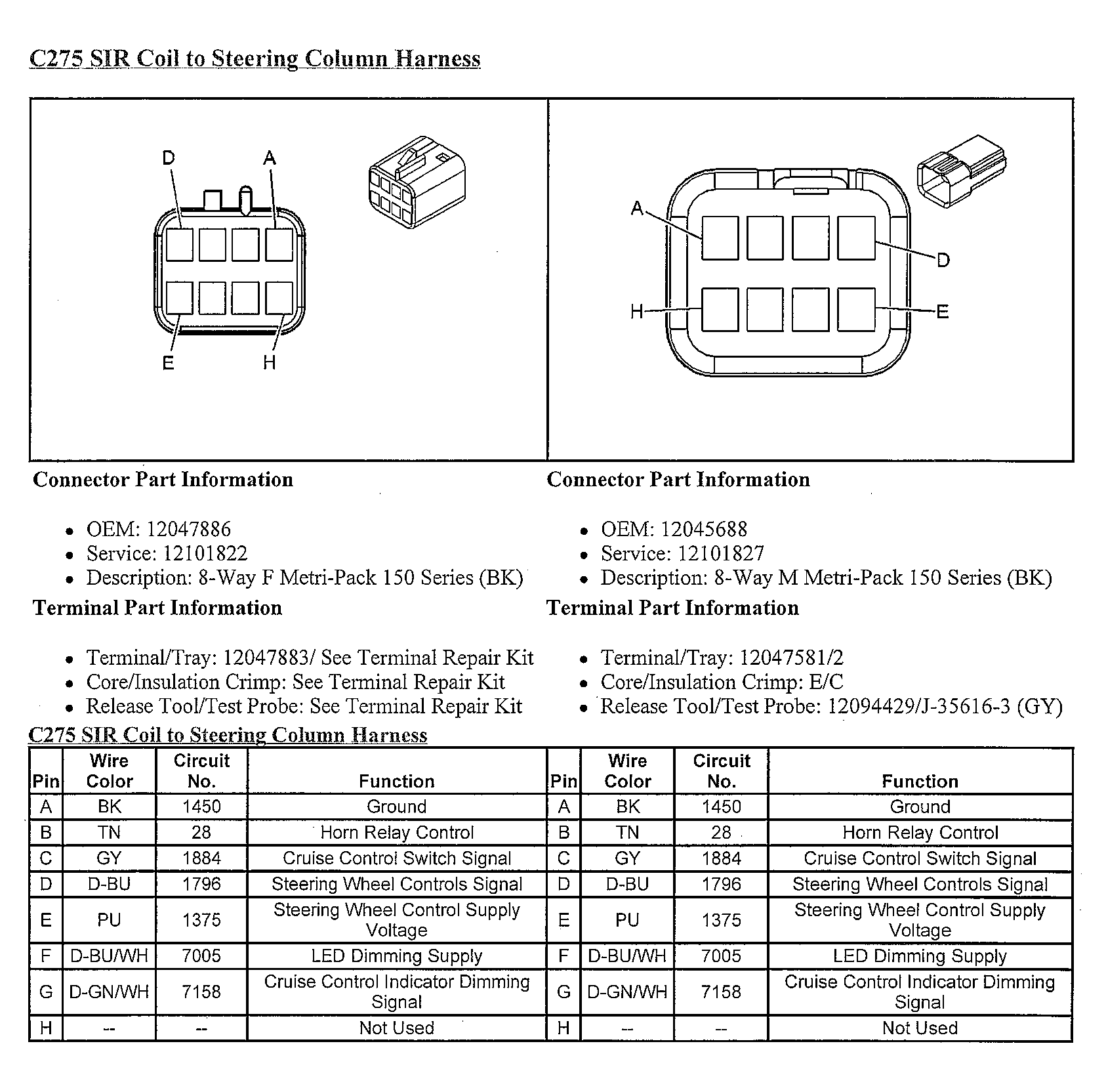

Fig 26: C275 SIR Coil To Steering Column Harness Connector End View
G00398879Courtesy of GENERAL MOTORS CORP.

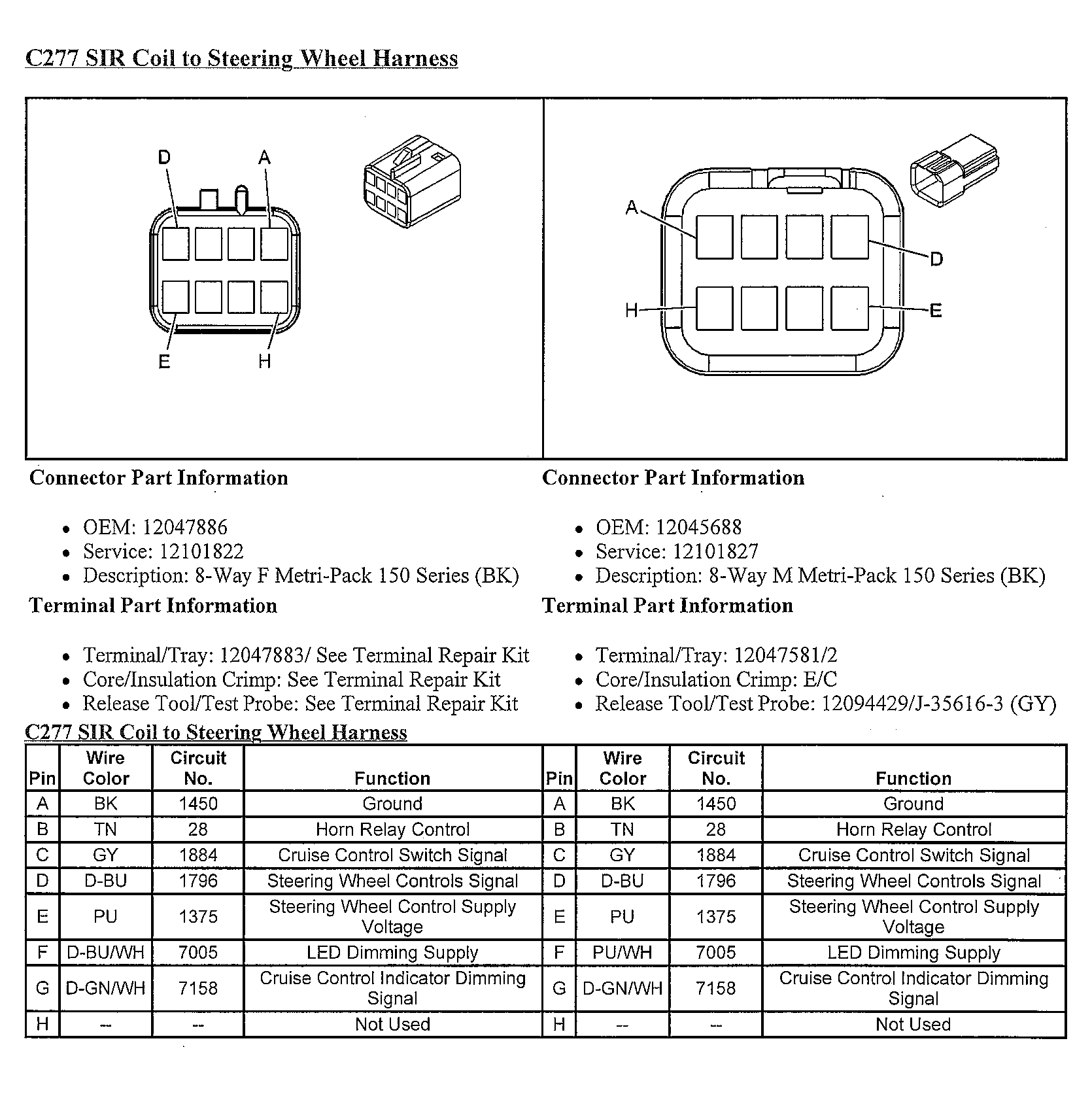

Fig 27: C277 SIR Coil To Steering Wheel Harness Connector End View
G00398880Courtesy of GENERAL MOTORS CORP.

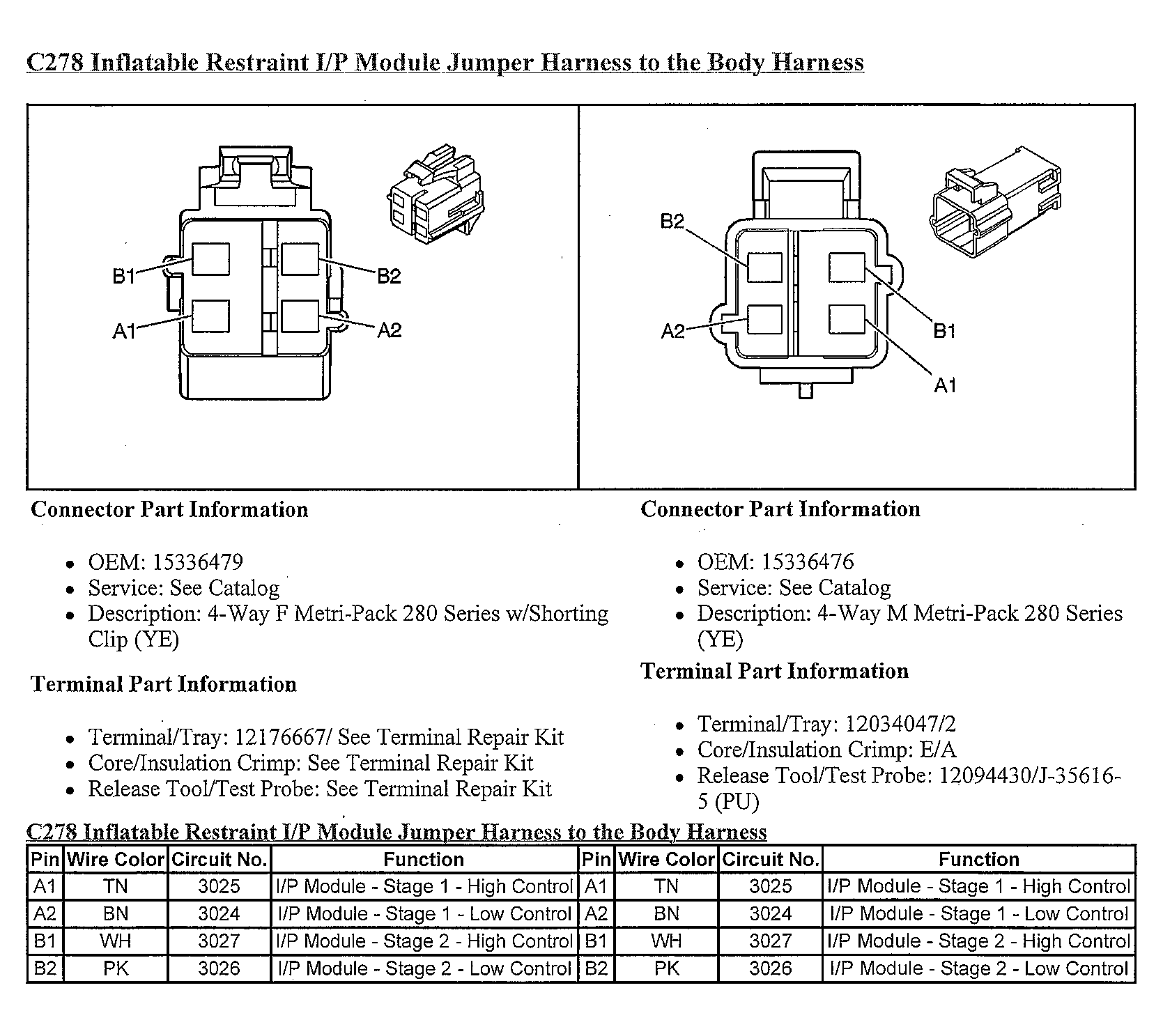

Fig 28: C278 Inflatable Restraint I/P Module Jumper harness To The Body Harness Connector End View
G00398881Courtesy of GENERAL MOTORS CORP.

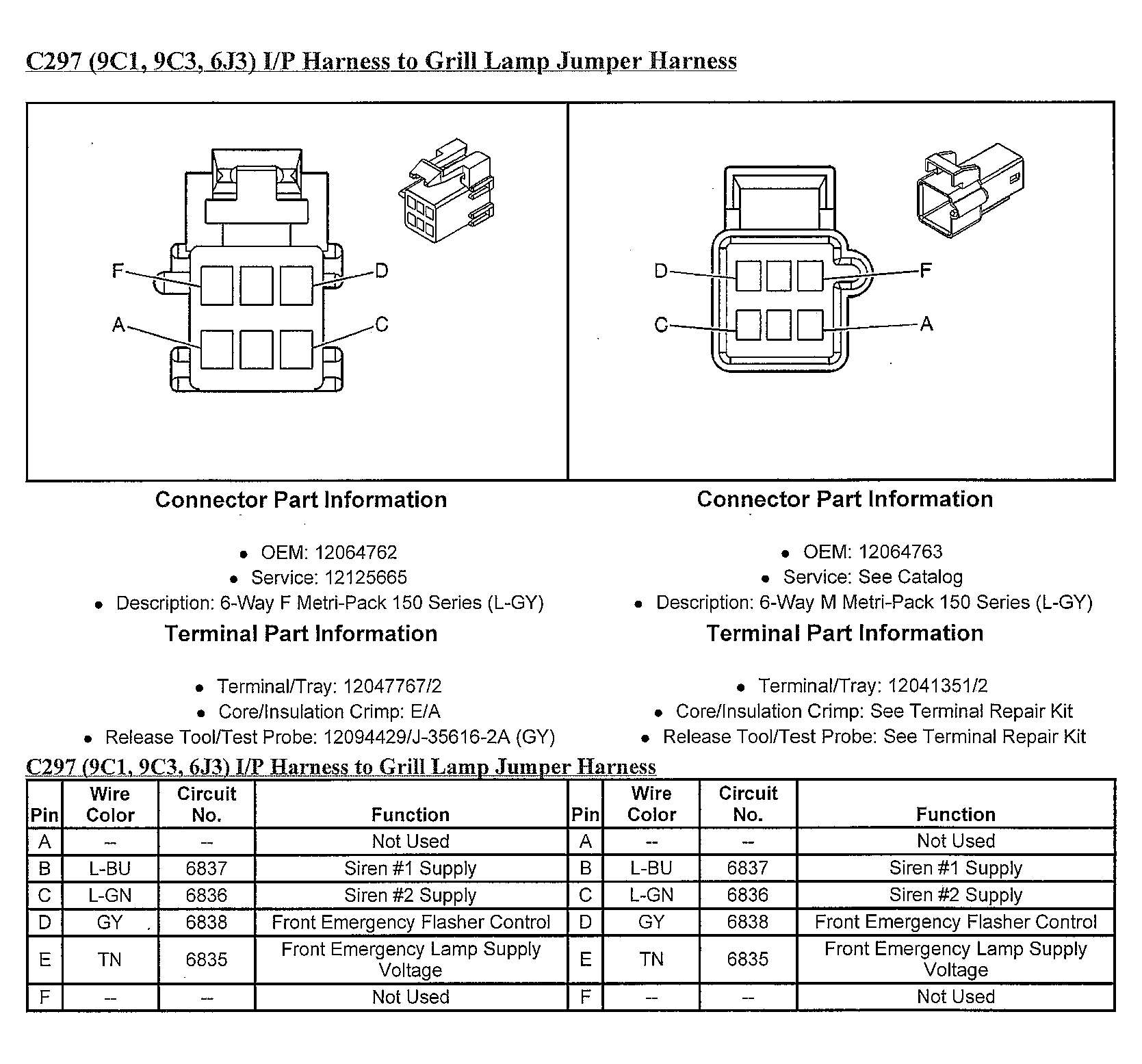

Fig 29: C297 (9C1, 9C3, 6J3) I/P Harness To Grill Lamp Jumper Harness Connector End View
G00398882Courtesy of GENERAL MOTORS CORP.

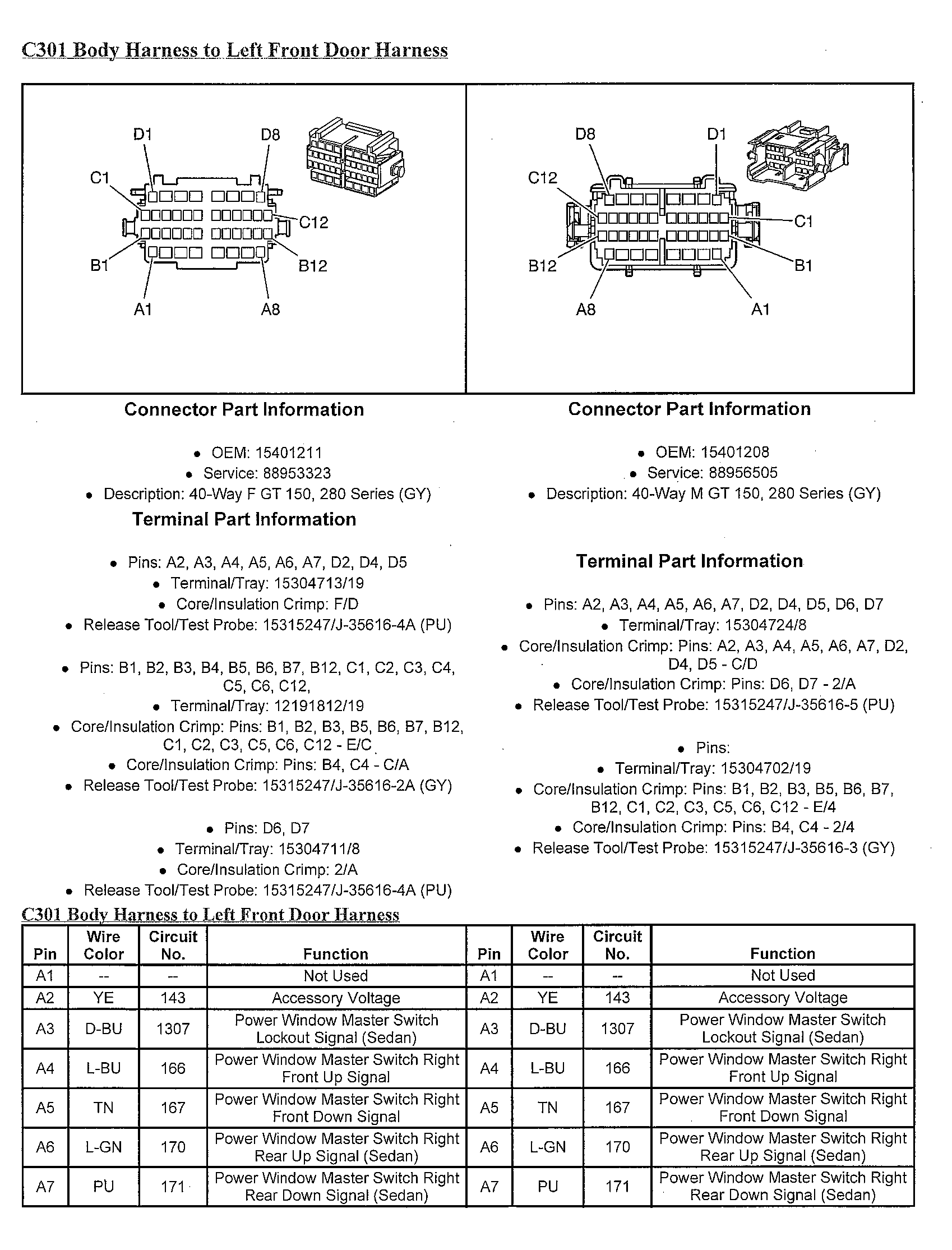

Fig 30: C301 Body Harness To Left Front Door Harness (1 Of 2) Connector End View
G00398883Courtesy of GENERAL MOTORS CORP.

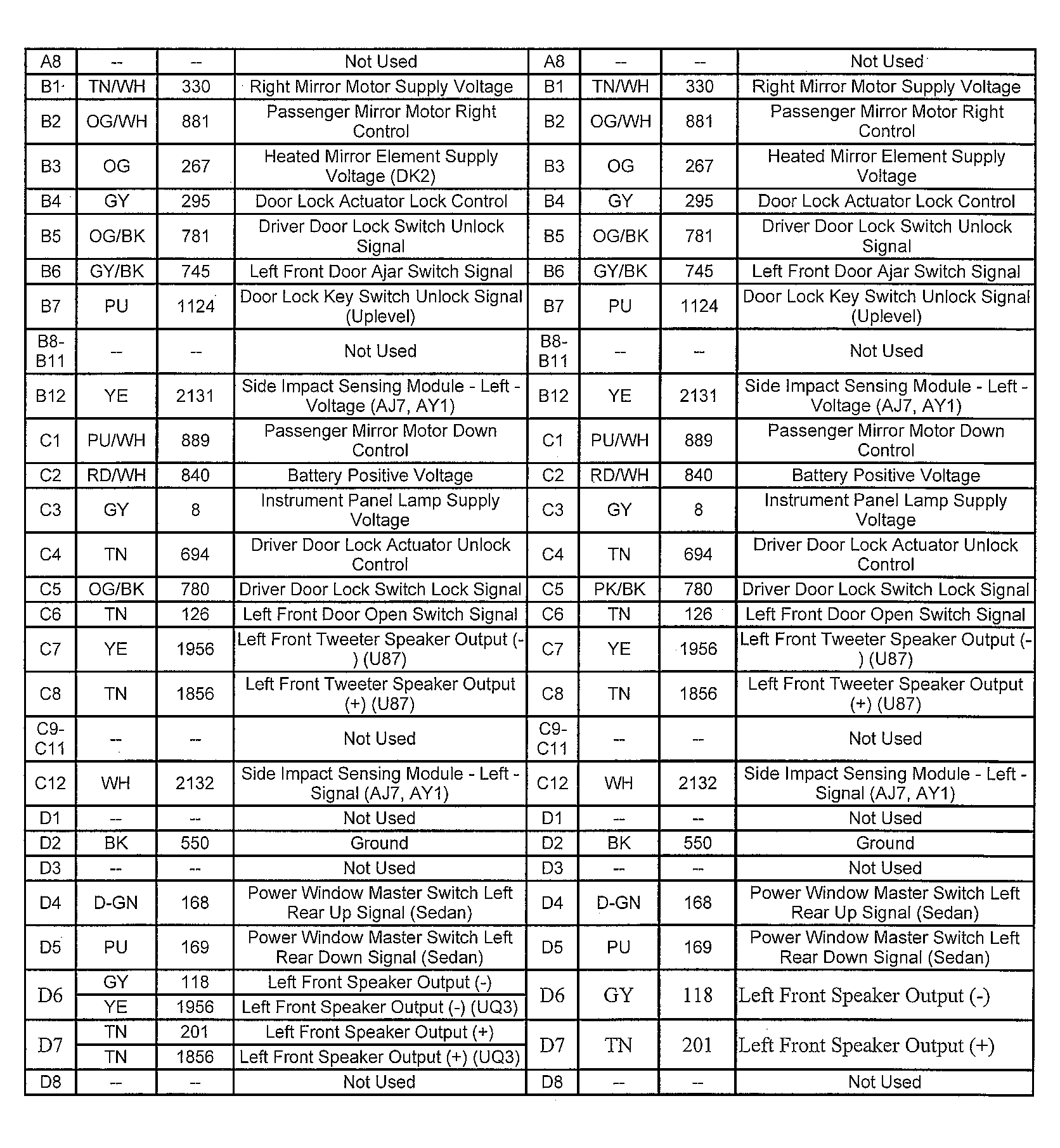

Fig 31: C301 Body Harness To Left Front Door Harness (2 Of 2) Connector End View
G00398884Courtesy of GENERAL MOTORS CORP.

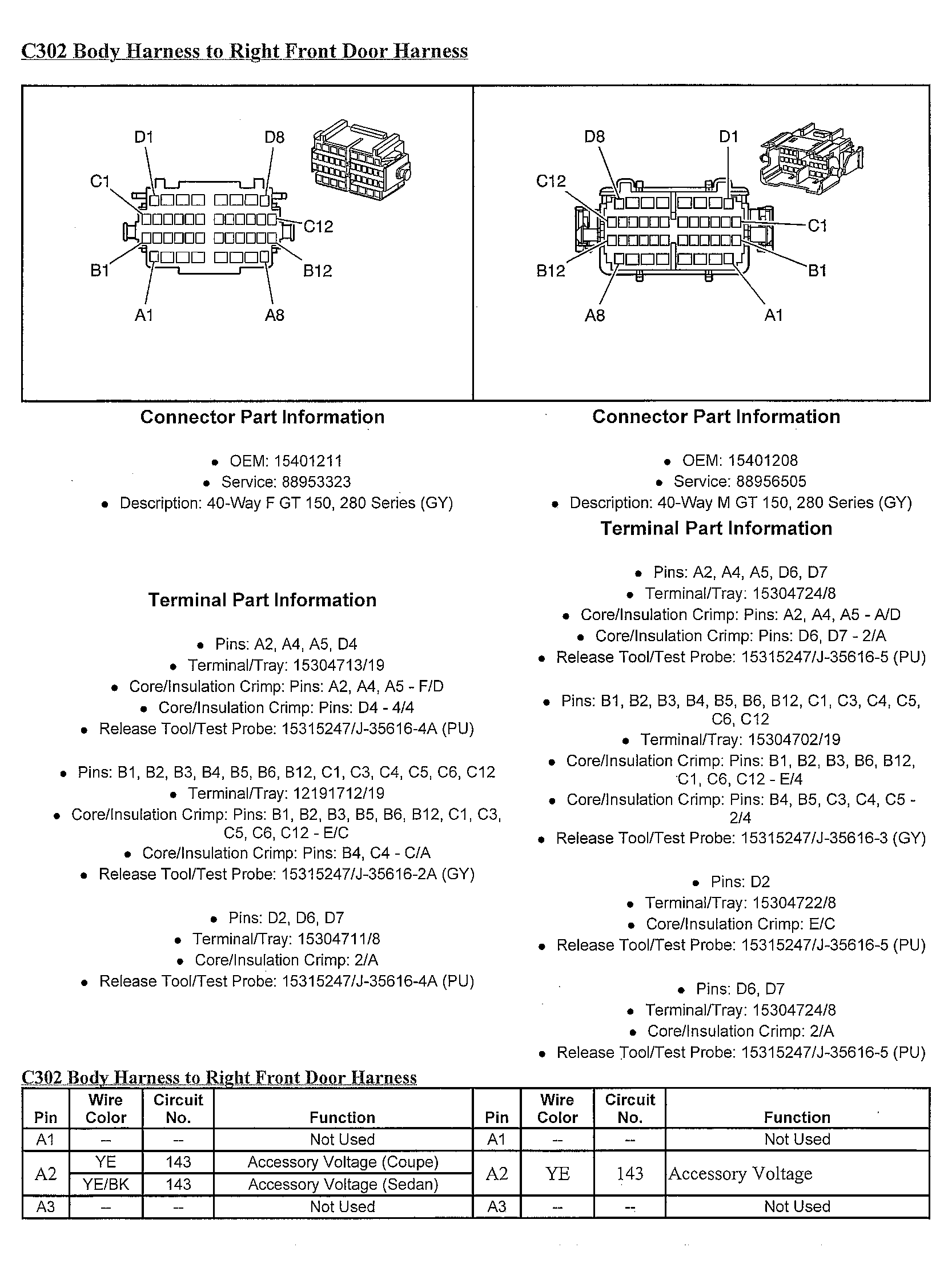

Fig 32: C302 Body Harness To Right Front Door Harness (1 Of 2) Connector End View
G00398885Courtesy of GENERAL MOTORS CORP.

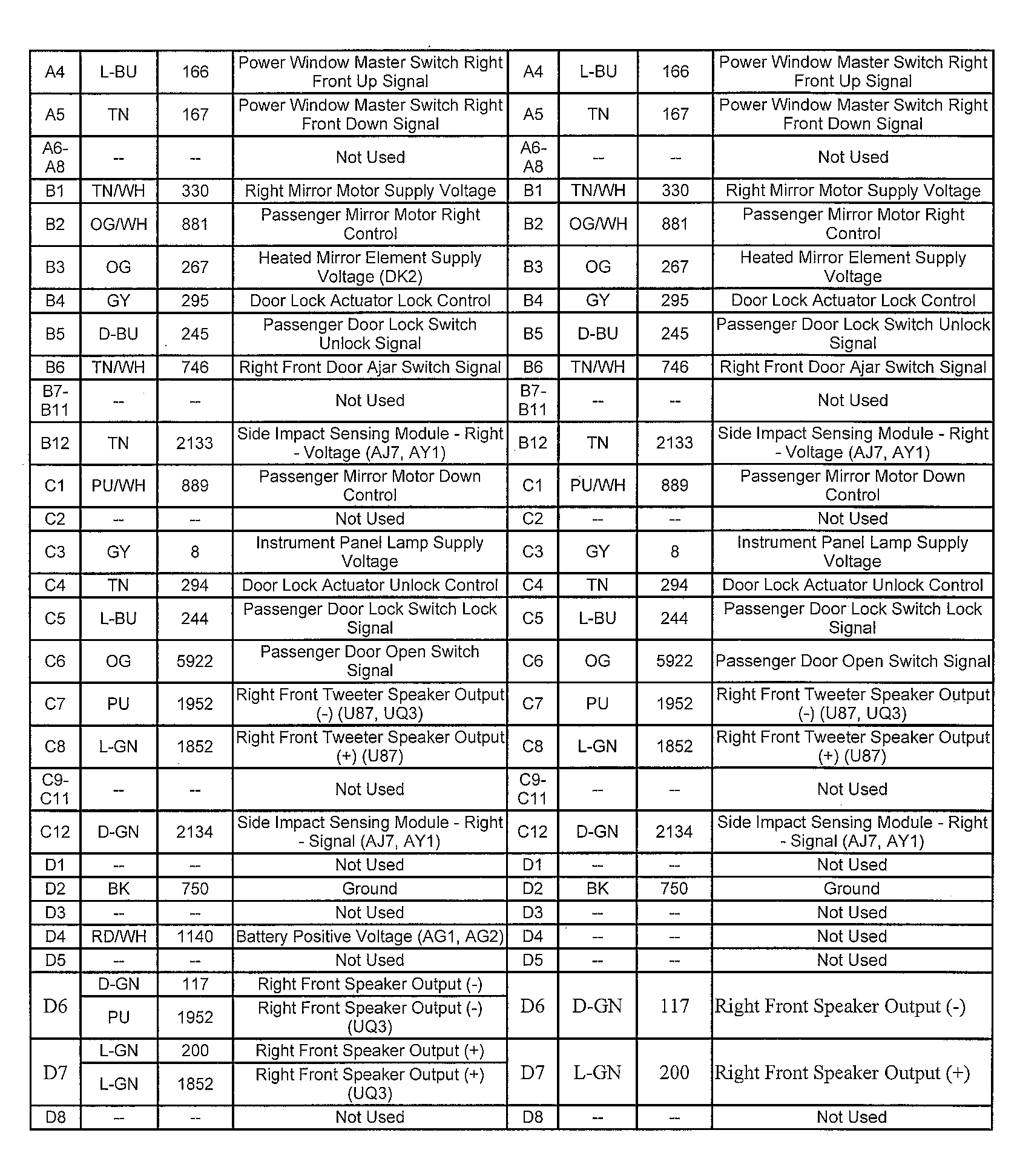

Fig 33: C302 Body Harness To Right Front Door Harness (2 Of 2) Connector End View
G00398886Courtesy of GENERAL MOTORS CORP.

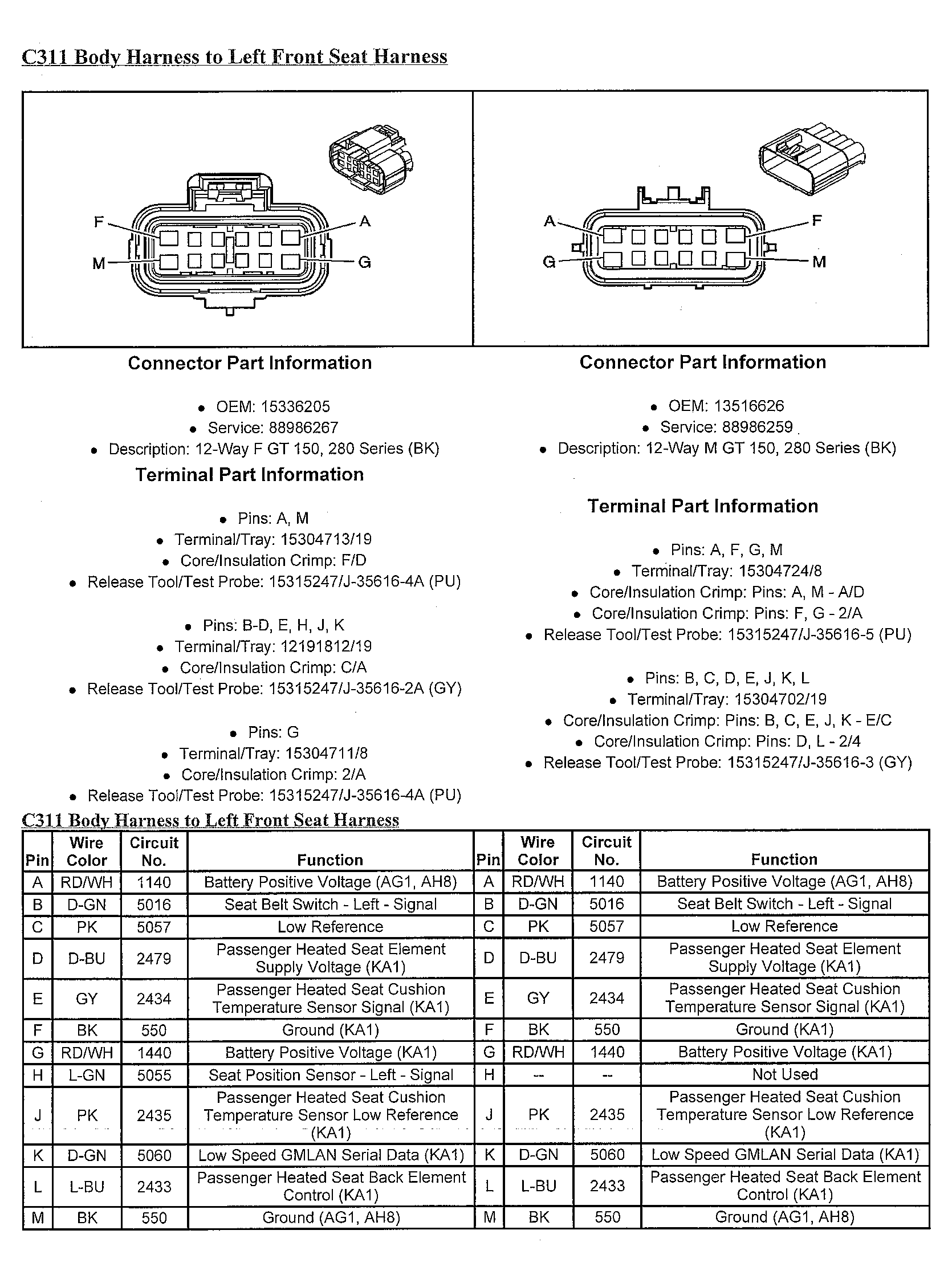

Fig 34: C311 Body Harness To Left Front Seat Harness Connector End View
G00398887Courtesy of GENERAL MOTORS CORP.
Fig 35: C312 Inflatable Restraint Side Impact Module - Left Jumper Harness To Body Harness (AJ7) Connector End View
G00398888Courtesy of GENERAL MOTORS CORP.

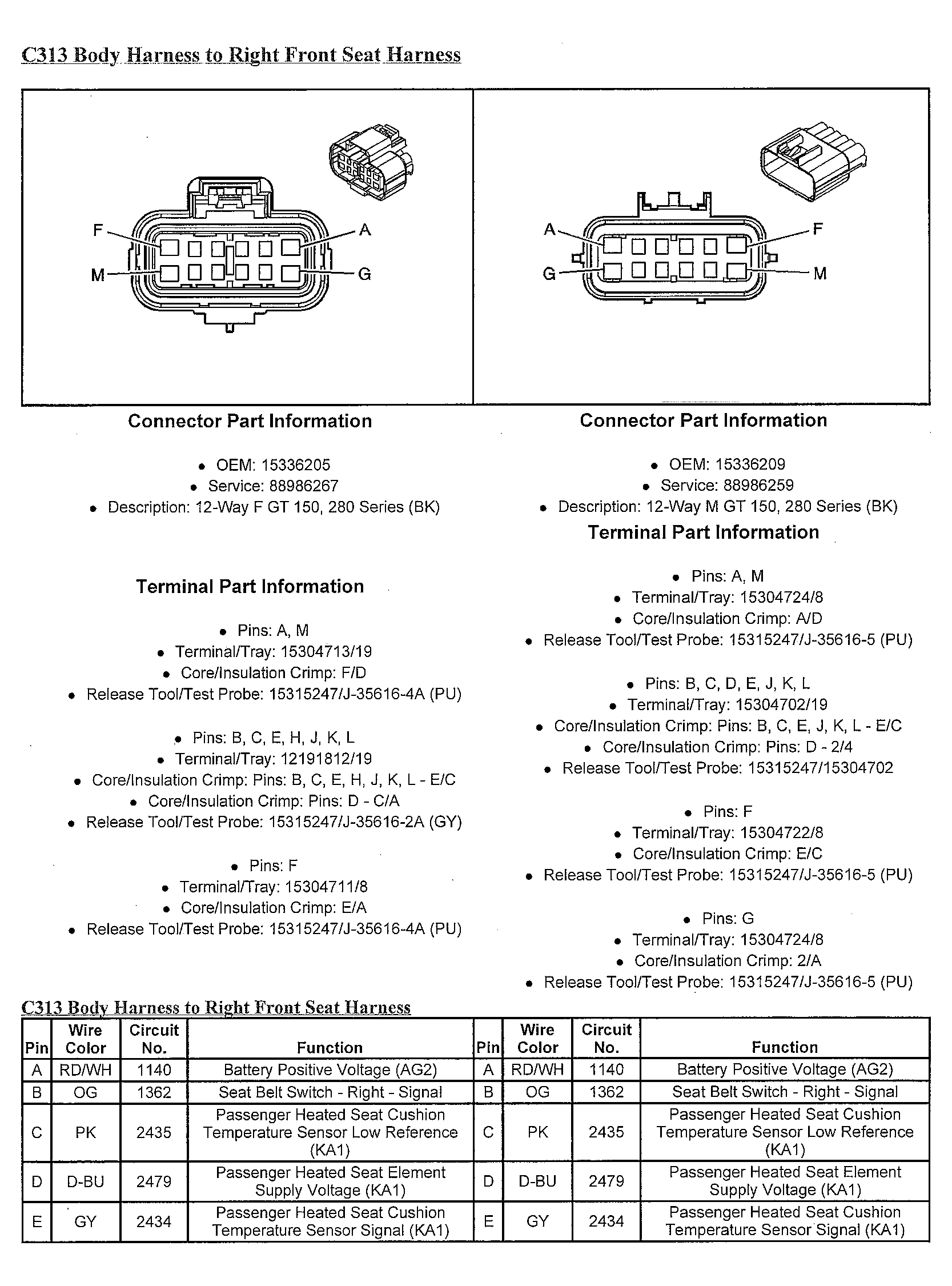

Fig 36: C313 Body Harness To Right Front Seat harness (1 Of 2) Connector End View
G00398889Courtesy of GENERAL MOTORS CORP.

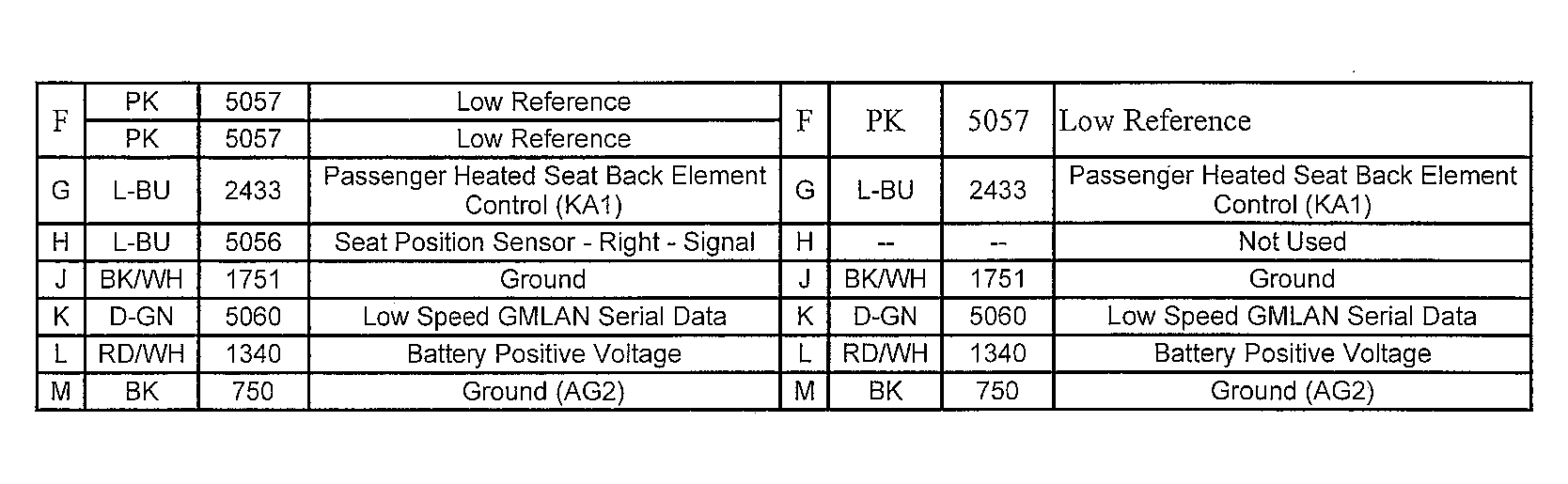

Fig 37: C313 Body Harness To Right Front Seat harness (2 Of 2) Connector End View
G00398890Courtesy of GENERAL MOTORS CORP.

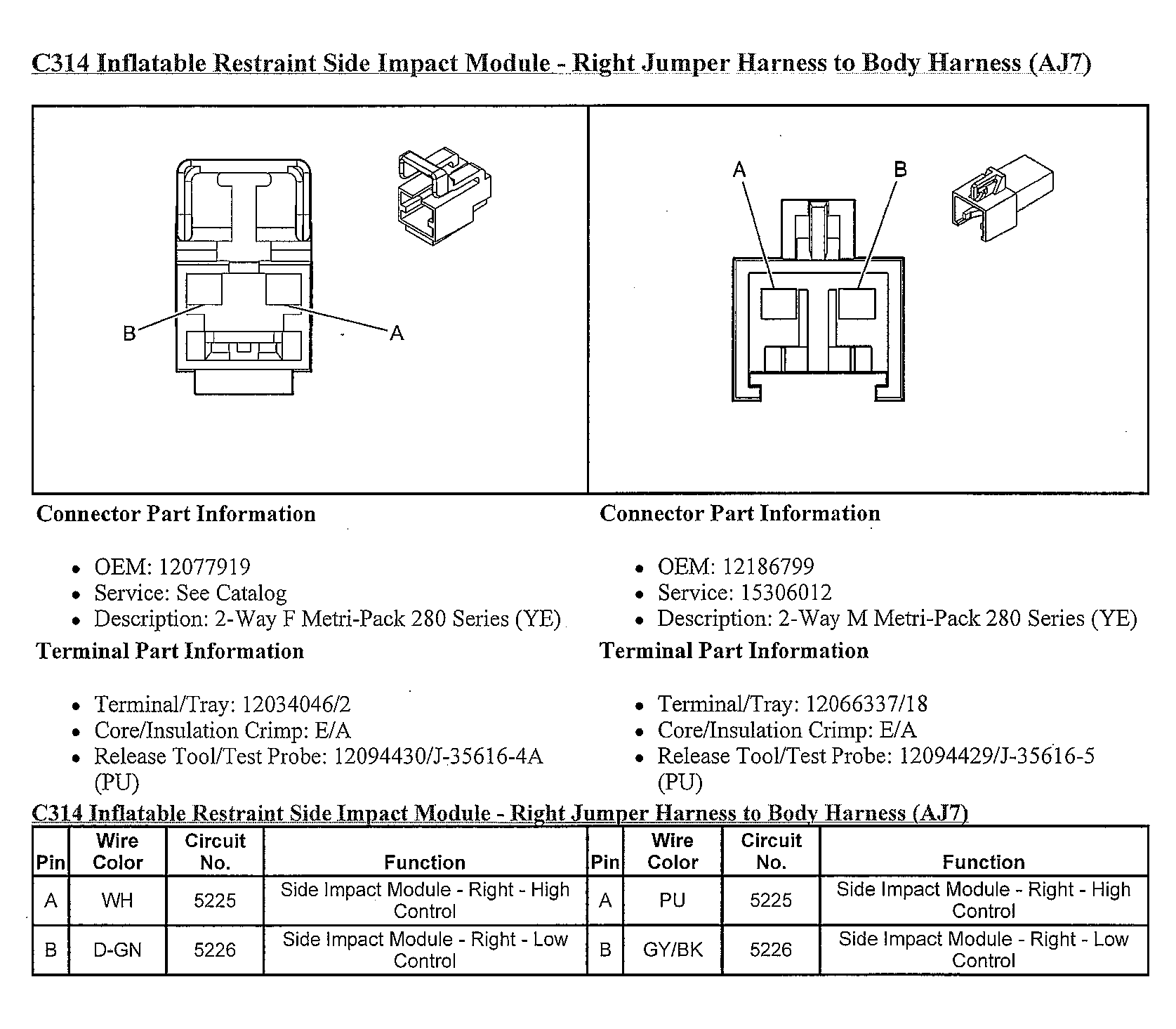

Fig 38: C314 Inflatable Restraint Side Impact Module - Right Jumper Harness To Body Harness (AJ7) Connector End View
G00398891Courtesy of GENERAL MOTORS CORP.

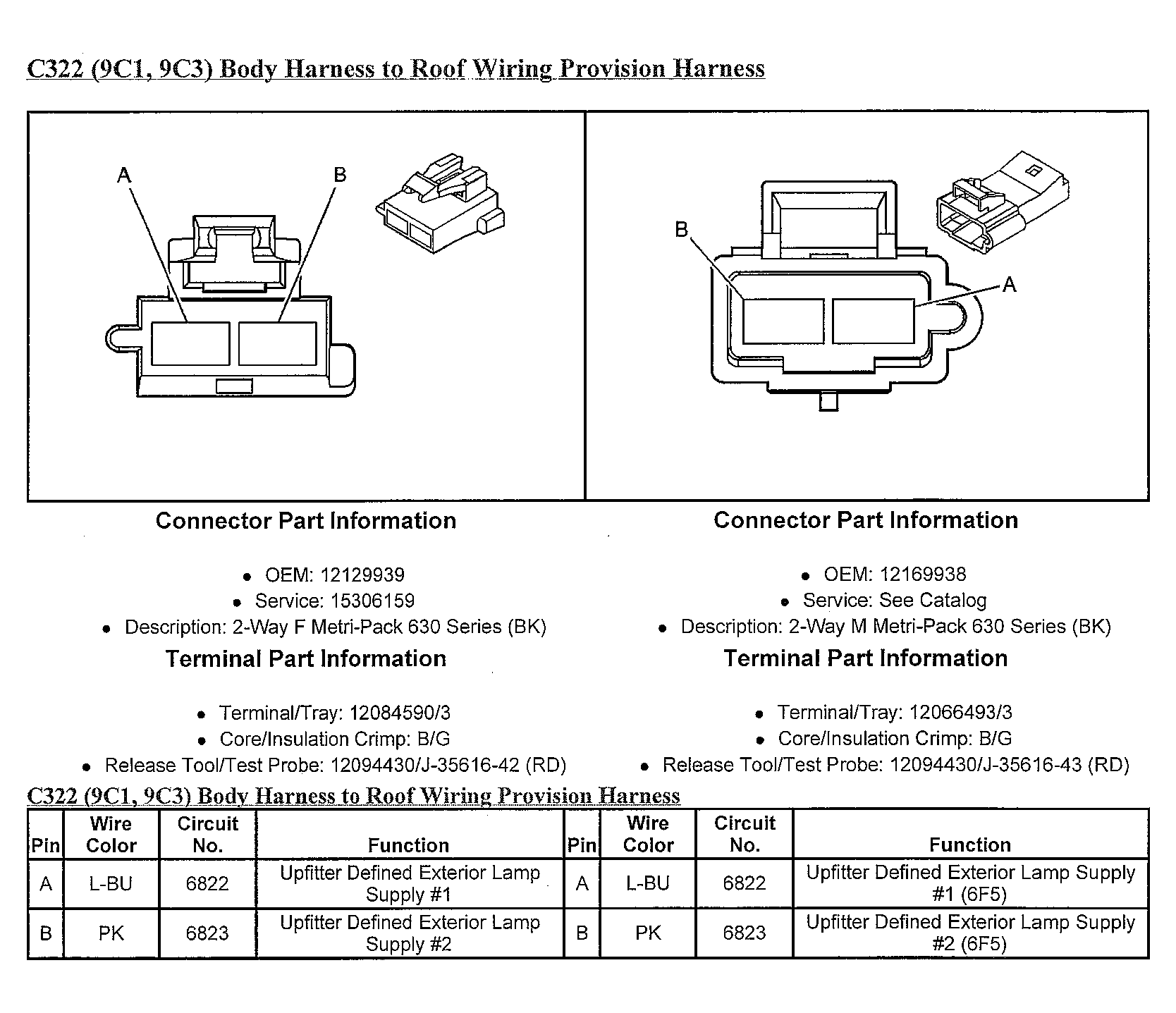

Fig 39: C322 (9C1, 9C3) Body Harness To Roof Wiring Provision Harness Connector End View
G00398892Courtesy of GENERAL MOTORS CORP.

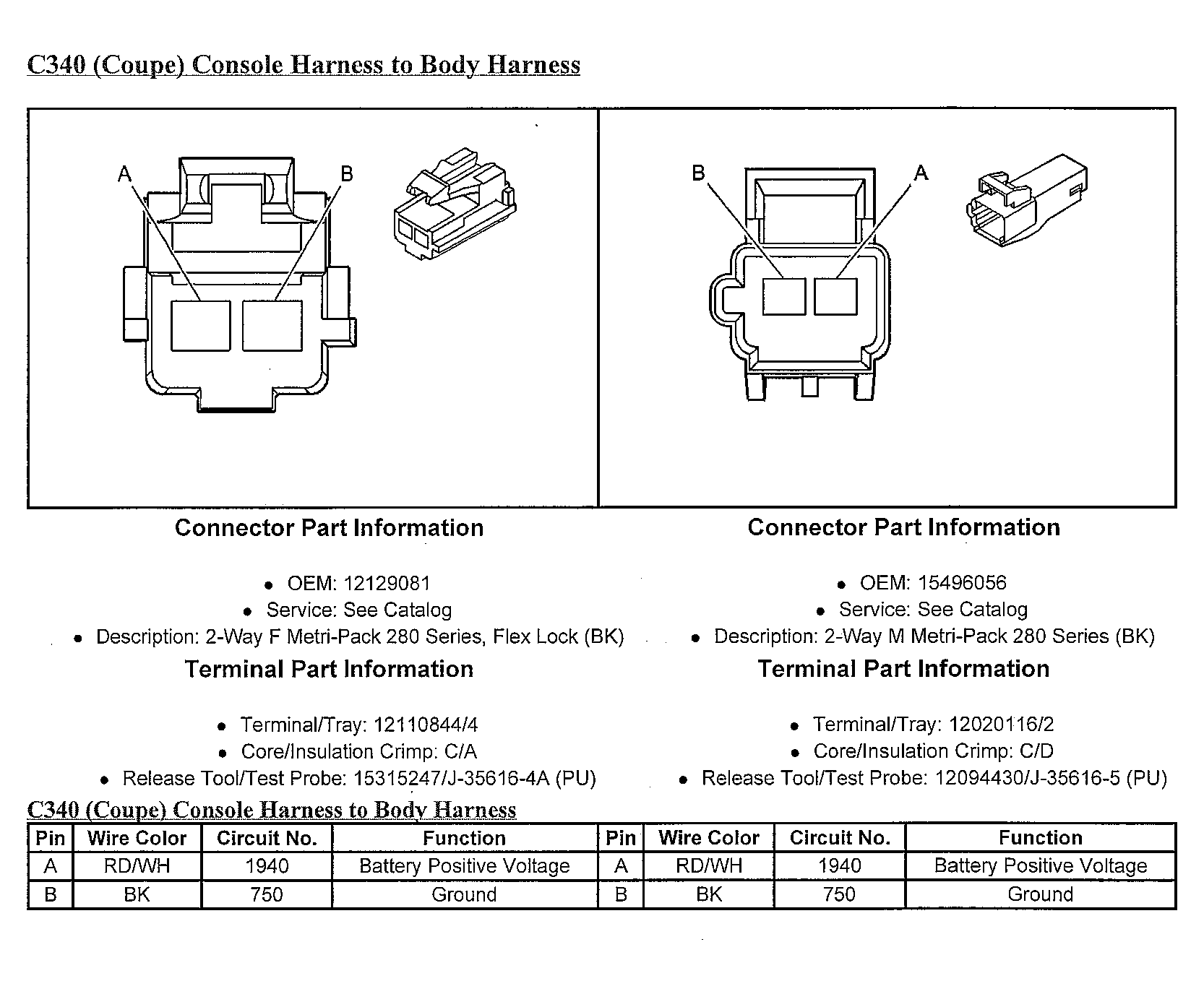

Fig 40: C340 (Coupe) Console Harness To Body Harness Connector End View
G00398893Courtesy of GENERAL MOTORS CORP.

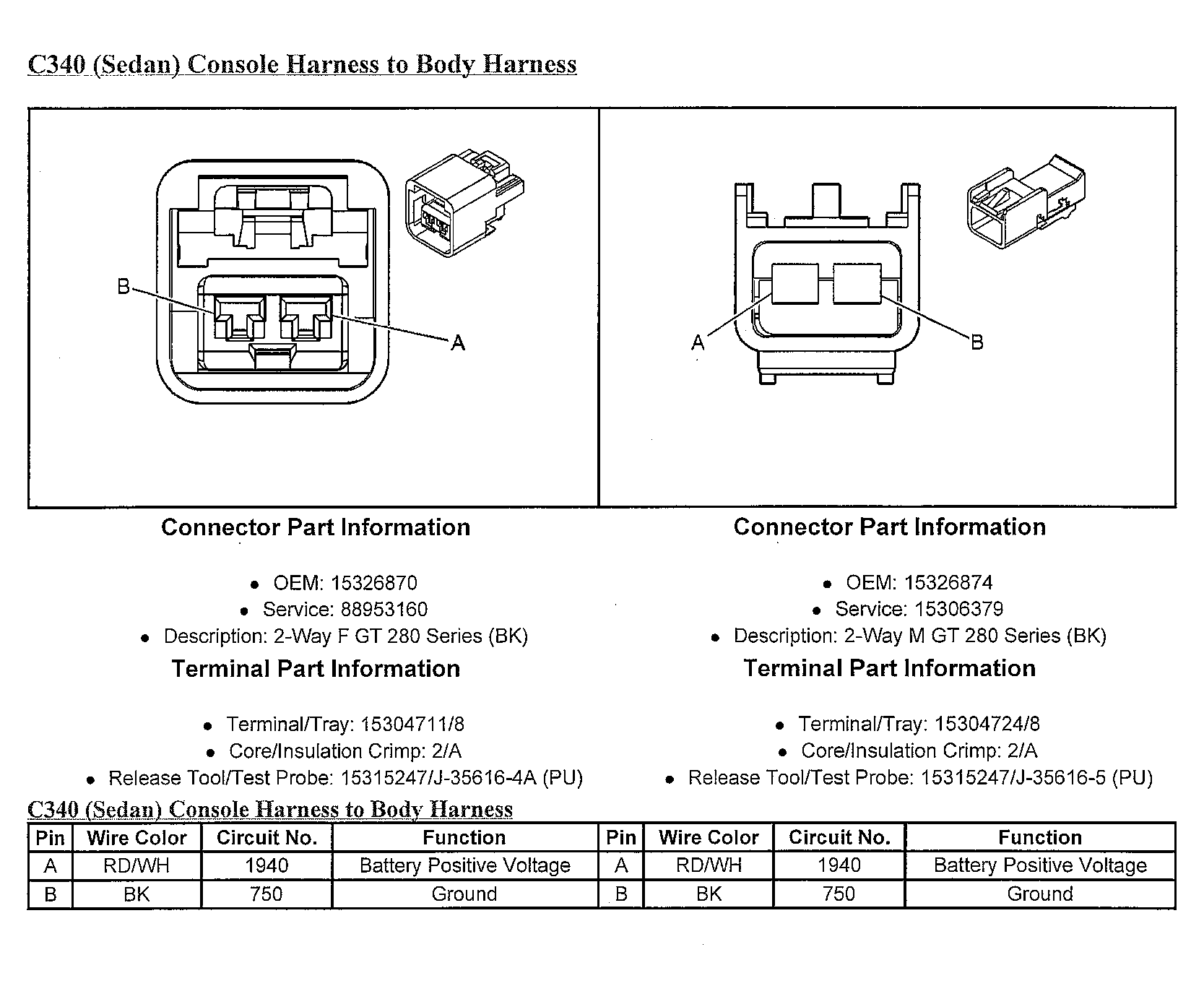

Fig 41: C340 (Sedan) Console Harness To Body Harness Connector End View
G00398894Courtesy of GENERAL MOTORS CORP.
Fig 42: C355 (Sedan) Body Harness To Left Rear Door Harness Connector End View
G00398895Courtesy of GENERAL MOTORS CORP.

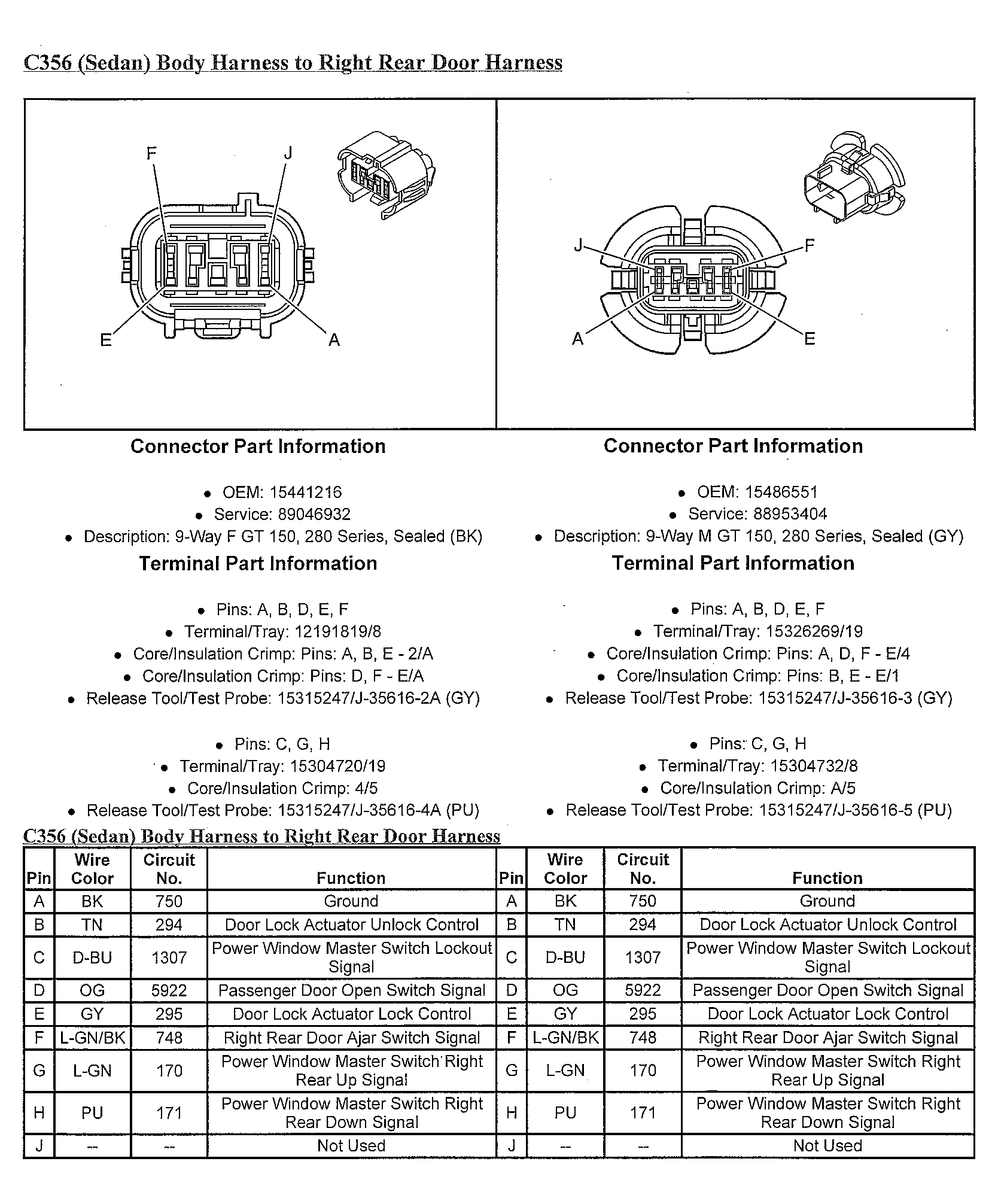

Fig 43: C355 (Sedan) Body Harness To Right Rear Door Harness Connector End View
G00398896Courtesy of GENERAL MOTORS CORP.

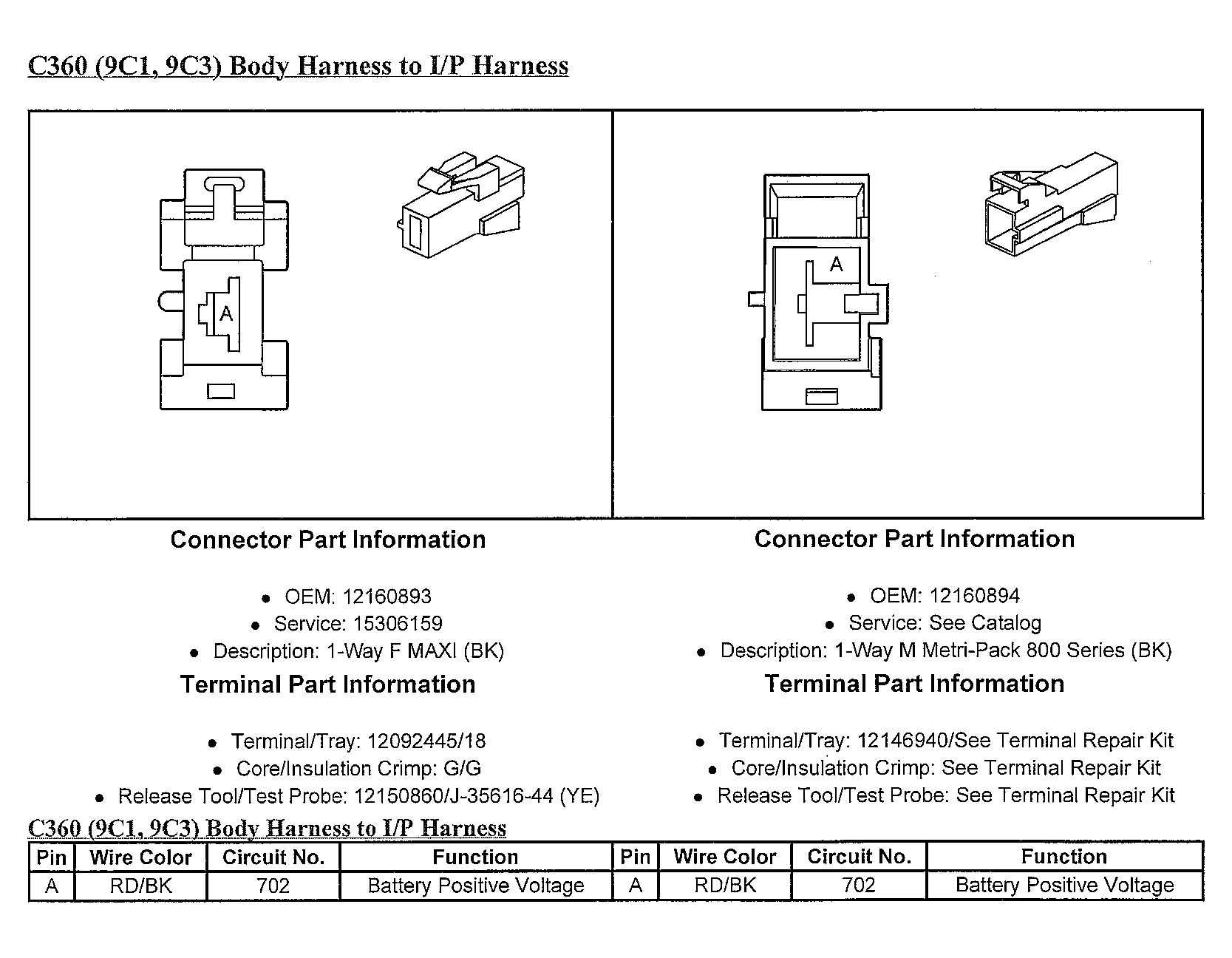

Fig 44: C360 (9C1, 9C3) Body Harness To I/P Harness Connector End View
G00398897Courtesy of GENERAL MOTORS CORP.

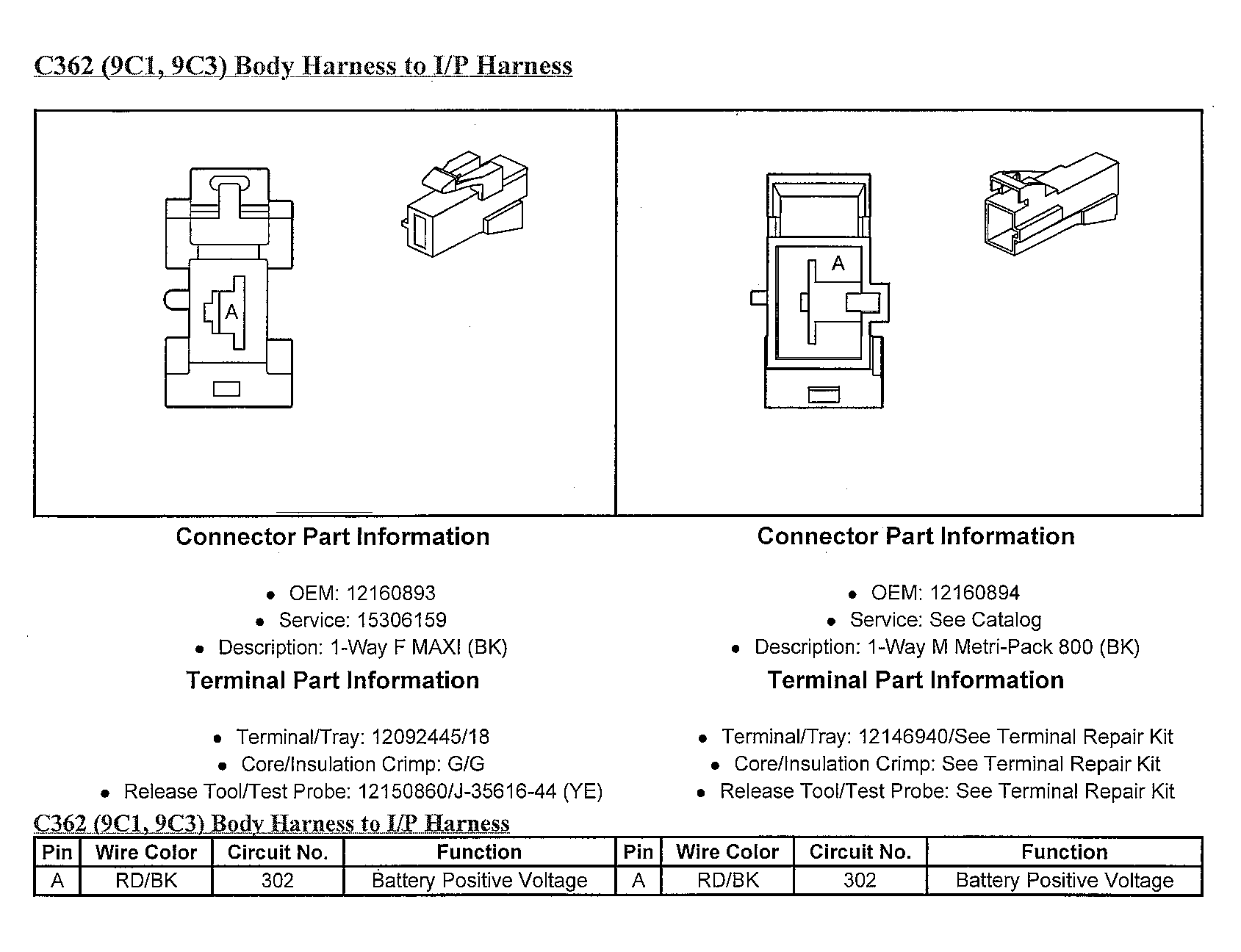

Fig 45: C362 (9C1, 9C3) Body Harness To I/P Harness Connector End View
G00398898Courtesy of GENERAL MOTORS CORP.

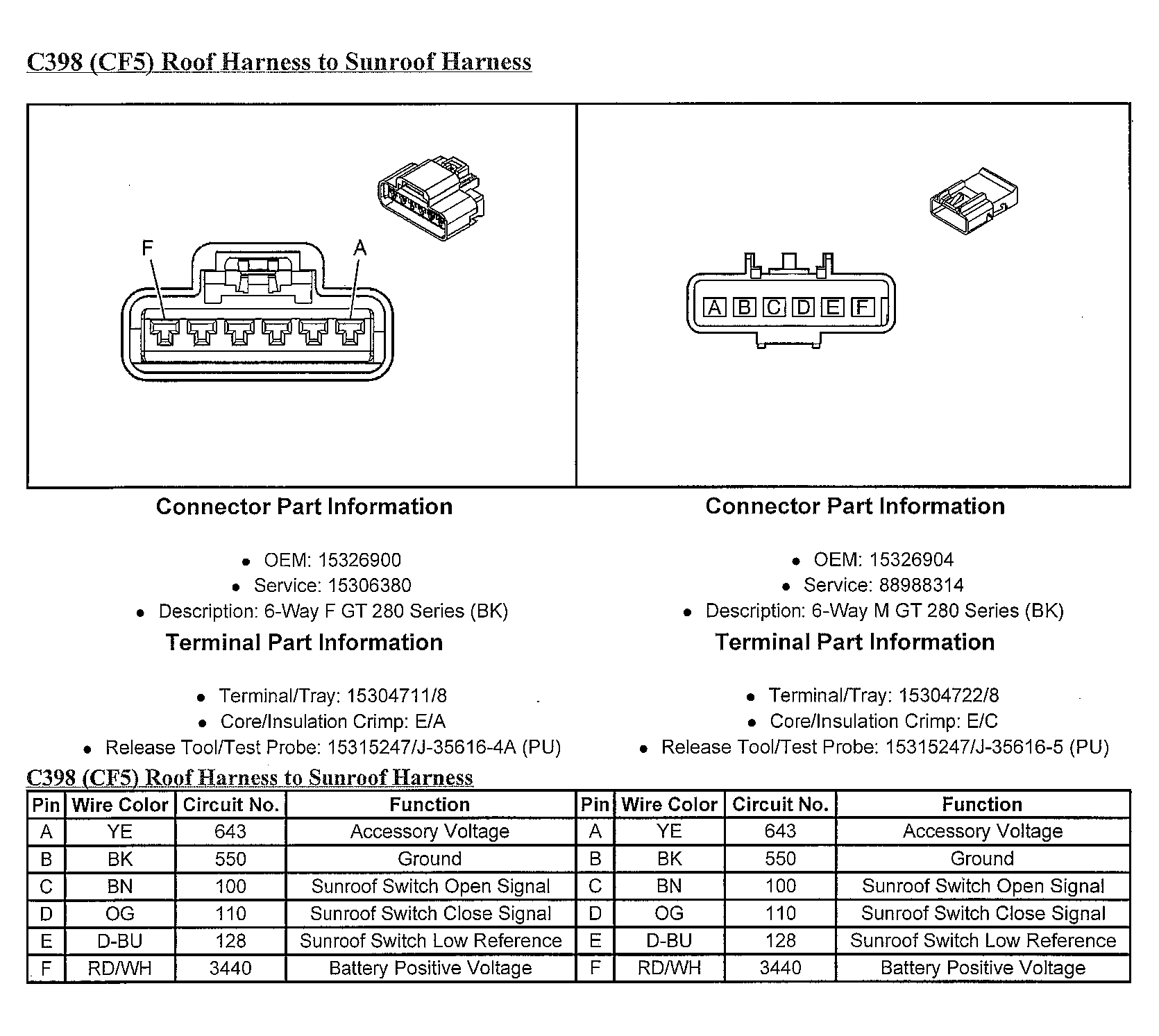

Fig 46: C398 (CF5) Roof Harness to Sunroof Harness Connector End View
G00398899Courtesy of GENERAL MOTORS CORP.

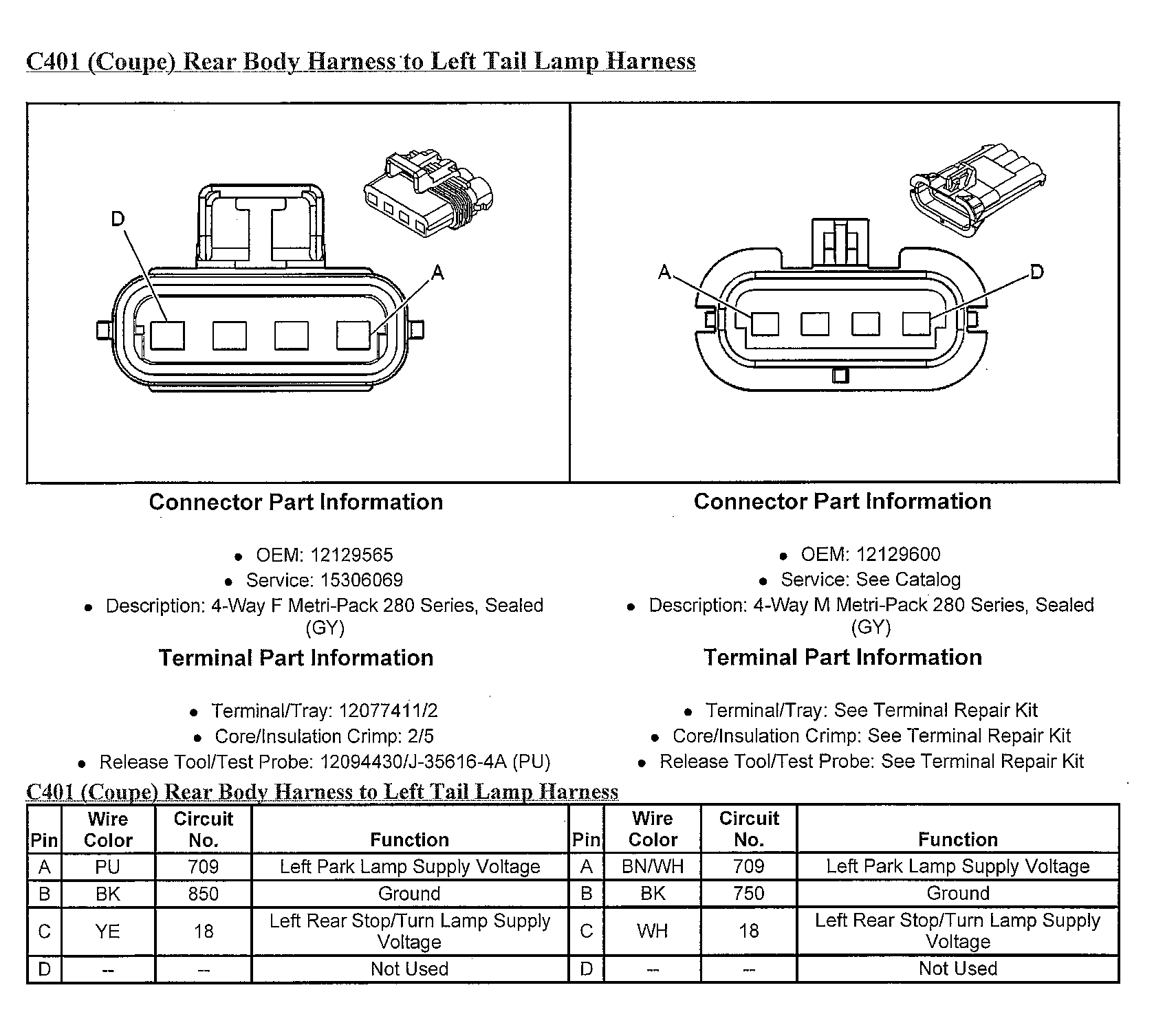

Fig 47: C401 (Coupe) Rear Body Harness To Left Tail Lamp Harness Connector End View
G00398900Courtesy of GENERAL MOTORS CORP.
Fig 48: C401 (Sedan) Rear Body Harness To Left Tail Lamp Harness Connector End View
G00398901Courtesy of GENERAL MOTORS CORP.

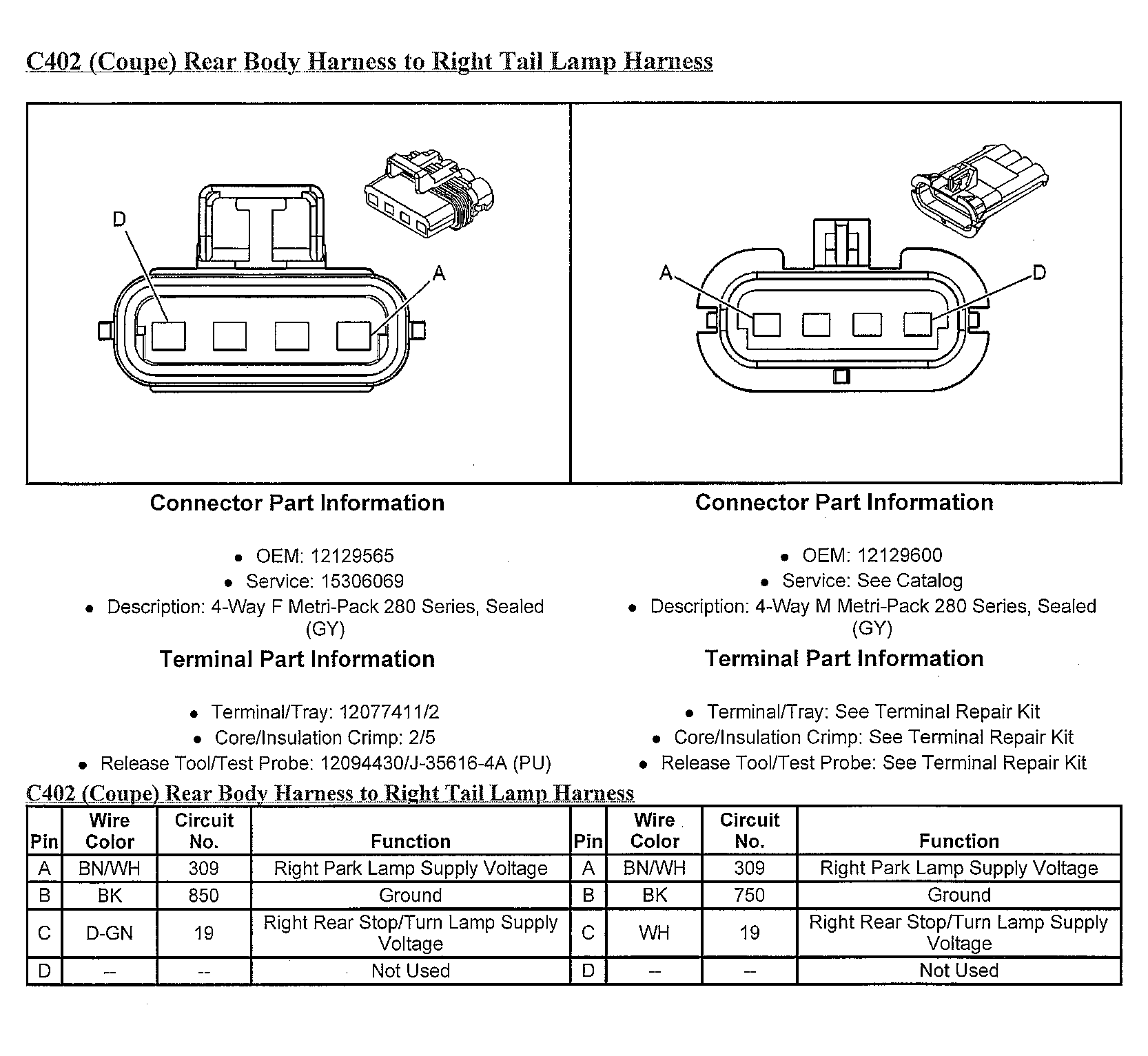

Fig 49: C402 (Coupe) Rear Body Harness To Right Tail Lamp Harness Connector End View
G00398902Courtesy of GENERAL MOTORS CORP.

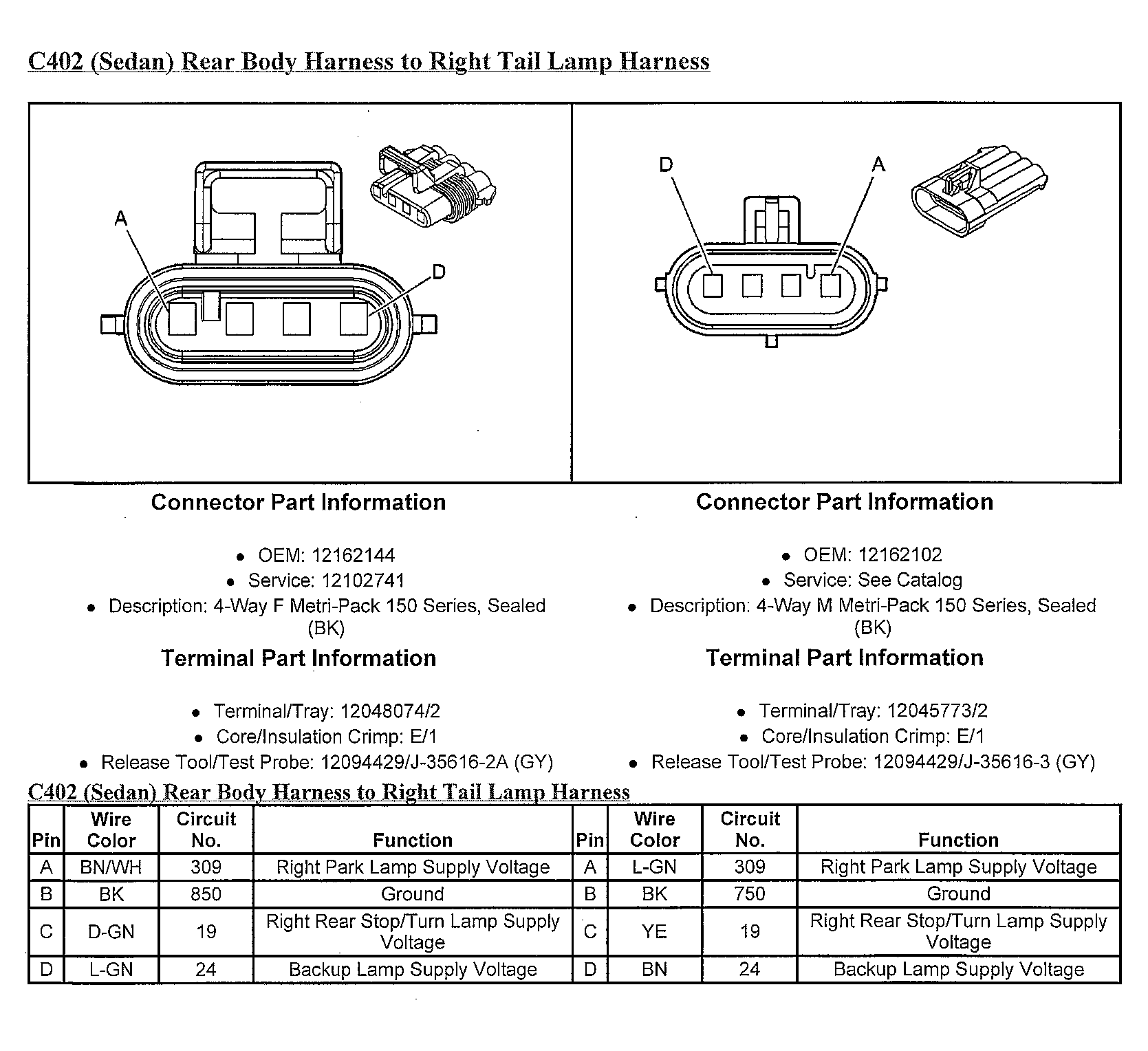

Fig 50: C402 (Sedan) Rear Body Harness To Right Tail Lamp Harness Connector End View
G00398903Courtesy of GENERAL MOTORS CORP.

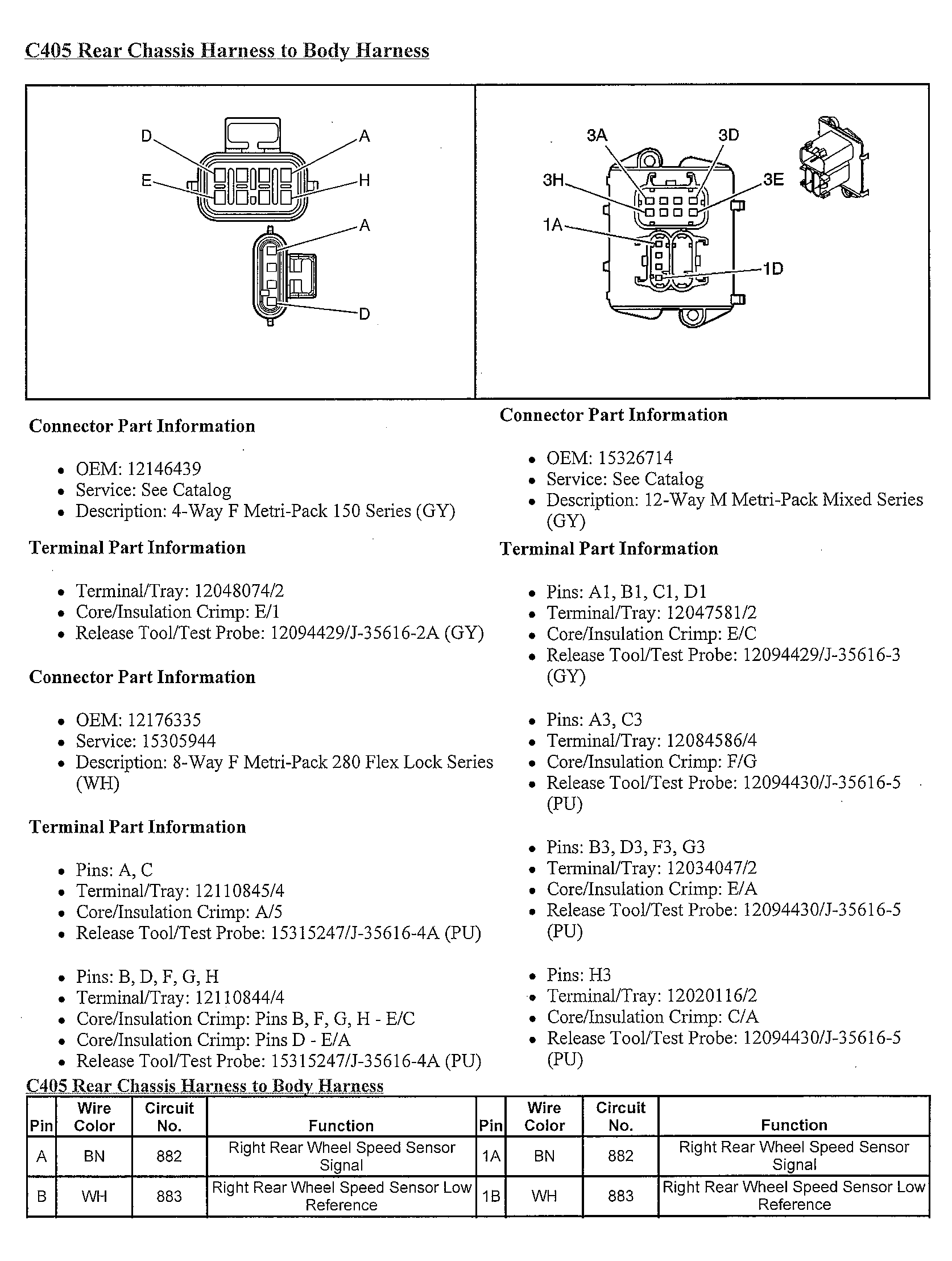

Fig 51: C405 Rear Chassis Harness To Body Harness (1 Of 2) Connector End View
G00398904Courtesy of GENERAL MOTORS CORP.

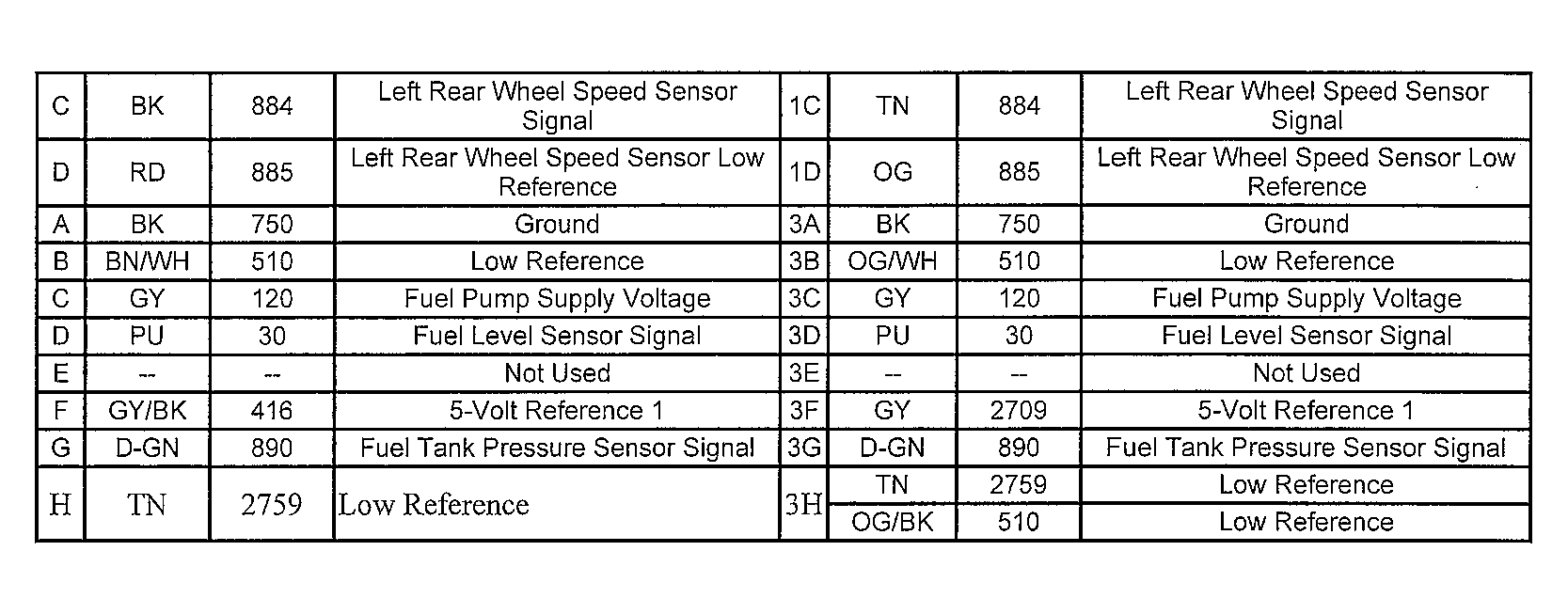

Fig 52: C405 Rear Chassis Harness To Body Harness (2 Of 2) Connector End View
G00398905Courtesy of GENERAL MOTORS CORP.

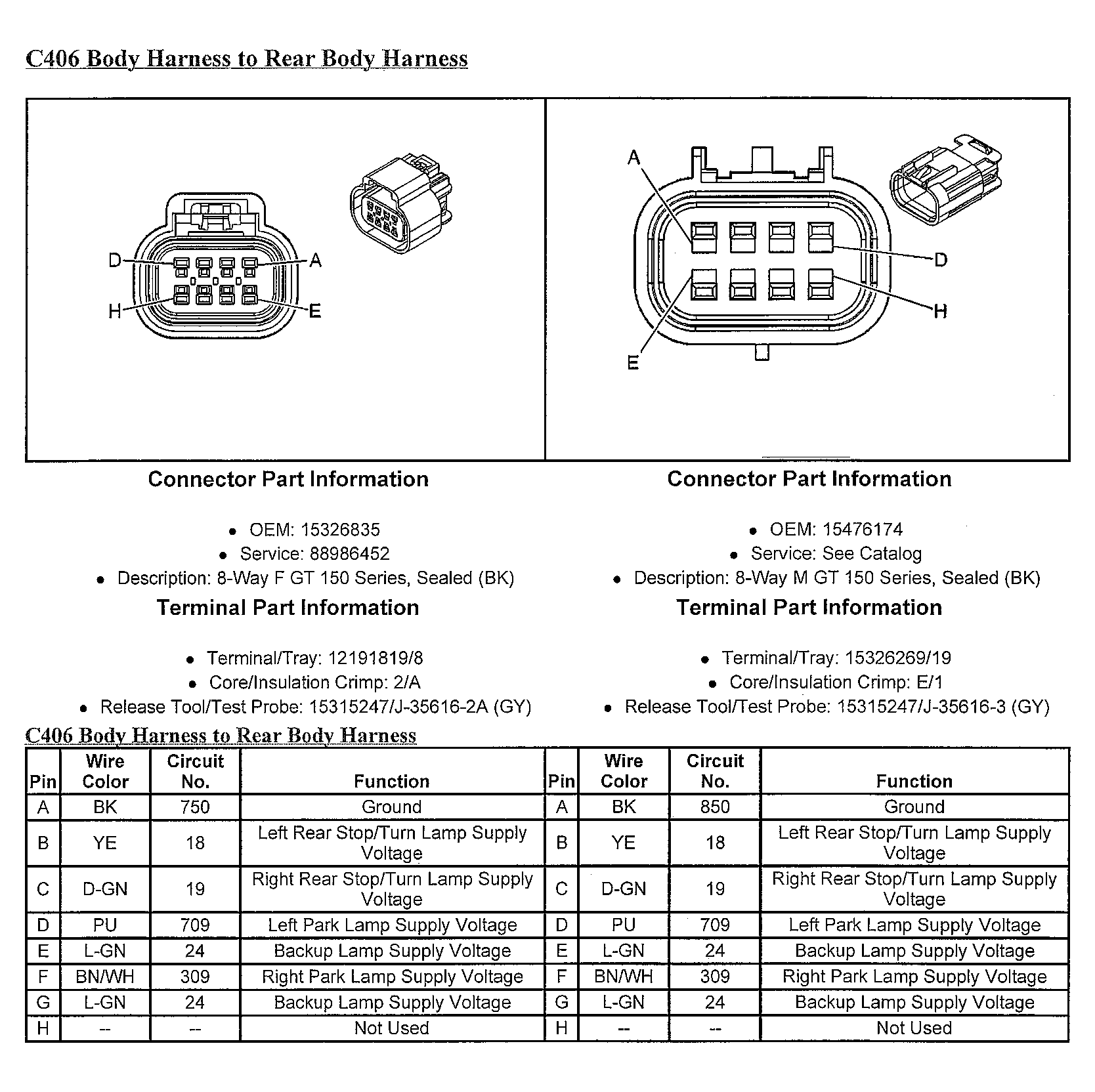

Fig 53: C406 Body Harness To Rear Body Harness Connector End View
G00398906Courtesy of GENERAL MOTORS CORP.

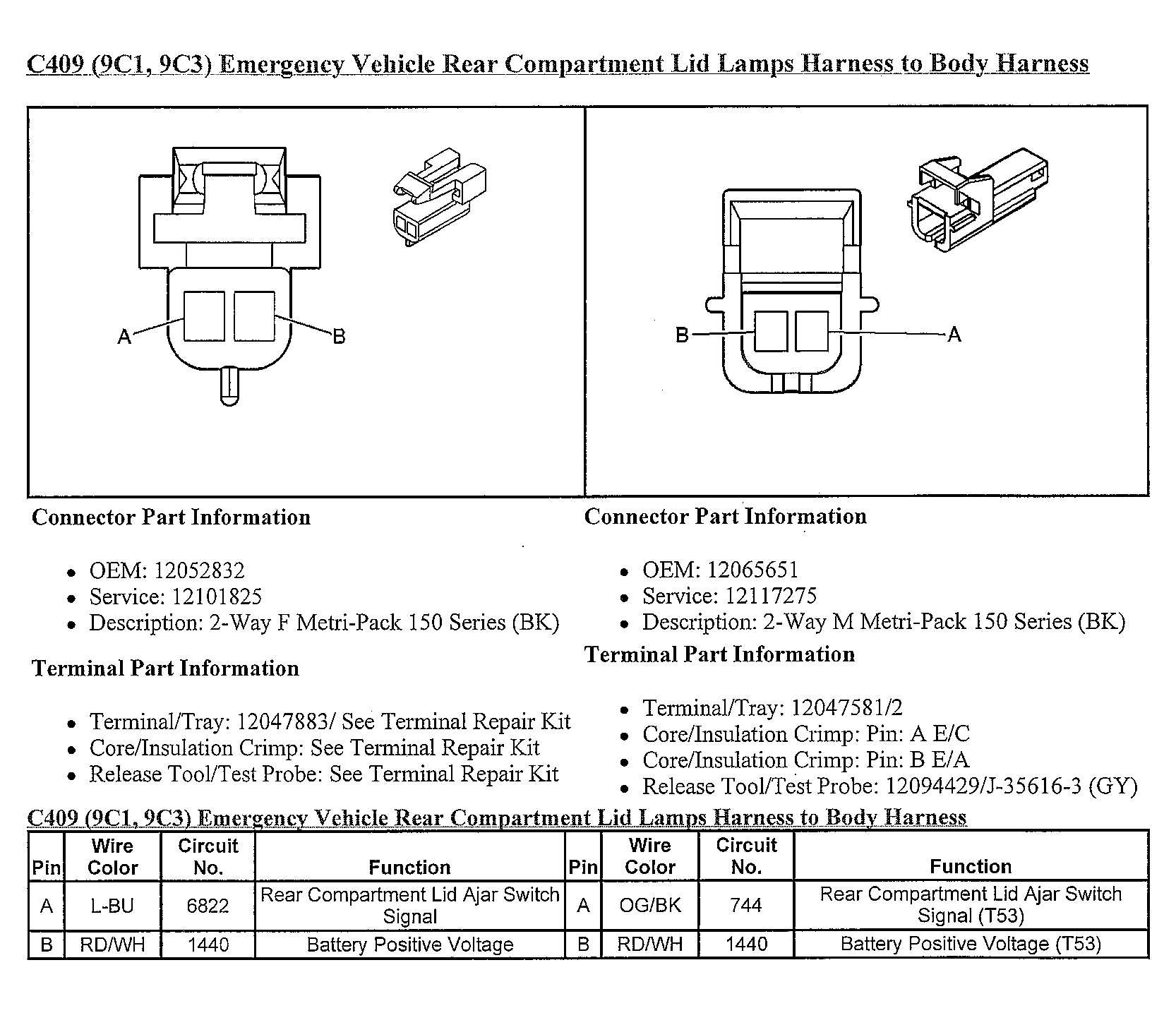

Fig 54: C409 (9C1, 9C3) Emergency Vehicle Rear Compartment Lid Lamps Harness To Body Harness Connector End View
G00398907Courtesy of GENERAL MOTORS CORP.

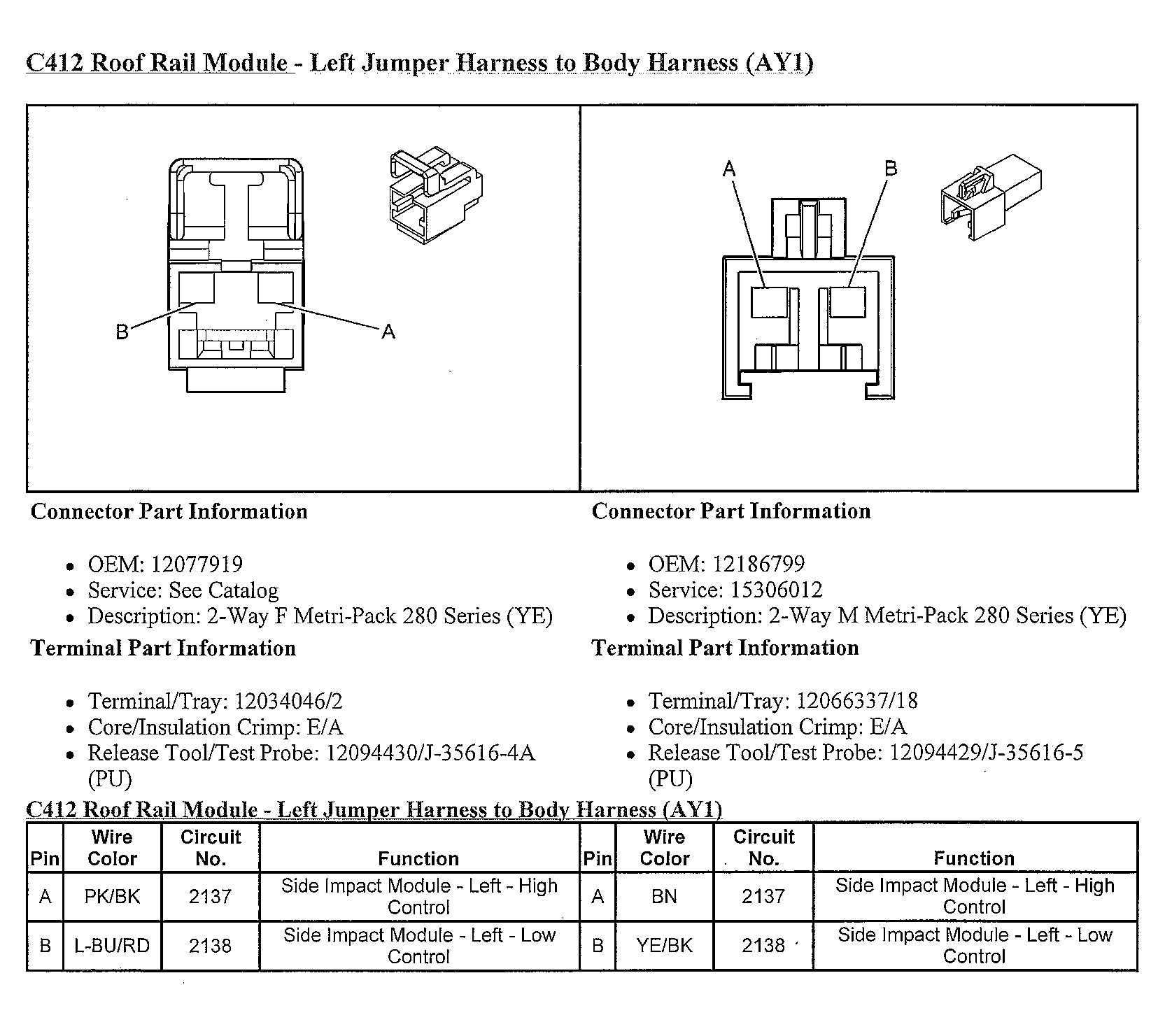

Fig 55: C412 Roof Rail Module - Left Jumper Harness To Body Harness (AY1) Connector End View
G00398908Courtesy of GENERAL MOTORS CORP.

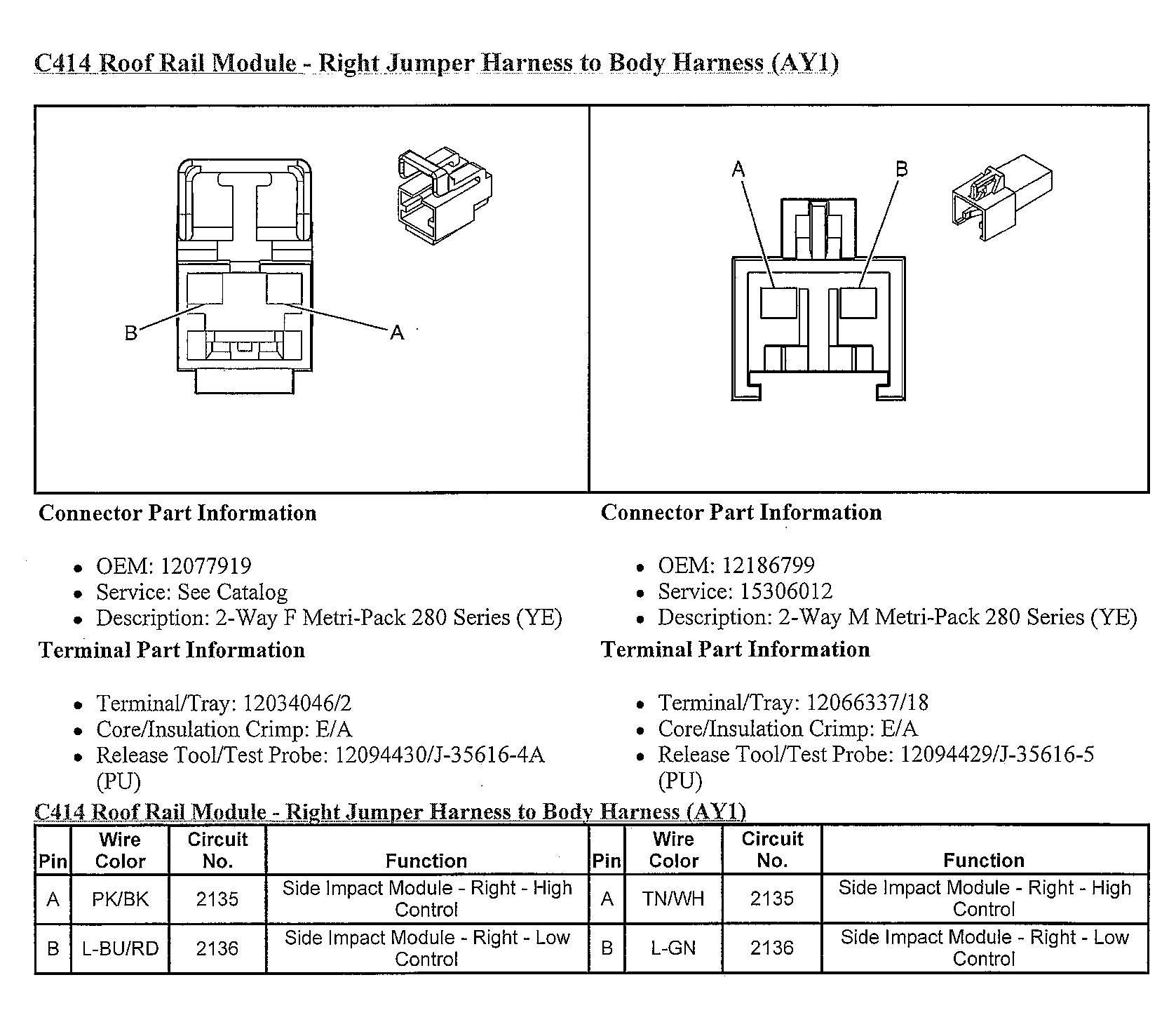

Fig 56: C414 Roof Rail Module - Right Jumper Harness To Body Harness (AY1) Connector End View
G00398909Courtesy of GENERAL MOTORS CORP.

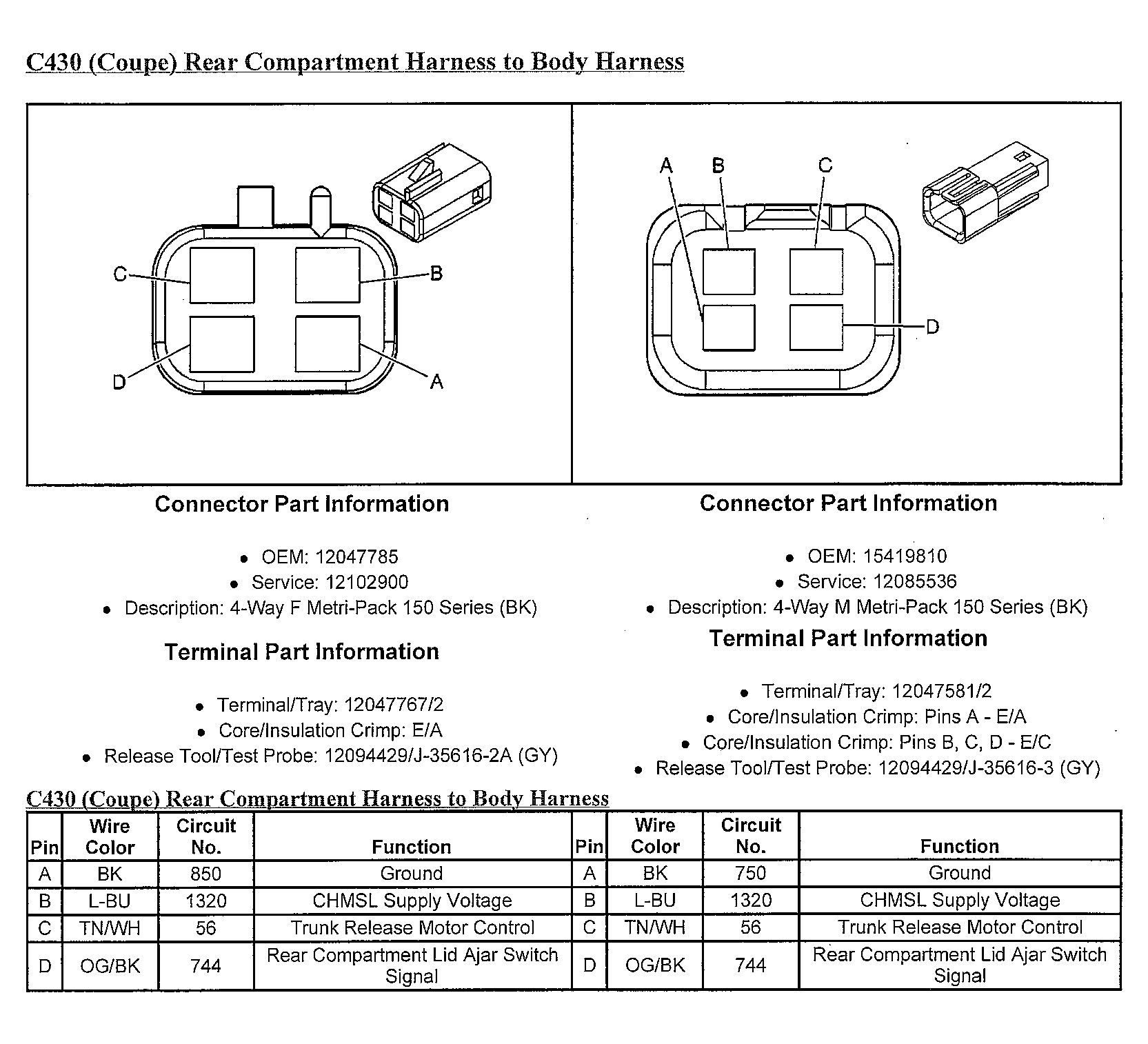

Fig 57: C430 Rear Compartment Harness To Body Harness Connector End View
G00398910Courtesy of GENERAL MOTORS CORP.

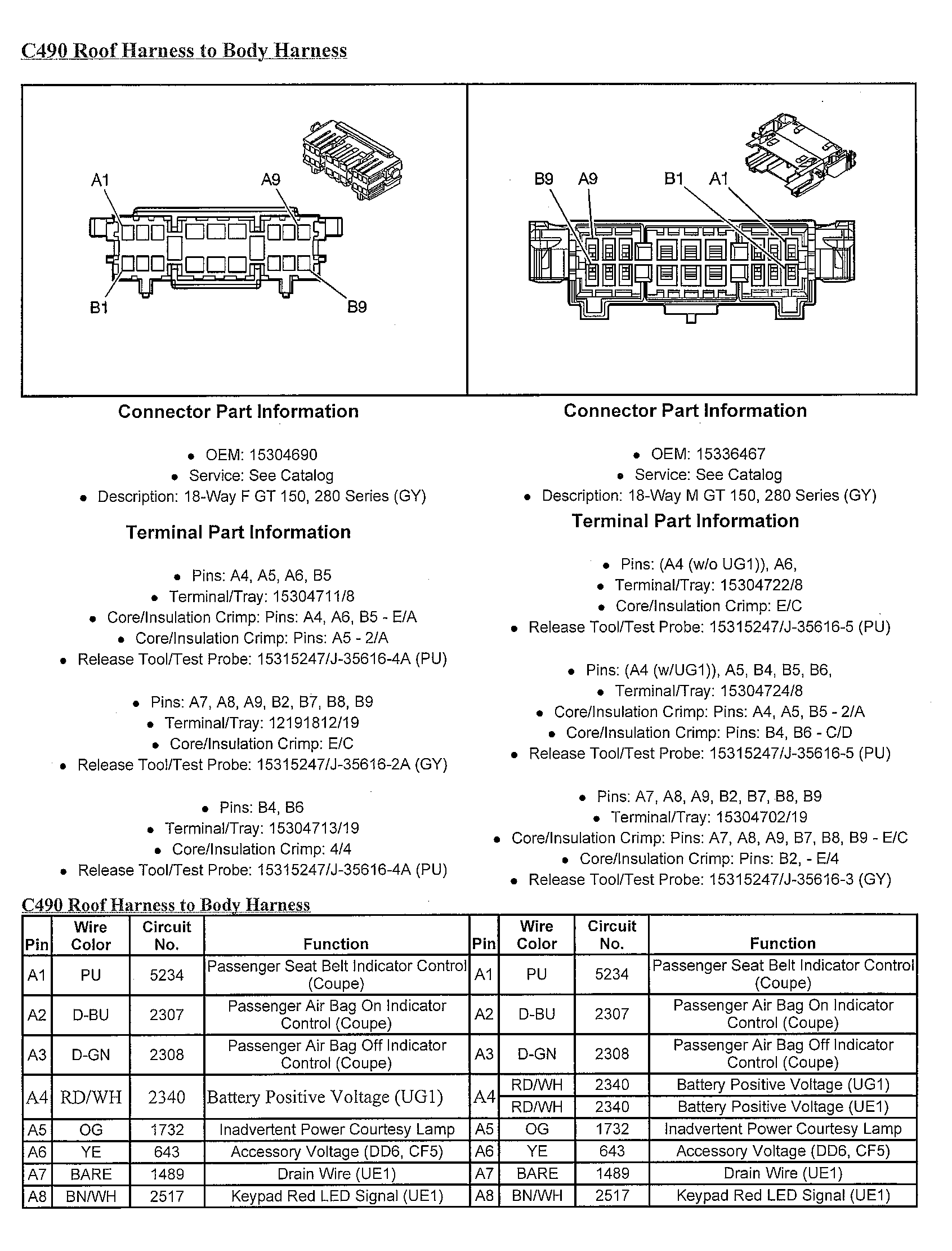

Fig 58: C490 Roof Harness to Body Harness (1 Of 2) Connector End View
G00398911Courtesy of GENERAL MOTORS CORP.

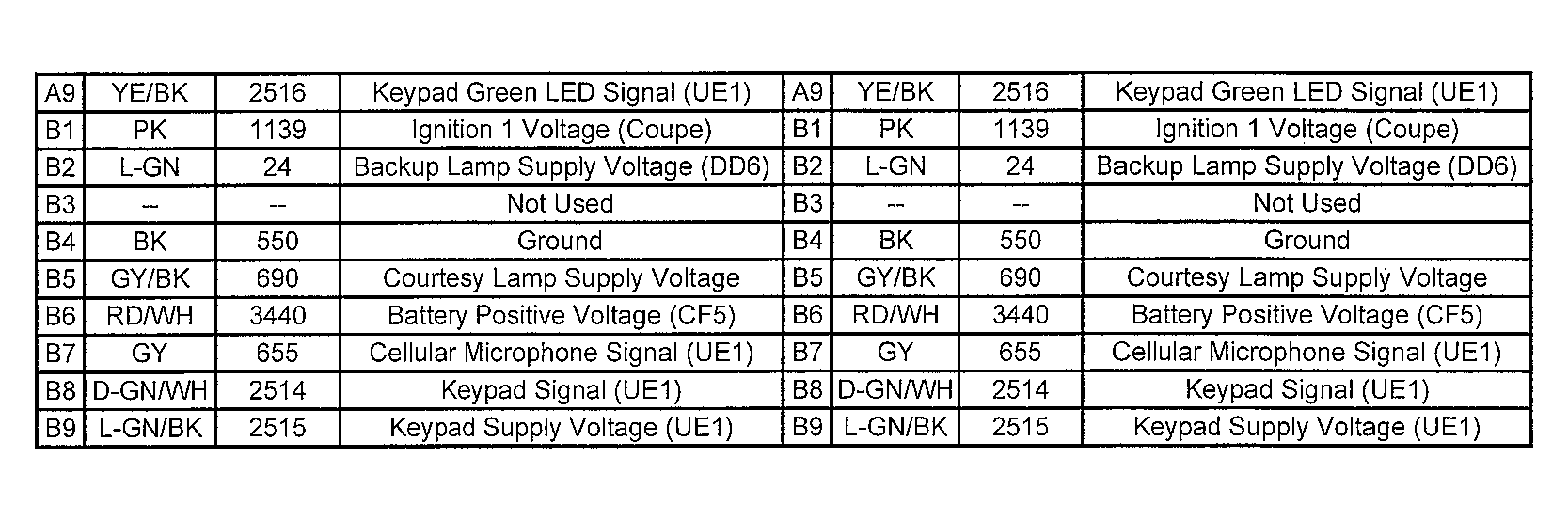

Fig 59: C490 Roof Harness to Body Harness (2 Of 2) Connector End View
G00398912Courtesy of GENERAL MOTORS CORP.

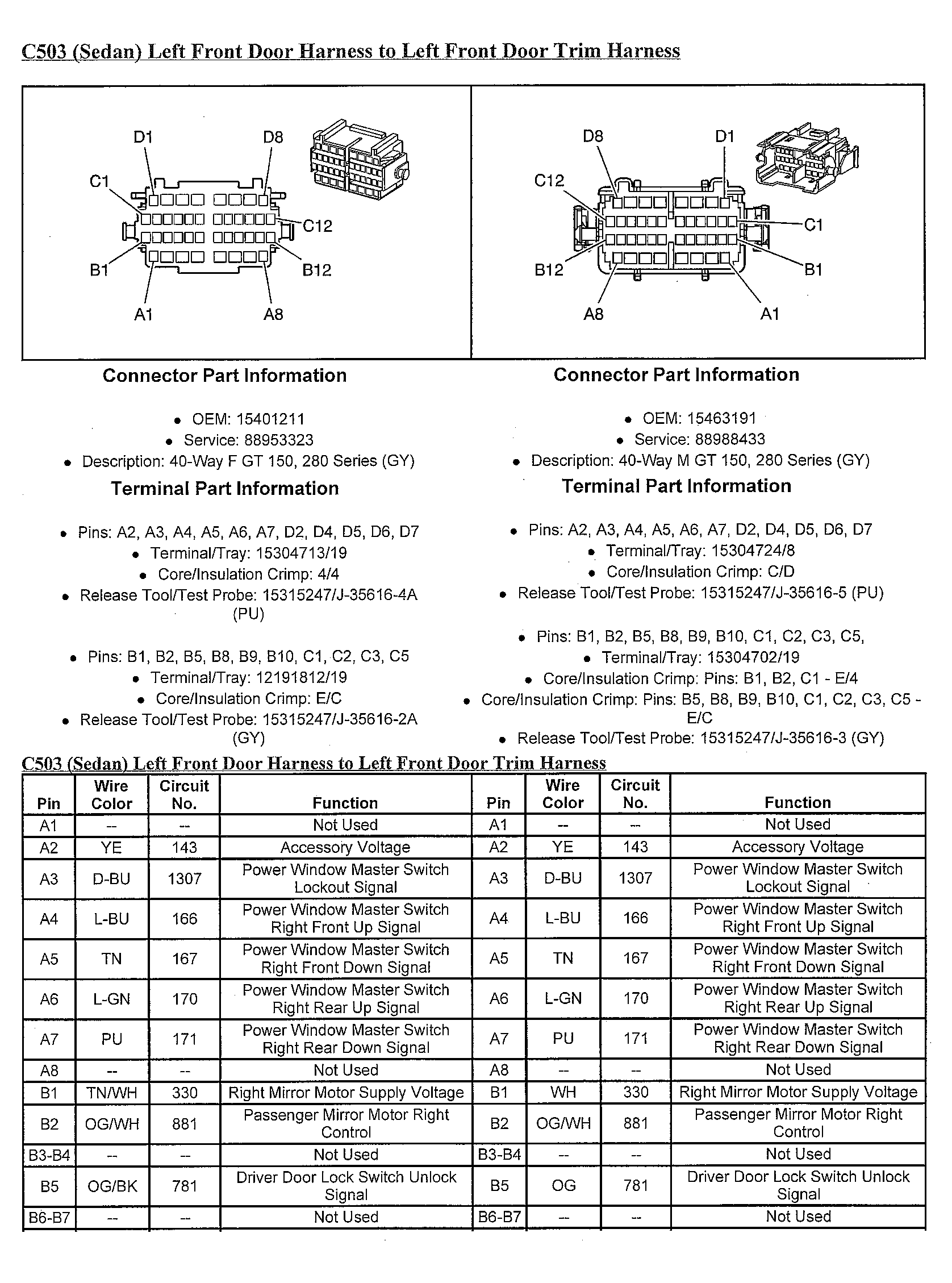

Fig 60: C503 (Sedan) Left Front Door Harness To Left Front Door Trim Harness (1 Of 2) Connector End View
G00398913Courtesy of GENERAL MOTORS CORP.

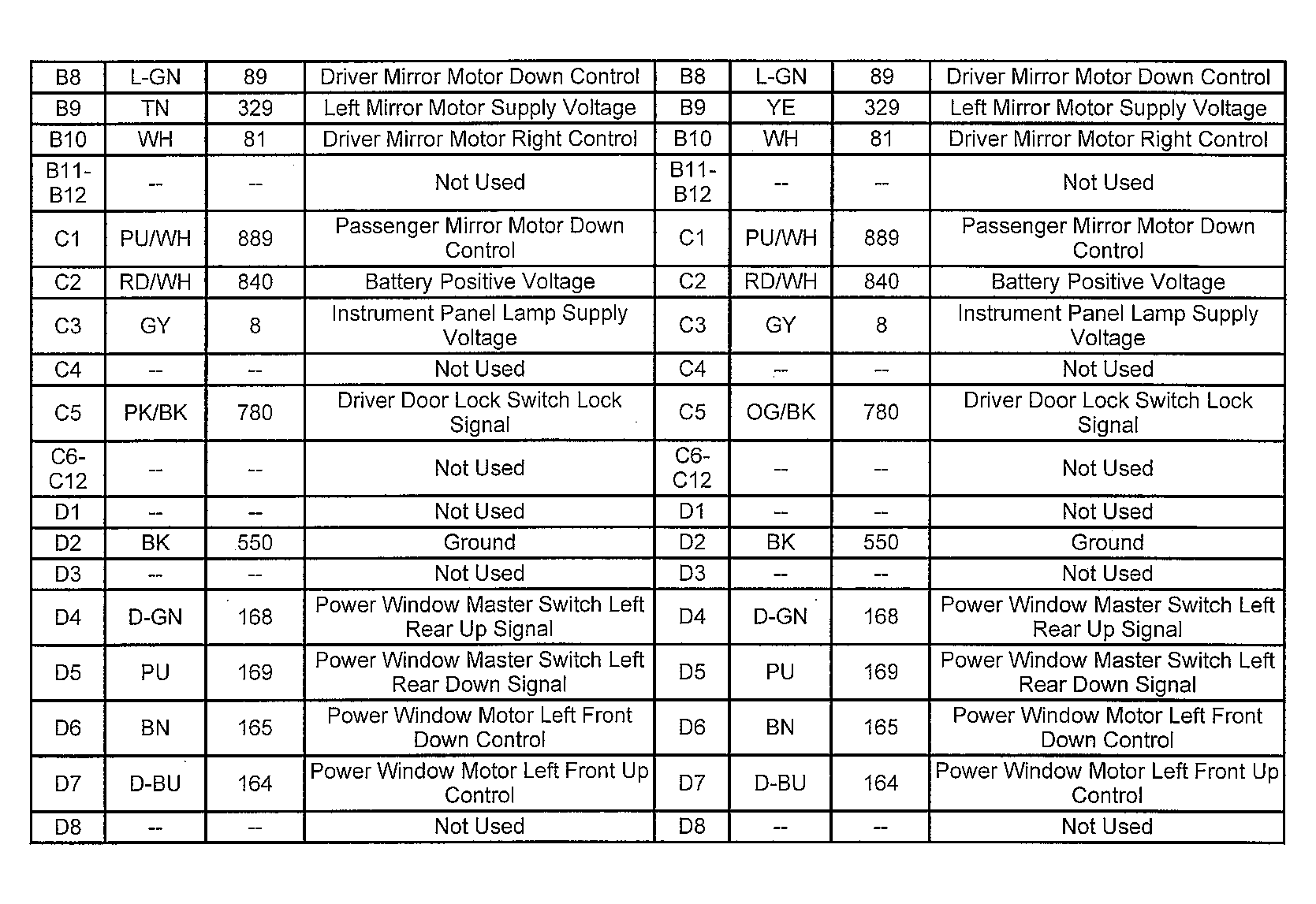

Fig 61: C503 (Sedan) Left Front Door Harness To Left Front Door Trim Harness (2 Of 2) Connector End View
G00398914Courtesy of GENERAL MOTORS CORP.

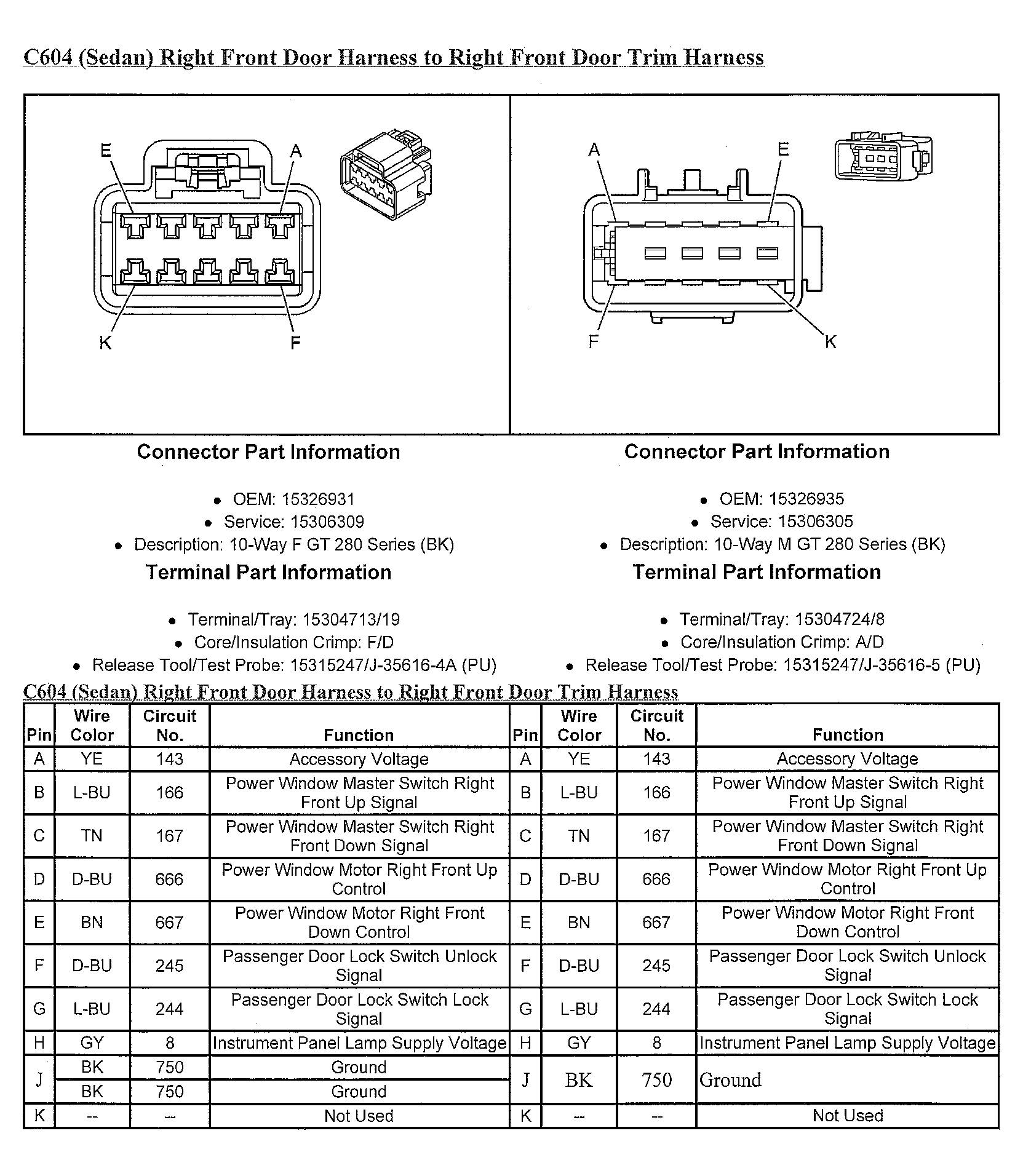

Fig 62: C604 (Sedan) Right Front Door Harness To Right Front Door Trim Harness Connector End View
G00398915Courtesy of GENERAL MOTORS CORP.
