Fuse Block - Underhood C3

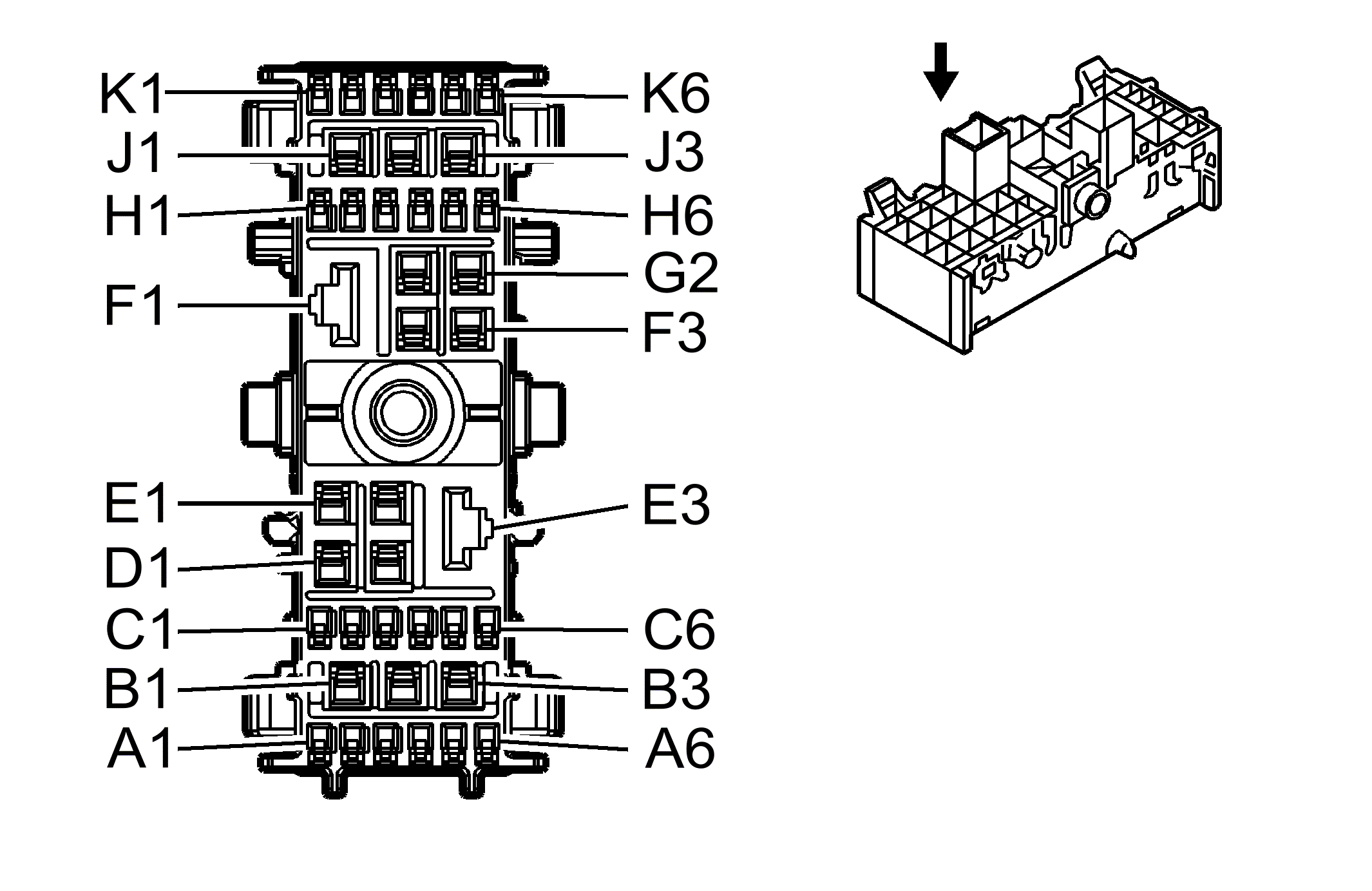

Fig 1: Fuse Block - Underhood C3
GM1581659Courtesy of GENERAL MOTORS CORP.
Electrical Center Identification Views

Connector Part Information
  • OEM: 15477782
  • Service: See Catalog
  • Description: 40-Way F GT 150 280 Metri-Pack 800
Terminal Part Information
  • Pins: G1
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: D1, D2, E1, E2, F2
  • Terminal/Tray: 15304713/19
  • Core/Insulation Crimp: F/D
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B1, J3, B2, J1, J2
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins B1, J3 - 2/A
  • Core/Insulation Crimp: Pins B2, J1, J2 - E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: A2, H2, A3, A5, A6, C1, C5, H1, K1, K3
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: Pins A2, H2 - C/A
  • Core/Insulation Crimp: Pins A3, A5, A6, C1, C5, H1, K1, K3 - E/C
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Fuse Block - Underhood C3

Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 YE 712 Left Headlamp Low Beam Supply Voltage
A3 TN/WH 312 Right Headlamp Low Beam Supply Voltage
A4 - - Not Used
A5 D-GN/WH 711 Left Headlamp High Beam Supply Voltage
A6 L-GN/BK 311 Right Headlamp High Beam Supply Voltage
B1 RD/WH 2940 Battery Positive Voltage
B2 GY 589 DRL Resistor Supply Voltage
B3 - - Not Used
C1 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
C2-C4 - - Not Used
C5 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
C6 - - Not Used
D1 L-BU 409 Cooling Fan Motor Supply Voltage
D2 BK 250 Ground
E1 GY 532 Cooling Fan Motor Supply Voltage
E2 BK 250 Ground
E3 - - Not Used
F1 - - Not Used
F2 WH 504 Cooling Fan Low Reference
F3 - - Not Used
G1 PU 34 Front Fog Lamp Supply Voltage
G2 - - Not Used
H1 PU 5531 TBD
H2 OG 228 Windshield Washer Pump Control
H3-H6 - - Not Used
J1 GY 589 DRL Resistor Supply Voltage
J2 BN/WH 309 Right Park Lamp Supply Voltage
J3 D-GN 29 Horn Control
K1 PU 709 Left Park Lamp Supply Voltage
K3 PK/BK 109 Hood Ajar Switch Signal
K4-K6 - - Not Used
