Fuse Block - Underhood C2

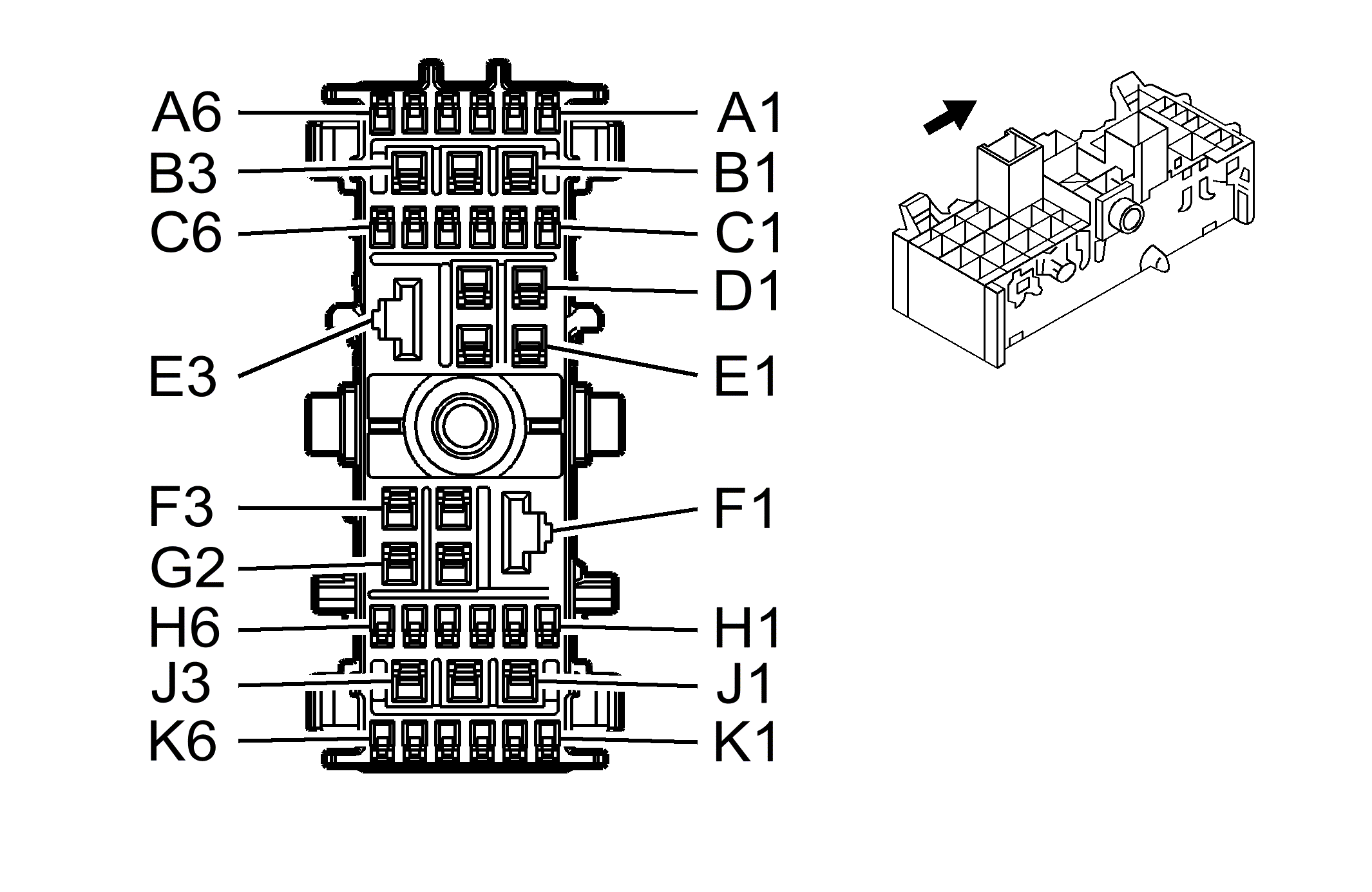

Fig 1: Fuse Block - Underhood C2
GM1581657Courtesy of GENERAL MOTORS CORP.
Electrical Center Identification Views

Connector Part Information
  • OEM: 15477783
  • Service: See Catalog
  • Description: 40-Way F GT 150 280 Metri-Pack 800
Terminal Part Information
  • Pins: E3, F1
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
  • Pins: B2, B3
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: B1, D1, E1, G2, J2, J3, D2, E2, G1
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: Pins B1, D1, E1, G2, J2, J3, D2, E2 - 2/A
  • Core/Insulation Crimp: Pins G1 - See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
  • Pins: A1, A5, C1, C2, C5, C6, H2, H3, H4, H5, H6, K2, K3, K4, K5, K6
  • Terminal/Tray: 12191812/19
  • Core/Insulation Crimp: Pins A1, A5, C1, C2, C5, C6, H2, H3, H4, H5, H6, K2, K3, K4 - E/C
  • Core/Insulation Crimp: Pins K5, K6 - C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
Fuse Block - Underhood C2

Pin Wire Color Circuit No. Function
A1 GY 91 Windshield Wiper Switch Signal 2
A2-A4 - - Not Used
A5 PK/WH 1970 Headlamp Low Beam Relay Control
A6 - - Not Used
B1 BK 150 Ground
C1 TN 860 Front Windshield Wiper Switch High Signal
C2 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
C3-C4 - - Not Used
C5 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage
C6 TN/WH 1969 Headlamp High Beam Relay Control
D1 PU 92 Windshield Wiper Motor High Speed Control
D2 - - Not Used
E1 D-GN 95 Windshield Washer Switch Signal
E2 - - Not Used
E3 RD/BK 642 Battery Positive Voltage
F1 PU 293 Rear Defog Element Supply Voltage
F2-F3 - - Not Used
G1 RD/WH 2440 Battery Positive Voltage
G2 RD/WH 2040 Battery Positive Voltage
H1 - - Not Used
H2 PU 5531 TBD
H3 WH 193 Rear Defog Relay Control
H4 OG 267 Heated Mirror/Rear Defog Relay Coil Supply Voltage
H5 D-GN/WH 1317 Fog Lamp Relay Control
H6 OG 2268 Windshield Washer Relay Control
J1 - - Not Used
J2 RD/WH 440 Battery Positive Voltage
J3 RD/WH 340 Battery Positive Voltage
K1 - - Not Used
K2 WH 1080 Park Lamp Relay Control
K3 TN 28 Horn Relay Control
K4 PK/BK 109 Hood Ajar Switch Signal
K5 PU 709 Left Park Lamp Supply Voltage
K6 BN/WH 309 Right Park Lamp Supply Voltage
B2 RD/WH 2740 Battery Positive Voltage
B3 RD/WH 2640 Battery Positive Voltage
D2 RD/WH 2540 Battery Positive Voltage
E2 RD/WH 2540 Battery Positive Voltage
