ABS Schematics

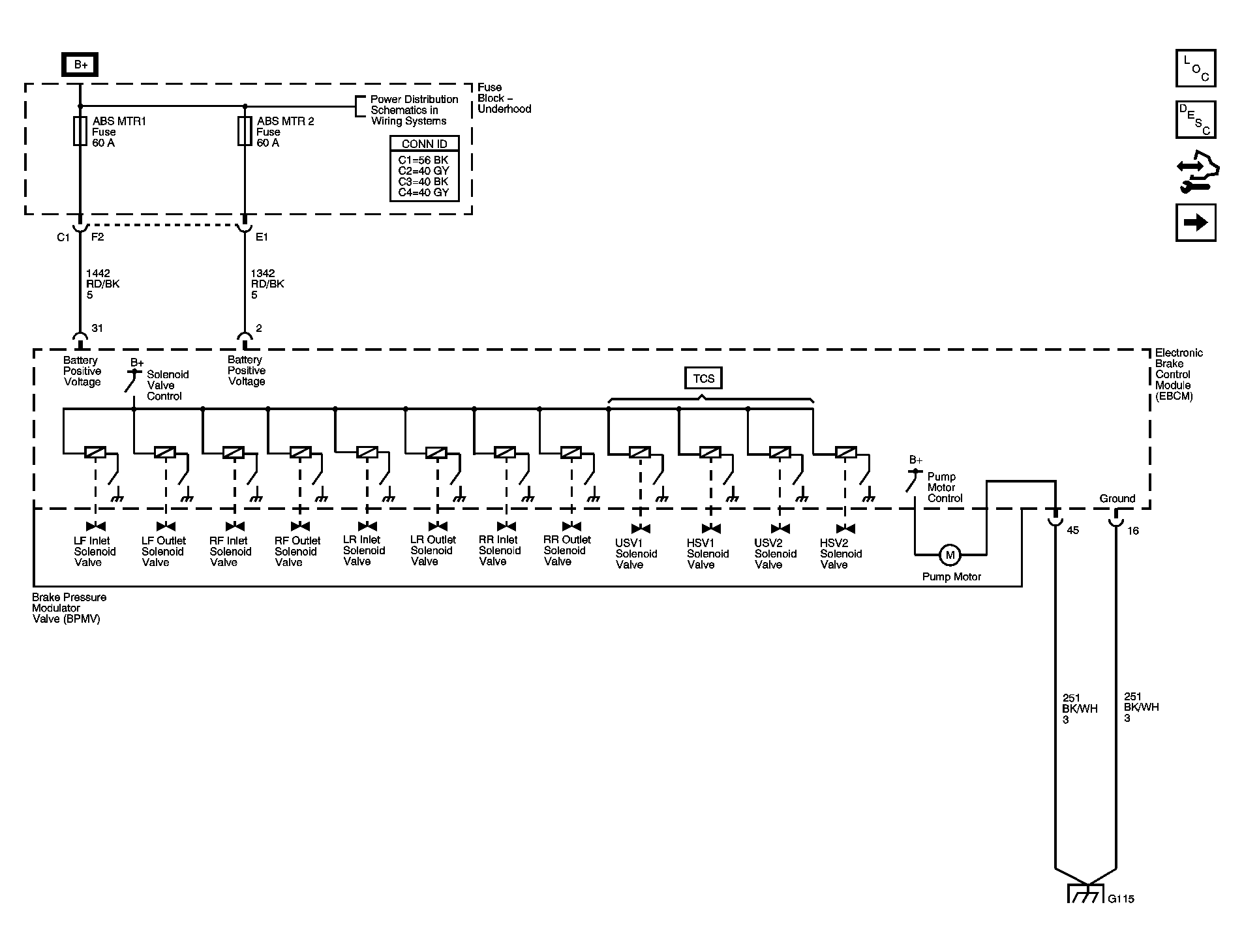

Fig 1: Power, Ground, and Brake Pressure Modulator Valves - Wiring Diagram
GM1648834Courtesy of GENERAL MOTORS CORP.

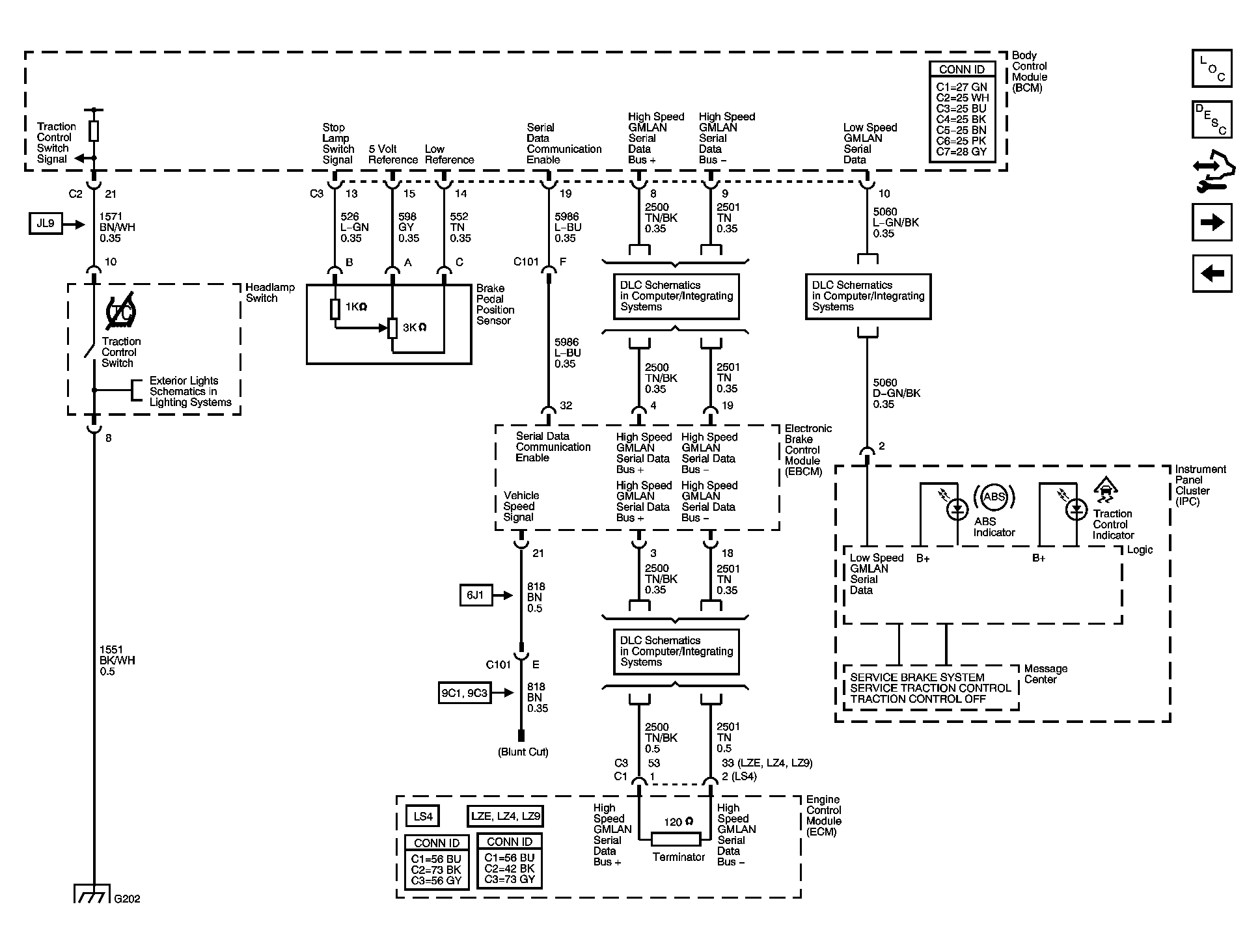

Fig 2: Indicators, ABS, and Traction Control - Wiring Diagram
GM1648841Courtesy of GENERAL MOTORS CORP.

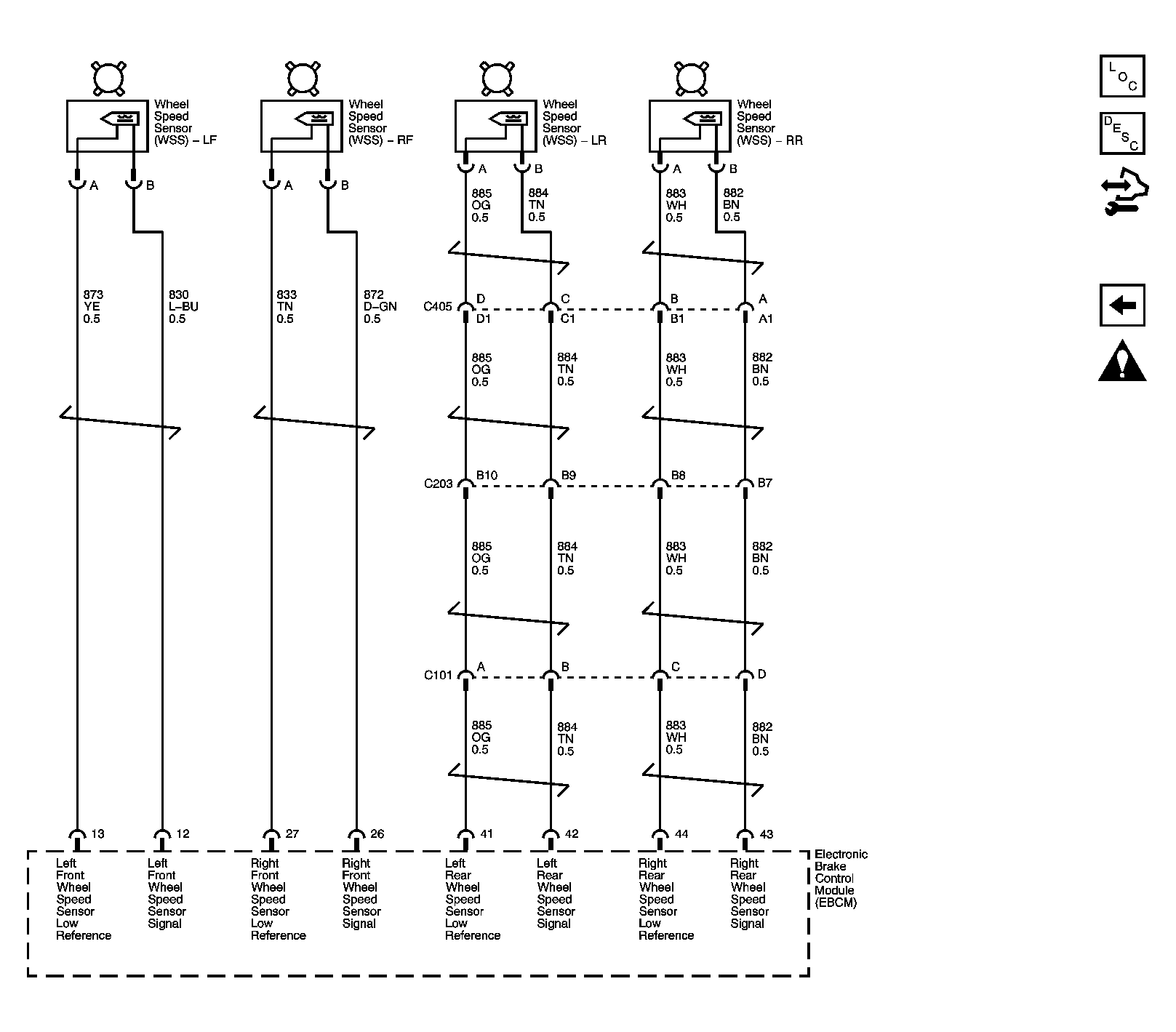

Fig 3: Wheel Speed Sensors - Wiring Diagram
GM1648856Courtesy of GENERAL MOTORS CORP.
