Brake Pressure Modulator Valve (BPMV) Replacement

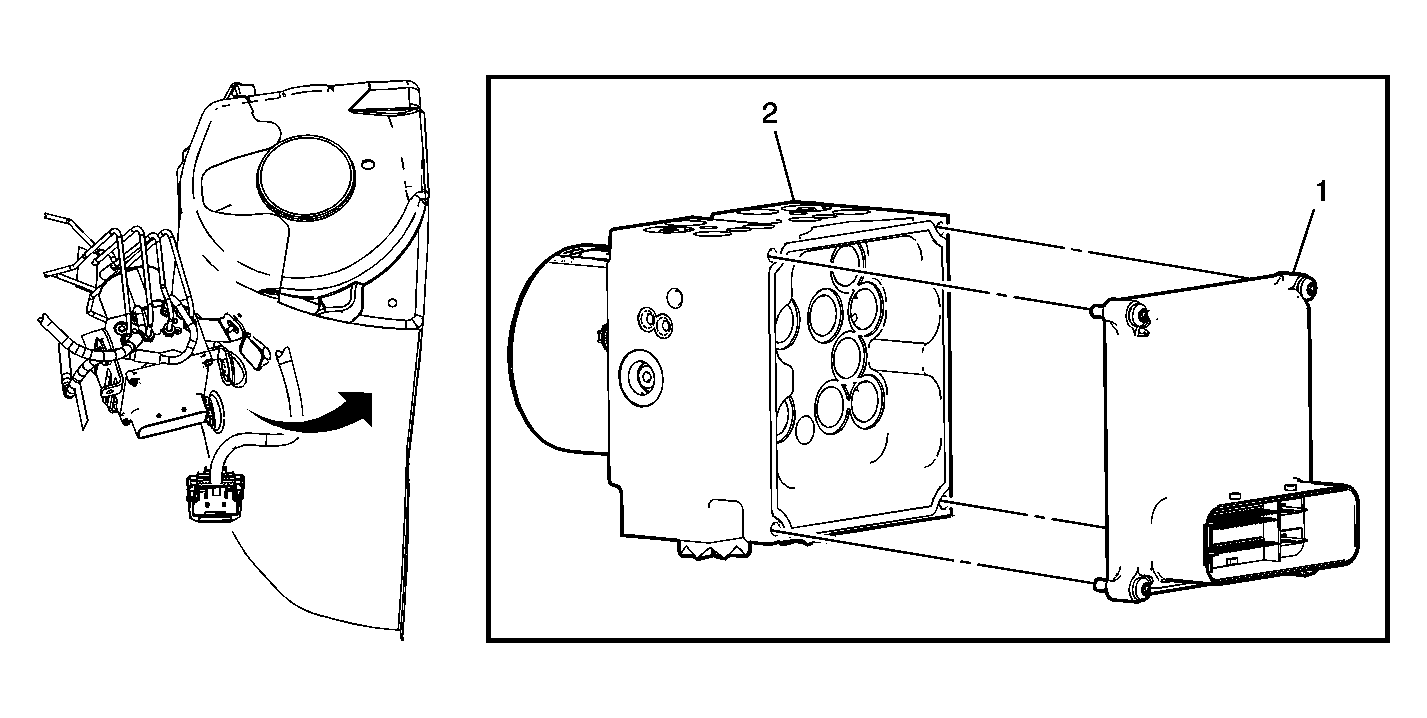

Fig 1: Replacing Brake Pressure Modulator Valve (BPMV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to Brake Fluid Irritant Caution . CAUTION: Refer to Brake Fluid Effects on Paint and Electrical Components Notice . NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .Preliminary Procedure: Remove the Electronic Brake Control Module (EBCM). Refer to Electronic Brake Control Module Replacement .
1	EBCM
2	Brake Pressure Control Module (BPMV) Tip: If the BPMV is to be removed to service the ABS system, cover the unit so has not allow it to become contaminated. Clean the sealing surface of the BPMV with denatured alcohol and a lint free towel. Bleed the ABS System. Refer to ABS Automated Bleed Procedure .
