Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Power Window Schematics
Power Window Schematics

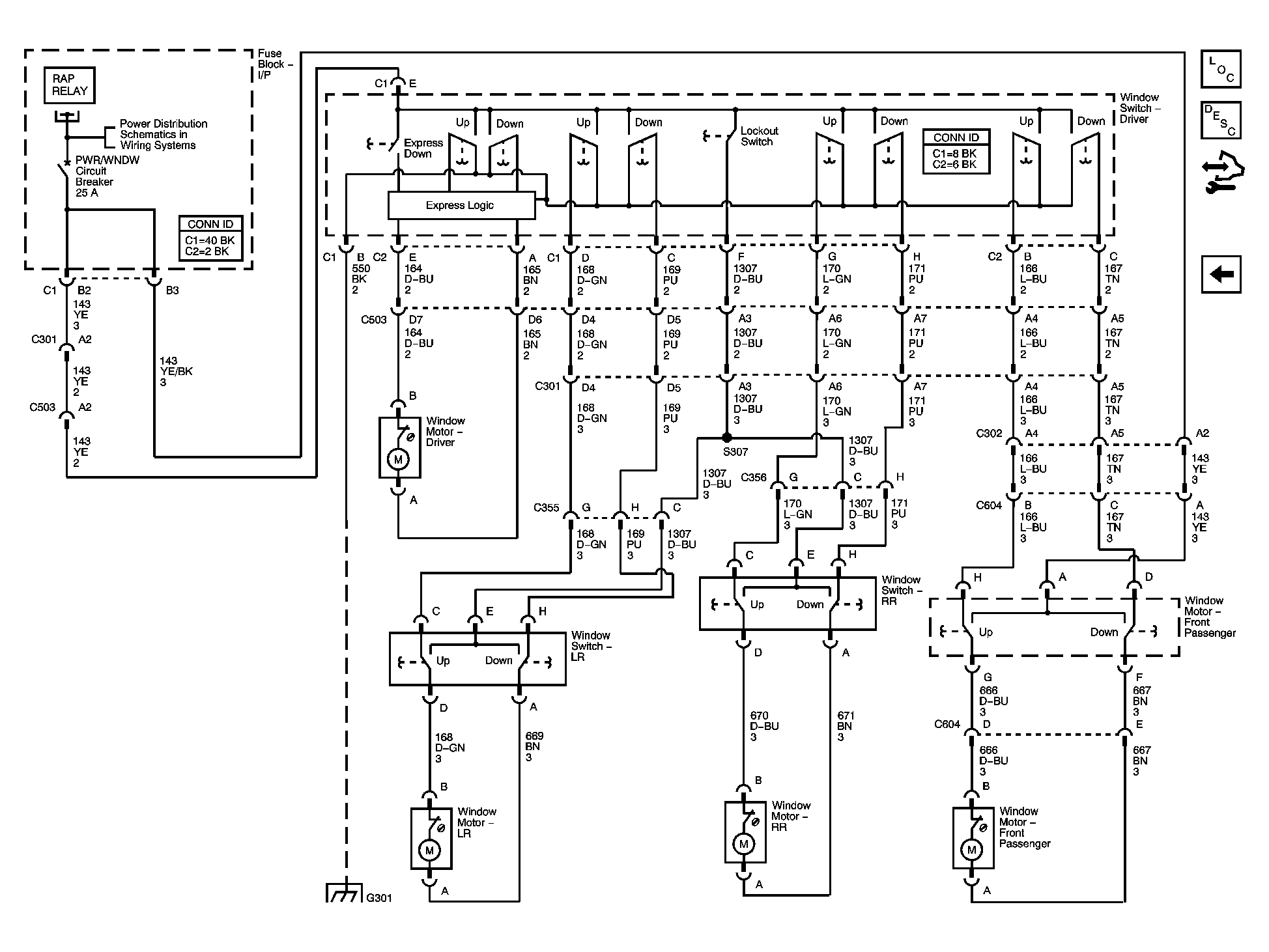

Fig 1: Coupe - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.

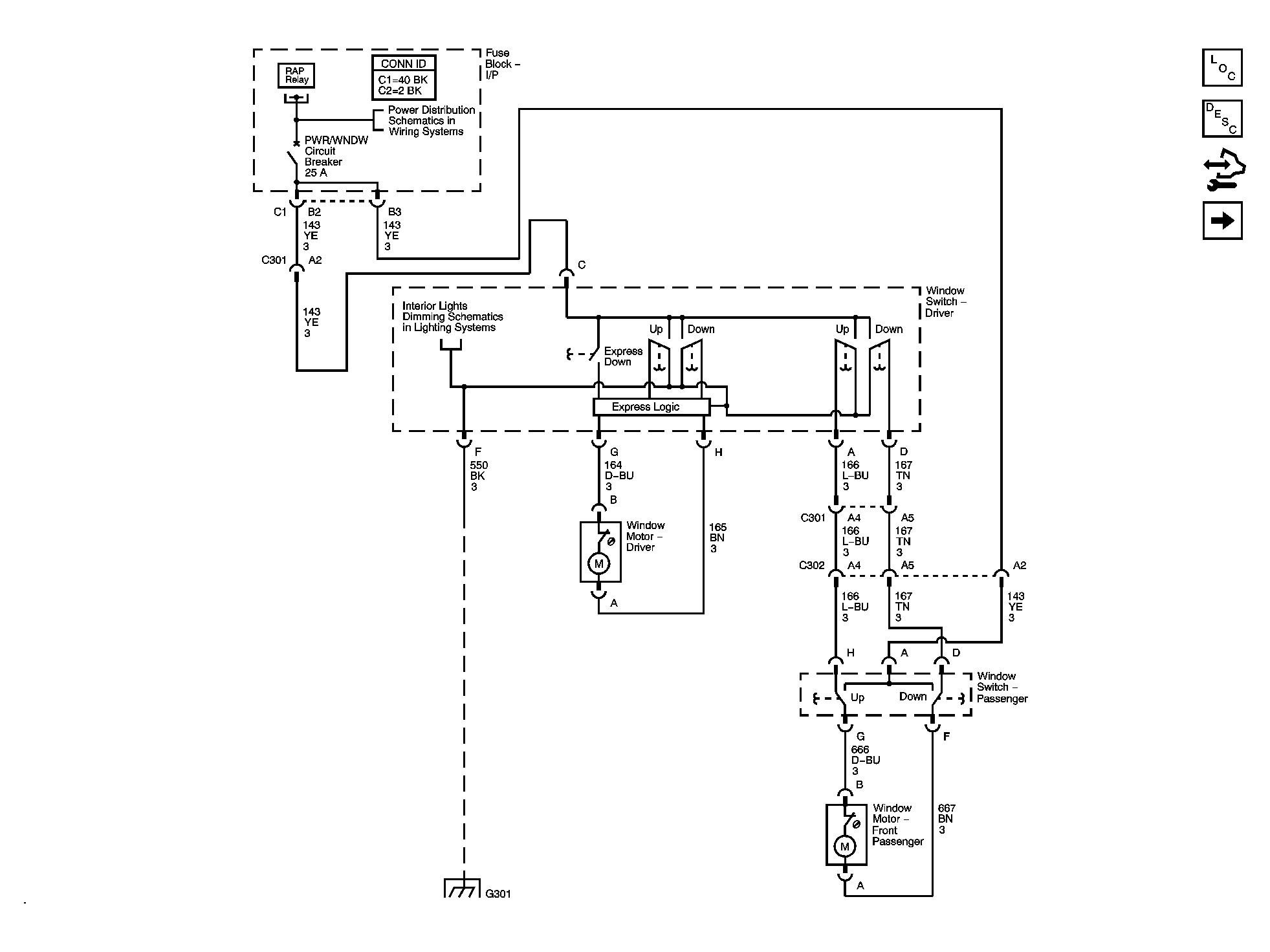

Fig 2: Sedan - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
