Side Front Door Replacement

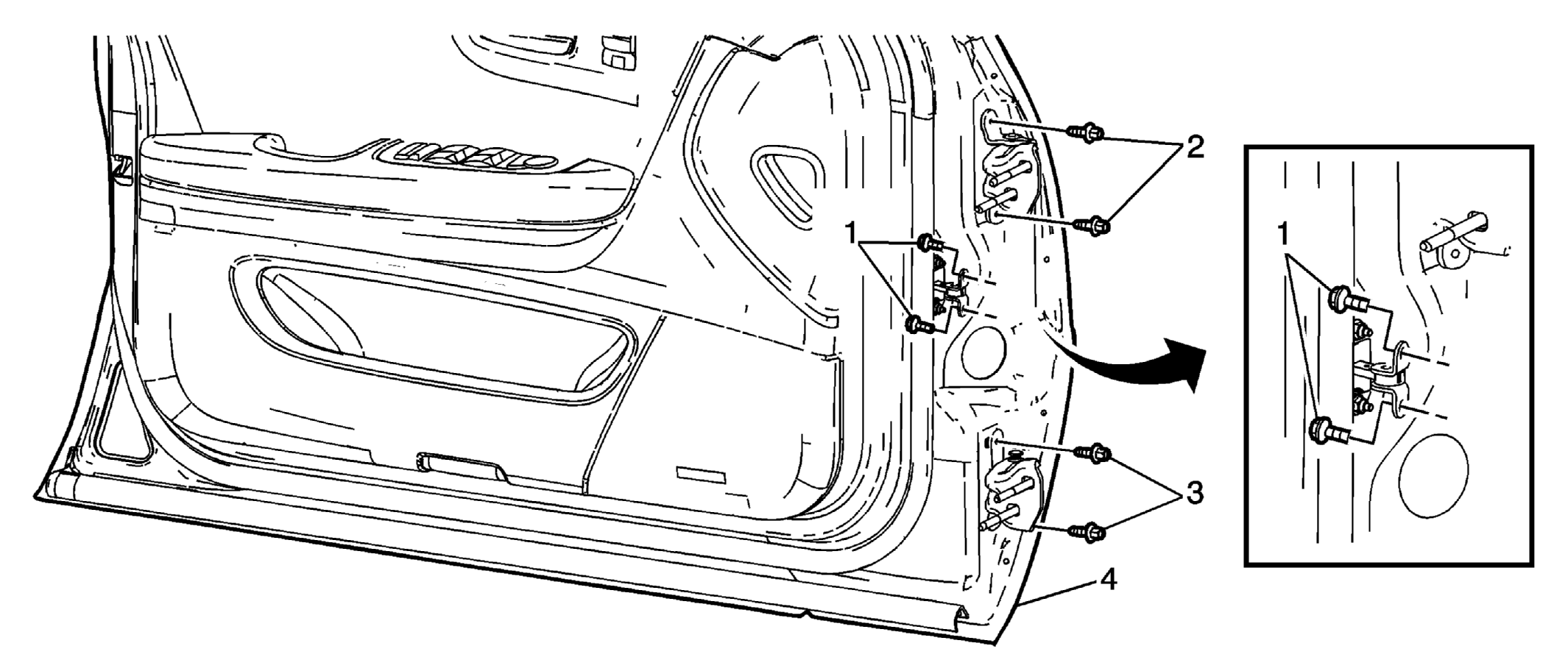

Fig 1: Replacing Side Front Door

Courtesy of GENERAL MOTORS CORP.

Door Replacement - Side Front

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolt, Front Side Door Check Link (Qty: 2) Tighten: 25 N.m (18 lb ft)
2	Bolt, Front Side Door Upper Hinge (Qty: 2) Tip: Support the door before removing the hinge bolts. Disconnect the door electrical connector. Tighten: 33 N.m (24 lb ft)
3	Bolt, Front Side Door Lower Hinge (Qty: 2) Tighten: 33 N.m (24 lb ft)
4	Door Assembly, Front Side Tip: When replacing the door it is necessary to transfer all of the internal components.
