Rear Door Window Replacement

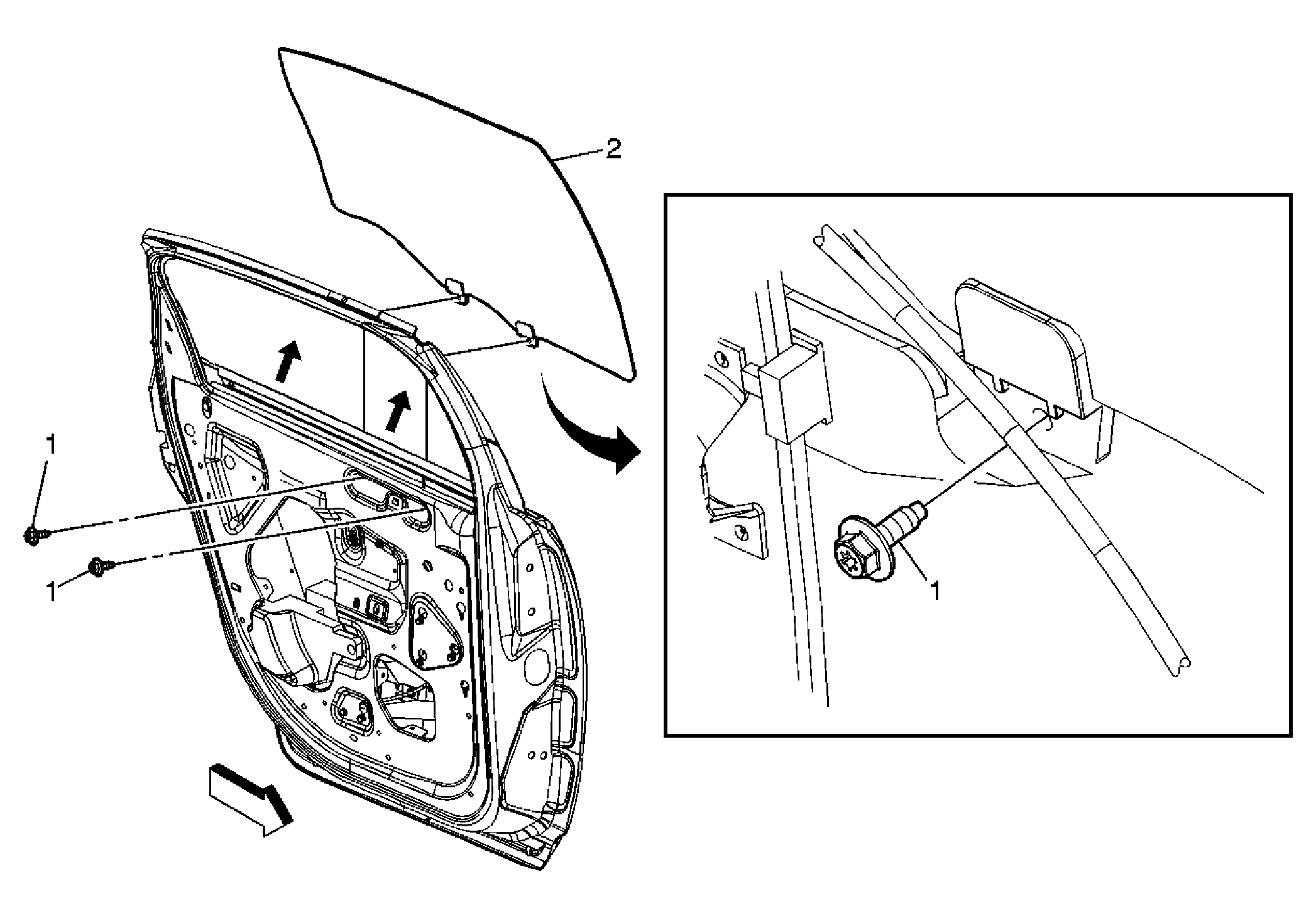

Fig 1: Replacing Rear Door Window

Courtesy of GENERAL MOTORS CORP.

Window Replacement - Rear Door

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Position window approximately half way down in the door. Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) . Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) . Tape the window to door frame to prevent it from moving. Remove the inside sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner . Remove the rear door window weatherstrip. Refer to Window Run Channel Replacement - Rear Door .
1	Rear Side Door Window to Regulator Bolts (Qty: 2) Tighten: 10 N.m (89 lb in)
2	Rear Side Door Window Tip: Slide the window up and install the two bolts which hold the rear door window to the window regulator. Remove the tape.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Position window approximately half way down in the door.
Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) .
Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) .
Tape the window to door frame to prevent it from moving.
Remove the inside sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
Remove the rear door window weatherstrip. Refer to Window Run Channel Replacement - Rear Door .

Rear Side Door Window to Regulator Bolts (Qty: 2)

Tighten: 10 N.m (89 lb in)

Rear Side Door Window
Tip:

Slide the window up and install the two bolts which hold the rear door window to the window regulator.
Remove the tape.
