Rear Door Window Channel Retainer Replacement

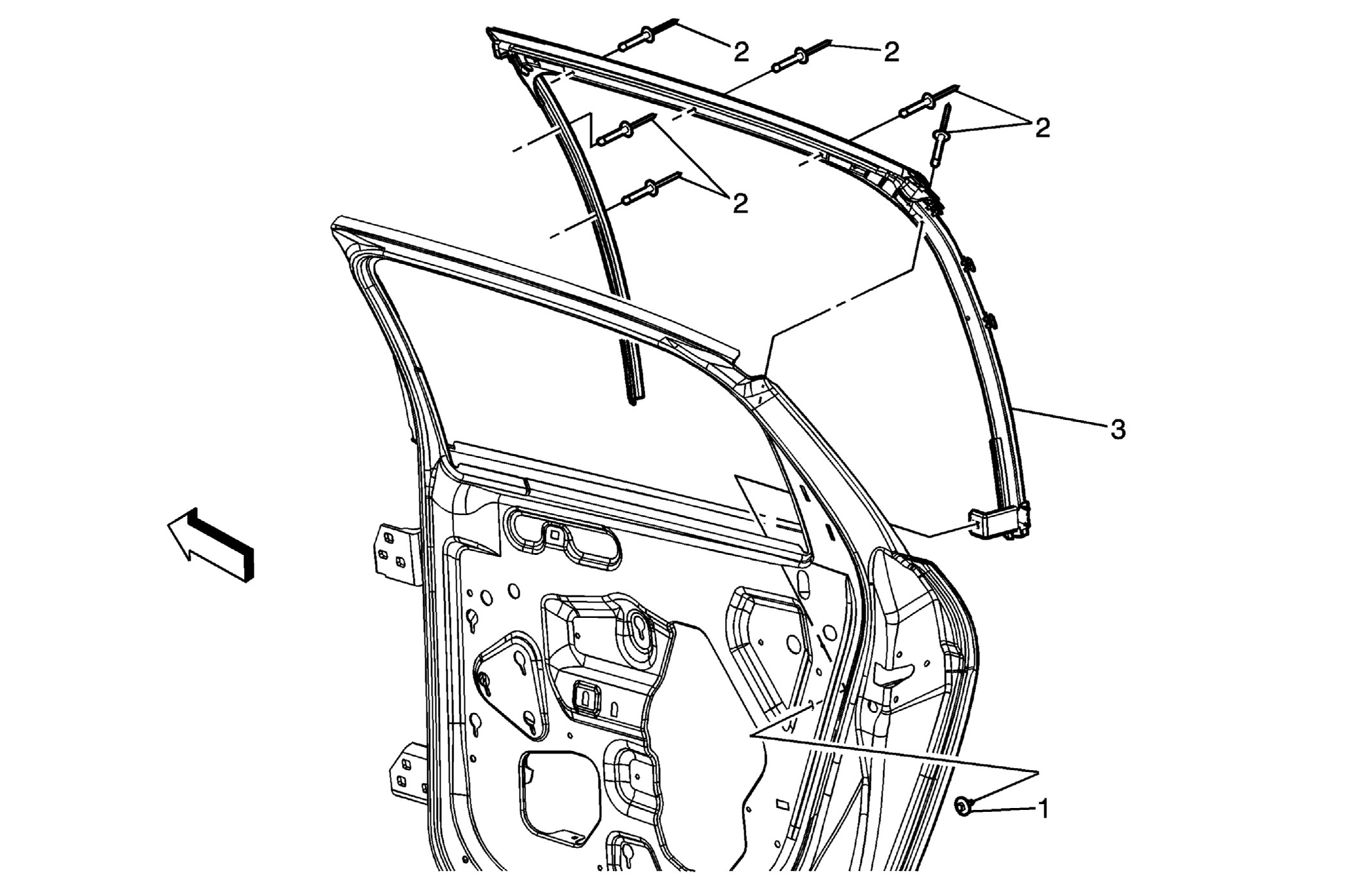

Fig 1: Replacing Rear Door Window Channel Retainer

Courtesy of GENERAL MOTORS CORP.

Window Channel Retainer Replacement - Rear Door

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Rear Door (Impala) . Remove the water deflector. Refer to Water Deflector Replacement - Rear Door (Impala) . Remove the inside sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
1	Rear Door Weatherstrip Seal Retainer Bolt Tighten: 10 N.m (89 lb in)
2	Rear Door Weatherstrip Seal Retainer Rivets (Qty: 6) Tip: Drill out the rivets from around the upper door frame.
3	Rear Door Weatherstrip Seal Retainer Tip: Pull the weatherstrip retainer upward, slightly twisting weatherstrip retainer to clear the outer sealing strip.
