Rear Door Power Window Switch Replacement

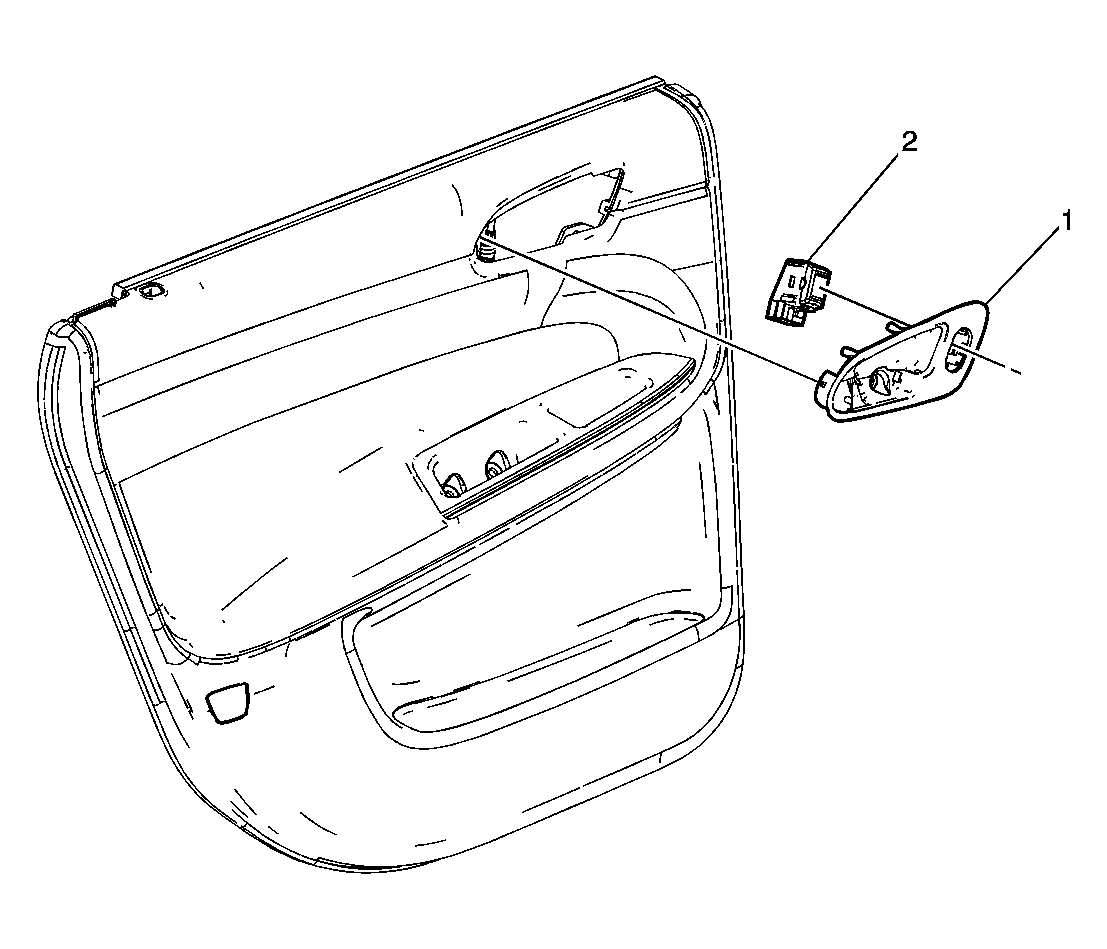

Fig 1: Replacing Rear Door Power Window Switch
GM1644680Courtesy of GENERAL MOTORS CORP.
Power Window Switch Replacement - Rear Door

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Rear Side Door Inside Handle Bezel
Tip:
  1. Pull out at the front edge of the bezel to disengage the retainer
  2. Disconnect the power window switch electrical connector.
2 Rear Side Door Window Switch Assembly
