Front Inside Door Handle Replacement

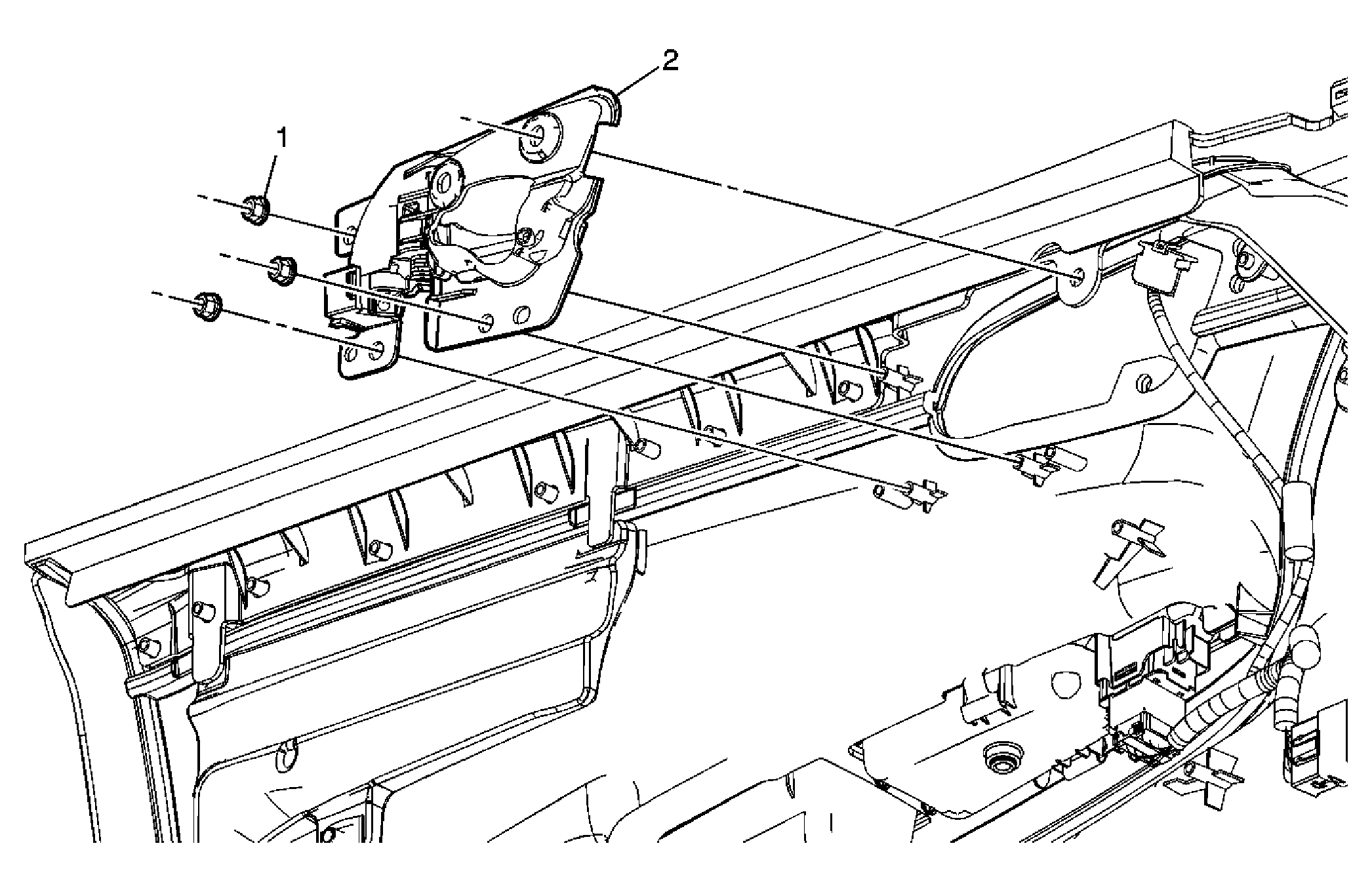

Fig 1: Replacing Front Inside Door Handle
GM1594505Courtesy of GENERAL MOTORS CORP.
Door Handle Replacement - Front Inside

Callout Component Name
NOTE: Refer to Fastener Notice
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications Preliminary Procedure: Remove the door panel. Refer to Trim Panel Replacement - Side Front Door (Impala)
1 Nut, Side Door Handle (Qty: 3)

Tighten:  2 N.m (18 lb in)

2 Handle Assembly, Inside Door
