Left Closeout/Insulator Panel Replacement

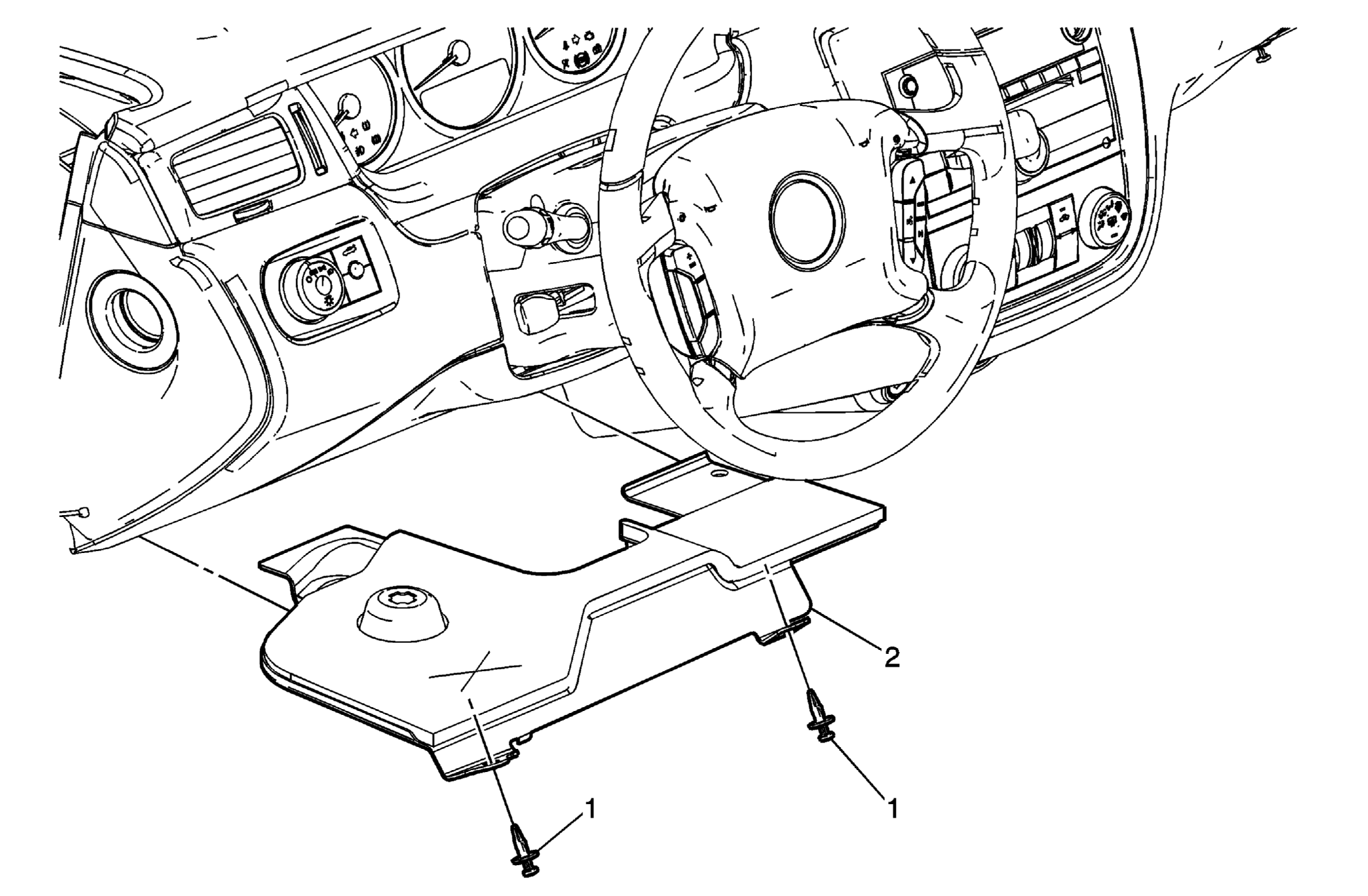

Fig 1: Replacing Left Closeout/Insulator Panel
GM1594250Courtesy of GENERAL MOTORS CORP.
Closeout/Insulator Panel Replacement - Left

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Push Pin Retainer (Qty: 2)
2 Instrument Panel Closeout/Insulator Panel
Tip:
  1. Impala shown Monte Carlo similar.
  2. Remove the courtesy lamp, if equipped.
