Body & Frame
>>
Door Locks
>>
Keyless Entry System
>>
Schematic and Routing Diagrams
>>
Keyless Entry Schematics
Keyless Entry Schematics

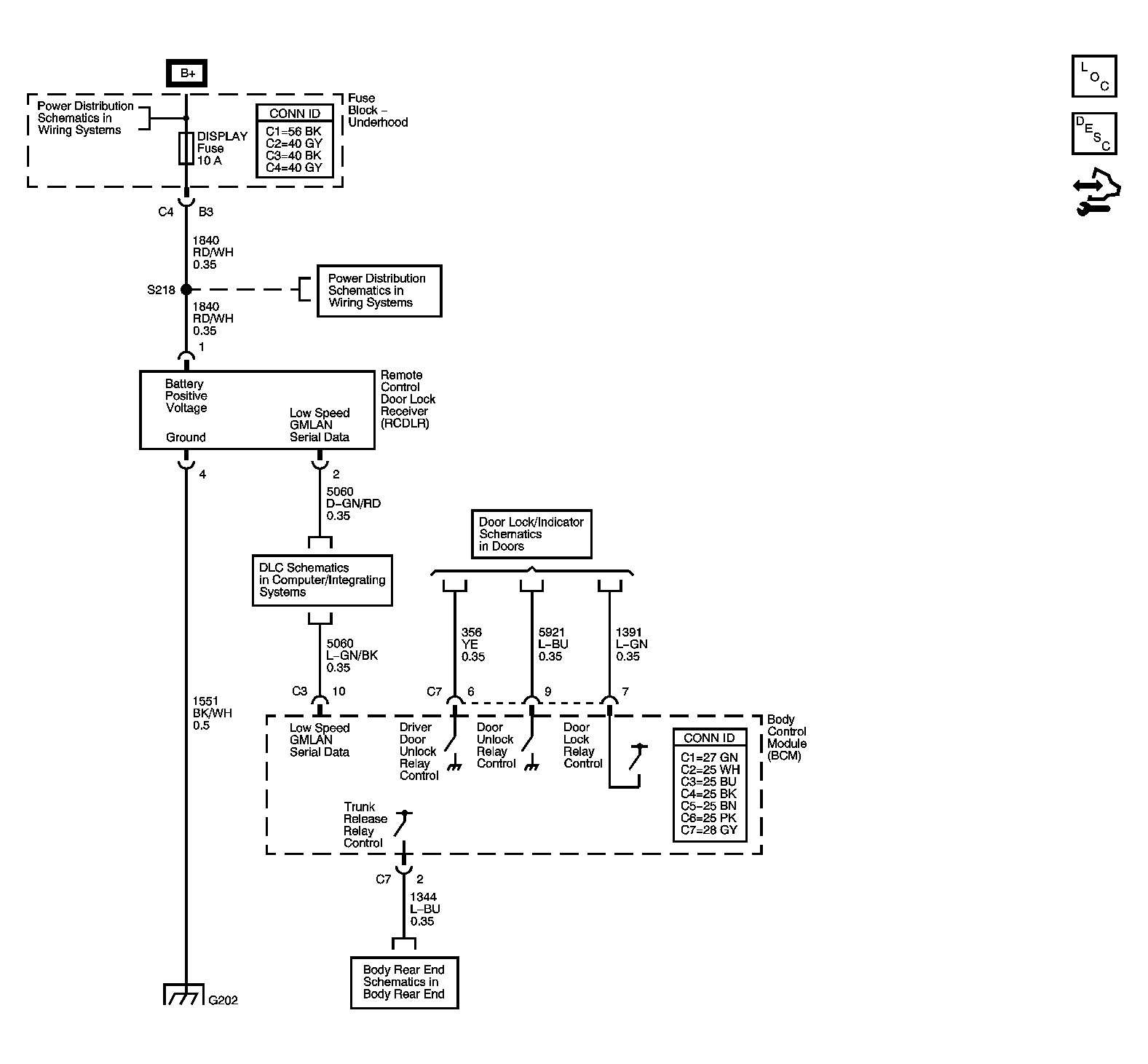

Fig 1: Keyless Entry Schematics - Wiring Diagram
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
