Rear Spring Insulator Replacement

WARNING: This page is about a different car, the 2010 Chevrolet HHR. However, it is still accessible from the selected car via links, so may be relevant.

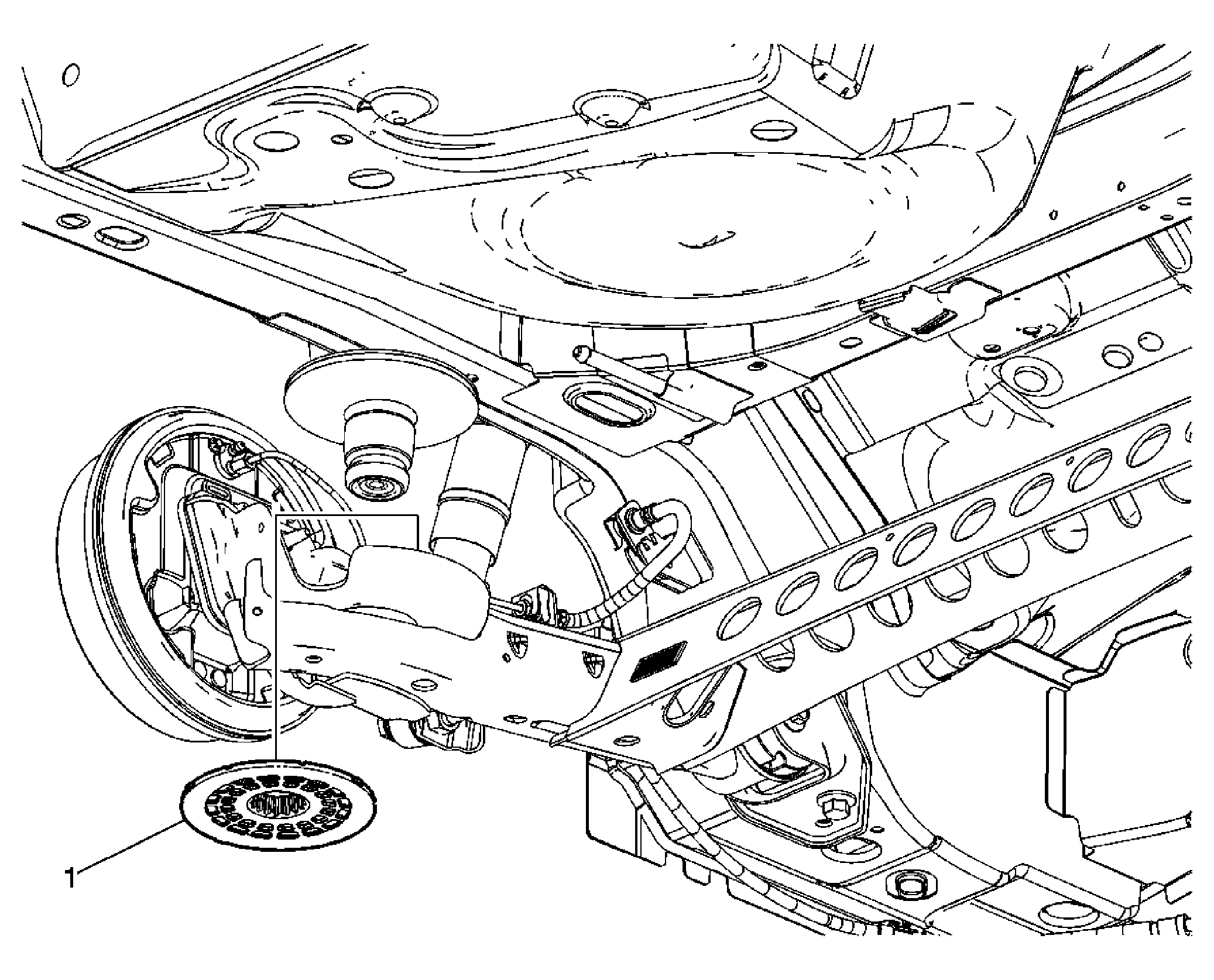

Fig 1: Rear Spring Insulator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the wheel. Refer to Tire and Wheel Removal and Installation . Remove the lower rear shock bolt. Refer to Shock Absorber Replacement . Remove the rear coil spring. Refer to Coil Spring Replacement .
1	Rear Spring Insulator

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the wheel. Refer to Tire and Wheel Removal and Installation .
Remove the lower rear shock bolt. Refer to Shock Absorber Replacement .
Remove the rear coil spring. Refer to Coil Spring Replacement .

Rear Spring Insulator
